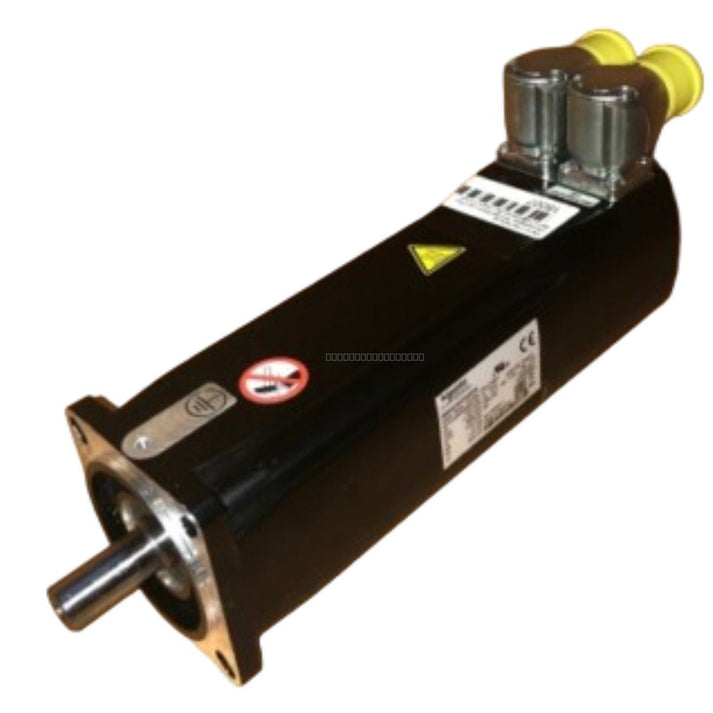

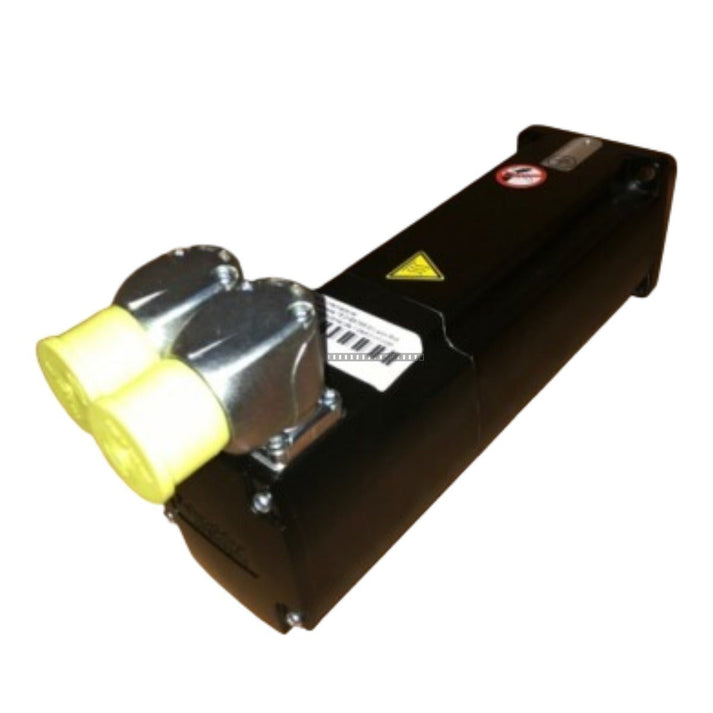

Schneider Electric BMH0703T02F2A Servo Motor

Schneider Electric BMH0703T02F2A Servo Motor

Description

The Schneider Electric BMH0703T02F2A is a high-performance servo motor designed for demanding motion control applications. As part of the Lexium 32 range, this motor provides precise torque and speed control,...

15 people are viewing this right now

Availability: Low stock: 1 left

SKU: BMH0703T02F2A 0050000001287
Vendor: Schneider Electric
Category: Servo Motor
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Schneider Electric BMH0703T02F2A is a high-performance servo motor designed for demanding motion control applications. As part of the Lexium 32 range, this motor provides precise torque and speed control, making it suitable for automated machinery requiring high dynamic response and reliability.

Features

  • Compatible with the Lexium 32 servo drive system
  • Integrated holding brake for secure positioning
  • Maximum mechanical speed of 8000 rpm
  • Continuous stall current of 5.55 A
  • Robust design for industrial environments

Technical Specifications

Product Model BMH0703T02F2A
Range Compatibility Lexium 32
Rated Supply Voltage 240 V
Continuous Stall Current 5.55 A
Maximum Permanent Current 17.84 A
Holding Torque 3 N.m (with holding brake)
Torque Constant 0.61 N.m/A at 120 degC
Back EMF Constant 39.3 V/krpm at 120 degC
Maximum Mechanical Speed 8000 rpm

Installation Guidelines

  • Ensure the motor is mounted on a flat, rigid surface to prevent vibration and misalignment.
  • Verify that the mechanical load is properly coupled to the motor shaft, ensuring no excessive radial or axial force is applied.
  • Use shielded cables for power and encoder connections to minimize electromagnetic interference (EMI).
  • Ensure proper grounding of the motor housing to the system common ground point.
  • Verify that the ambient temperature and ventilation conditions meet the manufacturer's requirements for the Lexium 32 series.
  • Always disconnect power before performing any wiring, inspection, or maintenance on the motor or drive system.

FAQ

What is the primary application for this motor?

The BMH0703T02F2A is primarily used in industrial automation systems compatible with the Lexium 32 drive range, such as packaging machinery, material handling, and precision assembly lines.

Does this motor include a brake?

Yes, this specific model includes a 3 N.m holding brake.
