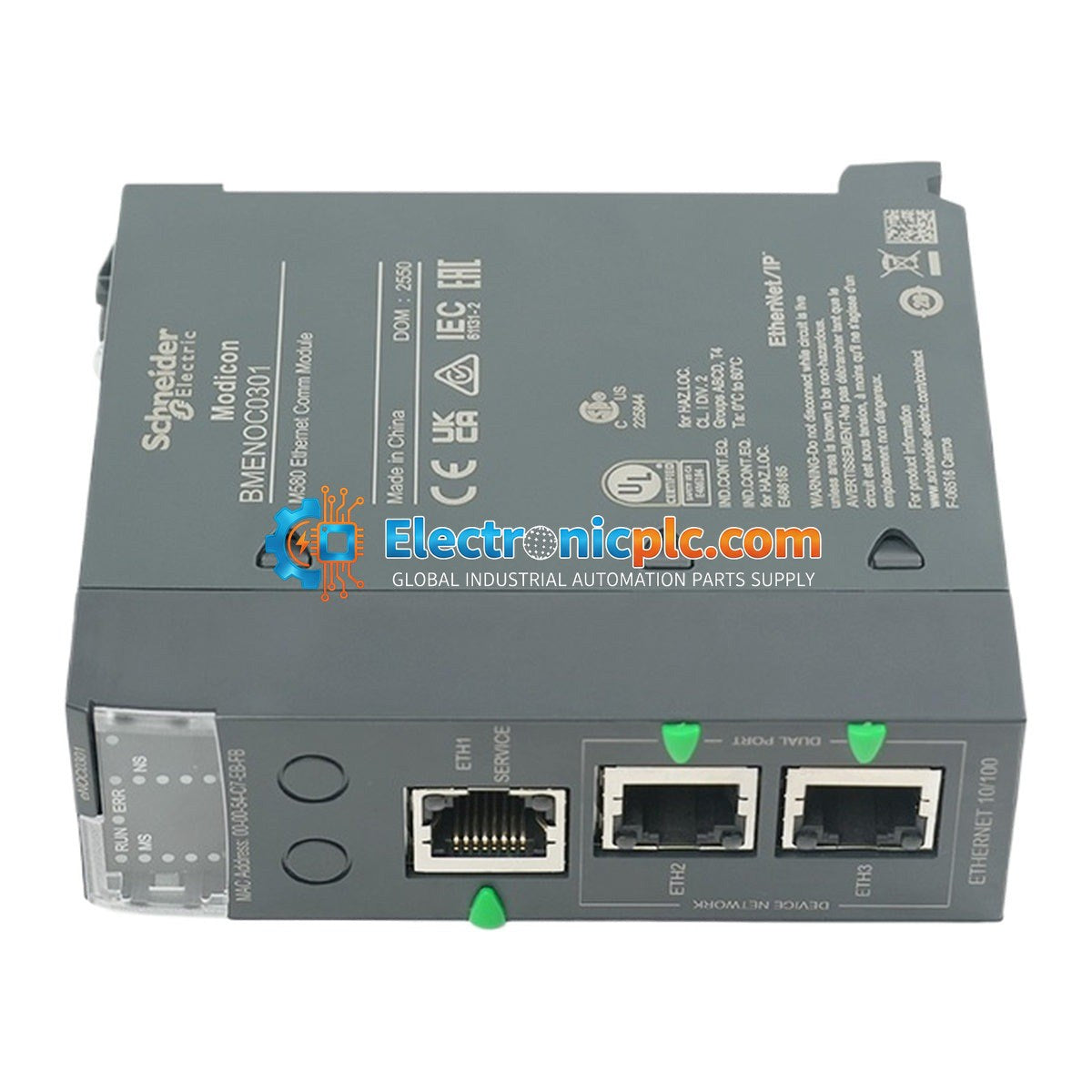

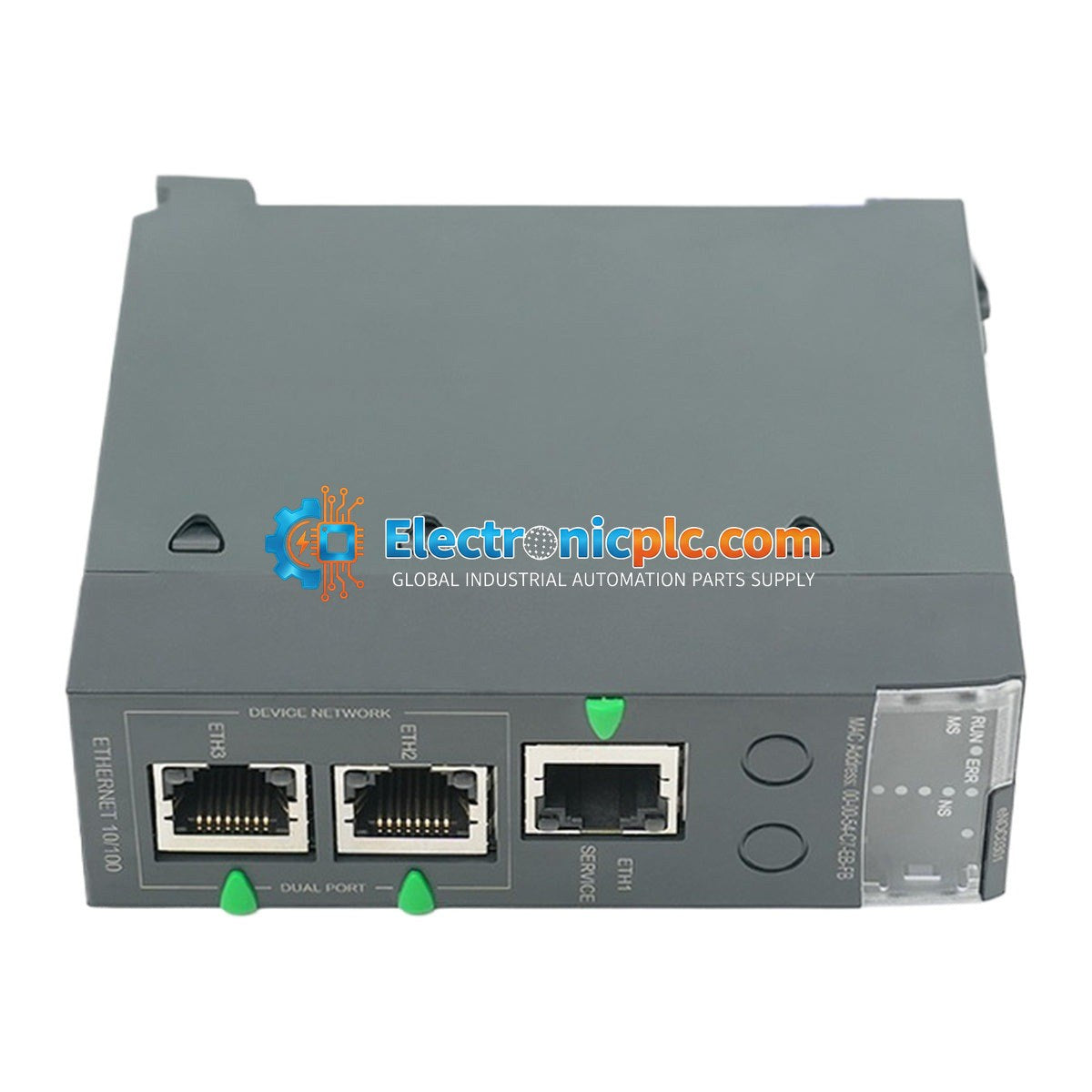

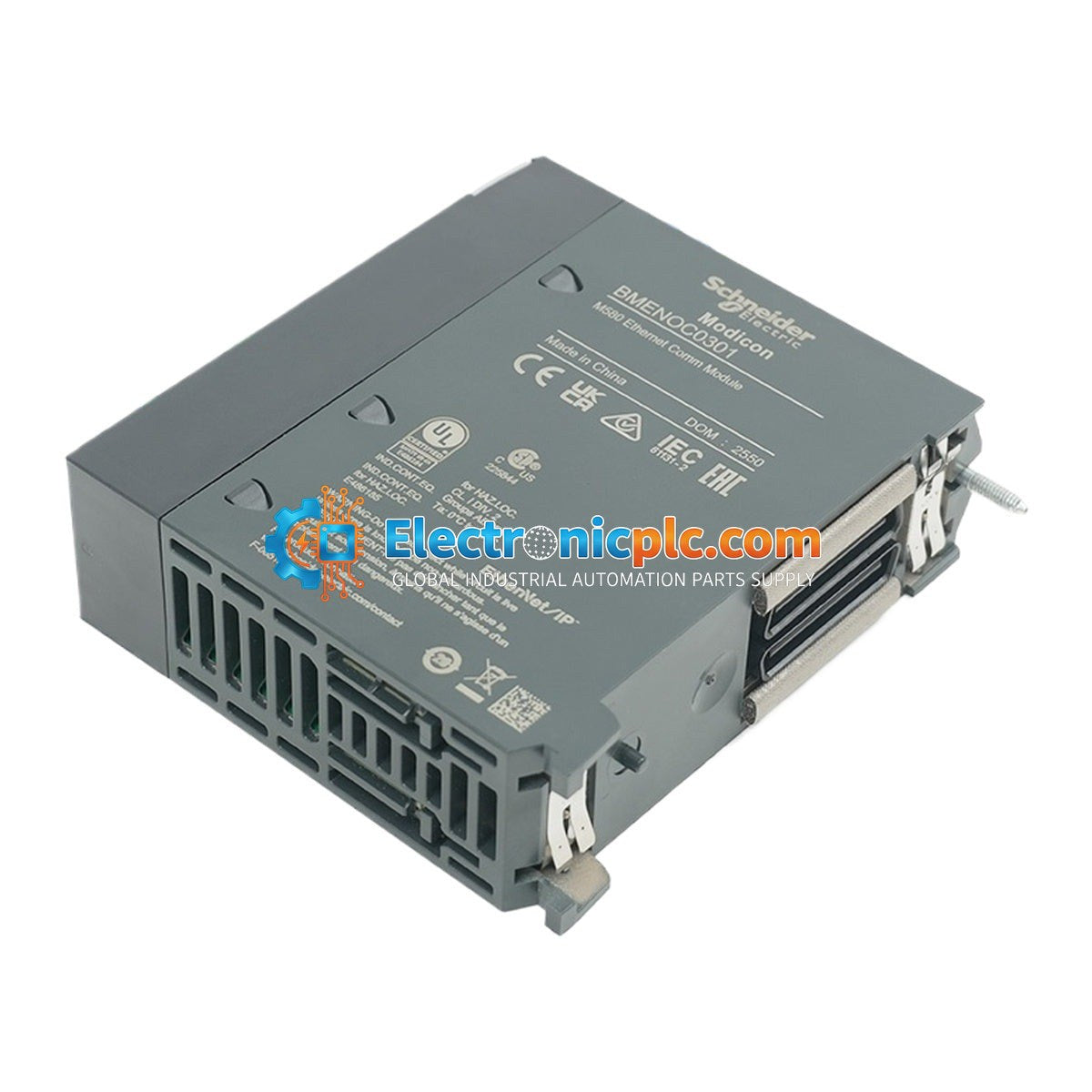

Schneider Electric BMENOC0301 Modicon M580 Ethernet Communication Module

Schneider Electric BMENOC0301 Modicon M580 Ethernet Communication Module

Description

The Schneider Electric BMENOC0301 is a high-performance 3-port Ethernet communication module designed for the Modicon M580 programmable automation controller (PAC) platform. It serves as a critical interface between the M580...

16 people are viewing this right now

Availability: Low stock: 3 left

SKU: BMENOC0301
Vendor: Schneider Electric
Category: Ethernet Communication Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Schneider Electric BMENOC0301 is a high-performance 3-port Ethernet communication module designed for the Modicon M580 programmable automation controller (PAC) platform. It serves as a critical interface between the M580 system and various Ethernet-based network devices, supporting both EtherNet/IP and Modbus TCP communication protocols. This module is engineered to enhance connectivity in medium to large-scale industrial process applications.

Features

  • Multi-Port Connectivity: Features three RJ45 Ethernet ports for flexible network integration.
  • Protocol Support: Native support for Modbus TCP and EtherNet/IP I/O scanning and messaging.
  • Network Resilience: Integrated multi-port switch with support for Rapid Spanning Tree Protocol (RSTP) to prevent network loops.
  • Advanced Management: Includes SNMP network administration, bandwidth management, and an FDR (Faulty Device Replacement) server.
  • Diagnostics: Built-in web server for configuration and diagnostics, complemented by front-panel LED indicators (RUN, ERR, ETH MS, ETH NS).
  • Hot-Swappable: Supports replacement during system operation without requiring a full power cycle.

Applications

  • Factory Automation: High-speed communication for complex manufacturing systems.
  • Machine Control: Manages machinery requiring robust Ethernet connectivity.
  • Process Control: Scalable solution for medium to large-scale industrial processes.
  • Energy Management: Seamless integration into power and energy distribution systems.
  • IIoT Readiness: Transparent Ready technology links field devices to higher-level enterprise networks.

Technical Specifications

Product Model BMENOC0301
Product Range Modicon M580
Communication Ports 3 x RJ45
Power Consumption 555 mA @ 3.3 V DC (Internal rack supply)
Mounting Main rack (Ethernet + X-bus slot)
IP Rating IP20
Standards EN 61131-2, EN 61000-6-4, EN 61000-6-2, EN 61010-2-201
Certifications CE, UL

Installation Guidelines

  • Backplane Requirement: Must be installed on a BME (Ethernet-enabled) backplane. It will not function on a standard BMX (X-Bus only) backplane.
  • ESD Precautions: Always handle the module using proper electrostatic discharge (ESD) protection measures.
  • Power Handling: While the module is hot-swappable, ensure the slot is clear of debris before insertion.
  • Cabling: Use double-shielded twisted pair cabling for optimal performance. Avoid routing Ethernet cables near high-EMI sources such as power lines or motor drives.
  • Network Configuration: When the Ethernet backplane port is enabled, avoid connecting the module directly to the CPU via an external Ethernet cable to prevent network conflicts.

FAQ

What is the BMENOC0301?

The BMENOC0301 is an Ethernet/IP and Modbus/TCP communication module specifically designed for the Modicon M580 PAC system to facilitate high-speed data exchange.

Is the BMENOC0301 hot-swappable?

Yes, the module supports hot-swapping. It can be replaced while the system is powered, though the new module will initialize with its unique MAC address.

What are the cabling restrictions?

When the Ethernet backplane port is enabled, do not connect the module directly to the CPU via an external Ethernet cable, as this may create a network loop or conflict.
