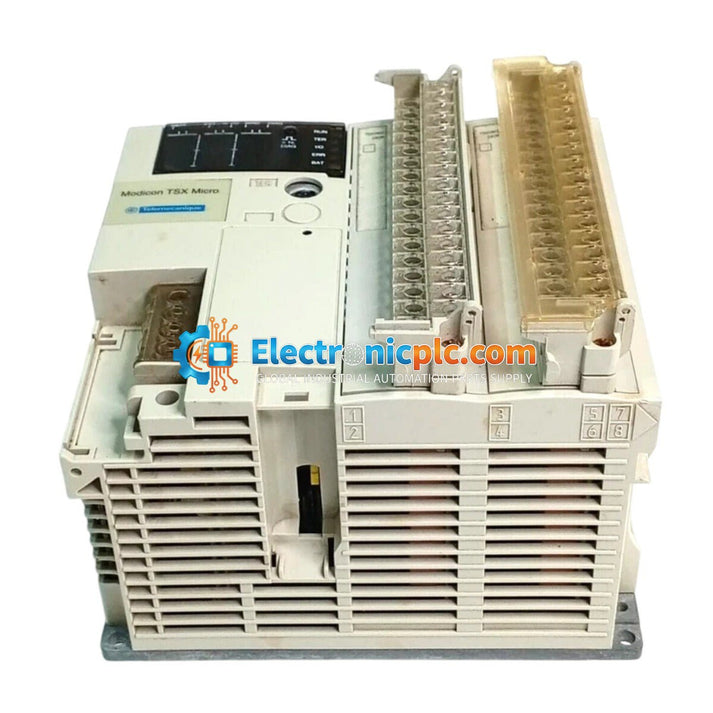

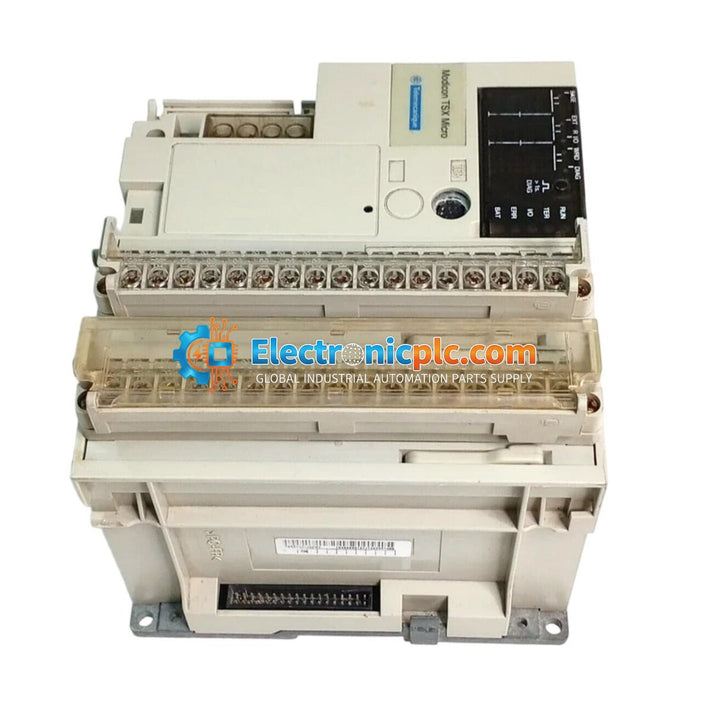

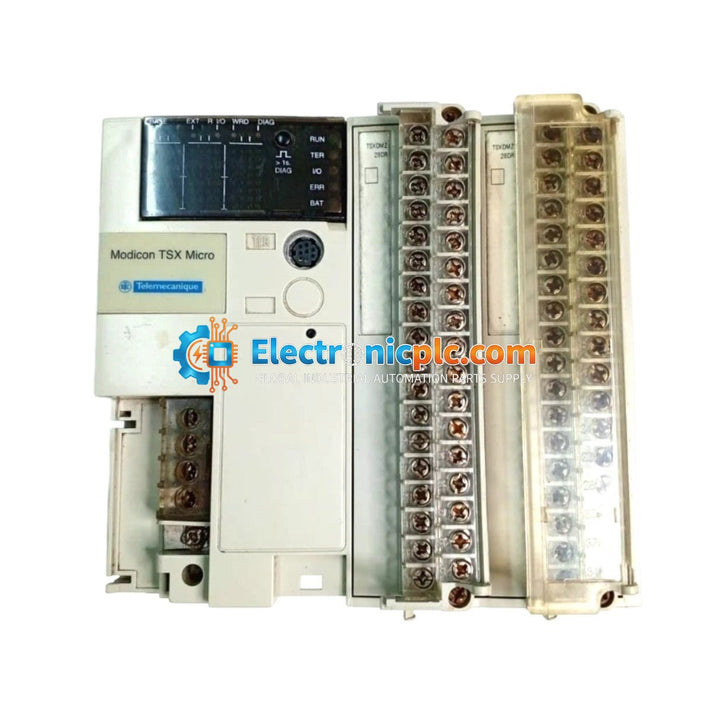

Schneider Electric TSX3710128DR1 Modicon TSX Micro Modular Base Controller

Schneider Electric TSX3710128DR1 Modicon TSX Micro Modular Base Controller

Description

The Schneider Electric TSX3710128DR1 is a high-performance modular base controller designed for the Modicon TSX Micro automation system. This CPU unit serves as the central processing core for small to...

27 people are viewing this right now

Availability: Low stock: 8 left

SKU: TSX3710128DR1
Vendor: Schneider
Category: PLC CPU Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Schneider Electric TSX3710128DR1 is a high-performance modular base controller designed for the Modicon TSX Micro automation system. This CPU unit serves as the central processing core for small to medium-sized industrial control applications, providing robust logic execution for tasks such as packaging, material handling, conveying, and assembly line automation.

Features

  • Integrated 16-bit 24 MHz microcontroller for efficient logic processing.
  • Includes 28 built-in I/O points: 16 digital inputs (24 VDC, Sink/Source) and 12 relay digital outputs (2A).
  • 128 kB of battery-backed RAM for program storage and 32 kB of retentive RAM for data.
  • Fast execution speed of 0.3 microseconds per Boolean instruction.
  • Supports expansion bus for additional I/O modules and communication interfaces.
  • Designed for flexible mounting on DIN rails or standard panels.

Applications

This controller is widely utilized in industrial environments requiring reliable, compact automation, including:

  • Automated packaging machinery
  • Conveyor system control
  • Small-scale assembly line logic
  • General-purpose machine control and monitoring

Technical Specifications

Brand Schneider Electric
Model TSX3710128DR1
Category Modular Base Controller (CPU)
Power Supply Input 24 VDC (19.2 to 28.8 VDC range)
Power Consumption 12 W (Typical)
Inrush Current 30 A for 2 ms at startup
Processor 16-bit Microcontroller (24 MHz)
Program Memory 128 kB RAM (Battery Backed)
Data Memory 32 kB RAM (Retentive)
Backup Battery TSX BAT LITHIUM (5-year life)
Execution Speed 0.3 us per Boolean instruction
Digital Inputs 16 Channels (24 VDC)
Digital Outputs 12 Channels (Relay, 2A)

Installation Guidelines

  • Ensure the controller is mounted in a clean, dry environment with adequate ventilation to prevent overheating.
  • The unit is compatible with standard DIN rail mounting or direct panel mounting.
  • Always disconnect power before installing or removing the module or any connected I/O wiring.
  • Use shielded cables for communication and analog signals to minimize EMI interference.
  • Ensure proper grounding of the controller chassis to the system ground bus to maintain signal integrity.
  • Verify that the 24 VDC power supply is within the specified 19.2 to 28.8 VDC range before energizing.

FAQ

What is the primary function of the TSX3710128DR1?

This unit acts as the main CPU and base controller for the Modicon TSX Micro system, handling logic execution, I/O management, and system expansion for industrial automation tasks.

Is the program memory volatile?

The program memory is battery-backed using the TSX BAT lithium battery to ensure data retention during power outages. It is recommended to replace the battery periodically (typically every 5 years) to prevent loss of data.

Can this controller be expanded?

Yes, the TSX3710128DR1 includes an integrated expansion bus, allowing for the addition of extra I/O modules or communication cards as required by the specific application.
