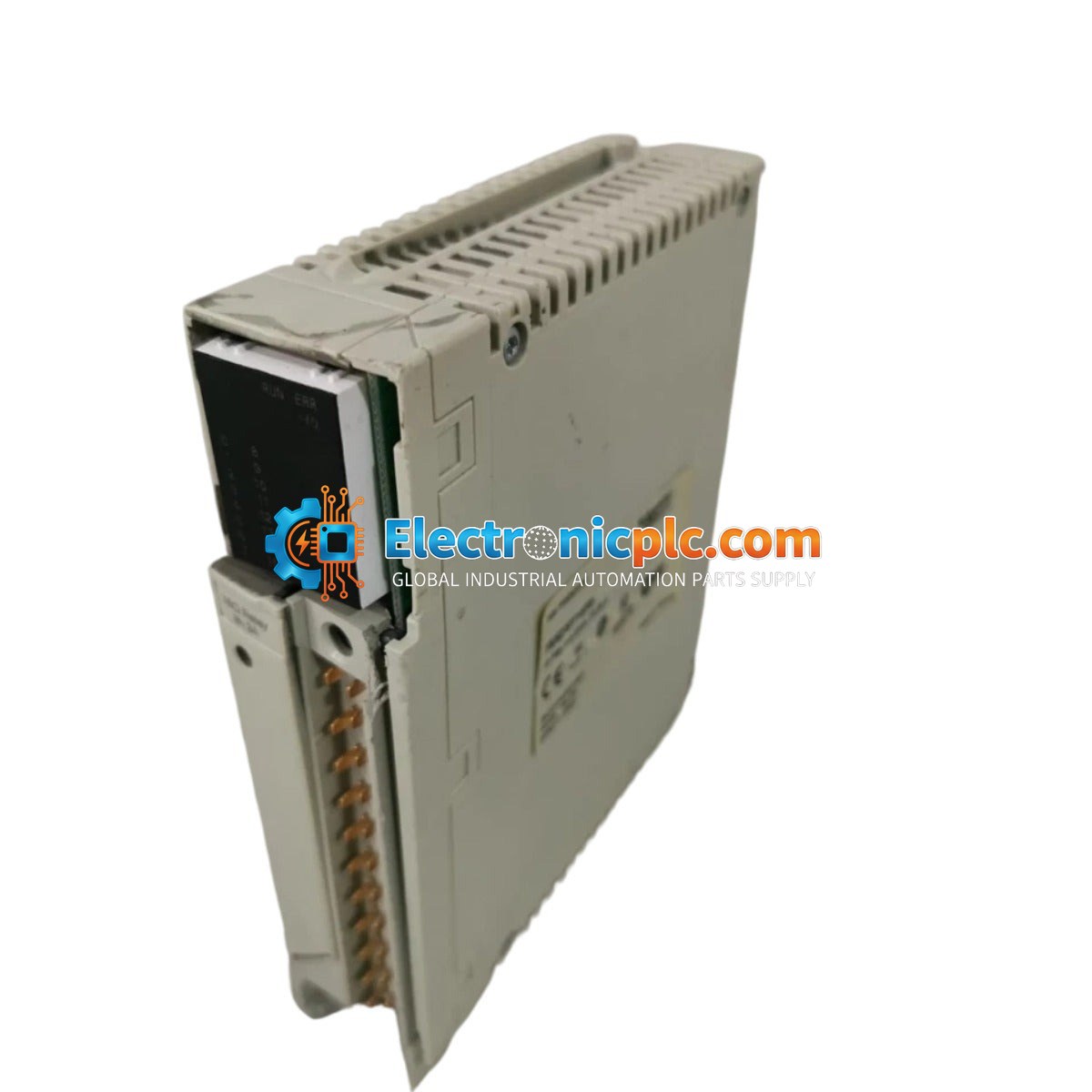

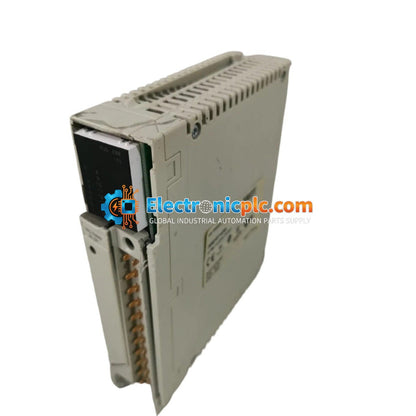

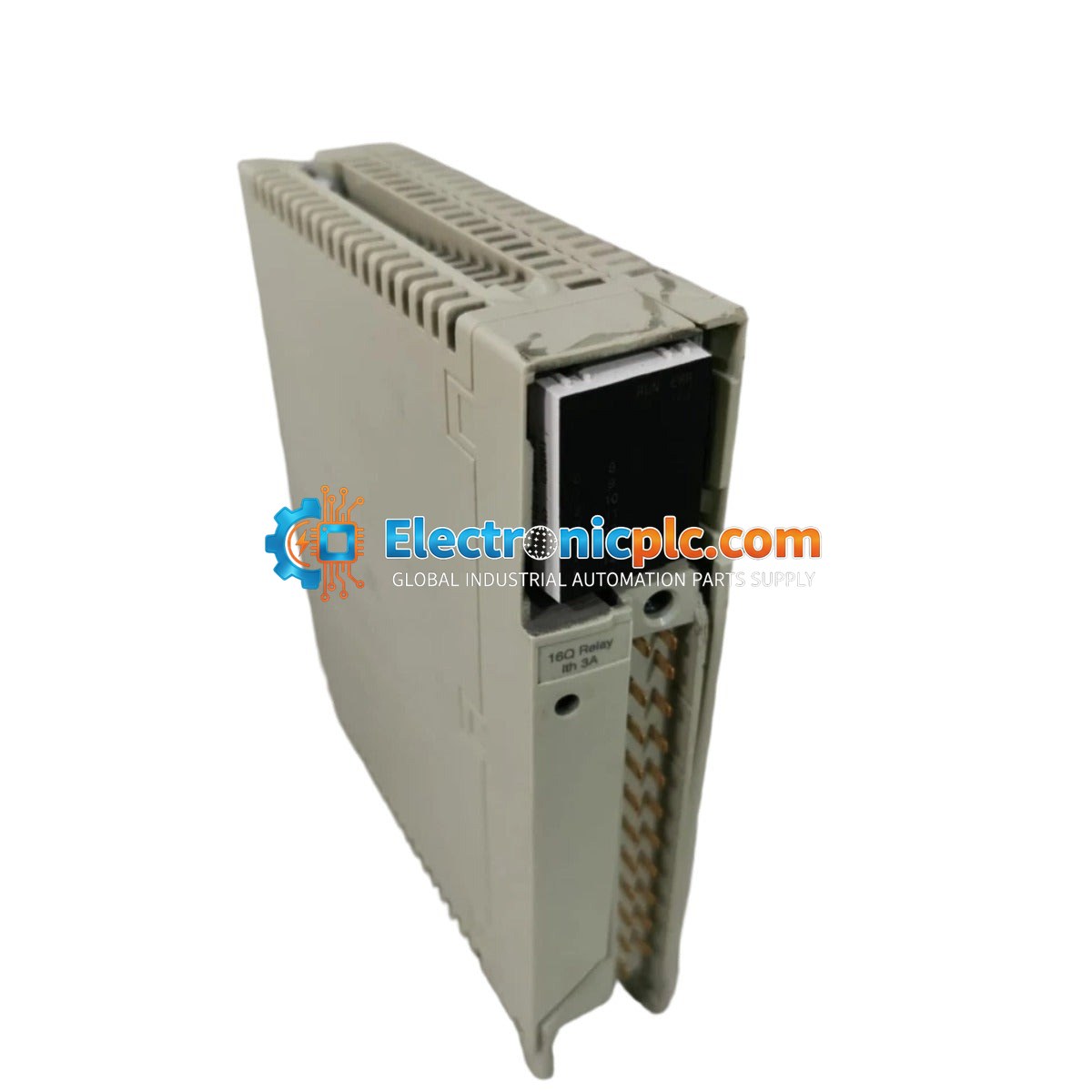

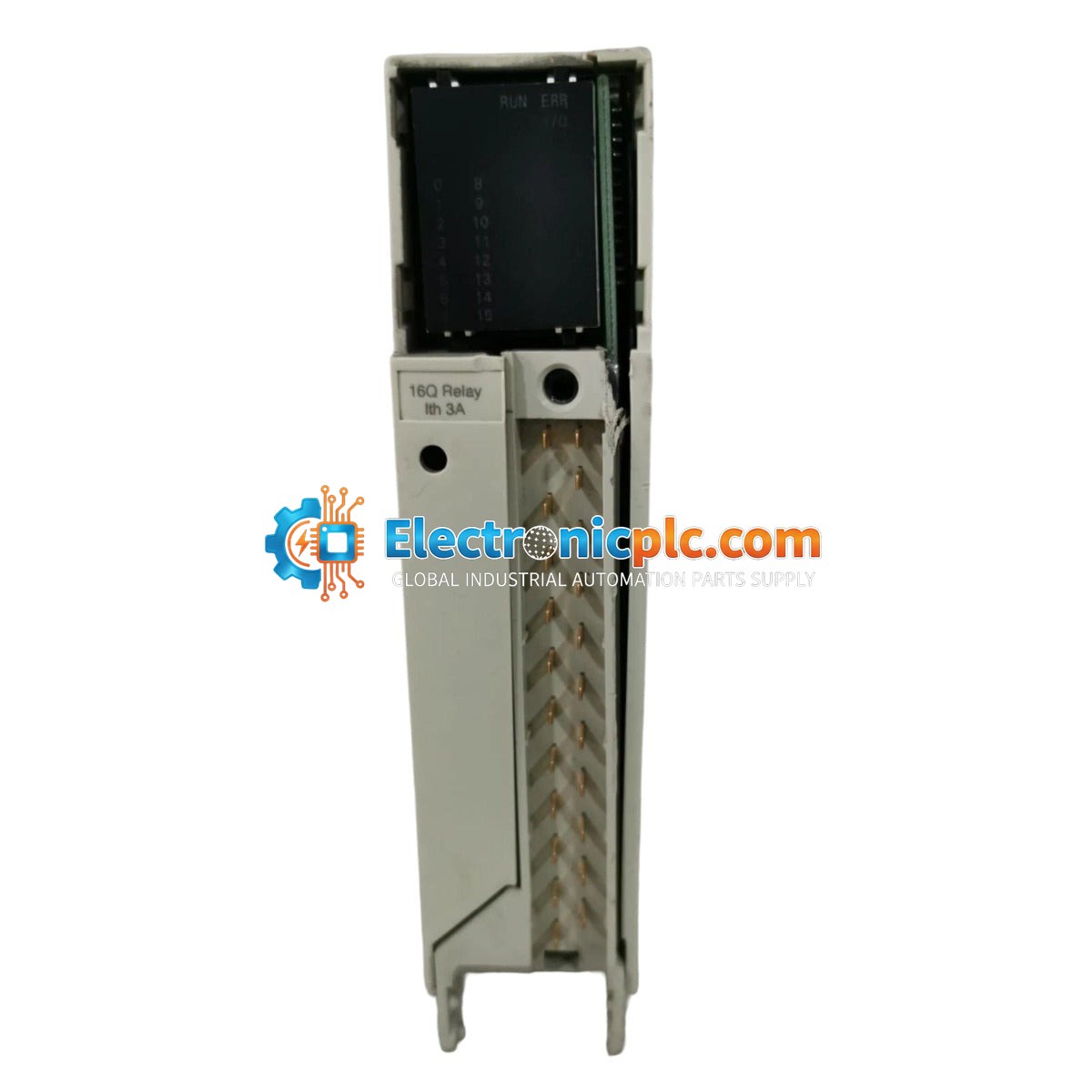

Schneider Electric TSXDSY16R5 Discrete Output Module

Schneider Electric TSXDSY16R5 Discrete Output Module

Description

The Schneider Electric TSXDSY16R5 is a high-performance discrete output module designed for integration within Modicon PLC automation architectures. This module provides 16 independent relay output channels, offering reliable switching control...

25 people are viewing this right now

Availability: Low stock: 5 left

SKU: TSXDSY16R5
Vendor: Schneider
Category: Discrete Output Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Schneider Electric TSXDSY16R5 is a high-performance discrete output module designed for integration within Modicon PLC automation architectures. This module provides 16 independent relay output channels, offering reliable switching control for a wide variety of industrial field devices, including actuators, contactors, and indicators. Its compact, modular design is engineered for efficient installation in space-constrained control cabinets.

Features

  • 16-point discrete output configuration.
  • Relay output type suitable for both inductive and resistive loads.
  • High-density design for space-saving installation.
  • Robust electrical isolation between output channels and the internal bus.
  • Seamless compatibility with Modicon PLC backplanes.

Technical Specifications

Manufacturer Schneider Electric
Model TSXDSY16R5
Type Discrete Output Module
Number of Points 16 Points
Output Type Relay
Contact Rating 2A per channel
Isolation 1500V RMS between channels and bus
Weight 0.25 kg

Installation Guidelines

  • Ensure the PLC power supply is disconnected before installing or removing the module from the backplane.
  • Mount the module on a standard DIN rail or compatible rack system, ensuring proper seating to avoid backplane connector damage.
  • Maintain adequate spacing around the module to allow for proper heat dissipation and airflow within the control cabinet.
  • Route output wiring away from high-voltage power cables and sources of electromagnetic interference (EMI) to prevent signal noise.
  • Verify all terminal connections are secure and that the load connected to each relay channel does not exceed the 2A rating.
  • Follow standard ESD (Electrostatic Discharge) handling procedures when touching the module circuitry.

FAQ

What type of loads can the TSXDSY16R5 handle?

The module features relay outputs capable of switching both resistive and inductive loads, provided the current does not exceed the specified 2A per channel limit.

Is this module compatible with all Modicon PLCs?

The TSXDSY16R5 is designed for specific Modicon PLC series backplanes. Please verify your system's hardware compatibility list before installation.

What is the isolation rating of this module?

This module provides 1500V RMS isolation between the output channels and the internal bus, ensuring protection for the controller against field-side electrical faults.
