Product Overview

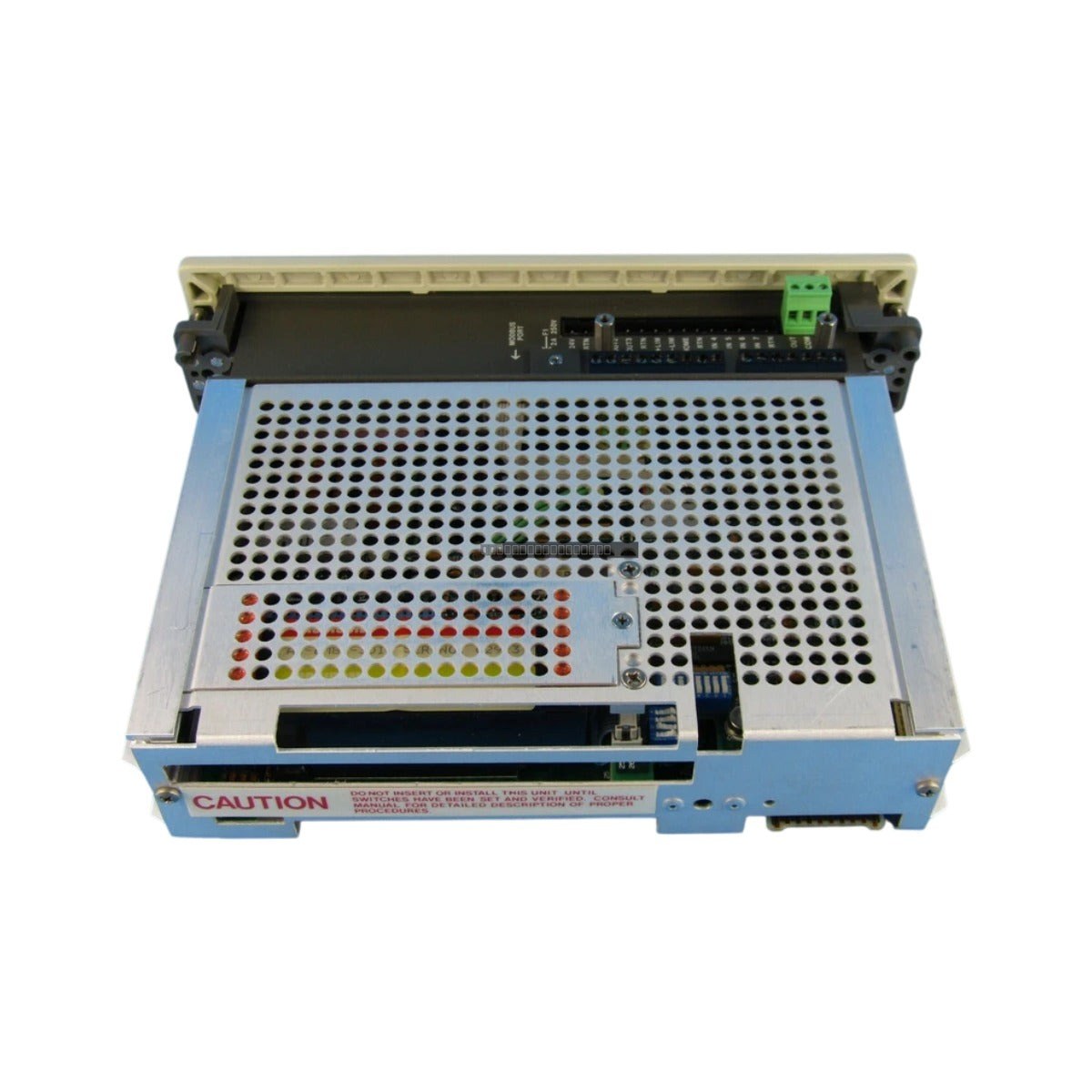

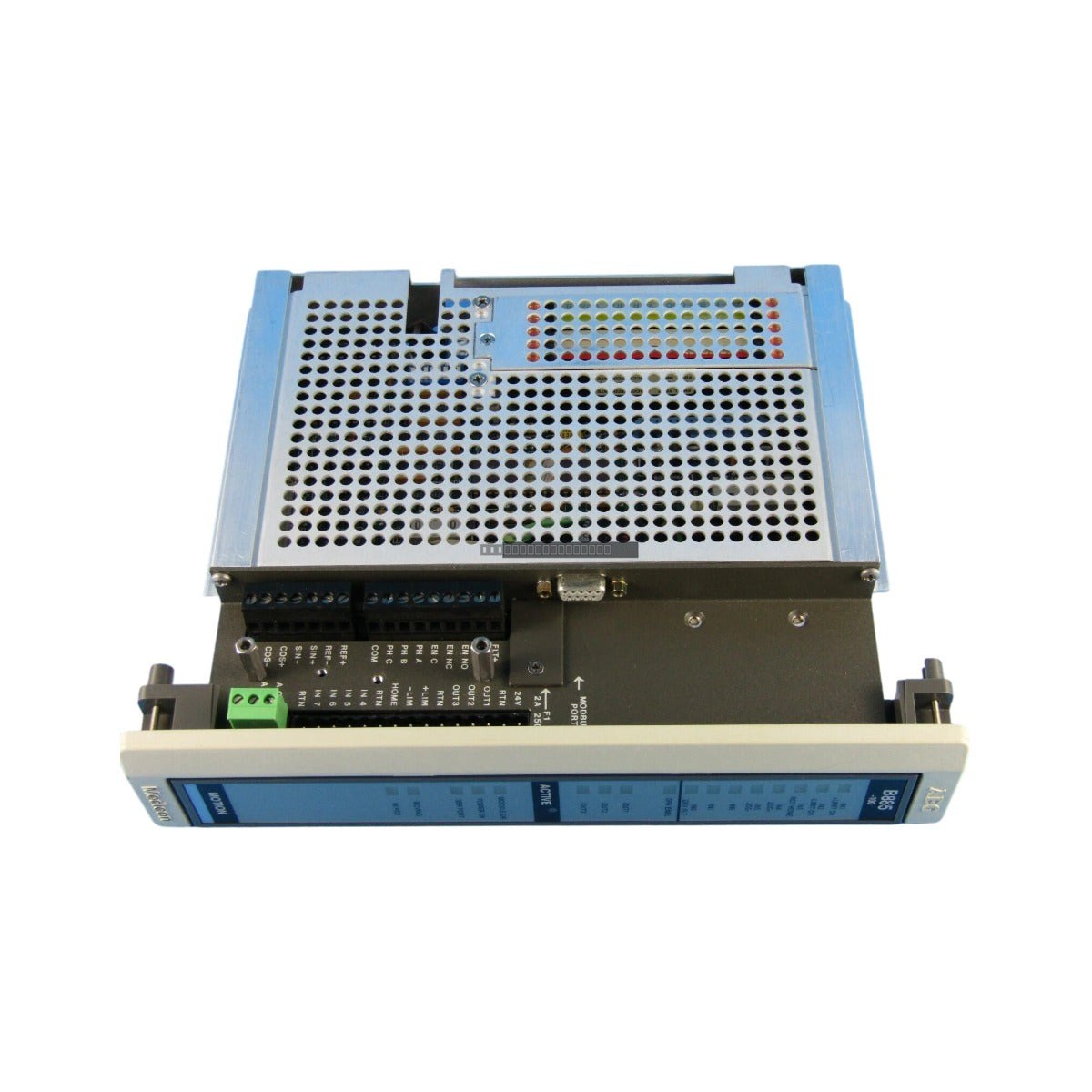

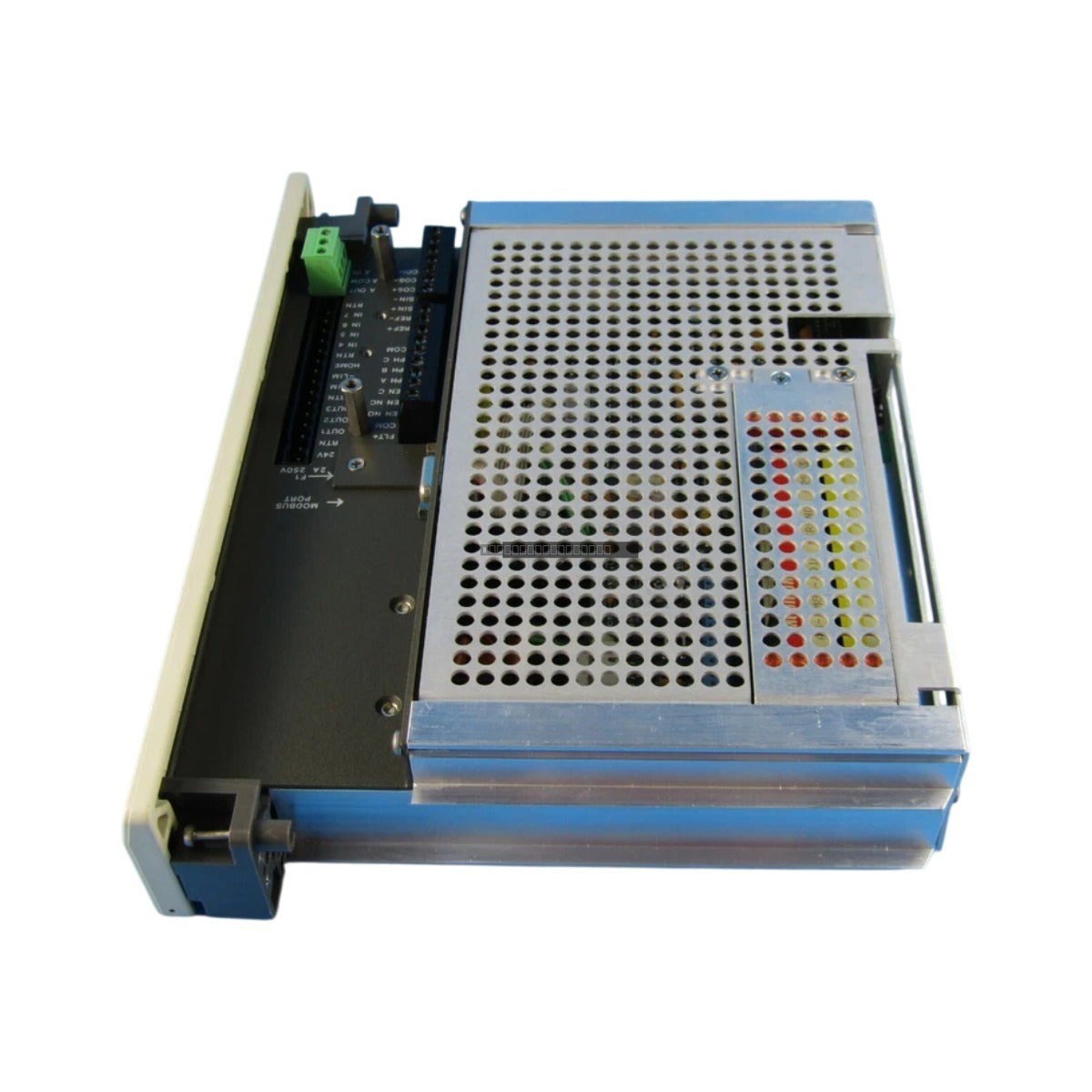

The Schneider Electric ASB885100 is a dedicated diagnostic and calibration module designed for the Modicon 800 Series I/O backplane architecture. This component serves as a critical tool for hardware loop validation and structural diagnostic isolation, ensuring that signal integrity is maintained across the backplane bus matrix. Engineered for demanding industrial environments, including power generation and petrochemical processing, the module facilitates rapid loop debugging and system maintenance by verifying signal paths without requiring extensive manual line reconfiguration.

Features

• Backplane diagnostics for signal path tracing and hardware loop verification.
• Supports structural isolation to prevent interference from common-mode voltage fluctuations.
• Integrates with host CPU firmware for automated system startup diagnostic routines.
• On-board status indicators for real-time monitoring of bus continuity and logic power stability.
• Compact single-slot footprint within the 800 Series chassis.

Applications

This module is primarily utilized in high-availability control systems where downtime must be minimized. It is suitable for deployment in:

• Coal-fired and renewable power generation facilities.
• Petrochemical refining and hazardous processing plants.
• Underground mining control and monitoring systems.
• Large-scale industrial automation backplanes requiring frequent loop validation.

Technical Specifications

Installation Guidelines

• Ensure the host controller is powered down before inserting or removing the module from the 800 Series chassis.
• Handle the module using standard ESD (Electrostatic Discharge) protection protocols to avoid damage to internal trace circuits.
• Verify that the module is fully seated within the chassis slot to ensure proper backplane connector engagement.
• Maintain adequate ventilation around the chassis to keep operating temperatures within the specified 0 to 60 deg C range.
• Confirm that the module is compatible with your current CPU firmware version before initiating automated diagnostic routines.

FAQ

Does this module require external power?

No, the ASB885100 draws its power directly from the chassis rail, consuming 300 mA at 5 VDC.

Can this module be used for live loop debugging?

Yes, the module is designed to perform diagnostic isolation and signal tracing, allowing for loop validation without the need for full system shutdowns or extensive line reconfigurations.
