Description

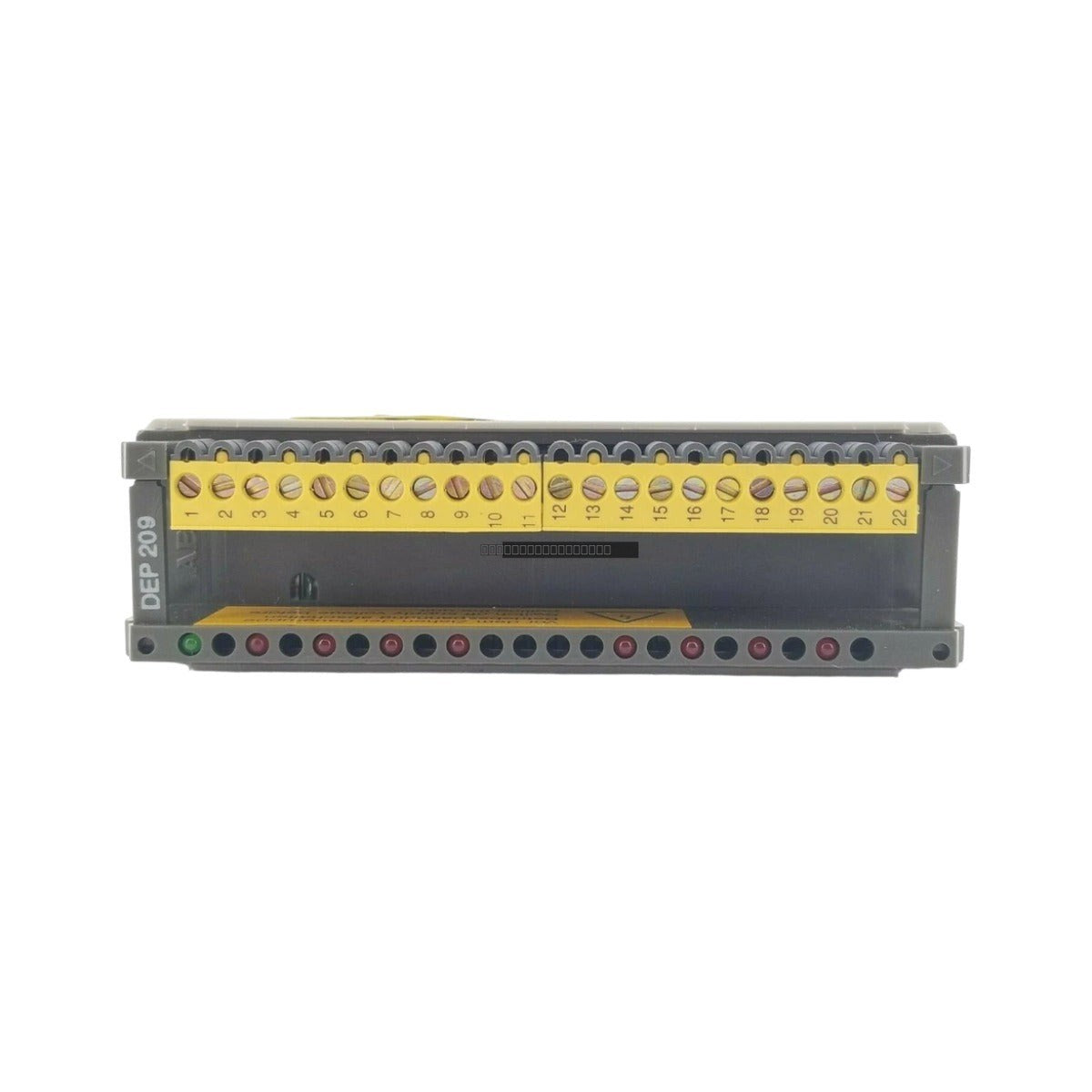

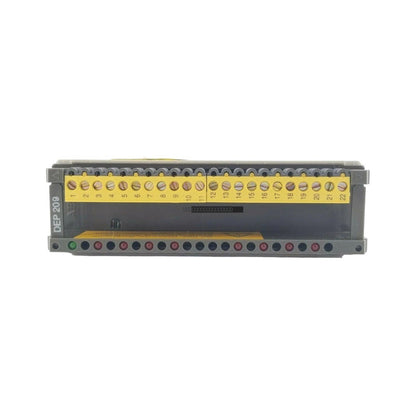

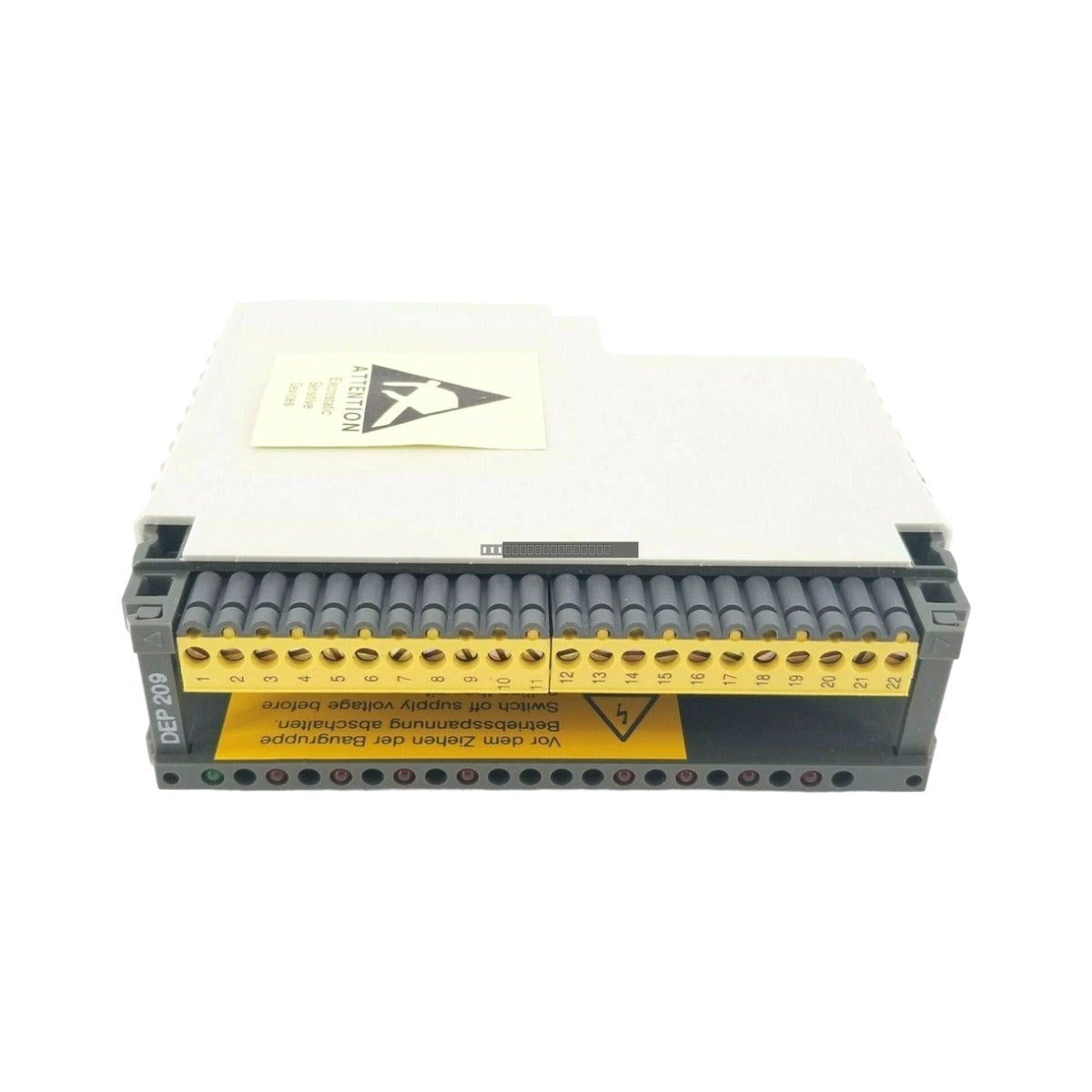

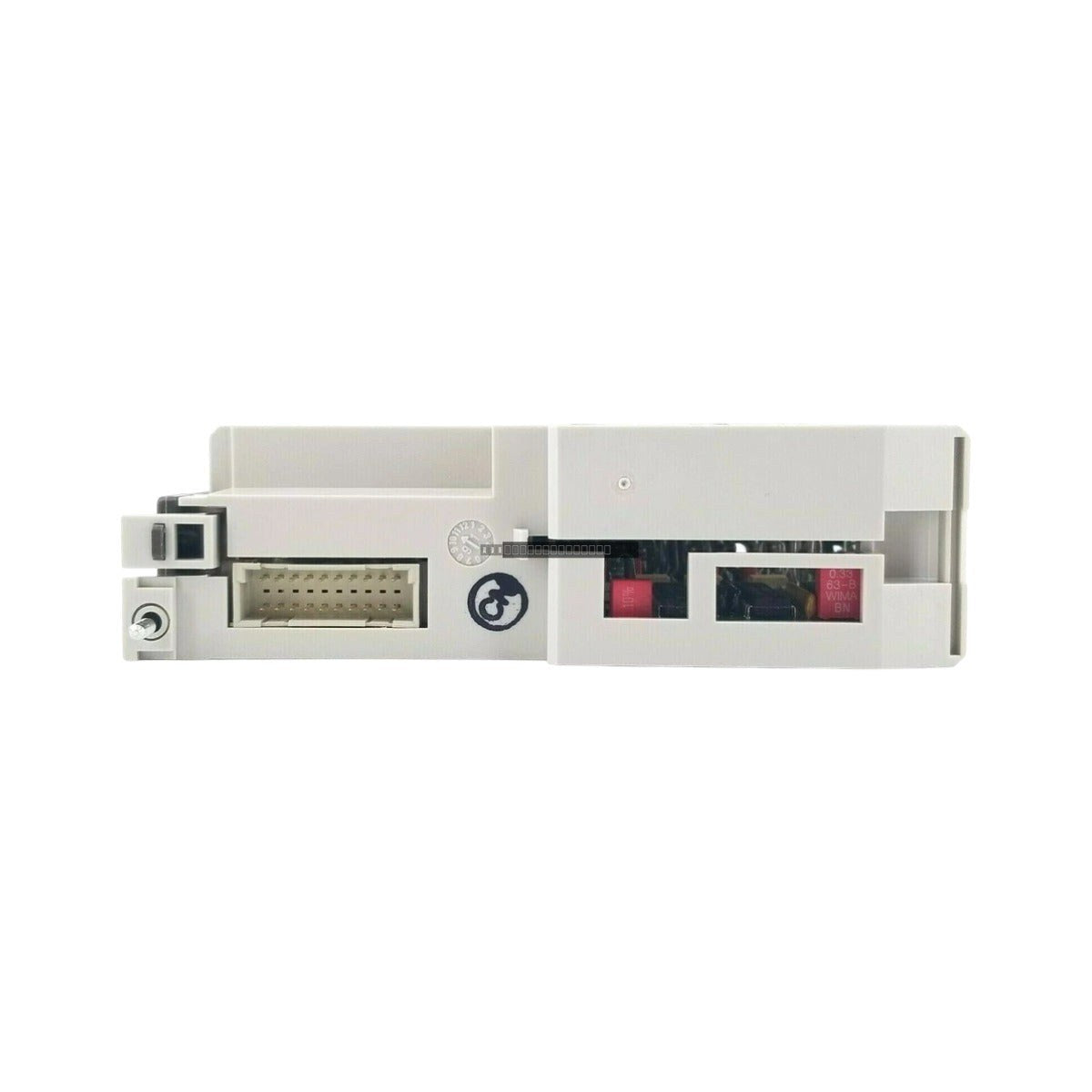

The Schneider Electric ASBDEP209 is a high-performance 16-channel digital input module designed for integration within the Modicon 800 Series automation architecture. This module is tasked with the reliable acquisition of discrete signals from field devices such as limit switches, proximity sensors, and auxiliary contacts. It is specifically built to operate in rigorous industrial environments, including power generation, chemical processing, and heavy-duty manufacturing, ensuring signal integrity through integrated input filtering that mitigates the effects of contact bounce and electrical noise.

Features

• 16 discrete input channels for high-density signal monitoring.
• Optical isolation between field-side inputs and the system backplane to prevent damage from transient voltage spikes.
• Passive RC filtering on each channel to suppress high-frequency interference.
• Front-panel LED indicators providing real-time visual status of individual input channels.
• Removable screw terminal assembly for simplified field wiring and maintenance.

Applications

This module is suitable for a wide range of industrial control applications, particularly where discrete signal monitoring is critical to process safety and sequence control. It is commonly deployed for monitoring interlock states, emergency stop feedback, and general-purpose status monitoring in PLC-based control systems.

Technical Specifications

Installation Guidelines

• Ensure the system power is completely disconnected before inserting or removing the module from the chassis.
• Use shielded cabling for field inputs to minimize electromagnetic interference (EMI) in high-noise environments.
• Verify that all terminal screws are tightened securely to the specified torque to prevent intermittent connections.
• Maintain adequate ventilation around the chassis to ensure operating temperatures remain within the specified 0 to 60 degC range.
• Observe proper ESD (Electrostatic Discharge) handling procedures when touching the module circuitry.

FAQ

Q: Is this module compatible with other Modicon series?
A: The ASBDEP209 is specifically designed for the Modicon 800 Series. Please verify your specific rack and CPU compatibility before installation.

Q: What is the primary purpose of the optical isolation?
A: The optical isolation serves as a dielectric barrier, protecting the sensitive backplane logic from high-voltage surges or ground potential differences originating from the field-side wiring.
