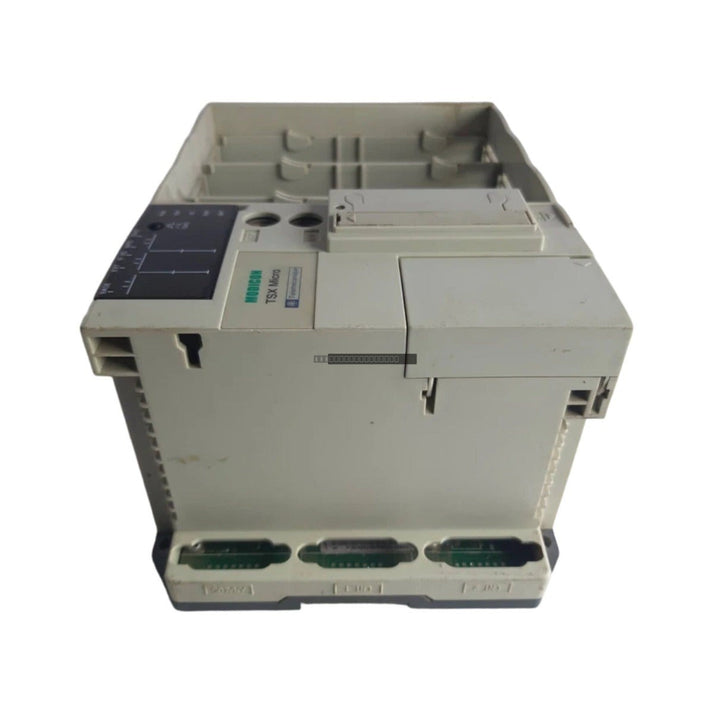

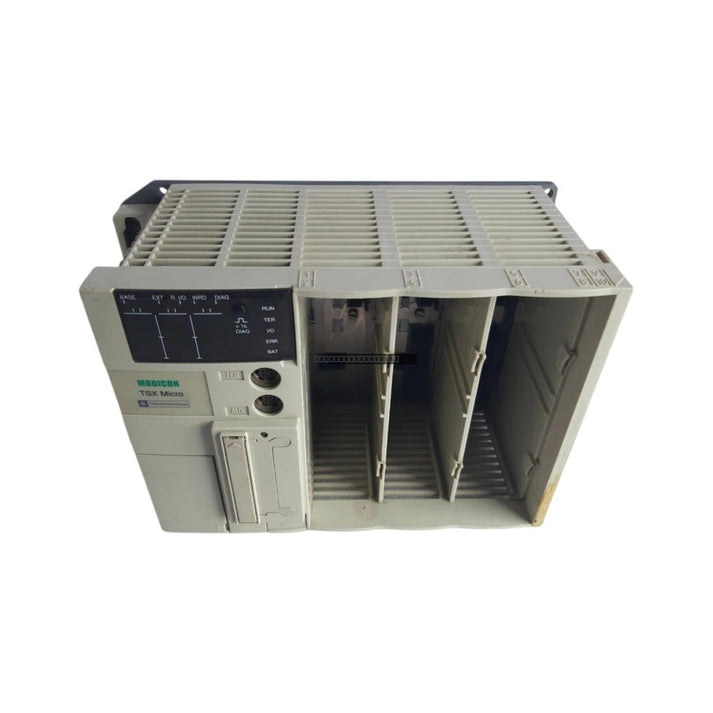

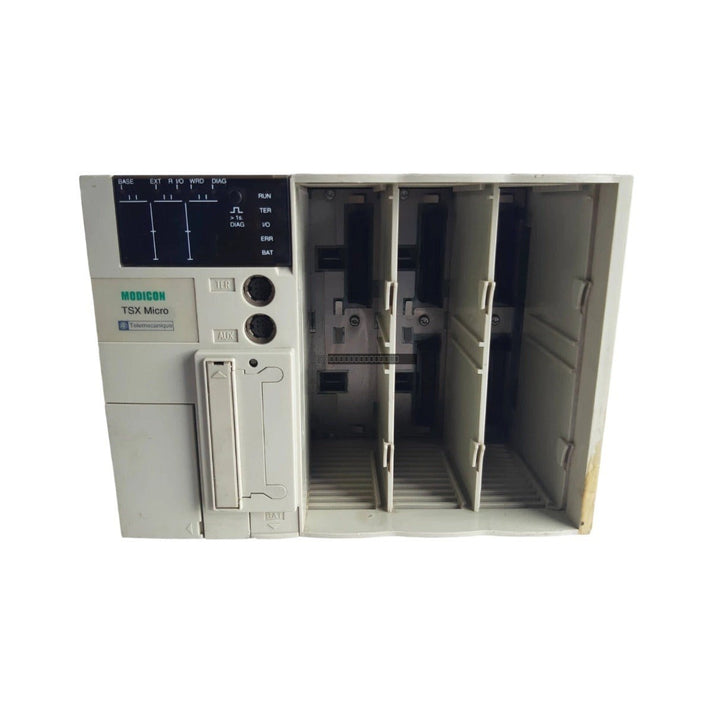

Schneider Modicon Micro TSX3721101 PLC Processor Module

Schneider Modicon Micro TSX3721101 PLC Processor Module

Description

The TSX3721101 is a high-performance central processing unit designed for the Schneider Electric Modicon Micro automation platform. This PLC processor is engineered to manage complex sequential logic, arithmetic operations, and...

27 people are viewing this right now

Availability: In stock

SKU: TSX3721101
Vendor: Schneider
Category: PLC Processor Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The TSX3721101 is a high-performance central processing unit designed for the Schneider Electric Modicon Micro automation platform. This PLC processor is engineered to manage complex sequential logic, arithmetic operations, and timing functions required for medium-scale industrial automation. It provides reliable control for diverse applications, including material handling, water treatment, and automated packaging systems, ensuring consistent throughput and system stability.

Features

  • Integrated 20 kWords internal RAM for application program storage.
  • Supports PCMCIA memory card expansion for extended data logging and recipe management.
  • Native communication support via mini-DIN interface for Uni-Telway and Modbus protocols.
  • Robust design optimized for high-vibration industrial environments.
  • Integrated diagnostic capabilities for real-time system monitoring and error reporting.

Applications

This processor module is widely utilized in industrial environments requiring precise machine control, such as automated manufacturing lines, power generation subsystems, and municipal utility infrastructure. Its architecture allows for flexible scaling when paired with additional I/O expansion racks.

Technical Specifications

Model TSX3721101
Brand Schneider Electric
Product Range Modicon Micro
Memory Capacity 20 kWords Internal RAM
Memory Expansion PCMCIA Slot
Communication Port Terminal Port (Uni-Telway / Modbus)
Operating Temperature 0 to 60 deg C
Storage Temperature -25 to 70 deg C
Power Supply 24 VDC, 1.5 A

Installation Guidelines

  • Ensure the module is mounted on a standard DIN rail or secured panel base to allow for proper heat dissipation.
  • Always disconnect power before installing or removing the module from the rack to prevent electrical damage.
  • Maintain proper grounding practices to minimize electromagnetic interference (EMI).
  • Ensure the environment remains within the specified temperature range to prevent thermal degradation of internal components.
  • Handle the module using ESD-safe procedures to protect sensitive internal circuitry.

FAQ

Does this module support memory expansion? Yes, the TSX3721101 features a PCMCIA slot that allows for the installation of memory cards to increase storage capacity for programs and diagnostic logs.

What communication protocols are supported? The onboard terminal port supports Uni-Telway and Modbus master/slave configurations for HMI and peer-to-peer communication.
