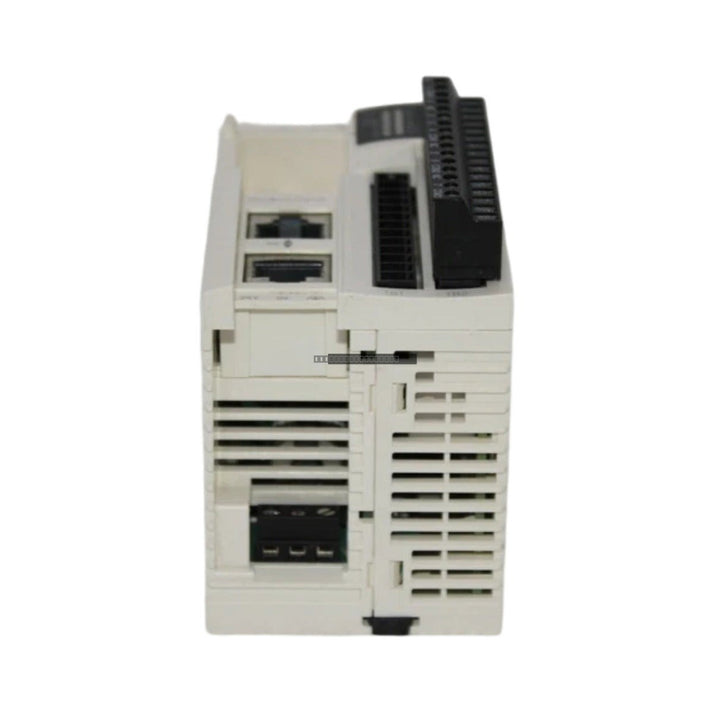

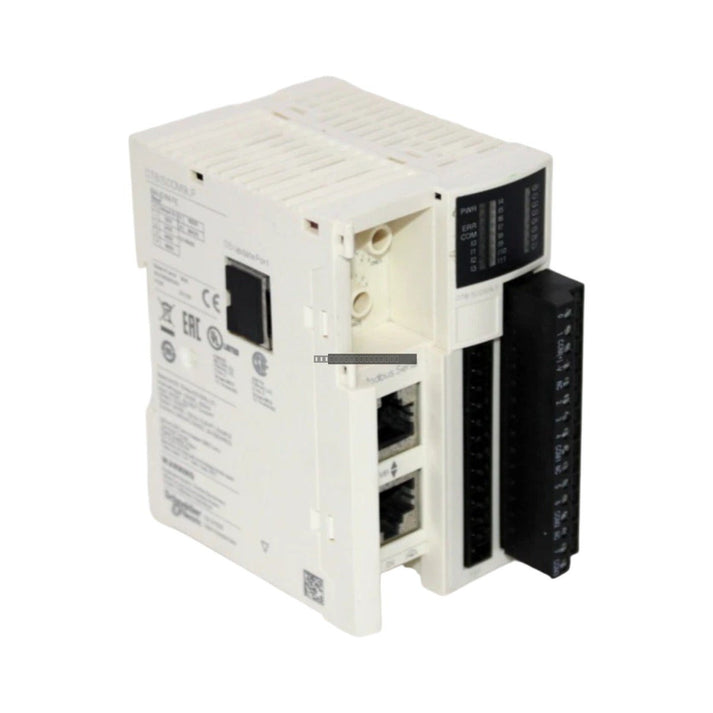

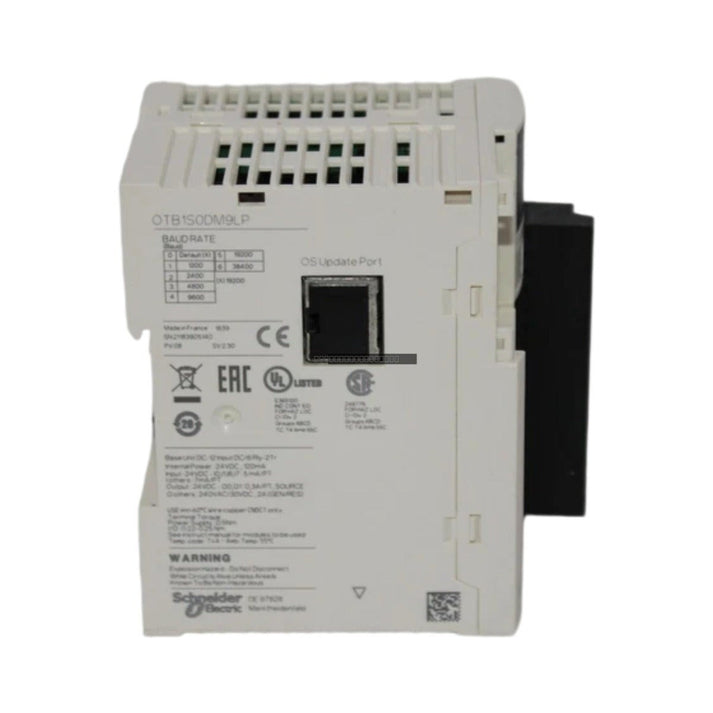

Schneider Electric OTB1S0DM9LP Modicon OTB Distributed I/O Module

Schneider Electric OTB1S0DM9LP Modicon OTB Distributed I/O Module

Product Overview

The Schneider Electric OTB1S0DM9LP is a compact distributed I/O module designed for the Modicon OTB platform. This unit serves as a robust interface for field signal aggregation, enabling decentralized...

17 people are viewing this right now

Availability: Low stock: 3 left

SKU: OTB1S0DM9LP
Vendor: Schneider
Category: Distributed I/O Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Overview

The Schneider Electric OTB1S0DM9LP is a compact distributed I/O module designed for the Modicon OTB platform. This unit serves as a robust interface for field signal aggregation, enabling decentralized control in industrial environments such as power generation, mining, and petrochemical processing. By facilitating localized signal processing, the module reduces the need for extensive cabling, improves signal integrity, and enhances system reliability by minimizing the impact of potential central communication failures.

Features

  • Integrated Modbus RTU/ASCII communication interface for seamless integration with master controllers.
  • Supports high-speed local switching to minimize latency in control loops.
  • Compact footprint suitable for space-constrained control cabinets.
  • Designed for high-reliability operation in demanding industrial conditions.
  • Supports both DIN-rail and panel mounting for flexible installation.

Technical Specifications

Model OTB1S0DM9LP
Brand Schneider Electric
Power Consumption 7 W max at 24 VDC
Serial Interface RS-485 (RJ-45)
Discrete Inputs 12 x 24 VDC (sink/source)
Discrete Outputs 8 x Transistor (0.5 A), 2 x Relay (2 A)
Operating Temperature 0 to 55 deg C

Installation Guidelines

  • Ensure the module is installed in a clean, dry environment with adequate ventilation to maintain operating temperatures below 55 deg C.
  • Mount the unit on a standard 35 mm DIN-rail or secure it via the provided screw tabs for panel mounting.
  • Always disconnect power before performing any wiring or module replacement to prevent electrical damage.
  • Use shielded twisted-pair cabling for the RS-485 serial link to minimize EMI interference, keeping communication lines separate from high-voltage power cables.
  • Verify that the 24 VDC power supply is correctly polarized before energizing the module.
  • Ensure all I/O connections are tightened to the recommended torque to prevent intermittent contact.

FAQ

What is the primary function of the OTB1S0DM9LP?

This module acts as a distributed I/O interface that collects field signals and communicates them back to a master controller via Modbus, allowing for decentralized control and reduced cabling requirements.

Can this module be mounted on a standard DIN-rail?

Yes, the OTB1S0DM9LP is designed for standard 35 mm DIN-rail mounting or can be fixed to a panel using the integrated screw tabs.

What is the maximum distance for the serial communication link?

The module is designed for serial communication over distances ranging from 0 to 10 meters when using the standard RS-485 physical interface.
