Product Overview

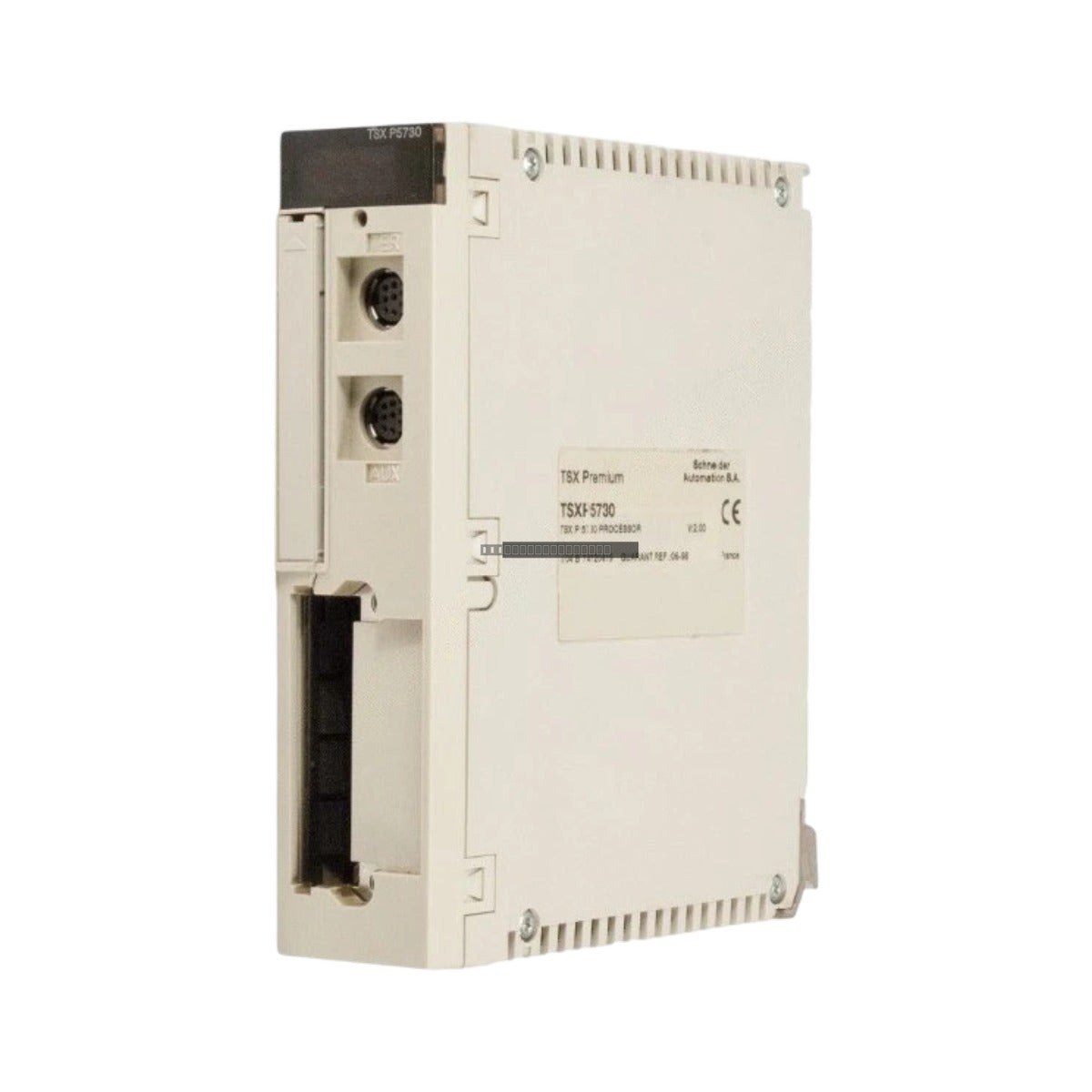

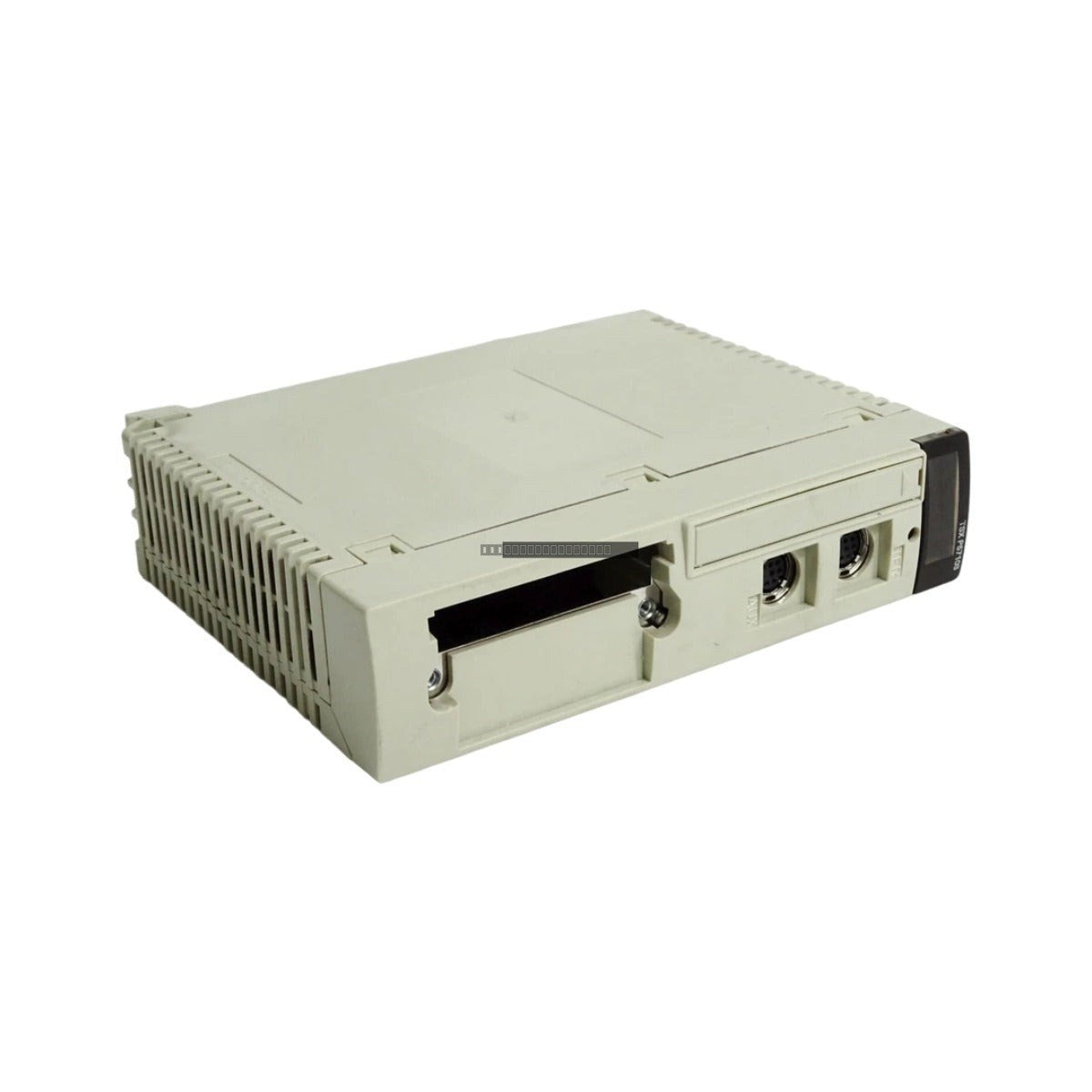

The Schneider Electric TSXP5730 serves as a core processing unit for the Modicon Premium automation platform. Designed for demanding industrial environments, this PLC processor handles complex logic execution, high-speed register manipulation, and real-time control tasks. It acts as the central intelligence for large-scale automation architectures, providing stable performance in sectors such as energy production, petrochemical processing, and critical infrastructure management. By integrating robust diagnostic capabilities and efficient cycle execution, the module minimizes latency and ensures consistent operation across distributed I/O networks.

Features

• High-performance processing engine optimized for complex control algorithms.
• Integrated memory management with support for internal RAM configuration.
• Dedicated PCMCIA interface for memory expansion, supporting both Flash and SRAM cards.
• Built-in communication ports for Uni-Telway and Modbus serial connectivity.
• Front-facing LED array providing real-time status updates on processing, memory, and bus traffic.
• Ruggedized housing designed for direct integration into Modicon Premium backplane systems.

Applications

The TSXP5730 is widely deployed in mission-critical automation systems requiring reliable, high-density logic control. Typical use cases include municipal water treatment facilities, thermal power plants, mining automation, and large-scale manufacturing lines where downtime must be strictly mitigated.

Technical Specifications

Installation Guidelines

• Ensure the PLC rack is powered down before inserting or removing the processor module to prevent electrical damage.
• Slide the module carefully into the designated backplane slot, ensuring the connectors are fully seated to maintain structural grounding.
• Utilize shielded cabling for all communication interfaces to reduce EMI interference in high-noise environments.
• Maintain proper ventilation around the Modicon Premium rack to stay within the 0 to 60 deg C operating temperature range.
• Handle the module using electrostatic discharge (ESD) safe practices during installation and maintenance.

FAQ

What type of memory expansion does the TSXP5730 support?

The module features a front-accessible PCMCIA slot that accepts compatible Flash or SRAM memory cards to extend local data logging and process table capacity.

How is this module powered?

The TSXP5730 receives its power directly from the Modicon Premium backplane, requiring a 5 VDC supply at 1.55 A.
