Description

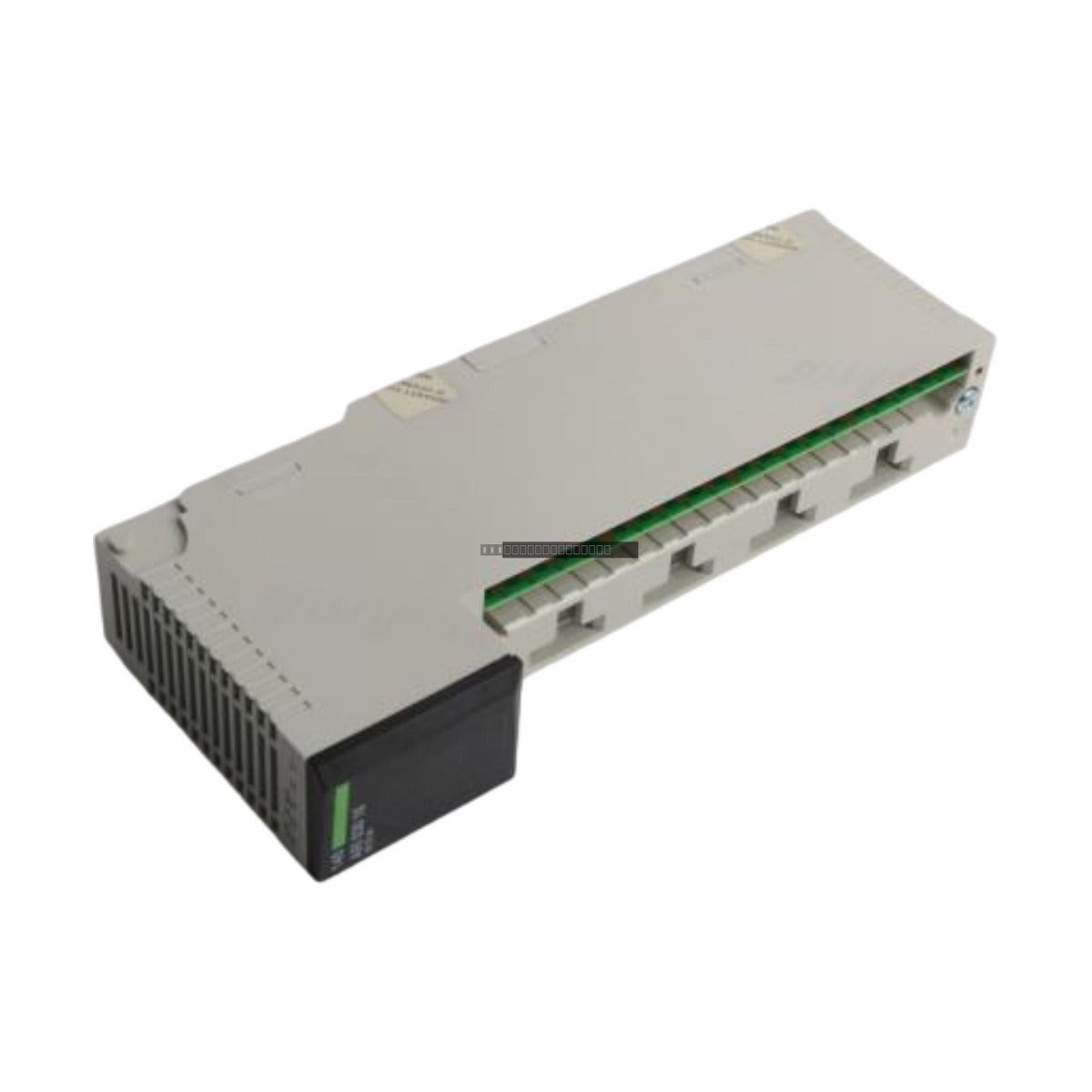

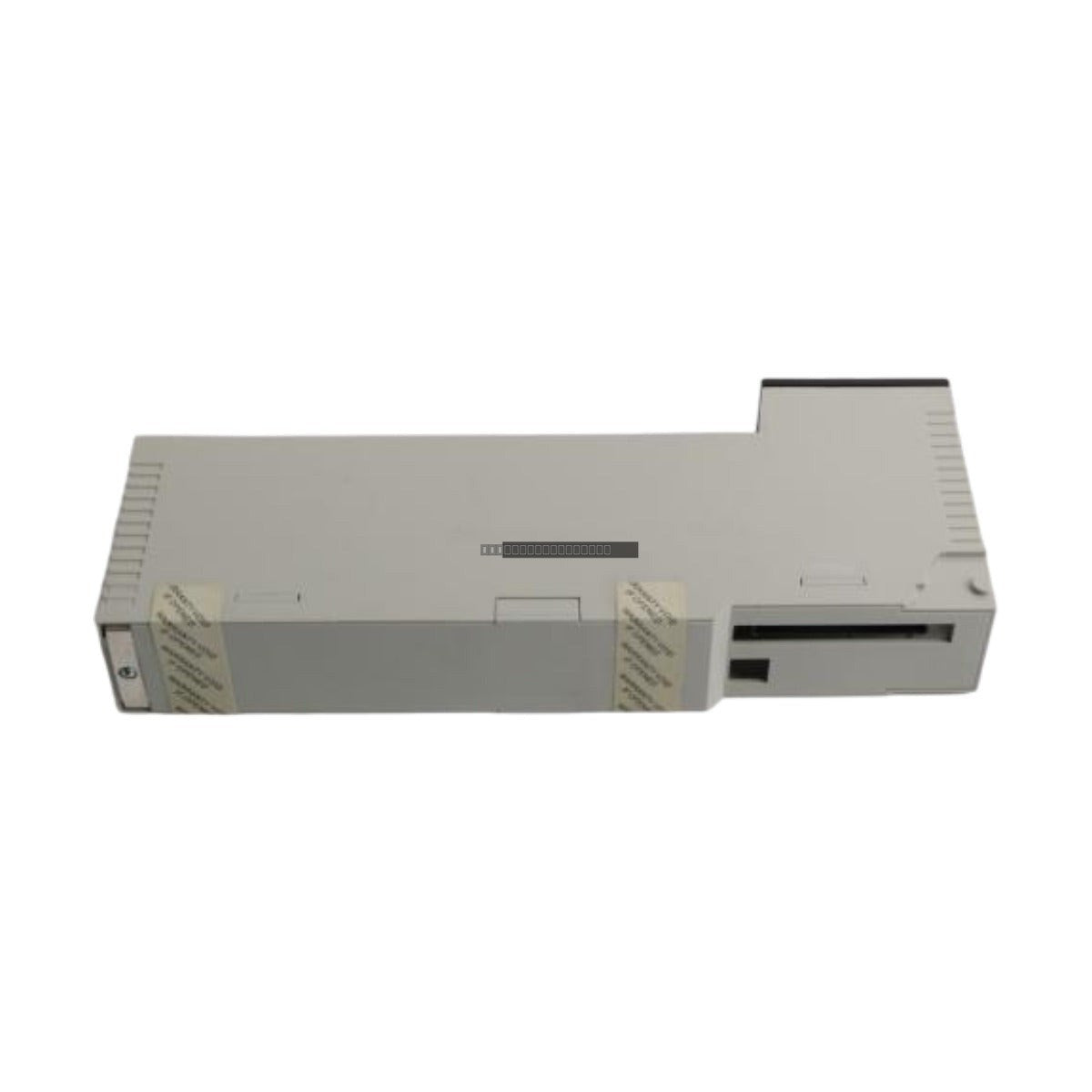

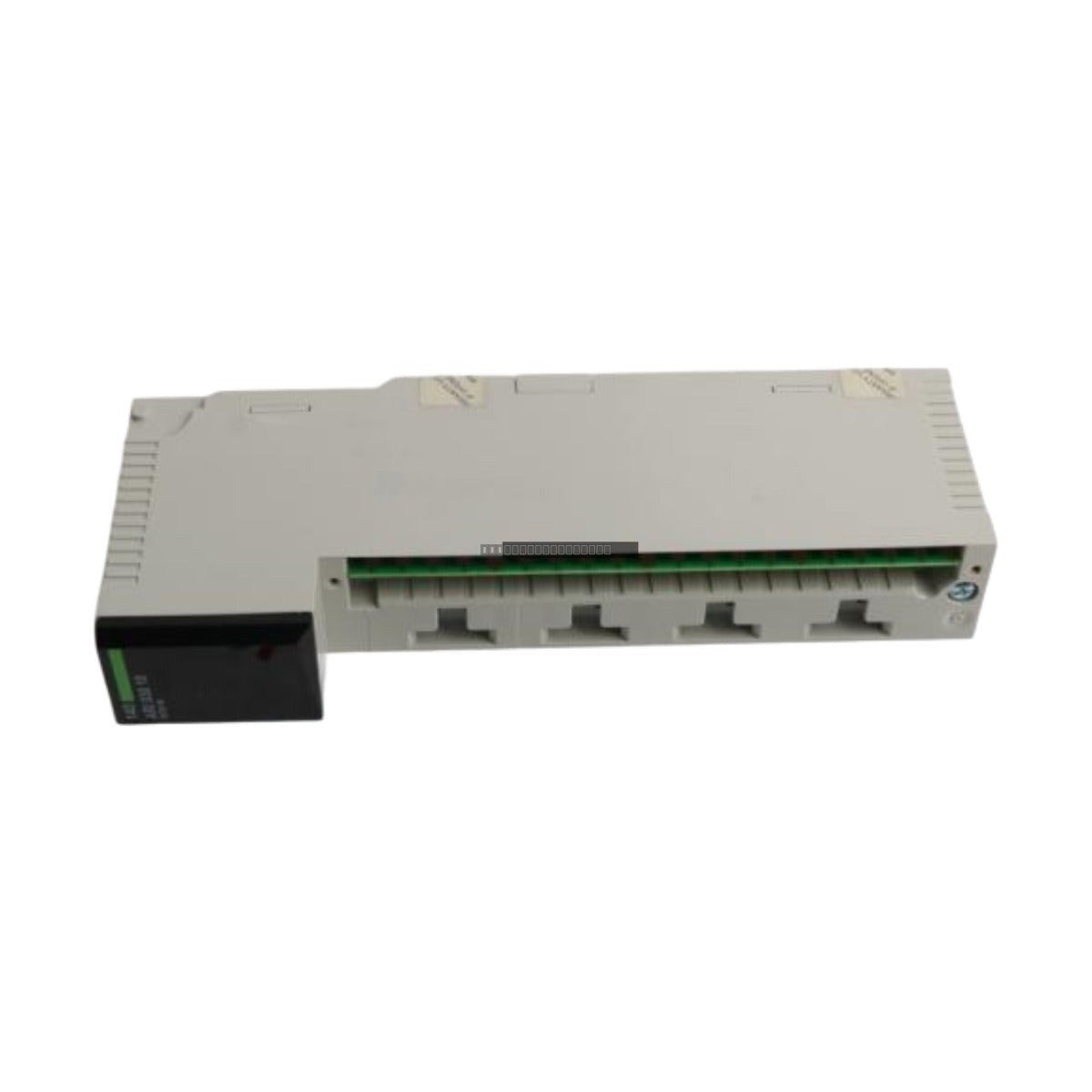

The Schneider Electric 140AMM0900 is a high-performance mixed analog I/O module designed for the Modicon Quantum programmable logic controller (PLC) platform. This module integrates 4 analog input channels and 2 analog output channels into a single-slot footprint, providing a space-efficient solution for complex control loops. It is engineered to bridge field-level instrumentation with the central processor, supporting a wide range of standard industrial signal types for both monitoring and control applications in demanding environments such as power generation, chemical processing, and water management.

Features

• High-Density Design: Combines 4 inputs and 2 outputs in one module to optimize rack space and reduce overall system footprint.
• Configurable Signal Ranges: Supports versatile input ranges including 4-20 mA, 0-20 mA, 1-5 VDC, and +/- 10 VDC.
• Robust Signal Conditioning: Integrated hardware filtering on input channels to mitigate EMI and high-frequency noise common in industrial settings.
• Galvanic Isolation: Provides 1500 VAC field-to-bus isolation to protect the backplane from ground loops and voltage surges.
• Diagnostic Indicators: Front-panel LED array provides immediate status updates on channel health, bus communication, and field power supply.

Applications

This module is suitable for diverse industrial automation tasks, including:

• Process control loops requiring simultaneous monitoring and actuation.
• Interface with pressure, flow, and temperature transmitters.
• Control of variable frequency drives (VFDs) and proportional valves.
• General-purpose analog data acquisition in Modicon Quantum rack systems.

Technical Specifications

Installation Guidelines

• Safety First: Always disconnect backplane power before inserting or removing the module to prevent electrical damage or bus errors.
• Mounting: Ensure the module is fully seated in the Quantum rack slot and the locking tabs are engaged to maintain proper backplane contact.
• Wiring: Use shielded twisted-pair cabling for all analog signals to minimize interference. Ensure shields are grounded at the source or per facility grounding standards.
• Environment: Maintain adequate ventilation within the cabinet to ensure the module operates within the specified 0 to 60 deg C range.
• EMI Protection: Route signal cables away from high-voltage power lines and heavy inductive loads to prevent signal degradation.

FAQ

Does this module require an external power supply?

Yes, the 140AMM0900 requires a 24 VDC external power supply to drive the analog field devices.

Is the input isolation channel-to-channel?

No, the 4 input channels are not isolated from each other; however, the module features a 1500 VAC galvanic isolation barrier between the field-side terminals and the internal logic backplane.
