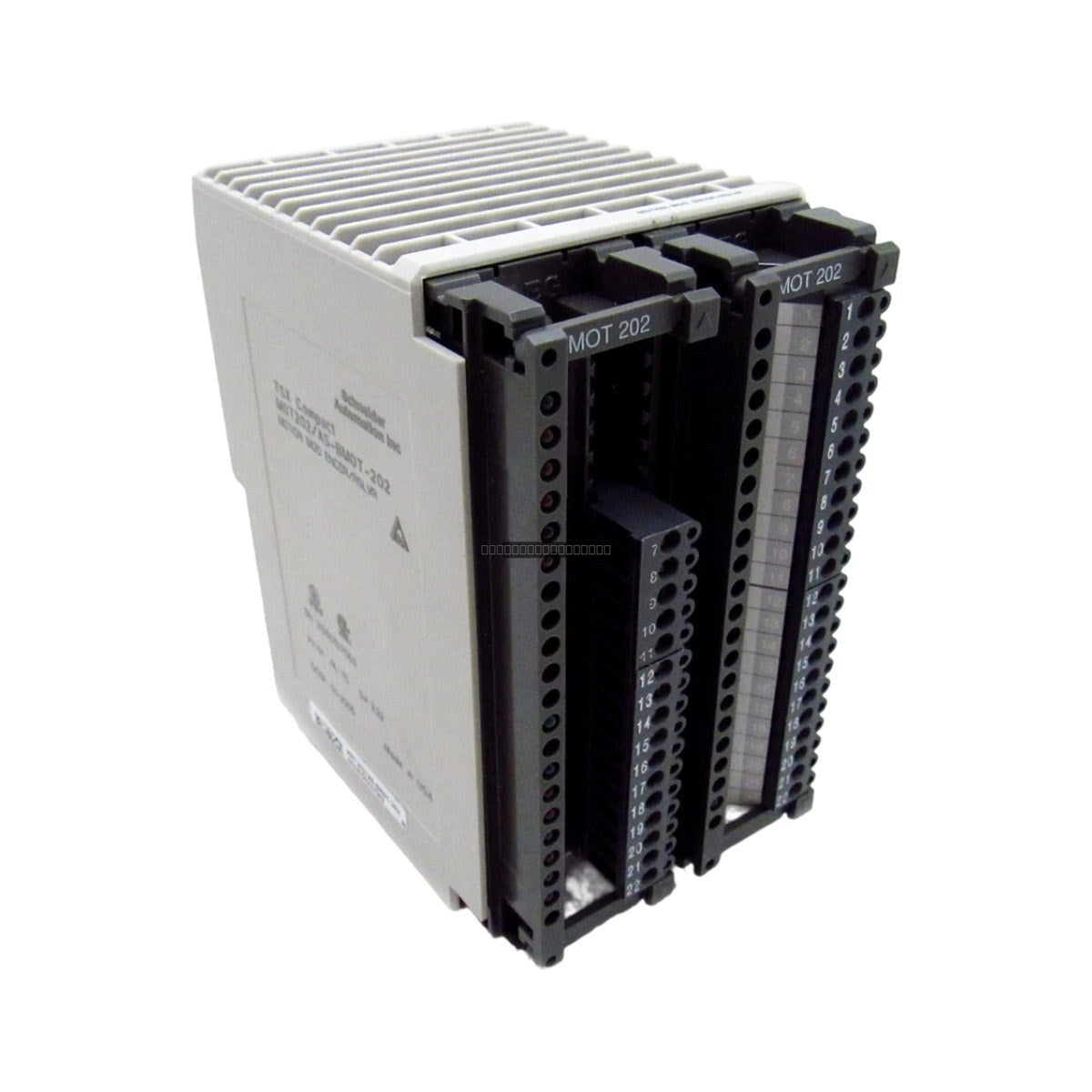

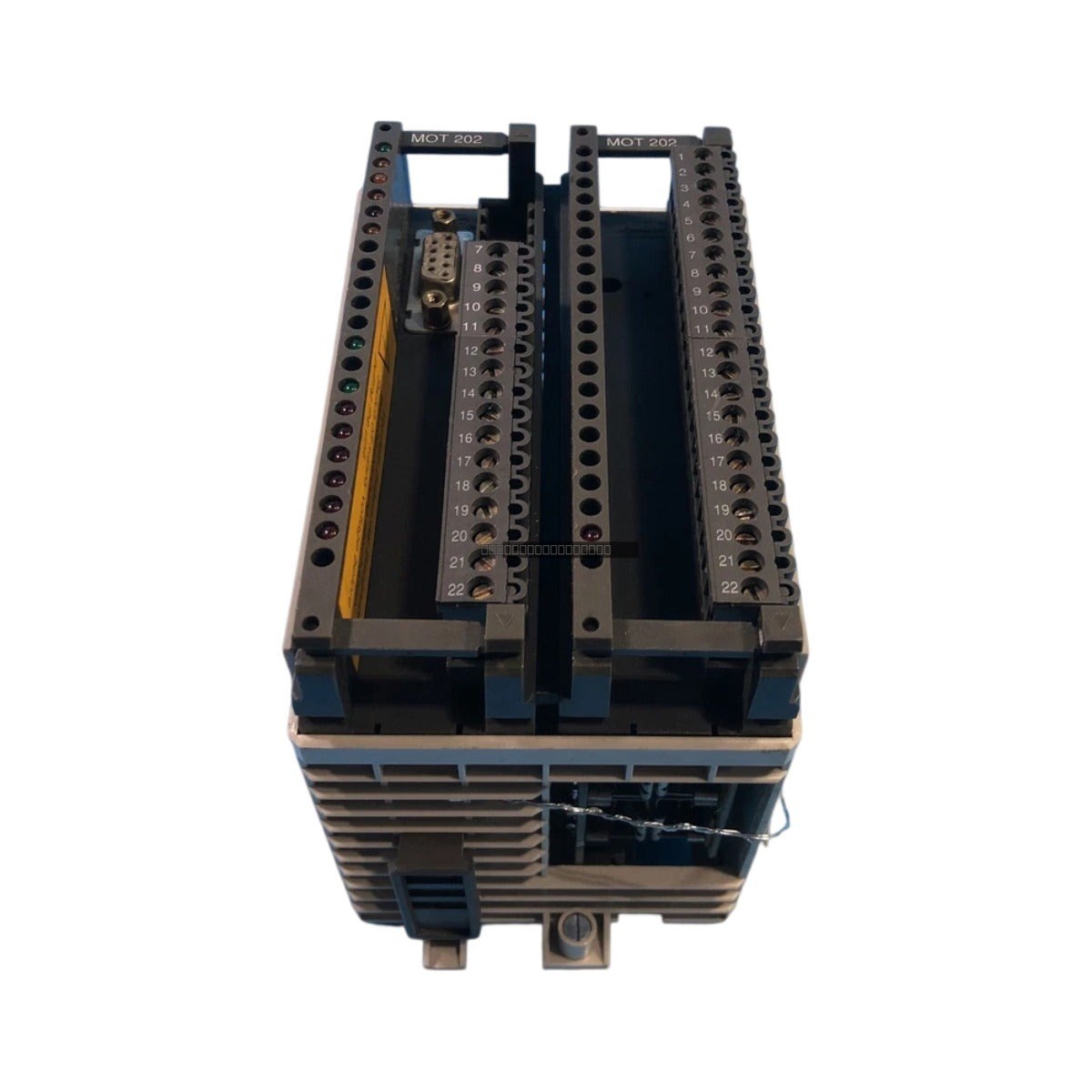

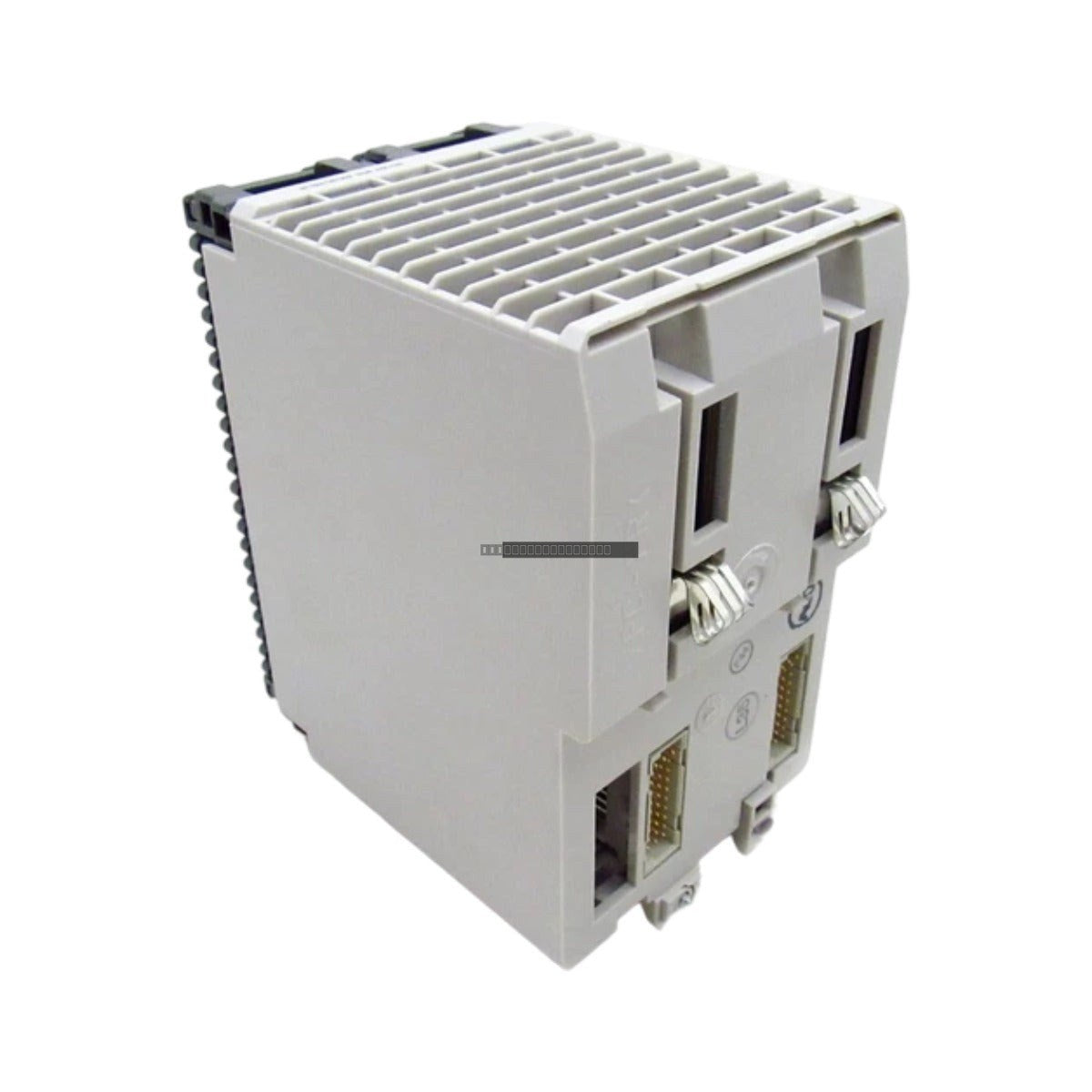

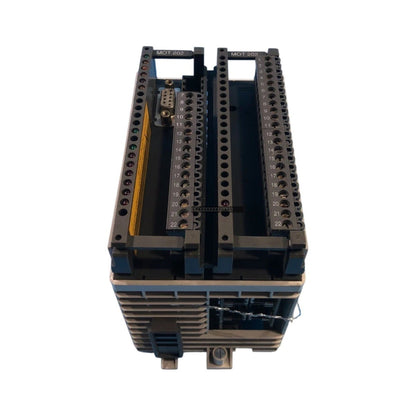

The Schneider Electric ASBM0T202 (M0T 202) is a specialized motion interface module designed for integration within the Telemecanique Modicon Compact series architecture. This module provides high-speed, precise axis control and feedback processing, facilitating advanced motion tracking and positioning tasks in demanding industrial environments such as material handling, automated manufacturing, and process control systems.

Features

• Dual-axis independent control for synchronized movement and positioning.
• High-speed processing for real-time speed profiling and feedback loop management.
• Differential transceiver circuitry designed to mitigate industrial electrical noise and signal interference.
• Galvanic optical isolation between the field-side wiring and the internal backplane bus.
• Hardware-level limit switch inputs for rapid, low-latency safety response.
• Integrated front-panel LED indicators for diagnostic monitoring of channel status and module health.

Applications

The ASBM0T202 is engineered for high-precision applications requiring rapid response times, including servo drive synchronization, proportional valve control, and mechanical axis monitoring. It is suitable for deployment in thermal power generation, heavy extraction equipment, and high-speed assembly lines where minimizing communication latency is essential for operational stability.

Technical Specifications

Installation Guidelines

• Ensure the host controller is powered down before installing or removing the module from the backplane rail.
• Use shielded cabling for encoder and command signal connections to maintain signal integrity in high-EMI environments.
• Verify that field wiring is properly routed away from high-voltage power lines to prevent induced noise.
• Confirm that the module is fully seated in the rack to ensure reliable communication across the parallel data pathway.
• Maintain adequate ventilation within the enclosure to support the specified operating temperature range.

FAQ

Is this module compatible with standard Modicon Compact series backplanes? Yes, the ASBM0T202 is designed for direct insertion into standard Compact series rack rails.

Does this module require external power for the encoder inputs? The module supports 5 VDC differential and 24 VDC single-ended encoders; ensure the power supply matches the specific requirements of your connected field devices.
