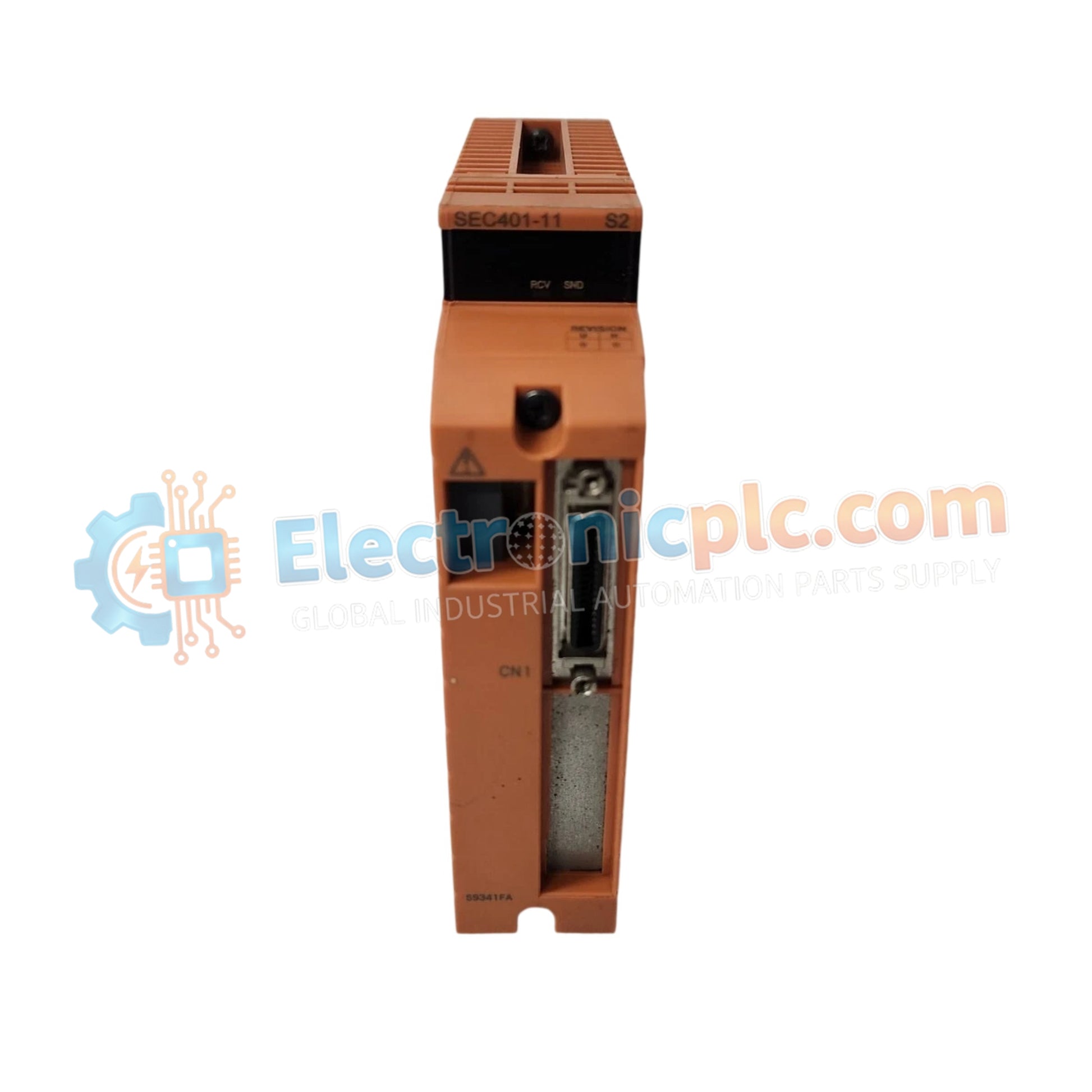

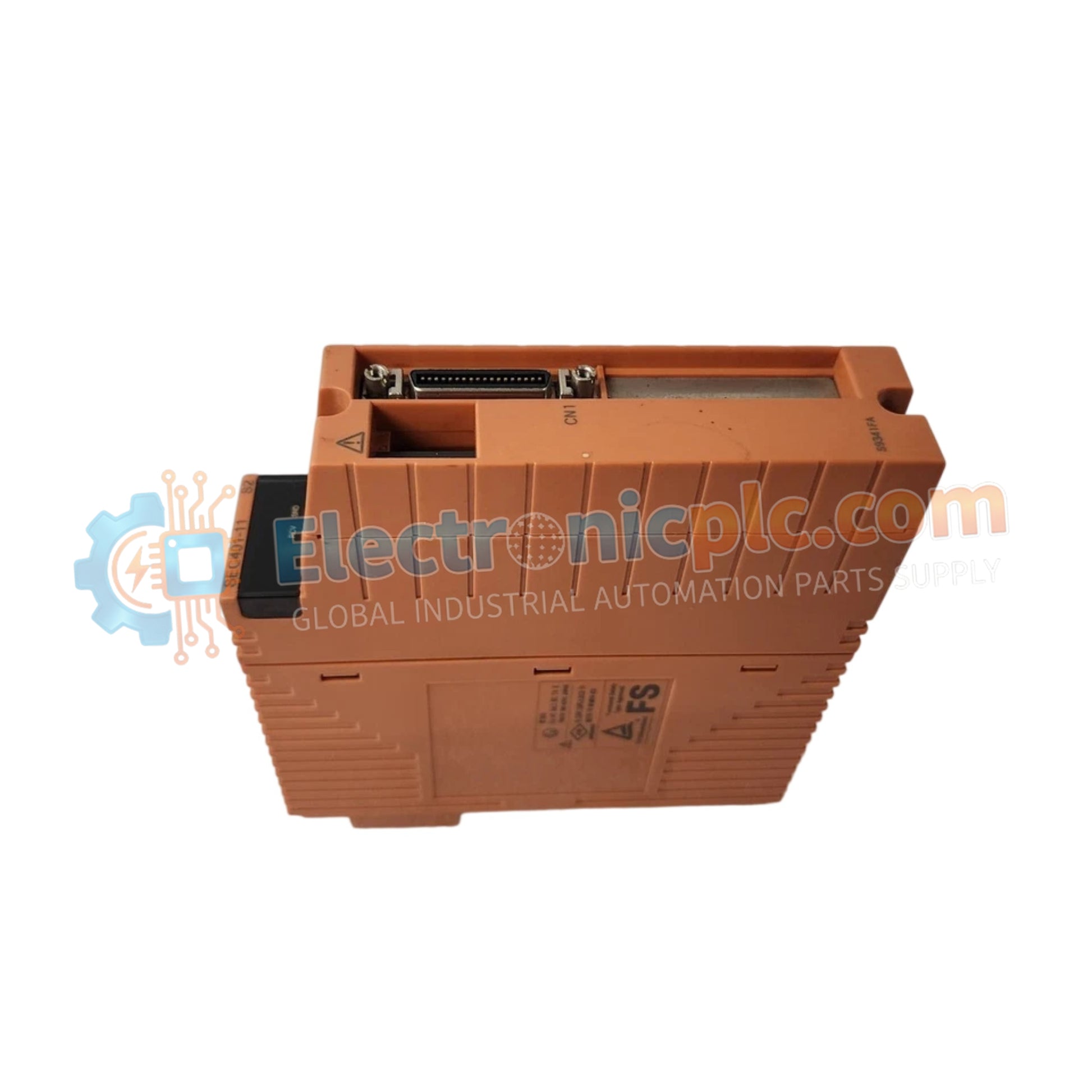

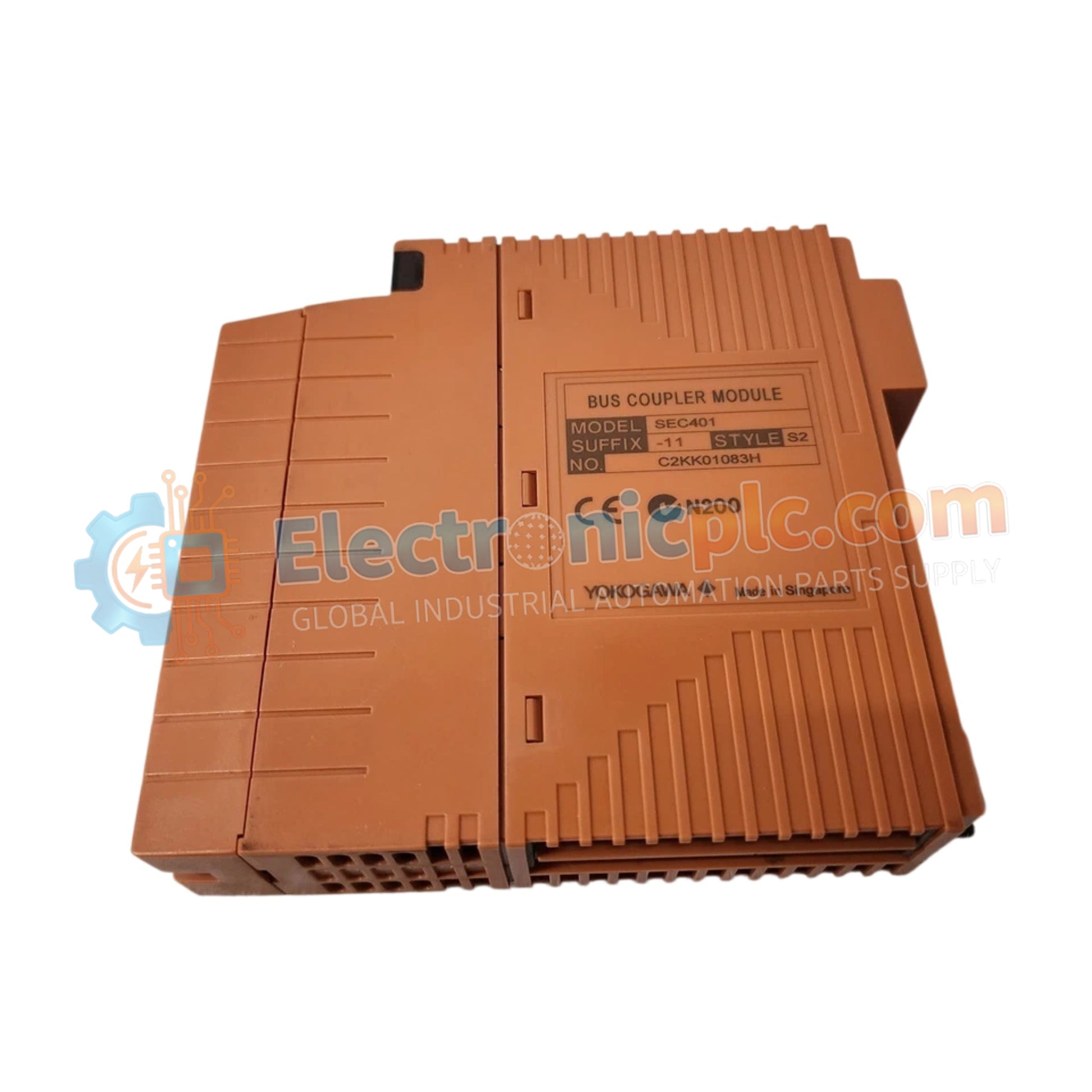

The YOKOGAWA SEC401-11 S2 is a dedicated ESB (Extended-mode Synchronous Bus) Bus Coupler Module designed for high-speed data communication within the CENTUM series distributed control systems (DCS). It serves as the vital interface for expanding the system architecture, enabling reliable data exchange between the field control station and remote I/O nodes.

Hardware Specifications

DCS System Integration & Connectivity

The SEC401-11 S2 module maintains the deterministic timing required for DCS operations by managing the transmission of I/O data over the ESB bus. Its architecture is engineered to provide stable signal synchronization, ensuring that remote nodes communicate with the primary control processor without latency issues. This module is essential for scaling system I/O capacity, providing a robust physical layer that maintains electrical integrity across the bus cabling, even in high-EMI industrial environments.

Frequently Asked Questions (FAQ)

Q: Can this module be used to replace an older revision ESB coupler?

A: Compatibility depends on the specific CENTUM system version and backplane revision. Consult the system's hardware compatibility matrix or the specific control station maintenance manual to ensure the S2 revision is supported by your current firmware and backplane configuration.

Q: What is the significance of the "S2" suffix in the model number?

A: The "S2" generally indicates a hardware revision or a specific regional/environmental certification level for the module. Always cross-reference the exact suffix with your existing system components to ensure seamless integration and consistent electrical performance.

Field Installation Guidelines

• Mounting: Ensure the module is seated squarely in the designated ESB bus master or slave slot. Secure the module using the built-in locking mechanism to ensure stable contact with the backplane pins.
• Bus Cabling: Utilize manufacturer-approved ESB bus cables for all connections. Avoid sharp bends in the cabling to maintain the characteristic impedance required for high-speed data transmission.
• Shielding: Terminate the shield of the ESB bus cable at the cabinet’s common grounding point. Proper termination is critical for preventing electromagnetic noise from disrupting the synchronous data pulses.
• LED Status: After powering the control station, observe the front-panel status LEDs. A steady indication confirms that the SEC401-11 S2 has initialized correctly and is actively communicating with the bus master.
