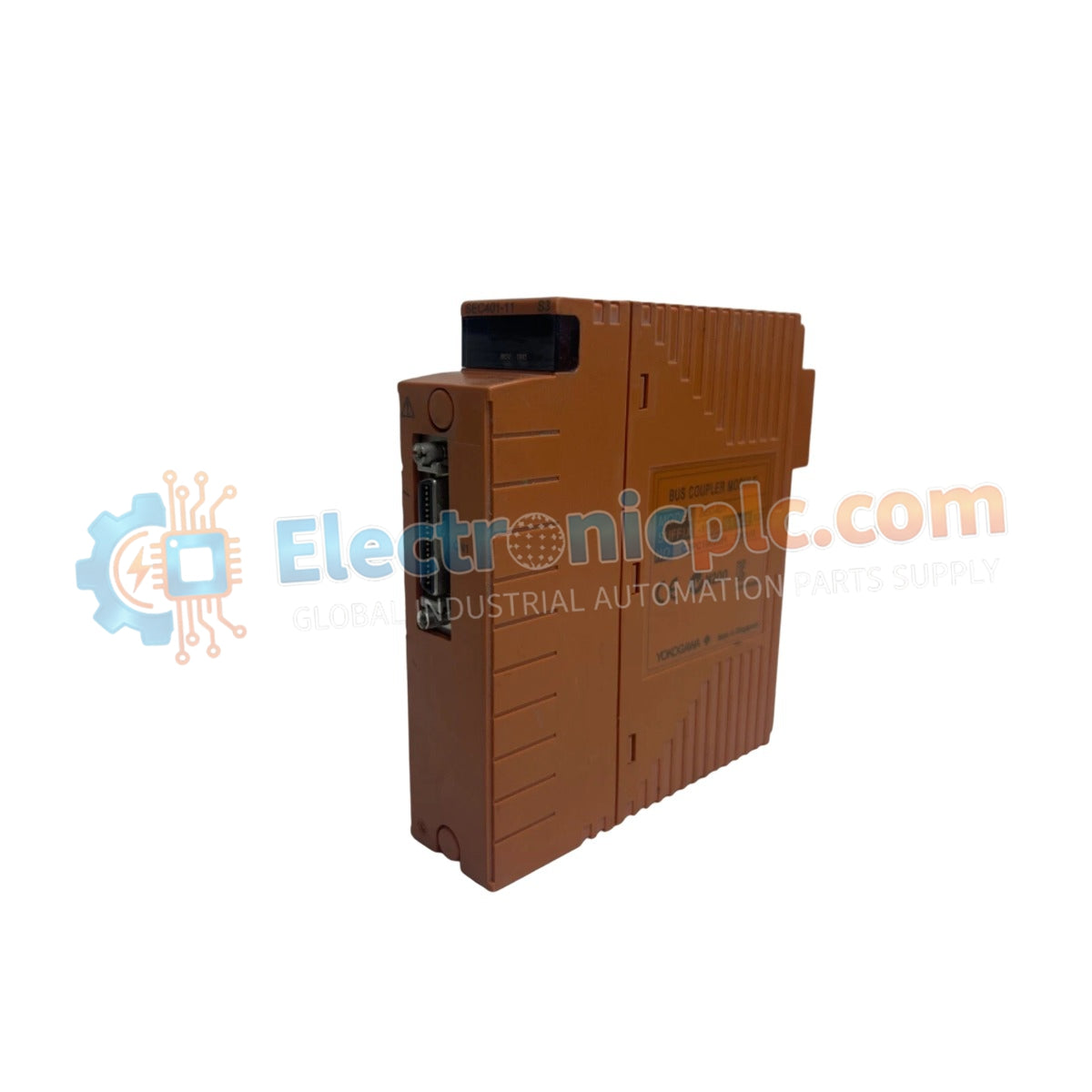

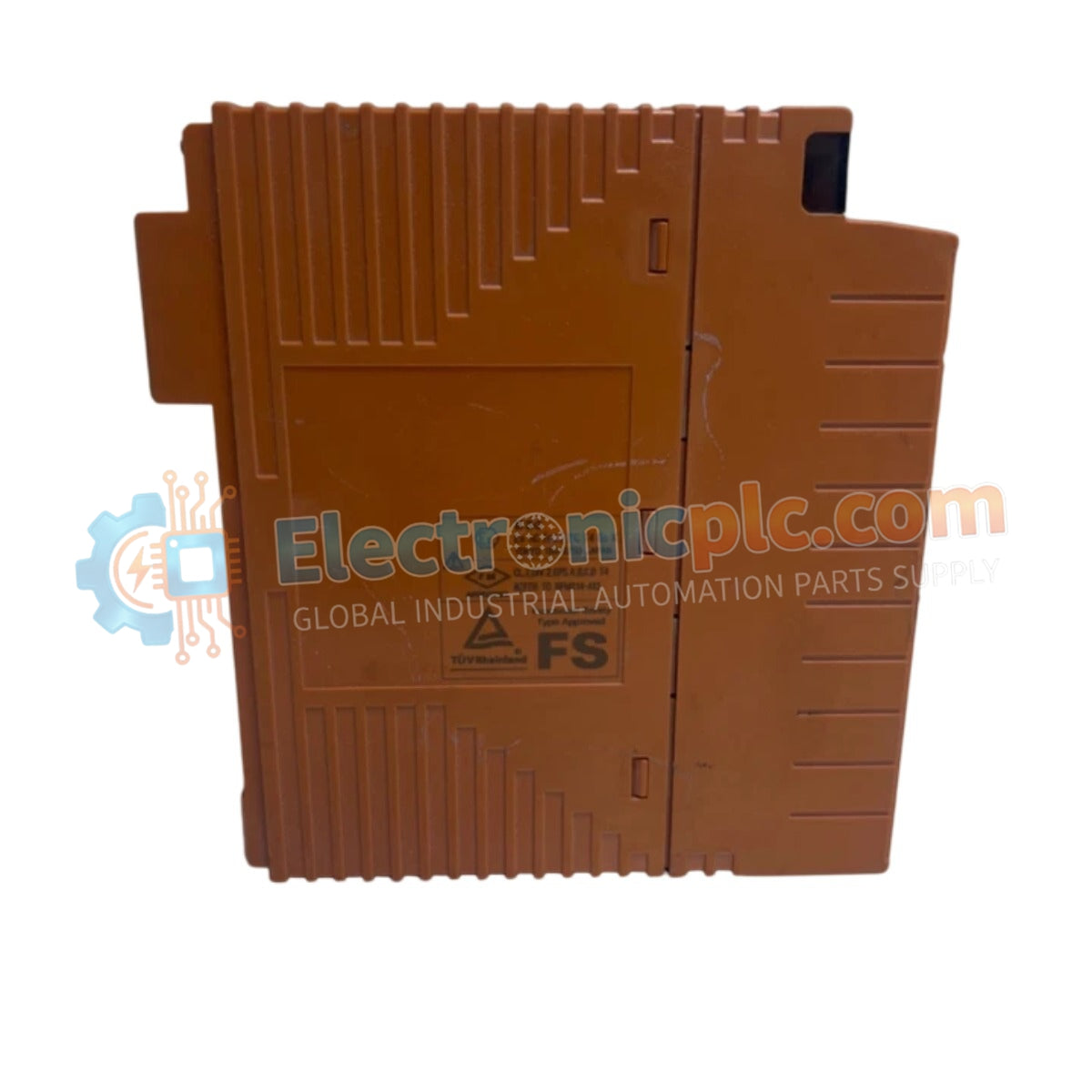

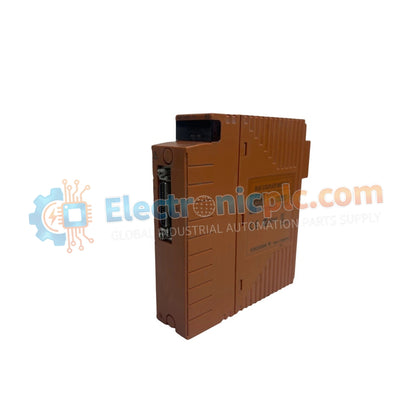

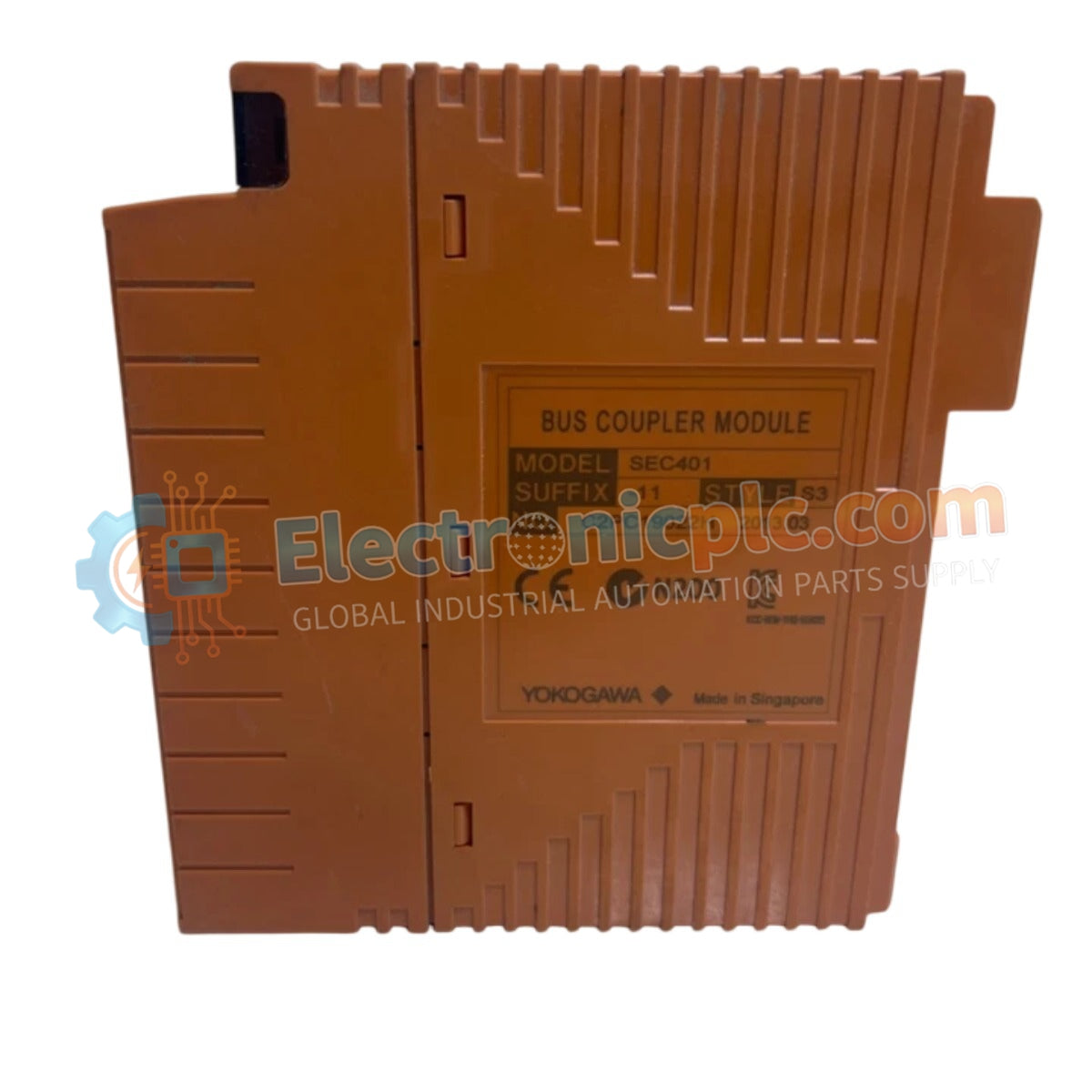

Configured for signal path arbitration in Yokogawa control network architectures, the Yokogawa SEC401-11 (SEC401 S3 Bus Coupler Module) provides direct physical and electrical execution of S3 bus communication framing. This module manages packet synchronization between field control segments and the primary control bus, maintaining the integrity of deterministic data exchange through standard electrical coupling methodologies.

Hardware Specifications

Process Control Connectivity

The SEC401-11 module ensures reliable data transmission by supporting standard 4-20 mA HART loop protocol integration within the distributed control architecture. By implementing channel-to-channel isolation, the module prevents ground potential differences from affecting high-speed bus communication. This electrical isolation is maintained across all S3 bus nodes to suppress common-mode noise and ensure signal fidelity during high-load processing cycles within the control station.

Frequently Asked Questions

Q: Can the SEC401-11 be hot-swapped while the control bus is active?

A: Hot-swapping is restricted. The module power must be isolated and the associated control bus segment deactivated to prevent transient voltage spikes on the backplane during module removal or insertion.

Q: What is the maximum latency for packet arbitration through this coupler?

A: The module introduces negligible latency, functioning primarily as a physical layer signal coupler; however, total network cycle time remains dependent on the overall configuration of the connected S3 bus nodes.

Field Installation Guidelines

• Verify that the DIN-rail or mounting rack is properly grounded before installation to maintain the integrity of the module internal shielding.
• Ensure all S3 bus cabling is routed at least 150 mm away from high-voltage AC lines to minimize electromagnetic interference.
• Use a calibrated torque screwdriver to secure terminal block screws, ensuring reliable electrical contact without damaging the connector pins.
• Inspect connector pins for oxidation or debris prior to insertion; verify that the module latch mechanism clicks into the fully locked position to ensure secure mechanical seating.
• Confirm that the environmental conditions remain within the specified range to prevent thermal drift or degradation of the internal electronic components.
