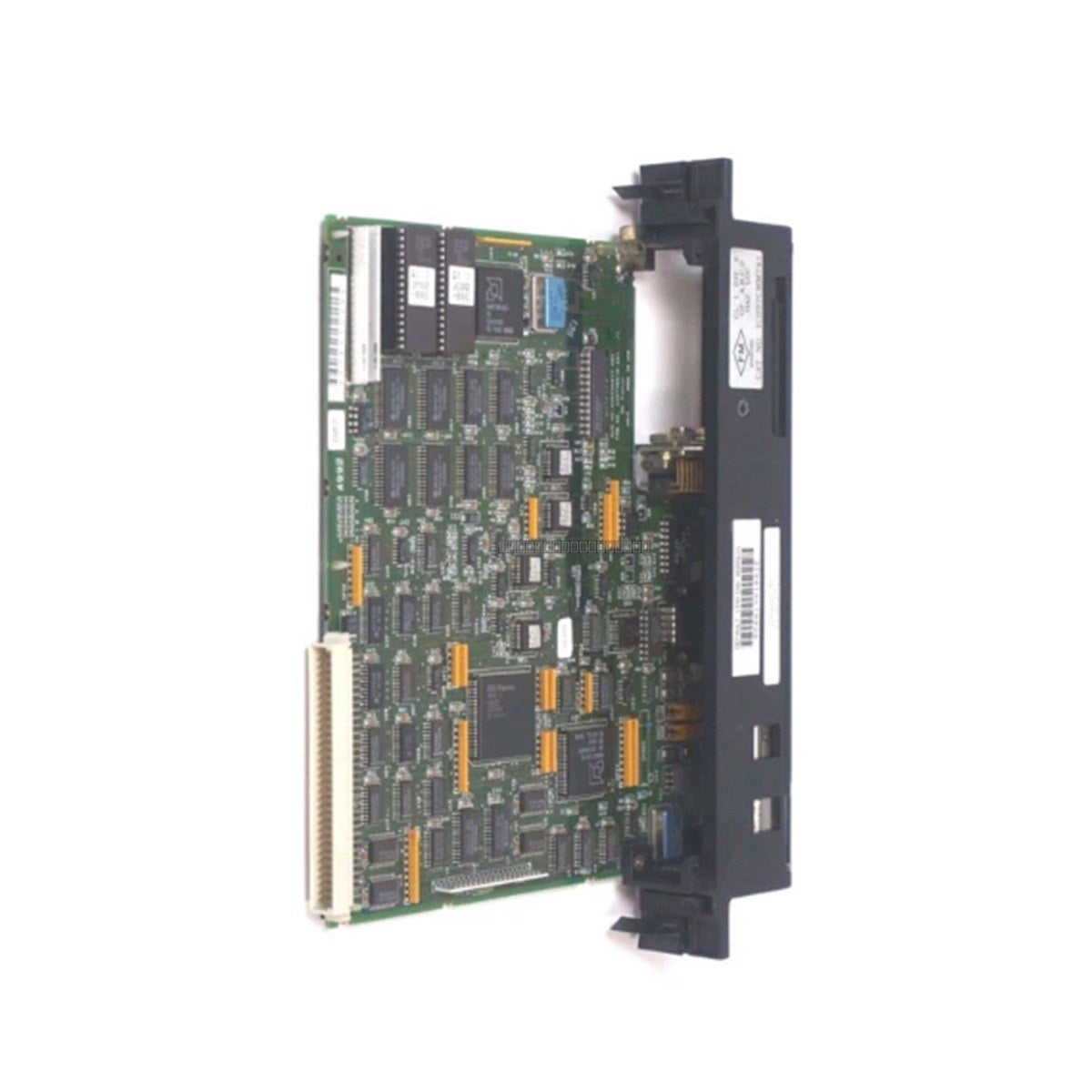

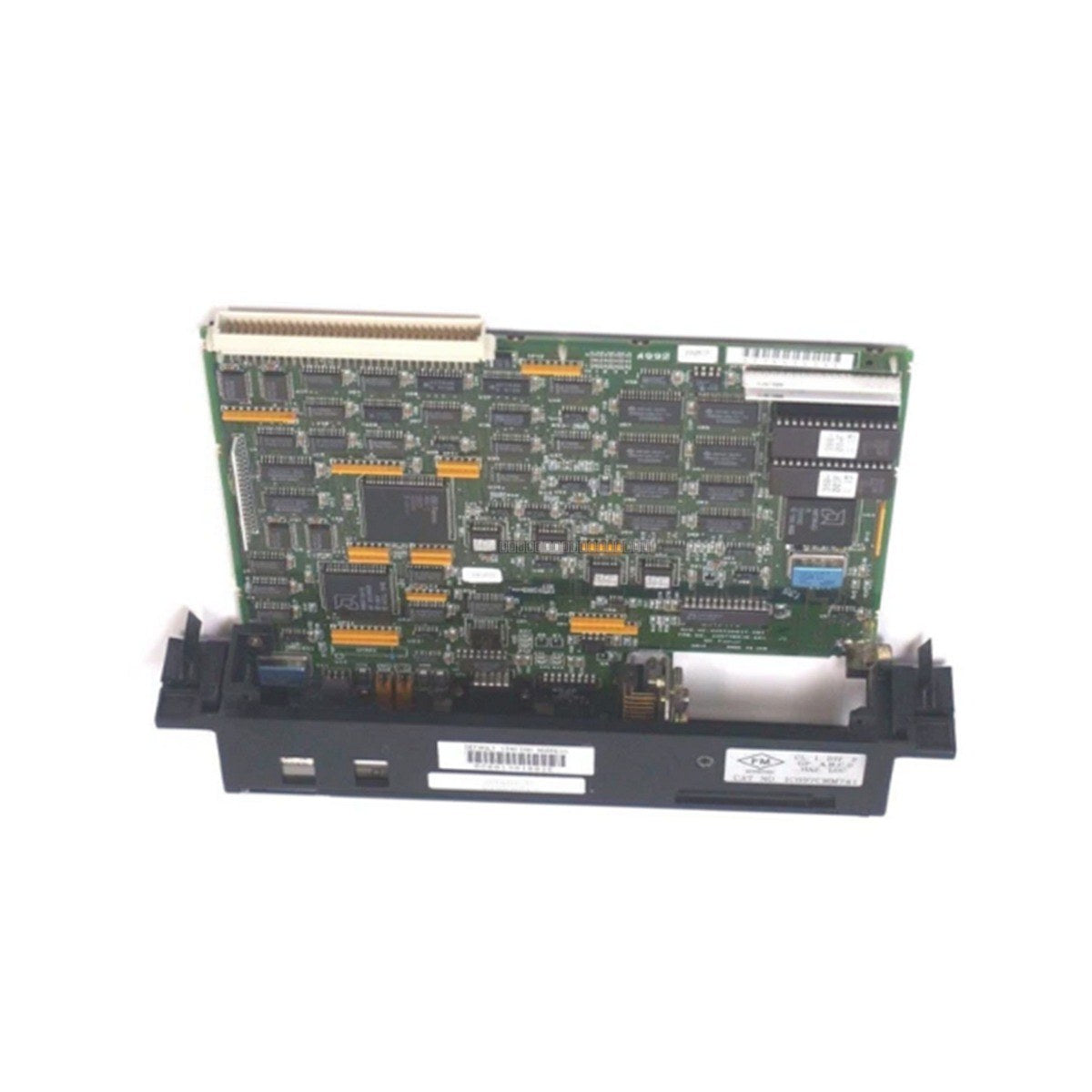

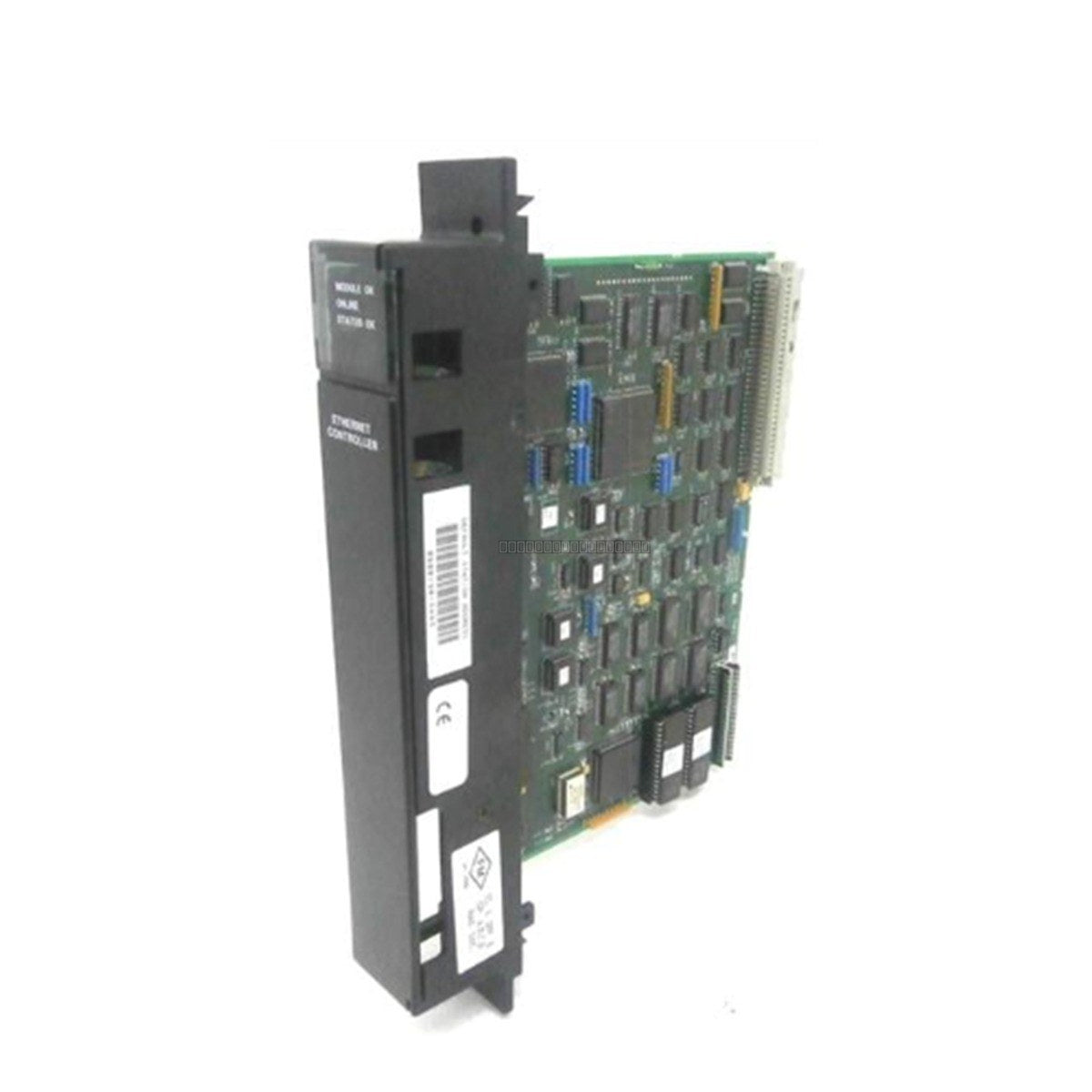

General Electric IC697CMM741 Series 90-70 Ethernet Controller

General Electric IC697CMM741 Series 90-70 Ethernet Controller

Description

The IC697CMM741 is an Ethernet Controller module designed for the GE Fanuc Series 90-70 programmable logic controller (PLC) system. This module serves as a Local Area Network (LAN) interface, enabling...

25 people are viewing this right now

Availability: Low stock: 2 left

SKU: IC697CMM741
Vendor: General Electric
Category: Ethernet Controller
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The IC697CMM741 is an Ethernet Controller module designed for the GE Fanuc Series 90-70 programmable logic controller (PLC) system. This module serves as a Local Area Network (LAN) interface, enabling high-speed communication and data exchange between the PLC and other networked devices or supervisory control systems. It is engineered to support robust industrial networking requirements within the Series 90-70 architecture.

Features

  • Designed for integration with GE Fanuc Series 90-70 PLC systems.
  • Supports both RAM and ROM memory types for operational flexibility.
  • Equipped with 3 diagnostic LEDs for status monitoring.
  • Includes battery backup support for RAM to ensure data retention during power cycles.
  • Utilizes a standard D-Type 15-pin connector for network interfacing.
  • Compatible with AUI or transceiver-style cabling configurations.

Technical Specifications

Manufacturer General Electric (GE Fanuc)
Model Number IC697CMM741
Product Type Ethernet Controller / LAN Interface
Series Series 90-70
Connector Type 15-Pin D-Type
Cable Compatibility AUI Cable or Transceiver Cable
Memory RAM/ROM with Battery Backup support
Indicators 3 LEDs
Weight 0.52 kg

Installation Guidelines

  • Ensure the PLC rack is powered down before inserting or removing the IC697CMM741 module to prevent electrical damage.
  • Handle the module using proper ESD (Electrostatic Discharge) precautions to protect sensitive internal components.
  • Seat the module firmly into the designated Series 90-70 backplane slot and secure it using the integrated locking mechanisms.
  • Use shielded communication cables to minimize EMI (Electromagnetic Interference) in industrial environments.
  • Verify that the network cabling (AUI or transceiver) is correctly seated in the 15-pin D-type connector before applying power.
  • Check the status LEDs after power-up to confirm the module has successfully initialized and established a network connection.

FAQ

What is the primary function of the IC697CMM741?
This module acts as an Ethernet Controller for the GE Series 90-70 PLC, allowing the controller to communicate over an Ethernet-based LAN.

Does this module require a battery?
Yes, the module supports battery backup for its internal RAM to maintain data integrity during power loss.

What type of cable does this module use?
The module features a 15-pin D-type connector, which is designed to interface with standard AUI or transceiver cables commonly used in industrial Ethernet applications.
