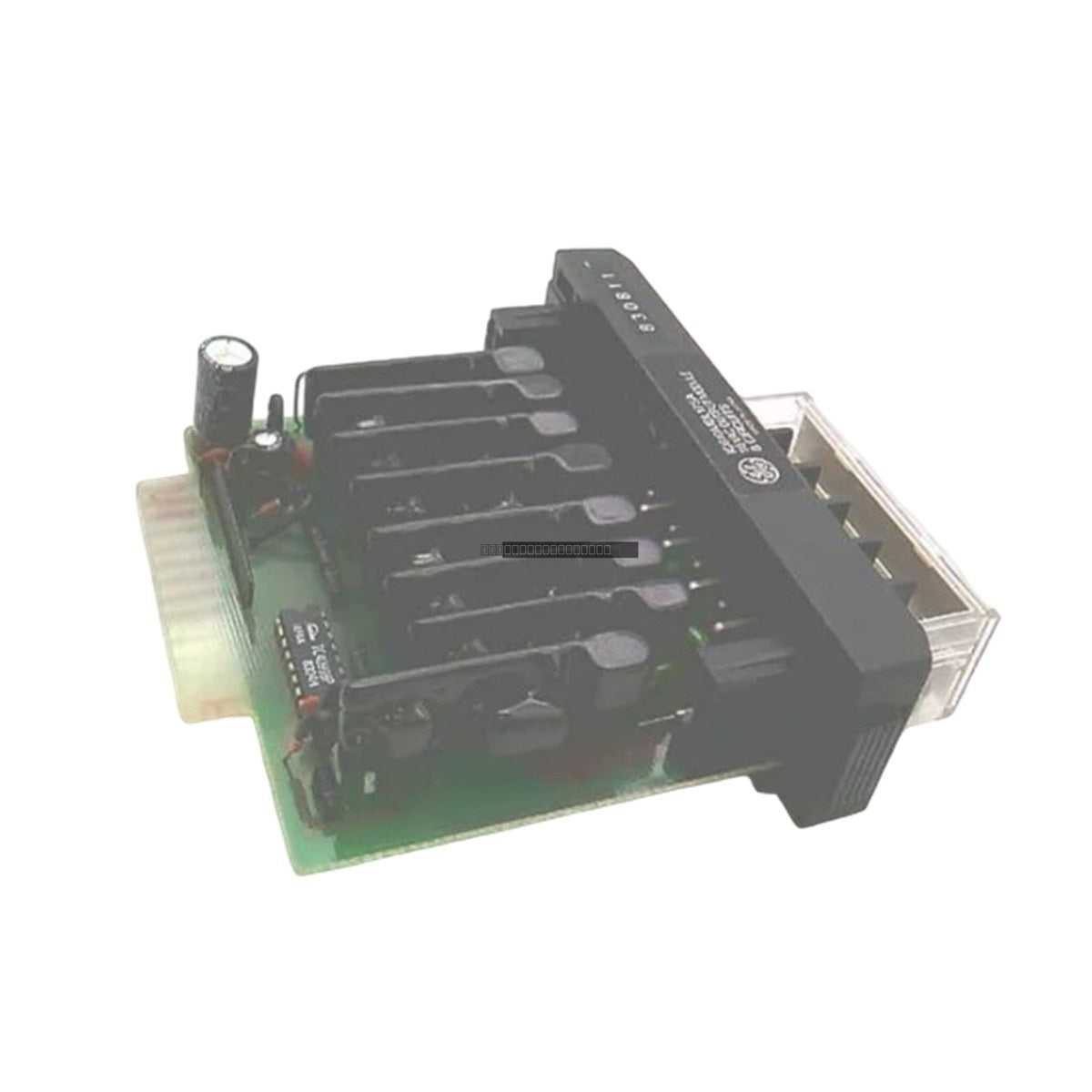

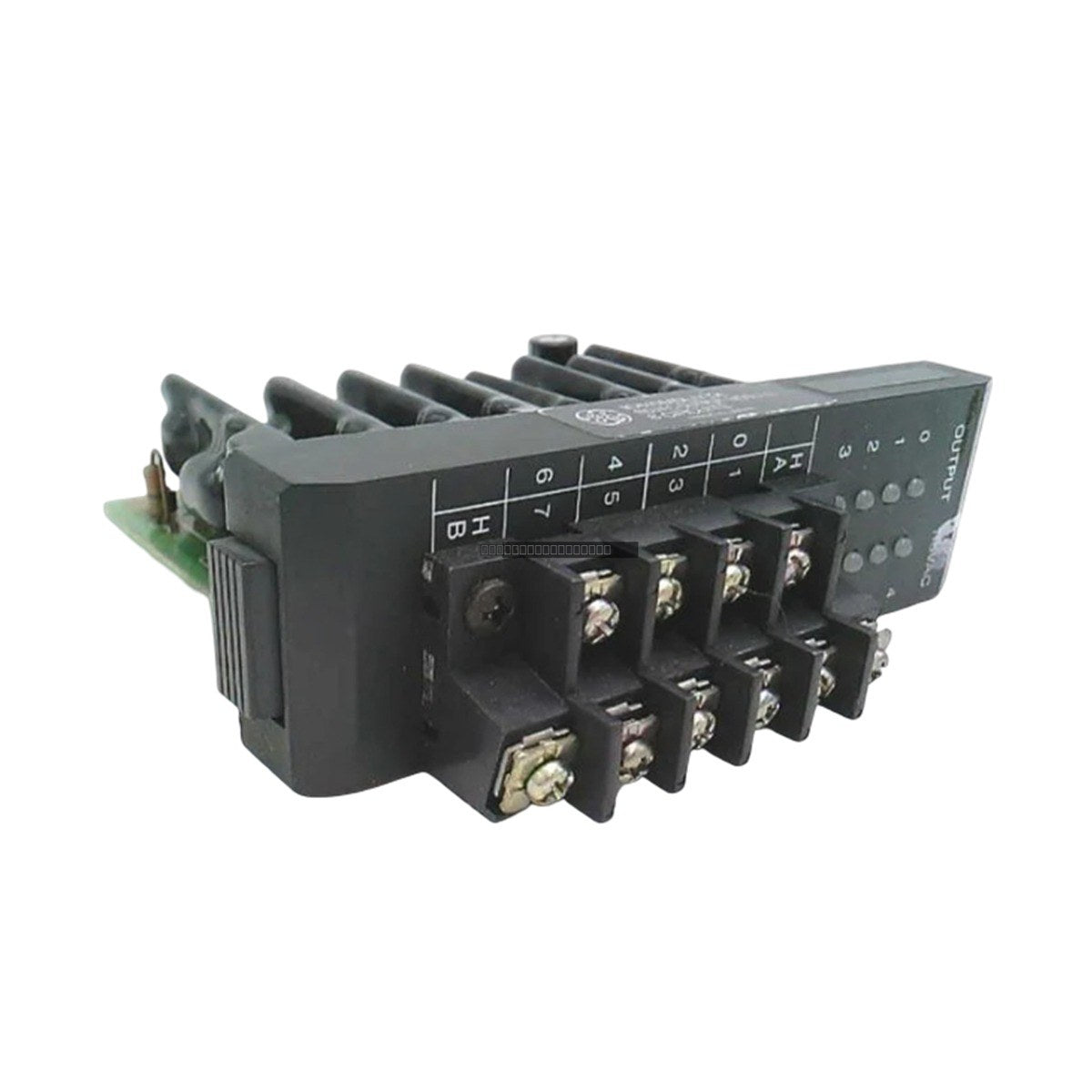

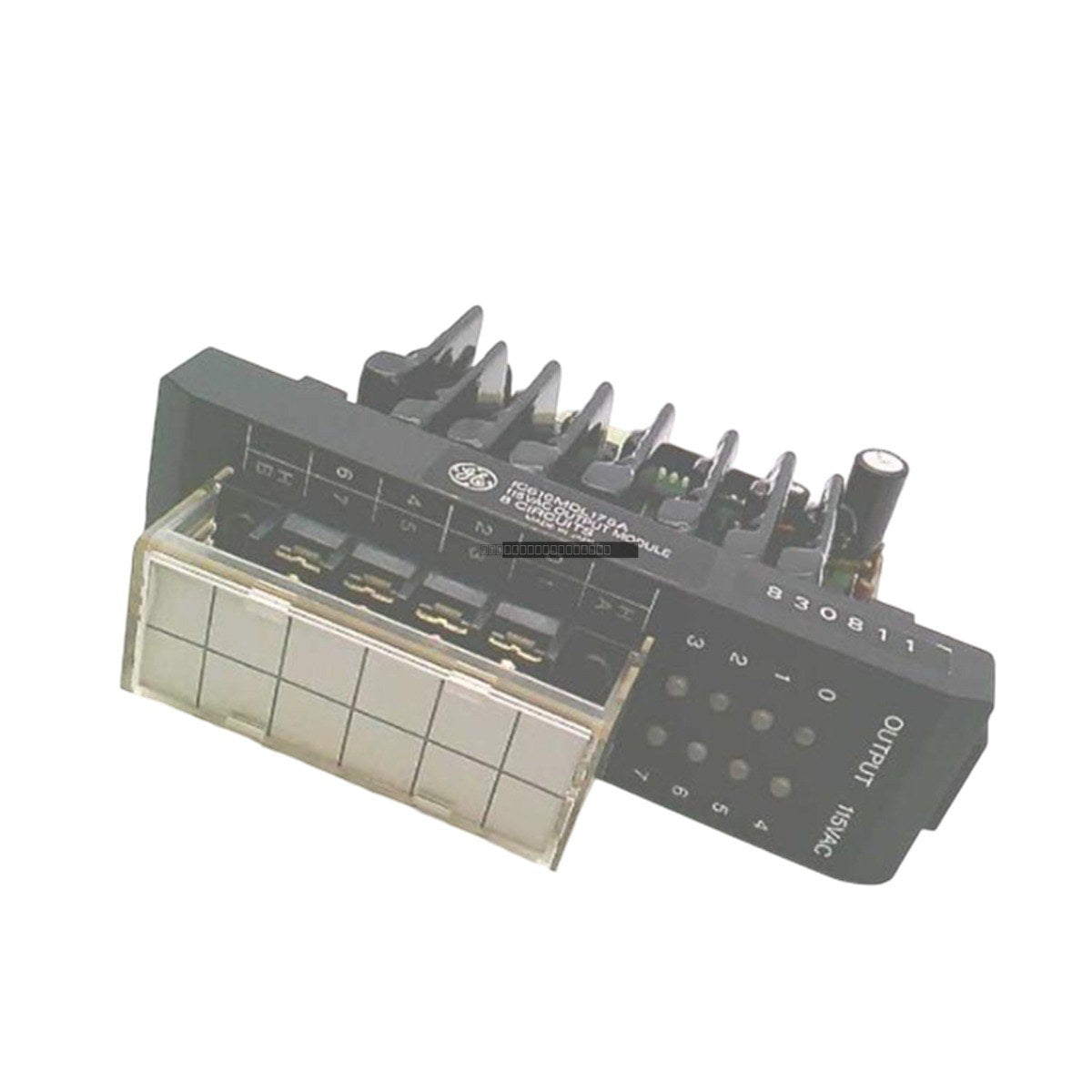

GE Fanuc IC610MDL175 Series One 8-Channel AC Output Module

GE Fanuc IC610MDL175 Series One 8-Channel AC Output Module

Description

The GE Fanuc IC610MDL175 is an 8-channel AC output module designed for the Series One programmable controller platform. This high-density module provides reliable switching for industrial field devices, including solenoids,...

23 people are viewing this right now

Availability: Low stock: 1 left

SKU: IC610MDL175
Vendor: GE FANUC
Category: AC Output Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The GE Fanuc IC610MDL175 is an 8-channel AC output module designed for the Series One programmable controller platform. This high-density module provides reliable switching for industrial field devices, including solenoids, contactors, and indicators. It is engineered to support demanding automation environments, such as packaging equipment and assembly lines, by offering robust electrical isolation and consistent signal performance.

Features

  • 8 independent AC output channels for multi-load control.
  • Configured in two isolated groups of four channels each.
  • Wide operating voltage range of 90 to 265 VAC.
  • Integrated logic-side LED indicators for real-time status monitoring and rapid troubleshooting.
  • Compact design optimized for high-density Series One rack mounting.

Applications

This module is suitable for various industrial control applications requiring AC load switching, including:

  • Automated assembly and manufacturing lines.
  • Packaging and material handling systems.
  • General-purpose AC load management in Series One control architectures.

Technical Specifications

Model IC610MDL175
Product Line Series One
Output Channels 8
Channel Grouping 2 groups (4 outputs per group)
Operating Voltage 90 to 265 VAC
AC Frequency 47 to 63 Hz
Max Current per Channel 1 Amp
Min Load per Channel 25 mA
Operating Temperature 0 to 60 degC

Installation Guidelines

  • Ensure the Series One rack power is disconnected before installing or removing the module.
  • Verify that the AC supply voltage is within the 90-265 VAC range before energizing the system.
  • Ensure proper grounding of the rack assembly to minimize electrical noise and EMI interference.
  • Route field wiring away from high-voltage power cables to prevent signal crosstalk.
  • Verify that the load connected to each channel meets the minimum 25 mA requirement to ensure stable switching.

FAQ

What is the channel configuration of the IC610MDL175?

The module features 8 output channels divided into two isolated groups, with four channels per group.

Does this module require a minimum load?

Yes, each channel requires a minimum load of 25 mA to maintain proper switching reliability and signal integrity.

How can I verify the status of the outputs?

The module includes logic-side circuit indicators on the front faceplate, allowing for immediate visual verification of each output's status during operation or maintenance.
