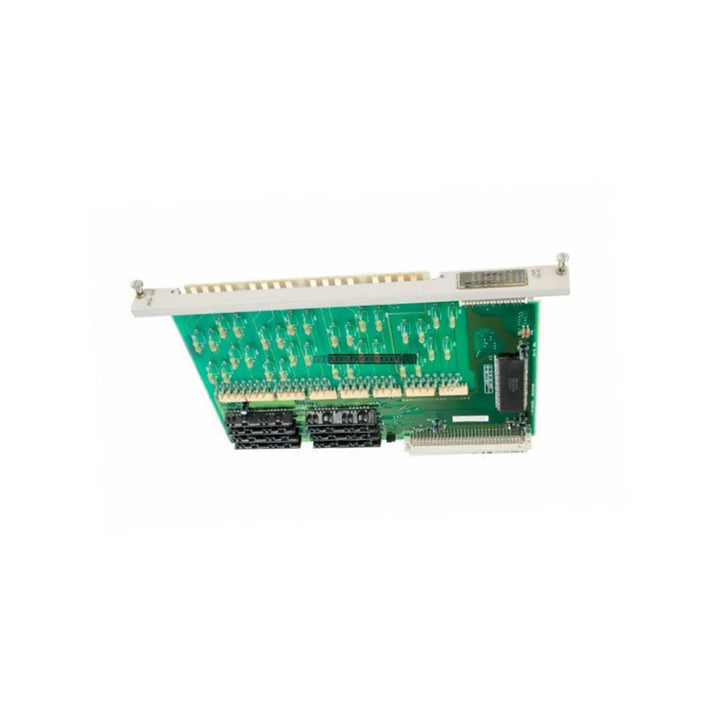

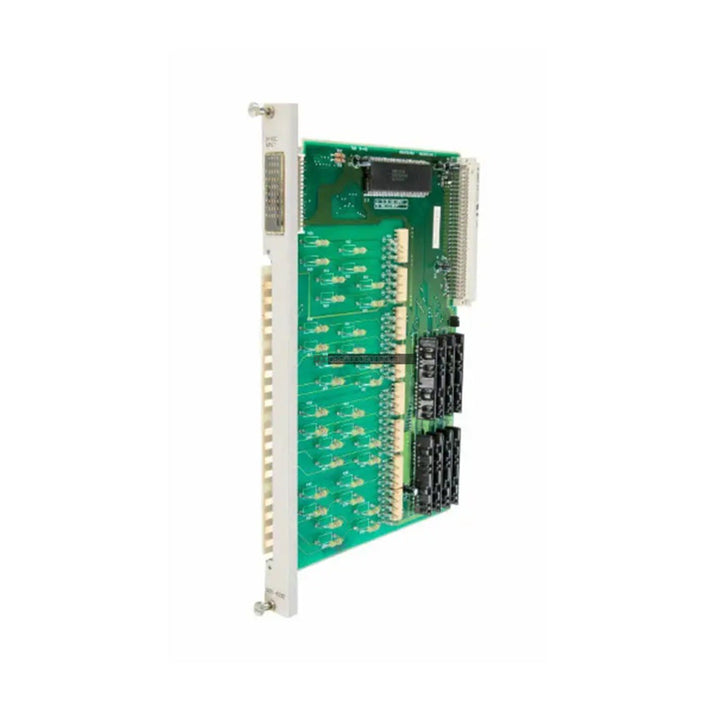

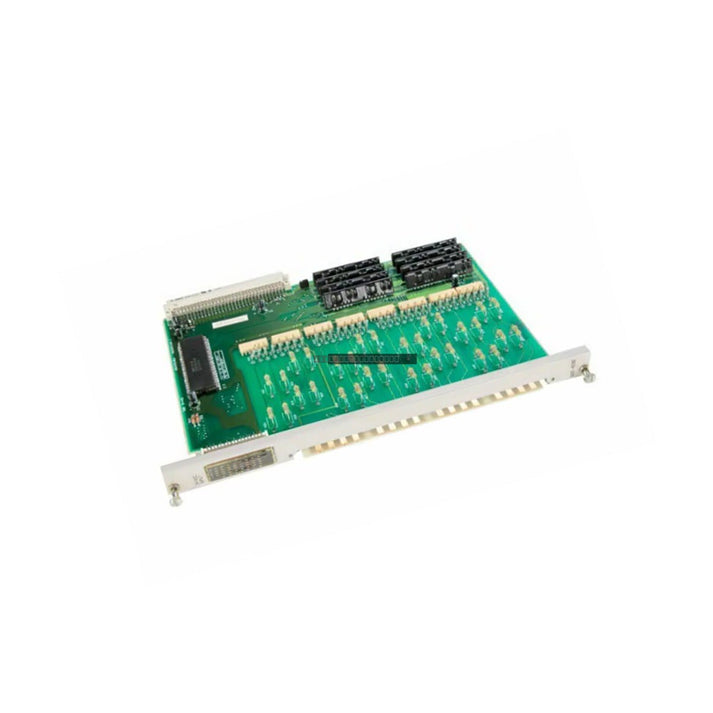

Siemens 505-4332 24 VDC Digital Input Module

Siemens 505-4332 24 VDC Digital Input Module

Description

The Siemens 505-4332 is a high-density digital input module designed for the TI 505 PLC series. This module provides 32 individual input channels, specifically engineered to interface with 24 VDC...

16 people are viewing this right now

Availability: Low stock: 4 left

SKU: 505-4332
Vendor: Siemens
Category: Digital Input Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Siemens 505-4332 is a high-density digital input module designed for the TI 505 PLC series. This module provides 32 individual input channels, specifically engineered to interface with 24 VDC field signals. It serves as a reliable solution for monitoring discrete status inputs in industrial control environments, effectively converting field-level voltage signals into processed data for the PLC backplane.

Features

  • Provides 32 discrete input channels for high-density signal monitoring.
  • Compatible with standard 24 VDC signal levels.
  • Designed for seamless integration with the Siemens TI 505 series programmable controller architecture.
  • Robust construction suitable for demanding industrial automation environments.
  • Manufacturer-recognized spare part for legacy TI 505 system maintenance.

Applications

This module is widely utilized in industrial automation systems requiring the monitoring of multiple digital sensors, such as proximity switches, pushbuttons, and relay contacts. It is commonly deployed in manufacturing lines, process control systems, and machine automation where 24 VDC signal acquisition is required.

Technical Specifications

Product Model 505-4332
Manufacturer Siemens
Input Type Digital Input (24 VDC)
Number of Channels 32
Product Status Discontinued by Manufacturer
Weight 0.4 kg
Tariff Code 8538903000

Installation Guidelines

  • Ensure the PLC rack power is fully disconnected before inserting or removing the module to prevent electrical damage.
  • Verify that the field wiring voltage matches the 24 VDC specification of the module inputs.
  • Use shielded cabling for input signal runs to minimize electromagnetic interference (EMI) in high-noise industrial areas.
  • Ensure proper grounding of the module chassis to the PLC backplane to maintain signal integrity.
  • Handle with care to avoid electrostatic discharge (ESD) damage to the internal circuitry.

FAQ

Is the Siemens 505-4332 still in production?
No, this model has been discontinued by the manufacturer. We supply tested units suitable for maintenance and replacement in existing legacy systems.

What is the primary function of this module?
The 505-4332 is a digital input module used to interface 32 separate 24 VDC signals into a TI 505 PLC system.
