Description

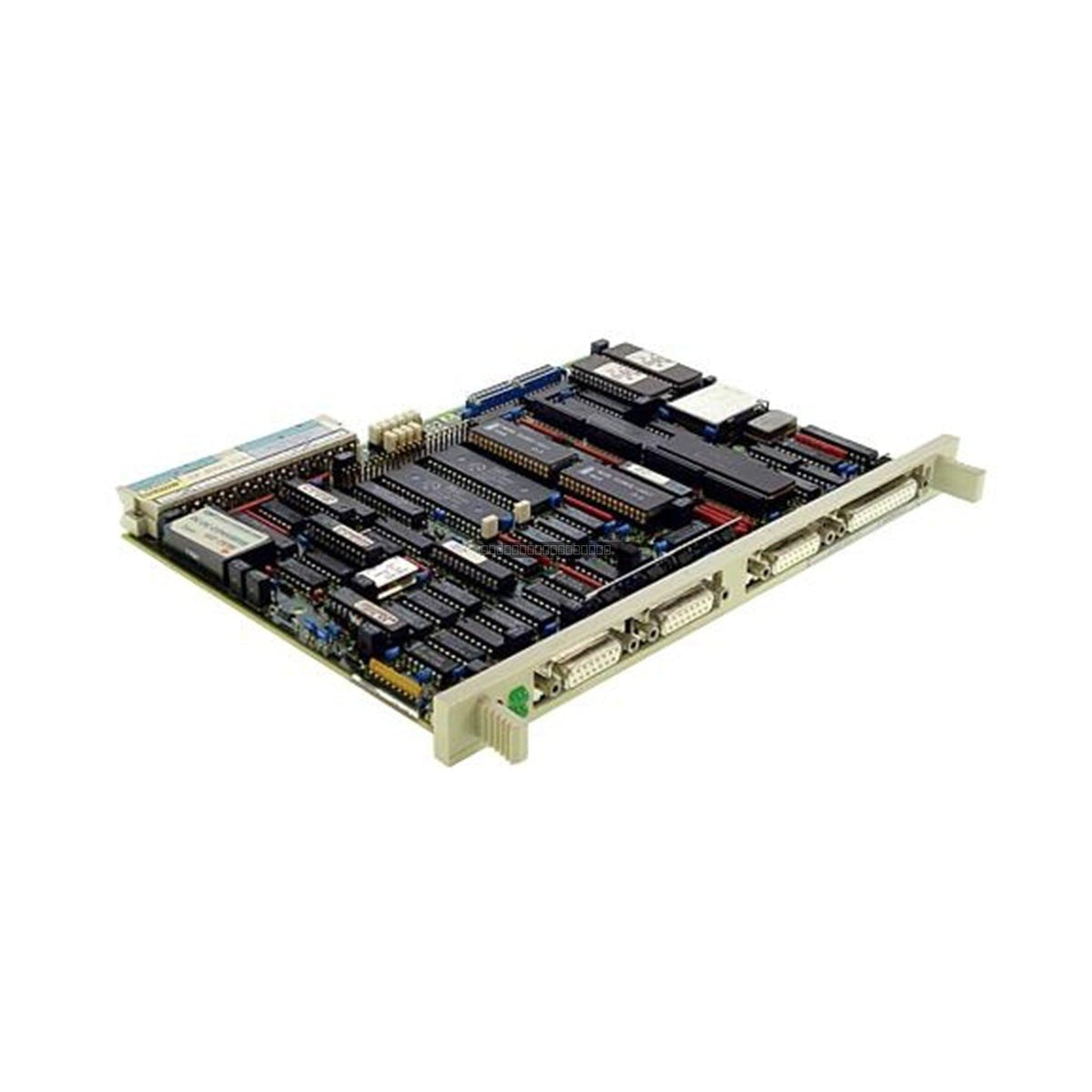

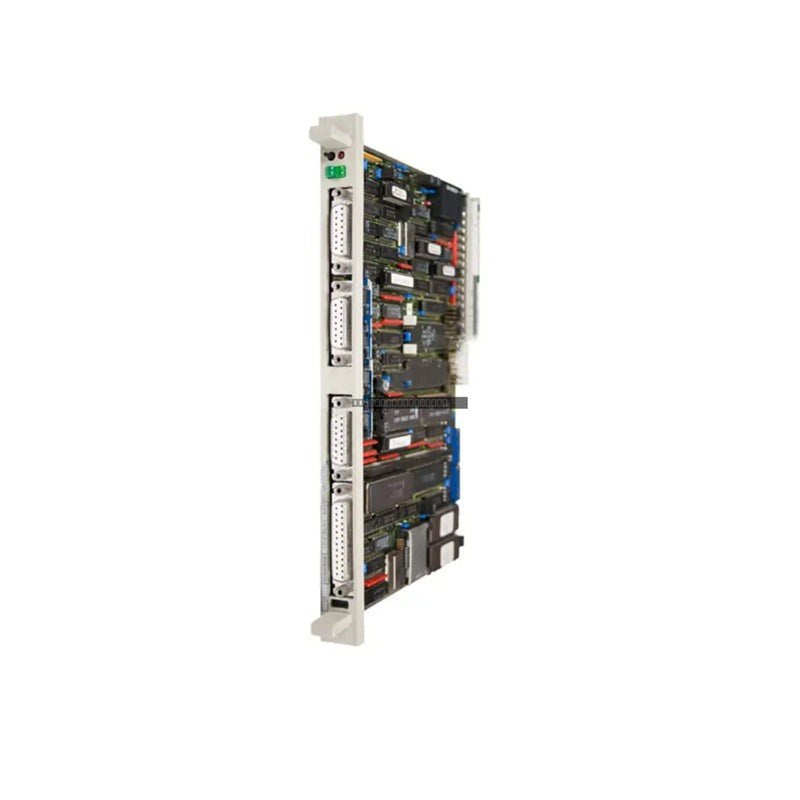

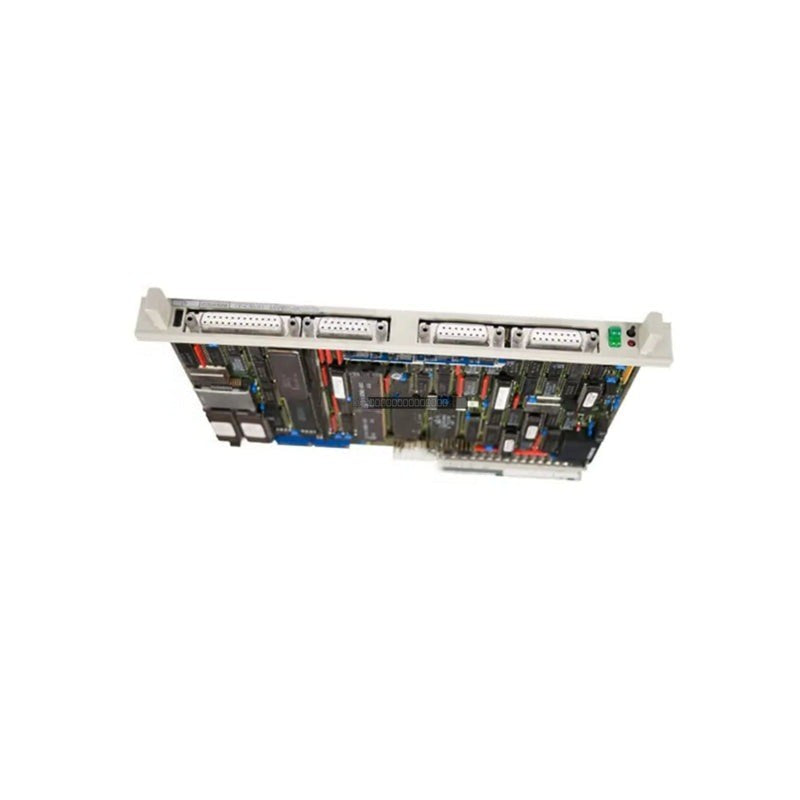

The Siemens 6AV1222-0AD20, also known as the CP-C30, is a specialized communication processor module engineered for the Simatic S5 programmable logic controller (PLC) series. This module functions as an intelligent interface processor, offloading complex data routing and protocol management tasks from the host CPU. By utilizing a dedicated 16 MHz microprocessor, the CP-C30 ensures deterministic communication performance, which is essential for maintaining stability in demanding industrial control environments such as chemical processing, power generation, and automotive manufacturing.

Features

• Dedicated 16 MHz processor architecture for independent communication handling.
• Integrated 4-port configuration for multi-channel data routing and network segmentation.
• Onboard memory configuration featuring 512/256 KB RAM for efficient data buffering.
• Optimized for Simatic S5 backplane integration with standard addressing support.
• Robust design for reliable operation in high-EMI industrial environments.

Applications

This module is primarily utilized in legacy Simatic S5 installations where high-speed serial communication and network node management are required. It is frequently deployed to manage point-to-point connections, interface conversion, and data acquisition tasks, effectively reducing the processing burden on the main PLC rack.

Technical Specifications

Installation Guidelines

• Ensure the PLC rack power is completely disconnected before inserting or removing the CP-C30 module to prevent electrical damage.
• Verify that the module is correctly seated in the designated S5 backplane slot to ensure proper bus contact.
• Maintain adequate ventilation around the PLC chassis to ensure ambient operating temperatures remain within the 0-60 deg C range.
• Use shielded cables for all communication connections to minimize electromagnetic interference (EMI) and ensure data integrity.
• Handle the module using standard ESD (Electrostatic Discharge) precautions to protect sensitive internal components.

FAQ

What is the primary function of the Siemens 6AV1222-0AD20?

The 6AV1222-0AD20 is a communication processor designed to manage data traffic and protocol handling for Simatic S5 systems, allowing the main CPU to focus on primary control logic.

Is this module compatible with modern Simatic S7 systems?

No, the 6AV1222-0AD20 is specifically designed for the legacy Simatic S5 platform and is not natively compatible with S7 or TIA Portal-based architectures.
