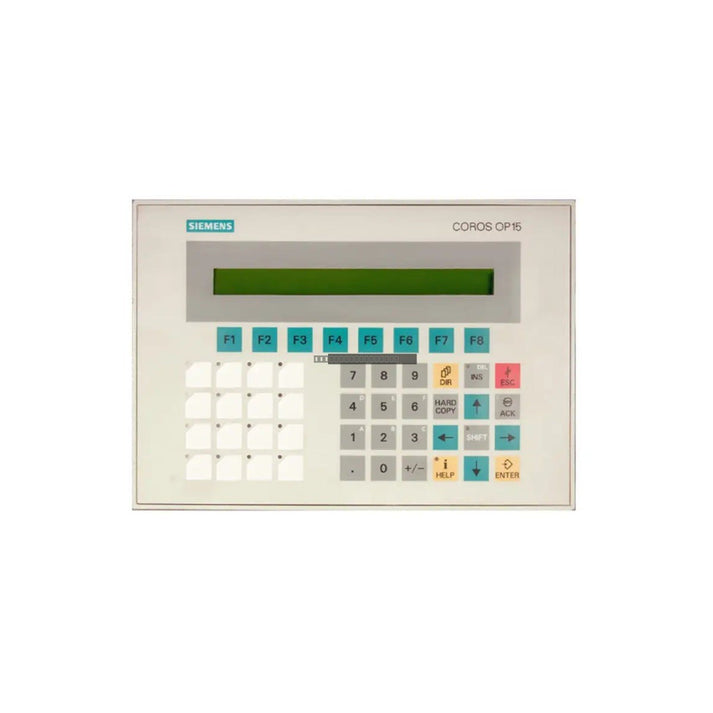

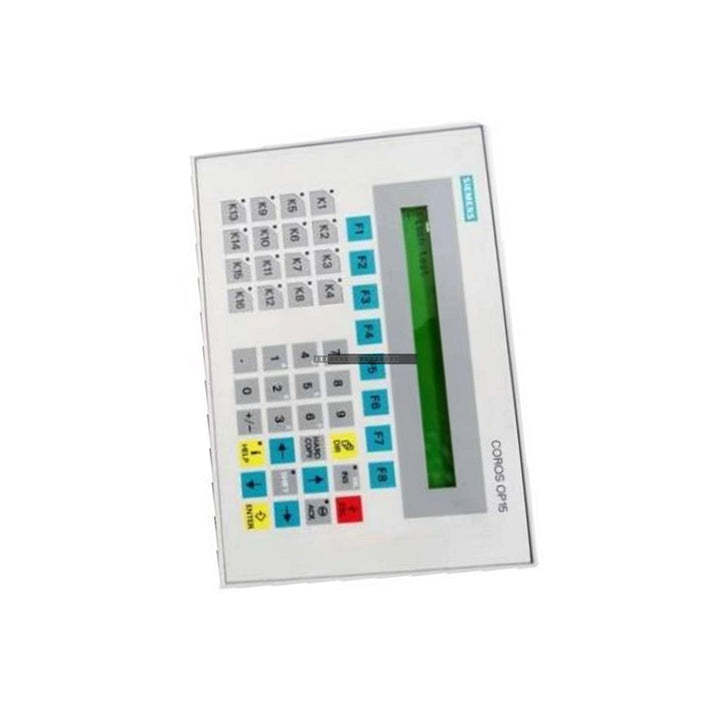

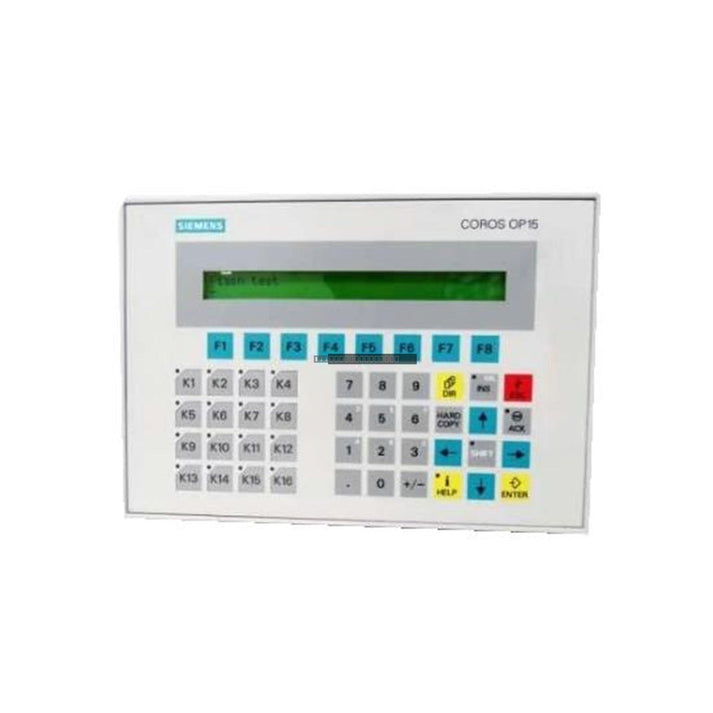

Siemens 6AV3515-1EB30 SIMATIC Operator Panel

Siemens 6AV3515-1EB30 SIMATIC Operator Panel

Description

The Siemens 6AV3515-1EB30 is a robust HMI operator panel engineered for reliable machine-level visualization and control within legacy industrial automation environments. This unit features a clear 2-line alphanumeric display paired...

29 people are viewing this right now

Availability: Low stock: 6 left

SKU: 6AV3515-1EB30
Vendor: Siemens
Category: Operator Panel
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Siemens 6AV3515-1EB30 is a robust HMI operator panel engineered for reliable machine-level visualization and control within legacy industrial automation environments. This unit features a clear 2-line alphanumeric display paired with a durable 48-button functional keypad, enabling operators to monitor real-time system variables, acknowledge alarms, and execute precise control commands. Designed for demanding industrial applications, this panel facilitates direct, low-latency access to PLC memory registers, assisting in the reduction of configuration errors and streamlining troubleshooting processes.

Features

  • Tactile Keypad: Equipped with a 48-button membrane keyboard featuring tactile dome switches, designed for high-cycle durability and resistance to dust and oil ingress.
  • Multi-Port Connectivity: Includes two V.24/TTY (SS1/SS2-A) female ports supporting 20 mA active/passive current loops and one RS422/RS485 female port for versatile fieldbus and serial communication.
  • Industrial Design: Rugged construction suitable for deployment in heavy industries such as automotive manufacturing, chemical processing, and mineral handling.
  • Optimized Communication: Isolated serial data channels ensure signal integrity and network stability, even in environments with significant electromagnetic interference.

Technical Specifications

Model 6AV3515-1EB30
Brand Siemens
Series SIMATIC HMI
Display 2-line alphanumeric
Input 48-button tactile keypad
Serial Ports 2 x V.24/TTY (SS1/SS2-A), 1 x RS422/RS485
Supply Voltage 24 VDC
Operating Temperature 0 to 50 deg C

Installation Guidelines

  • Ensure the panel is mounted in a location that allows for adequate airflow to maintain operating temperatures within the 0 to 50 deg C range.
  • Use shielded communication cables for all serial connections to minimize the impact of electromagnetic noise.
  • Verify that the 24 VDC power supply is stable and properly grounded before connecting the unit to the PLC network.
  • Always power down the system before inserting or removing communication cables to prevent electrical damage to the interface ports.
  • Clean the membrane keypad periodically using only approved industrial cleaners to maintain tactile responsiveness and seal integrity.

FAQ

What type of communication protocols does this panel support?

The 6AV3515-1EB30 supports V.24/TTY (20 mA current loop) for legacy point-to-point connections and RS422/RS485 for multi-node master-slave networking.

Is this unit suitable for high-dust environments?

Yes, the 48-button membrane keypad is designed with tactile dome switches to prevent dust and oil from entering the internal circuitry, making it suitable for standard industrial shop-floor conditions.
