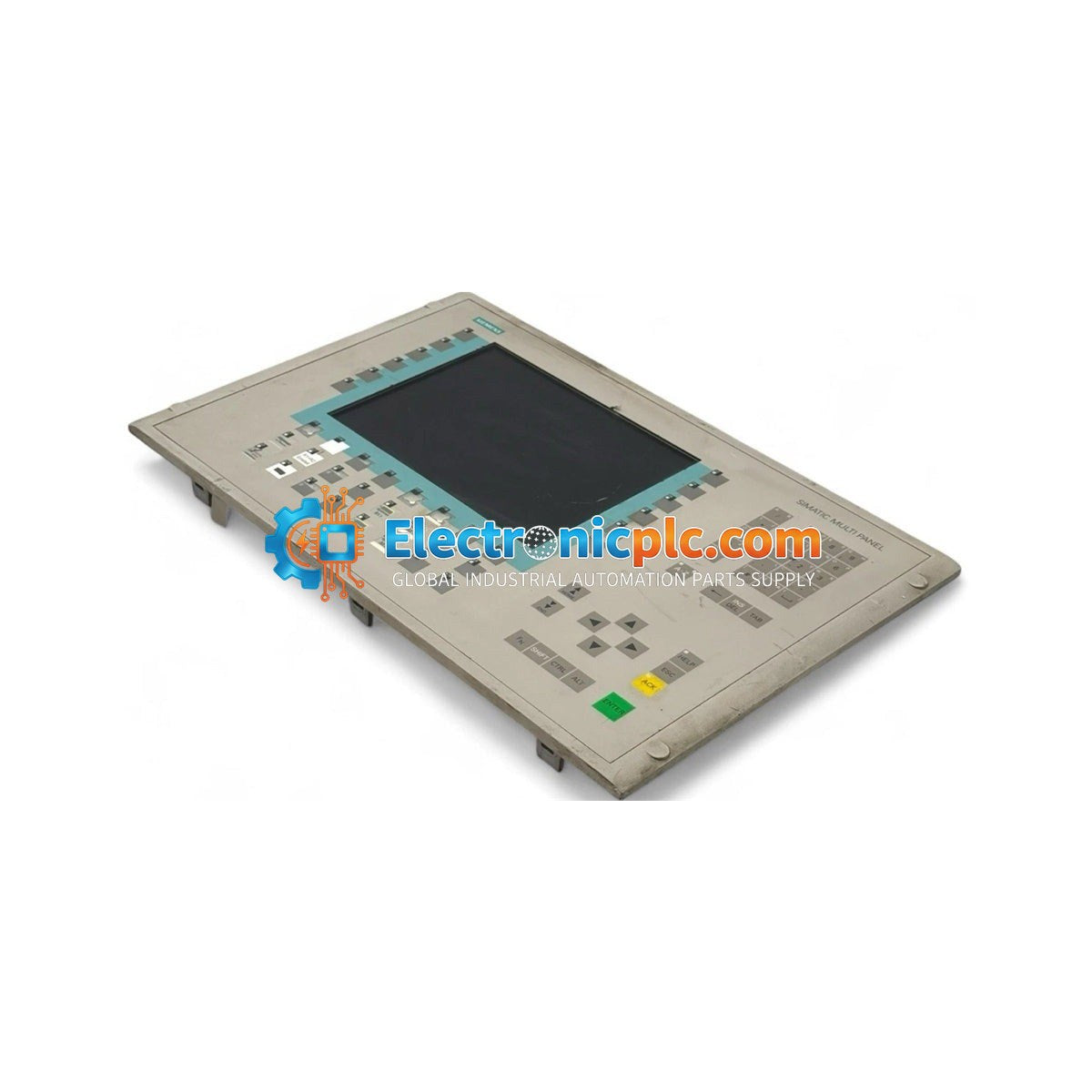

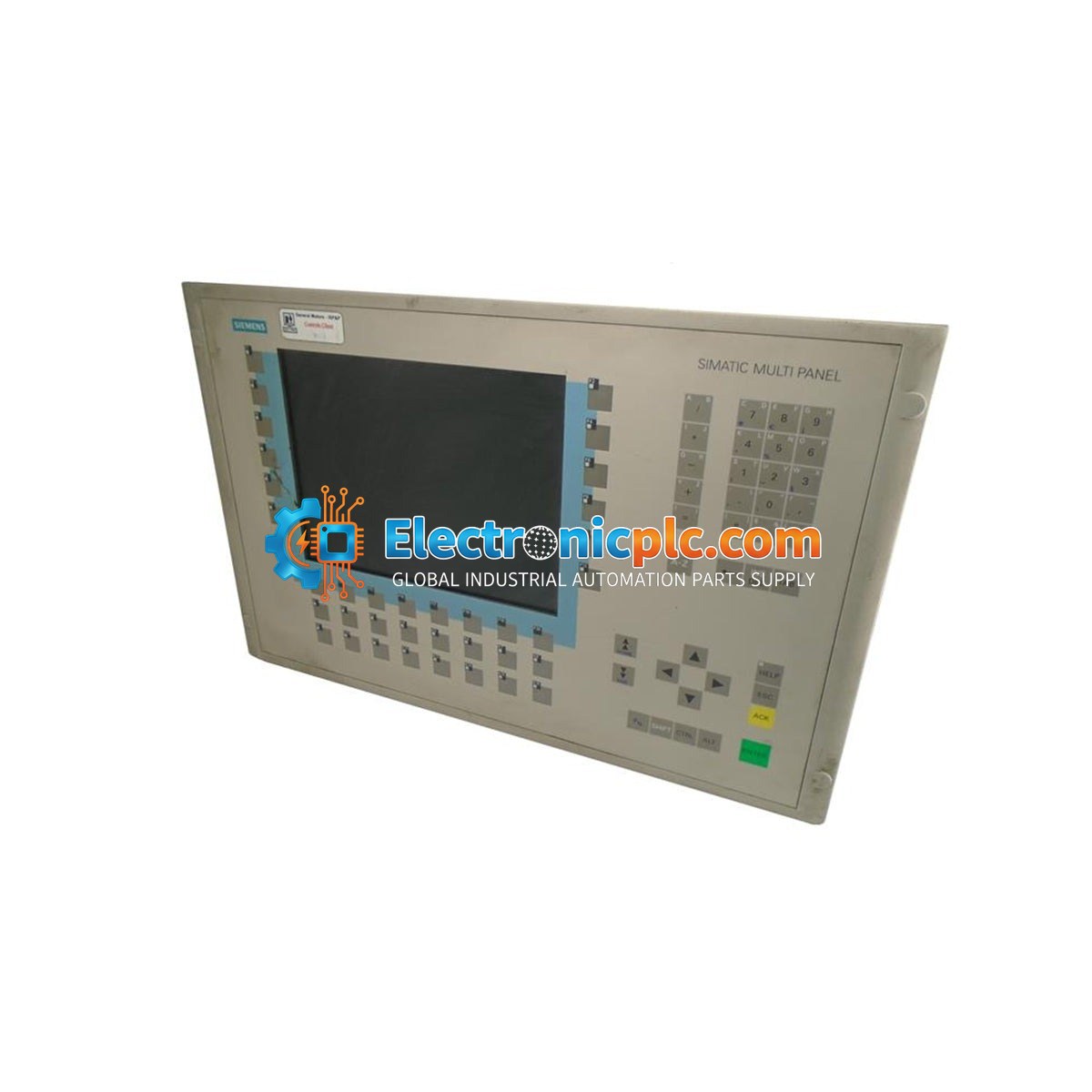

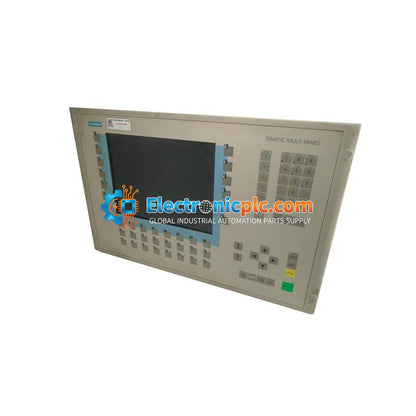

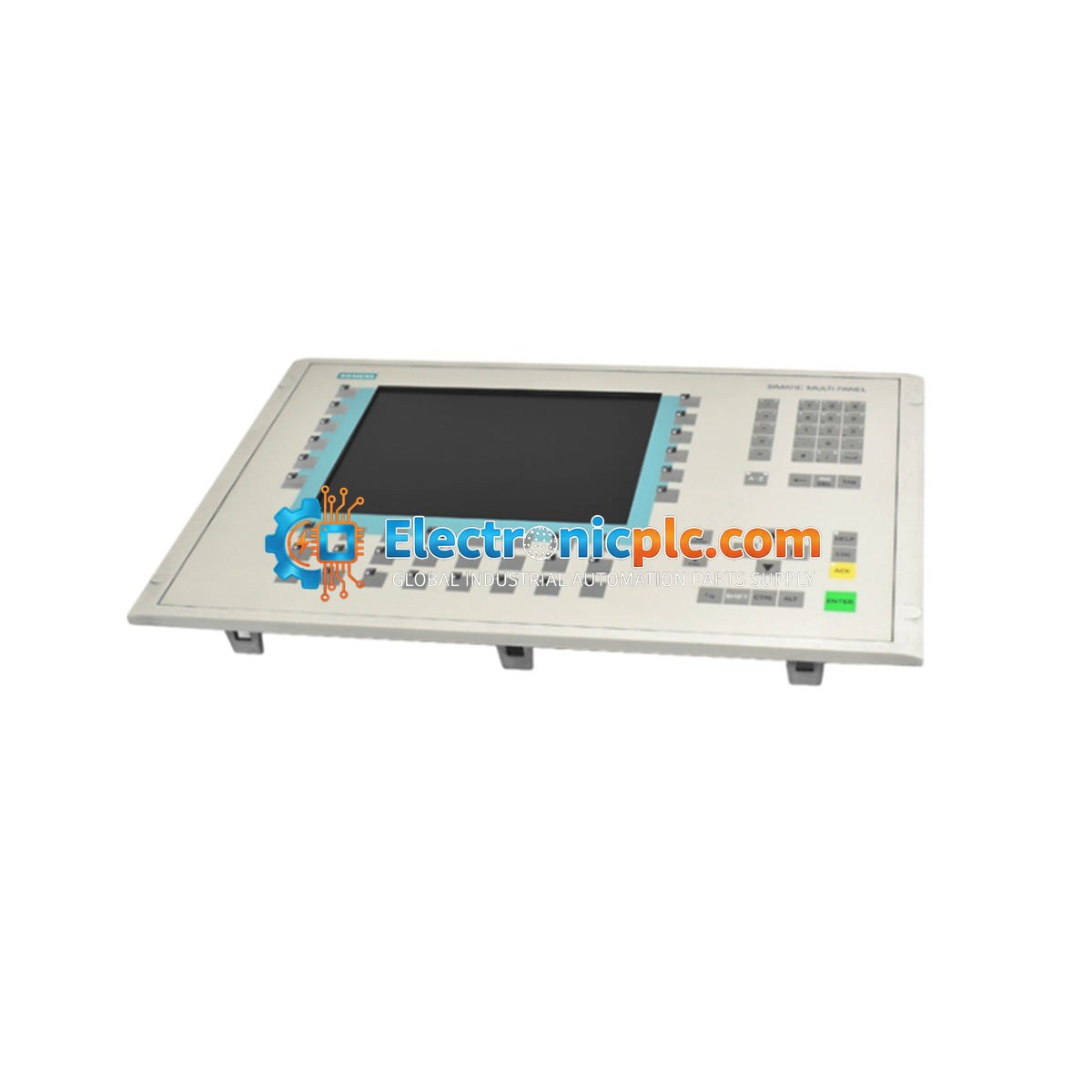

Siemens 6AV6542-0AG10-0AX0 SIMATIC MP 270B Multi Panel

Siemens 6AV6542-0AG10-0AX0 SIMATIC MP 270B Multi Panel

Description

The Siemens 6AV6542-0AG10-0AX0 is a SIMATIC MP 270B Multi Panel designed for industrial operator interface applications. This unit features a 10.4-inch TFT color display and a membrane keypad, providing a...

22 people are viewing this right now

Availability: Low stock: 7 left

SKU: 6AV6542-0AG10-0AX0
Vendor: Siemens
Category: HMI Operator Panel
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Siemens 6AV6542-0AG10-0AX0 is a SIMATIC MP 270B Multi Panel designed for industrial operator interface applications. This unit features a 10.4-inch TFT color display and a membrane keypad, providing a robust solution for monitoring and controlling automated processes. As a legacy device, it is frequently utilized in established machine control systems requiring reliable human-machine interaction.

Features

  • 10.4-inch TFT color display with 640 x 480 pixel resolution.
  • Integrated membrane keyboard for tactile operator input.
  • 4 MB of configuration memory.
  • Configurable via Siemens ProTool software (Version V6.0 or higher).
  • Integrated USB interface for peripheral connectivity.
  • Designed for demanding industrial environments with a rated current consumption of 0.9 A.

Applications

  • Packaging and palletizing systems for recipe management and error logging.
  • Industrial kilns and ovens for multi-step temperature profiling.
  • Water treatment and pump station monitoring.
  • Injection molding machine cycle and pressure monitoring.
  • Maritime machinery and engine control systems.

Technical Specifications

Model 6AV6542-0AG10-0AX0
Display Type TFT, 256 colors
Screen Diagonal 10.4 inch
Resolution 640 x 480 pixels
Backlight MTBF 50,000 hours (at 25 degC)
Control Elements Membrane keyboard
Power Input (typ.) 22 W
Rated Current 0.9 A
Memory 4 MB configuration memory
Interfaces 1x USB

Installation Guidelines

  • Ensure the panel is mounted in a clean, dry environment within an appropriate IP-rated enclosure.
  • Verify that the mounting cutout dimensions are accurate to maintain the integrity of the front seal.
  • Use a damp, soft cloth for cleaning the front membrane; avoid abrasive cleaners or solvents that may damage the display or seal.
  • Ensure proper grounding of the panel chassis to minimize electromagnetic interference (EMI).
  • Power down the system before connecting or disconnecting communication cables or peripheral devices.
  • Maintain adequate ventilation around the rear of the unit to prevent overheating during operation.

FAQs

What is the 6AV6542-0AG10-0AX0?

The Siemens 6AV6542-0AG10-0AX0 is an industrial multi-panel with a 10.4-inch color display and functional keys, typically used with ProTool V6.0 or higher software for process visualization.

What is the difference between MP270 and MP270B?

The 6AV6542-0AG10-0AX0 is a Multi Panel 270B model. The 'B' designation generally indicates updated processor performance and memory specifications compared to the original MP270 series.

What is the memory capacity?

The device features 4 MB of configuration memory and supports up to 2,048 variables for process monitoring.
