Description

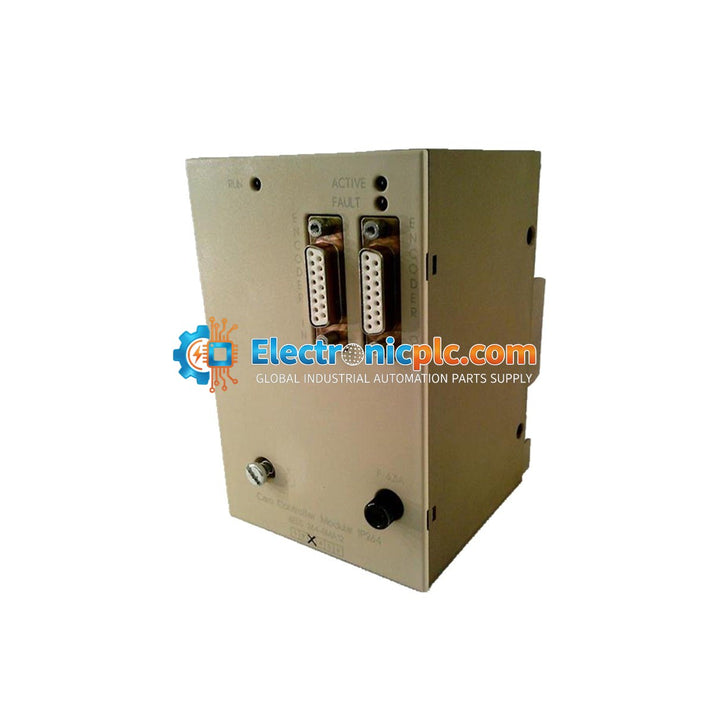

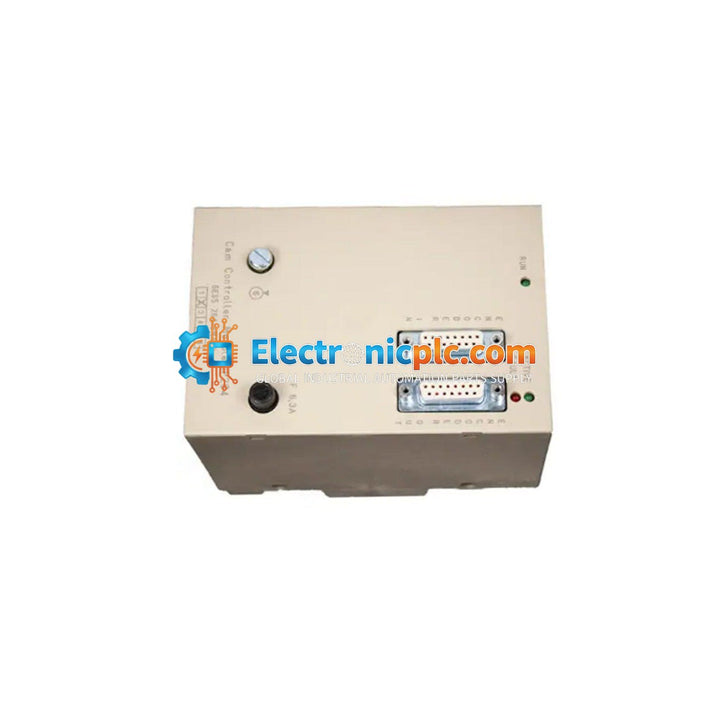

The Siemens 6ES5264-8MA12 is an intelligent IP264 cam controller module engineered for the Siemens Simatic S5-90U, 95U, and 100U programmable logic controller (PLC) families. This high-precision processor manages one channel of positional feedback, converting mechanical motion into discrete digital output signals. As a direct successor to the 6ES5 264-8MA11, this module is designed to provide reliable motion control and precise cam switching in demanding industrial environments, effectively replacing traditional mechanical limit switches with programmable electronic logic.

Features

• Dedicated microprocessor for high-speed control loops independent of the main PLC CPU cycle time.
• Supports both incremental encoders for relative position tracking and SSI (Synchronous Serial Interface) encoders for absolute positioning.
• Configurable parameters via S5 backplane, including cam switching points, hysteresis, and scaling factors.
• Reduces mechanical wear and maintenance by replacing physical cam-actuated switches.
• Optimized for low-latency synchronization in high-speed machinery.

Applications

This module is ideal for applications requiring precise timing and positional control, such as:

• Manufacturing and assembly lines.
• Conveyor system synchronization.
• Packaging machinery.
• Automated indexing and rotary table control.

Technical Specifications

Installation Guidelines

• Ensure the PLC system is powered down before inserting or removing the IP264 module from the S5 rack.
• Handle the module using proper ESD-safe practices to prevent damage to sensitive internal circuitry.
• Ensure the module is firmly seated in the backplane connector to maintain reliable communication with the CPU.
• Route encoder signal cables away from high-voltage power lines and sources of electromagnetic interference (EMI) to ensure signal integrity.
• Verify that the encoder type (incremental or SSI) matches the configured settings in the S5 software before applying power to the machine.

FAQ

What is the primary function of the IP264 module?

The IP264 acts as an electronic cam controller that monitors encoder feedback and triggers digital outputs based on programmed positional thresholds, allowing for high-speed timing control that is independent of the main PLC scan time.

Is this module compatible with all Simatic S5 systems?

The 6ES5264-8MA12 is specifically designed for the S5-90U, 95U, and 100U series. Please consult your specific CPU documentation to ensure compatibility with your existing rack configuration.
