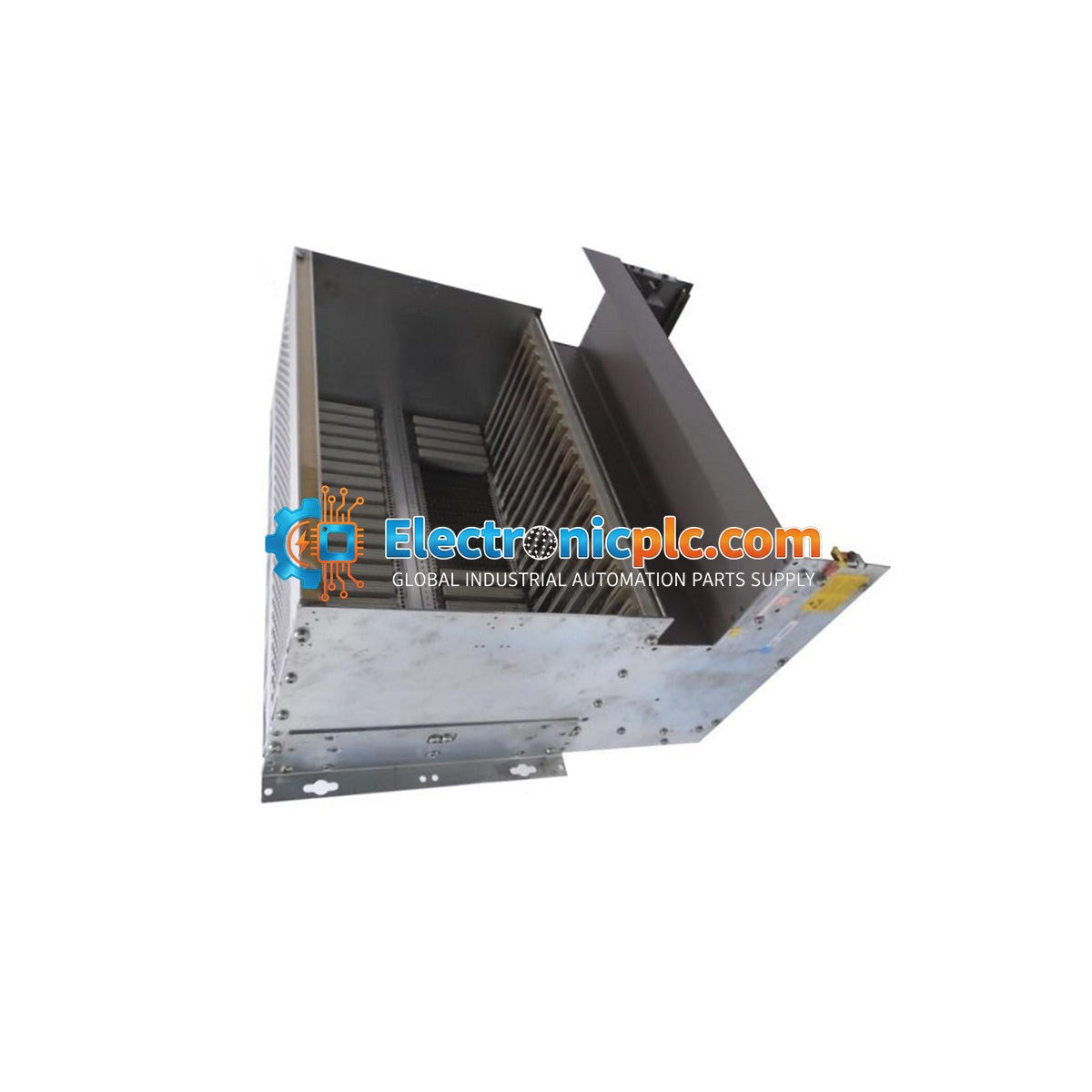

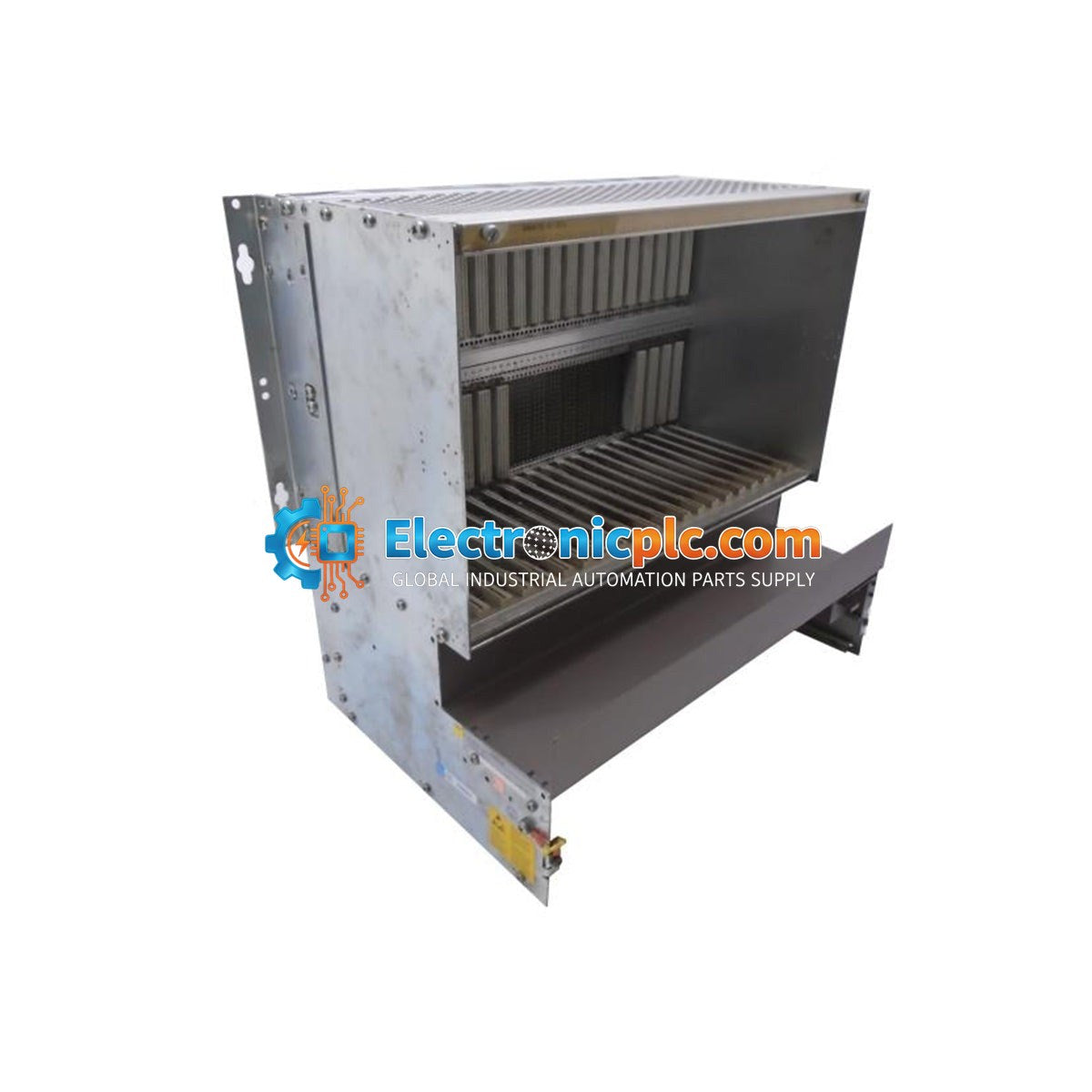

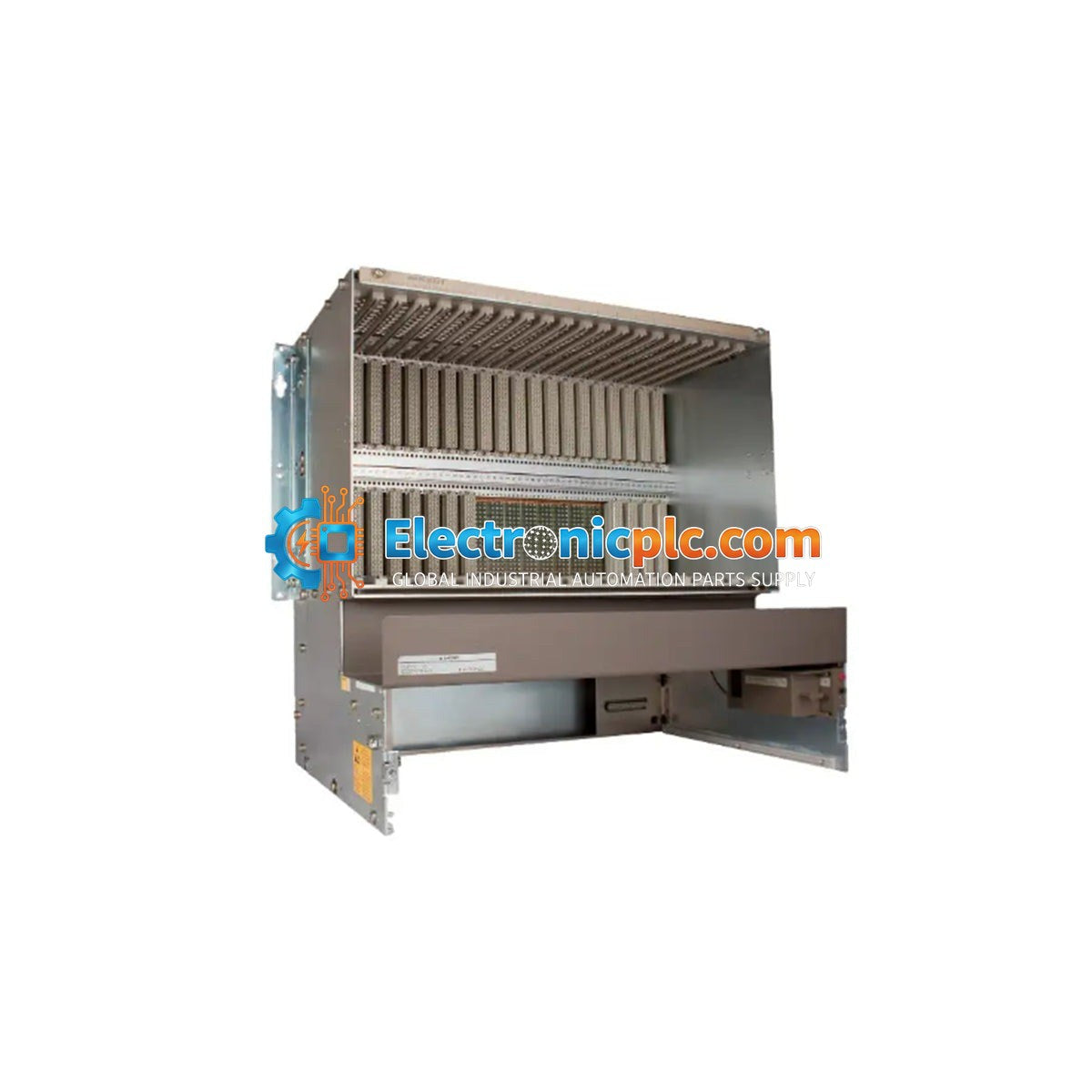

Siemens 6ES5135-3KB13 SIMATIC S5-135U Central Controller Rack

Siemens 6ES5135-3KB13 SIMATIC S5-135U Central Controller Rack

Description

The Siemens 6ES5135-3KB13 is a central controller rack designed for the SIMATIC S5-135U automation platform. This 21-slot chassis provides the structural and electrical framework required to house high-performance CPU processors,...

17 people are viewing this right now

Availability: Low stock: 2 left

SKU: 6ES5135-3KB13
Vendor: Siemens
Category: PLC Rack
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Siemens 6ES5135-3KB13 is a central controller rack designed for the SIMATIC S5-135U automation platform. This 21-slot chassis provides the structural and electrical framework required to house high-performance CPU processors, I/O modules, and communication interfaces. It is intended for large-scale industrial applications such as automotive assembly lines, steel rolling mills, and power distribution substations, facilitating rapid signal processing and coherent system management.

Features

  • 21-slot high-density layout for expansive system customization.
  • High-speed backplane architecture for deterministic data transfer between the central S-processor and peripheral modules.
  • Robust industrial-grade enclosure designed to withstand vibration and thermal stressors.
  • Modular design to support component upgrades and maintenance.
  • Supports high-current requirements up to 18 A.

Applications

This rack is widely utilized in heavy industrial environments where centralized control and high-density I/O configurations are required. Typical applications include complex manufacturing processes, automated assembly lines, and power generation control systems within the SIMATIC S5-135/155 family.

Technical Specifications

Model 6ES5135-3KB13
Series SIMATIC S5-135/155
Slot Capacity 21 Slots
Rated Current 18 A
Voltage Compatibility 115 VAC to 240 VAC (via compatible power modules)
Operating Temperature 0 deg C to 55 deg C
Mounting Standard Rack Mount

Installation Guidelines

  • Ensure the rack is mounted in a clean, dry, and vibration-dampened environment to maintain long-term reliability.
  • Maintain adequate clearance around the rack to allow for proper airflow and cooling, preventing thermal buildup.
  • Ensure all power is disconnected before installing or removing any modules from the rack slots.
  • Use appropriate grounding techniques to minimize EMI interference, following standard industrial electrical safety practices.
  • Verify that all modules are fully seated and secured in their respective slots to ensure reliable backplane connectivity.

FAQ

Is the power supply included with the 6ES5135-3KB13?

No, this rack is provided as a chassis without an integrated power supply. It is designed to accommodate compatible power modules that support 115 VAC to 240 VAC input ranges.

What series is this rack compatible with?

This rack is specifically designed for the Siemens SIMATIC S5-135U and S5-155U automation systems.
