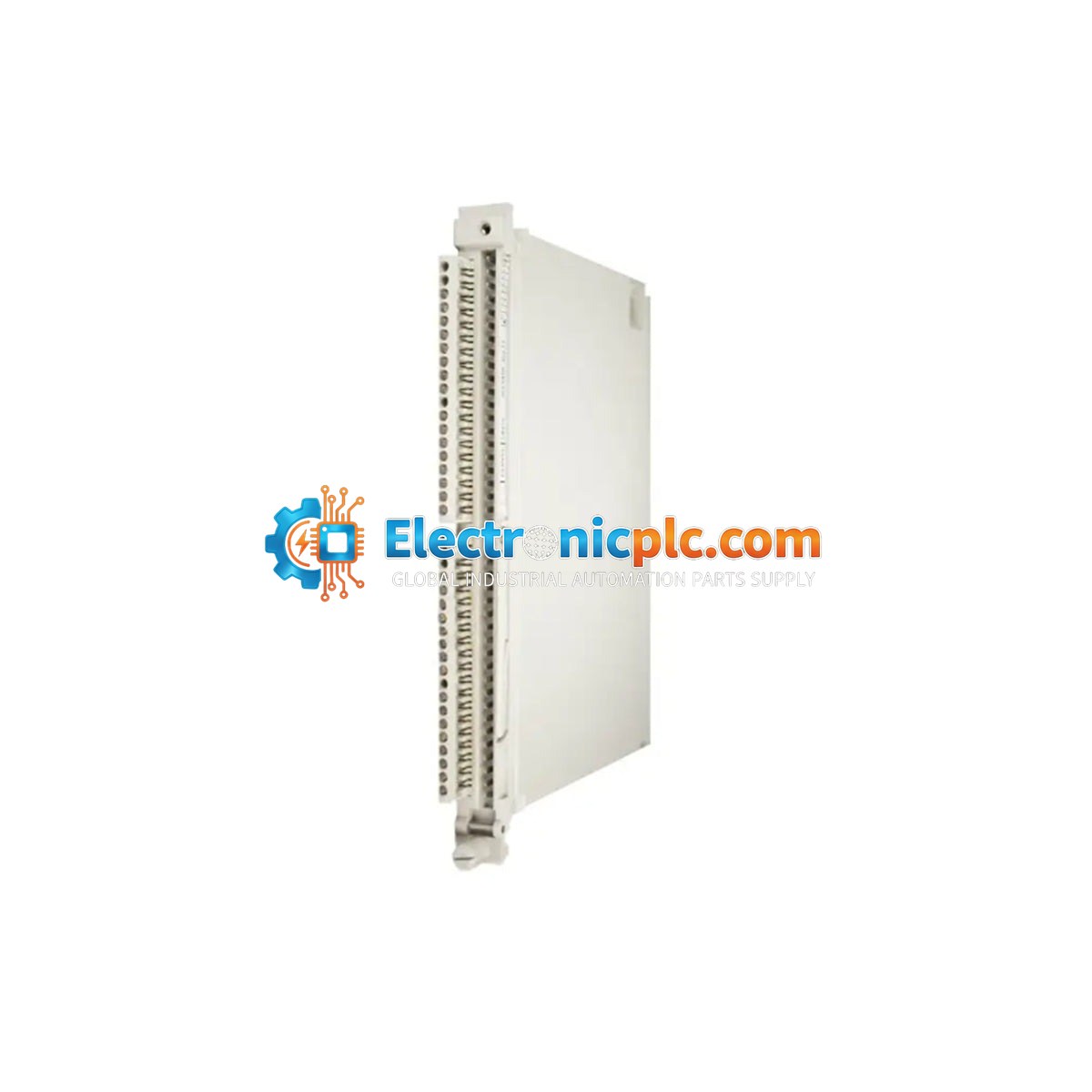

Siemens 6ES5430-4UA13 Digital Input Module

Siemens 6ES5430-4UA13 Digital Input Module

Description

The Siemens 6ES5430-4UA13 is a digital input module designed for the SIMATIC S5-135U and S5-155U programmable logic controller systems. This module provides 32 isolated (floating) input channels, operating at a...

17 people are viewing this right now

Availability: Low stock: 9 left

SKU: 6ES5430-4UA13
Vendor: Siemens
Category: Digital Input Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Siemens 6ES5430-4UA13 is a digital input module designed for the SIMATIC S5-135U and S5-155U programmable logic controller systems. This module provides 32 isolated (floating) input channels, operating at a nominal voltage of 24 VDC. As a compact version (U-type) module, it is engineered for high-density signal processing in legacy industrial automation environments.

Features

  • 32 digital input channels for high-density signal acquisition.
  • Floating (isolated) input configuration for improved noise immunity and ground loop prevention.
  • Designed for 24 VDC signal levels.
  • Compatible with SIMATIC S5-135U and S5-155U rack systems.
  • Compact module design for space-efficient cabinet installation.

Ordering Information

Please note that the 6ES5430-4UA13 has been discontinued by the manufacturer since October 1, 2005. The designated successor model is 6ES5430-4UA14. Ensure compatibility with your existing S5 rack configuration before installation.

Technical Specifications

Model 6ES5430-4UA13
Manufacturer Siemens
Product Type Digital Input Module
Number of Inputs 32
Input Voltage 24 VDC
Isolation Floating
System Compatibility SIMATIC S5-135U / 155U

Installation Guidelines

  • Ensure the PLC rack power is completely disconnected before inserting or removing the module to prevent electrical damage or bus errors.
  • Handle the module using ESD-safe practices to protect internal circuitry from electrostatic discharge.
  • Verify that the backplane connector is properly aligned and seated before securing the module into the rack.
  • Route signal wiring away from high-voltage AC lines or high-EMI sources to minimize signal interference.
  • Ensure proper ventilation within the control cabinet to maintain operating temperatures within the specified range for S5 components.

FAQ

Is this module still in production?

No, the 6ES5430-4UA13 was discontinued by Siemens on October 1, 2005. We provide these units as refurbished or legacy spare parts to support existing installations.

What is the recommended replacement for this part?

Siemens designated the 6ES5430-4UA14 as the direct successor for this module.

Does this module require external power?

The module operates on 24 VDC for the input signals; ensure your power supply is appropriately rated and filtered for industrial PLC use.
