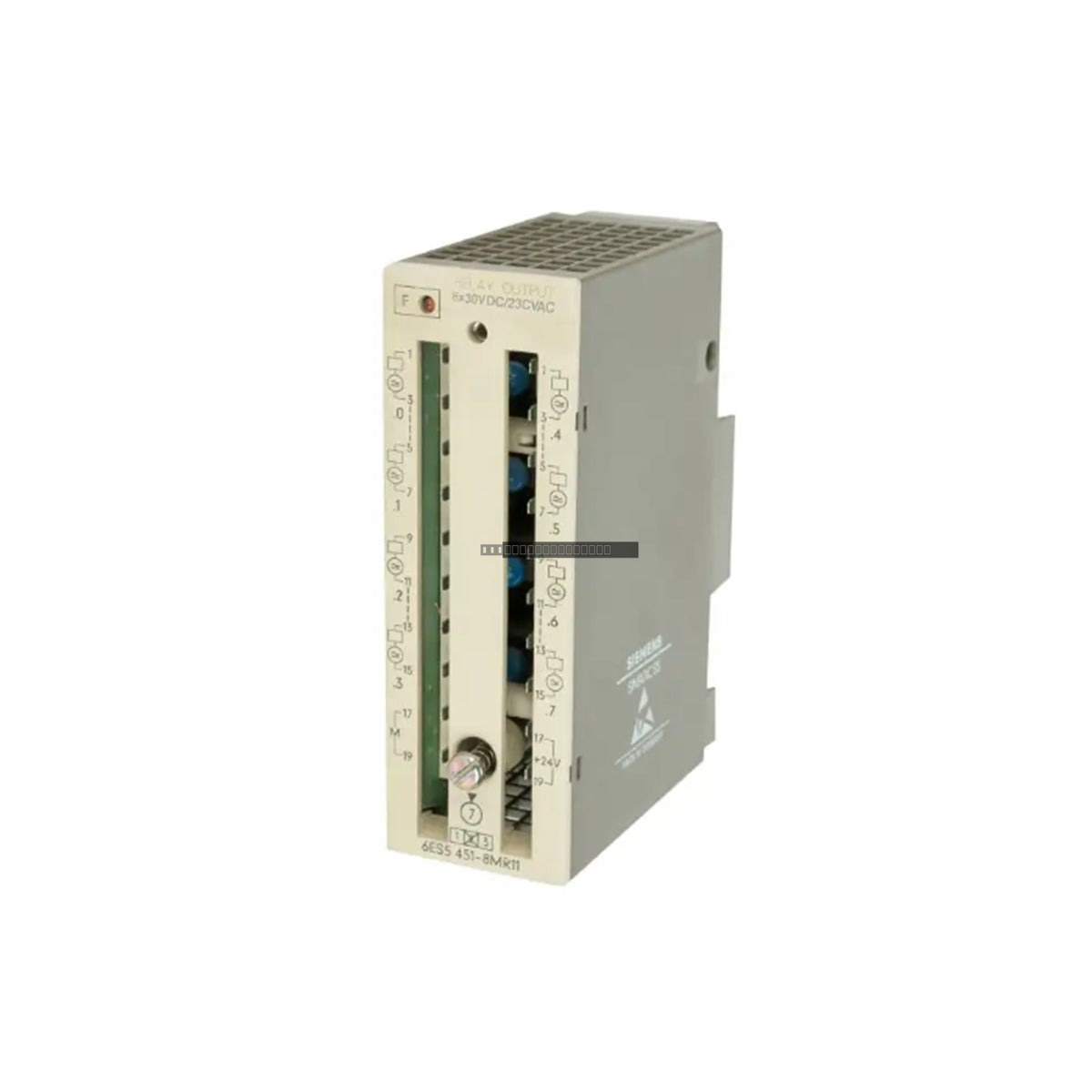

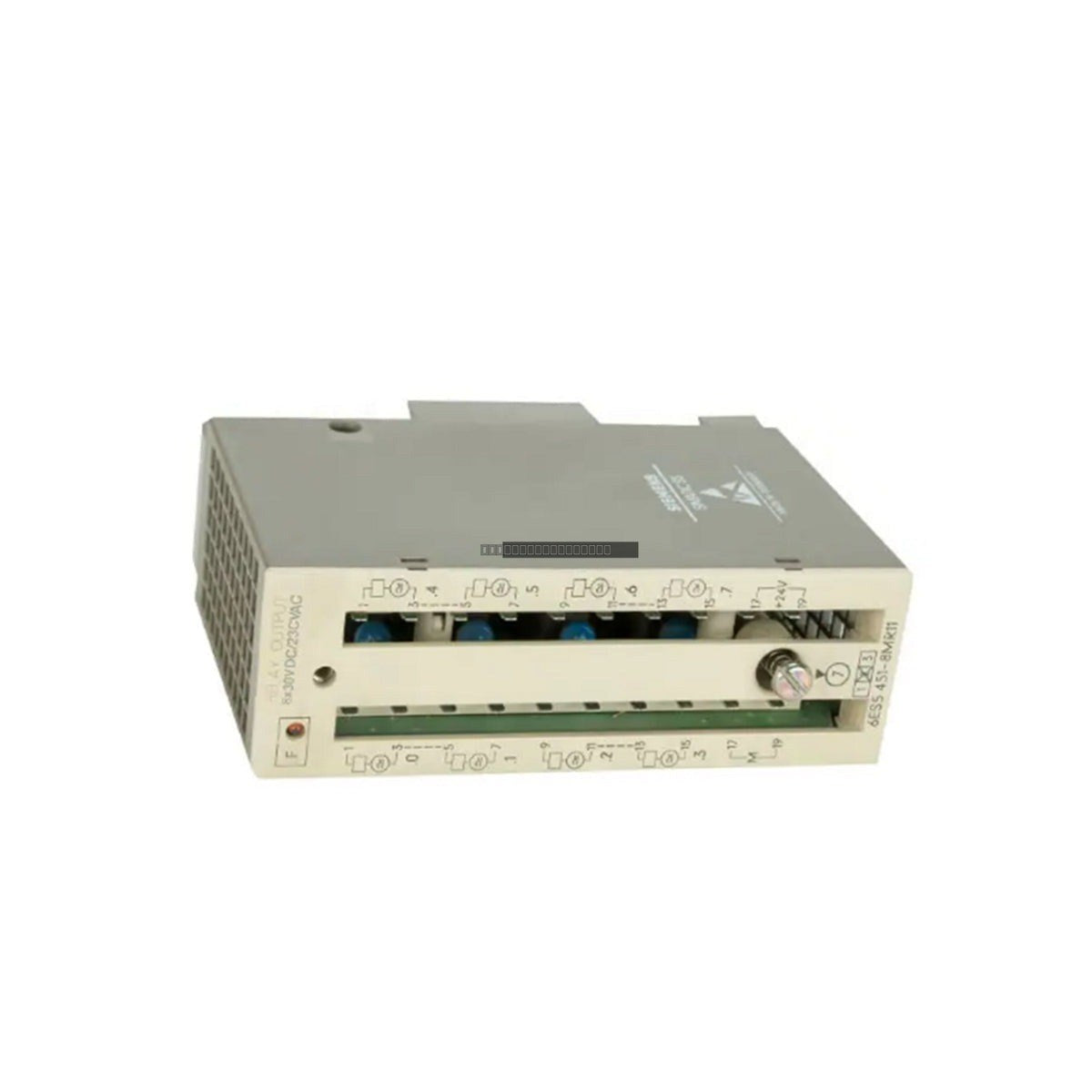

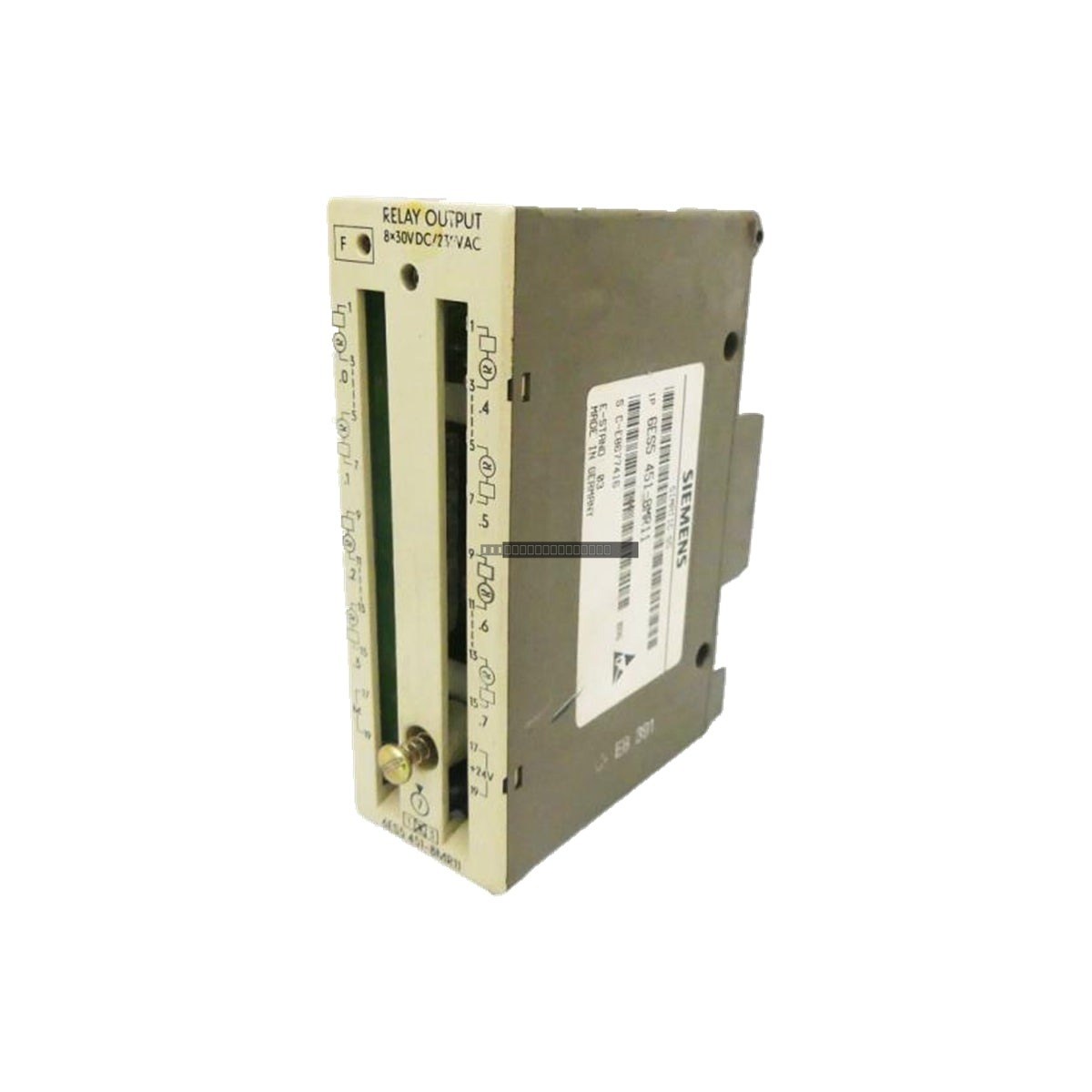

Siemens 6ES5451-8MR11 SIMATIC S5 Digital Output Module

Siemens 6ES5451-8MR11 SIMATIC S5 Digital Output Module

Description

The Siemens 6ES5451-8MR11 is a robust digital output module designed for integration within the legacy SIMATIC S5 automation ecosystem. This unit provides reliable discrete signal control for S5-90U, S5-95U, and...

23 people are viewing this right now

Availability: In stock

SKU: 6ES5451-8MR11
Vendor: Siemens
Category: Digital Output Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Siemens 6ES5451-8MR11 is a robust digital output module designed for integration within the legacy SIMATIC S5 automation ecosystem. This unit provides reliable discrete signal control for S5-90U, S5-95U, and S5-100U programmable logic controllers, as well as ET 100U and ET 200U distributed I/O systems. It is engineered to bridge the gap between central control logic and field-level actuators, ensuring consistent performance in demanding industrial sectors such as manufacturing, power generation, and material handling.

Features

  • High-Speed Switching: Optimized solid-state architecture for low-latency binary signal distribution.
  • Load Capacity: Supports 0.5 A per channel at 24 VDC, suitable for driving industrial relays, solenoids, and contactors.
  • Galvanic Isolation: Integrated optocouplers provide a critical electrical barrier between the backplane bus and field-side circuits, protecting logic components from EMI and voltage transients.
  • Seamless Integration: Designed for standard backplane mounting on ET 100U and ET 200U baseboards, ensuring deterministic communication and easy installation.

Technical Specifications

Model 6ES5451-8MR11
Brand Siemens
Series SIMATIC S5 / ET 100U / ET 200U
Module Type Digital Output Module
Output Voltage 24 VDC
Output Current 0.5 A per channel
Operating Temperature 0 to 60 deg C

Installation Guidelines

  • Ensure the PLC rack or ET 100U/200U baseboard is powered down before inserting or removing the module to prevent electrical damage.
  • Verify that the module is correctly seated in the backplane slot to ensure reliable bus communication.
  • Use shielded cabling for field-side connections to minimize the impact of electromagnetic interference in high-noise environments.
  • Maintain adequate ventilation around the module to ensure operation within the specified 0 to 60 deg C temperature range.
  • Handle with standard ESD precautions to prevent damage to sensitive internal circuitry.

FAQ

Is this module compatible with modern S7 controllers?

No, the 6ES5451-8MR11 is specifically designed for the legacy SIMATIC S5 and ET 100U/200U platforms. It is not natively compatible with S7-300 or S7-1500 series hardware.

What is the primary function of the galvanic isolation?

The galvanic isolation protects the internal backplane logic from field-side voltage spikes, surges, or ground loops, which is essential for maintaining system stability in industrial environments.
