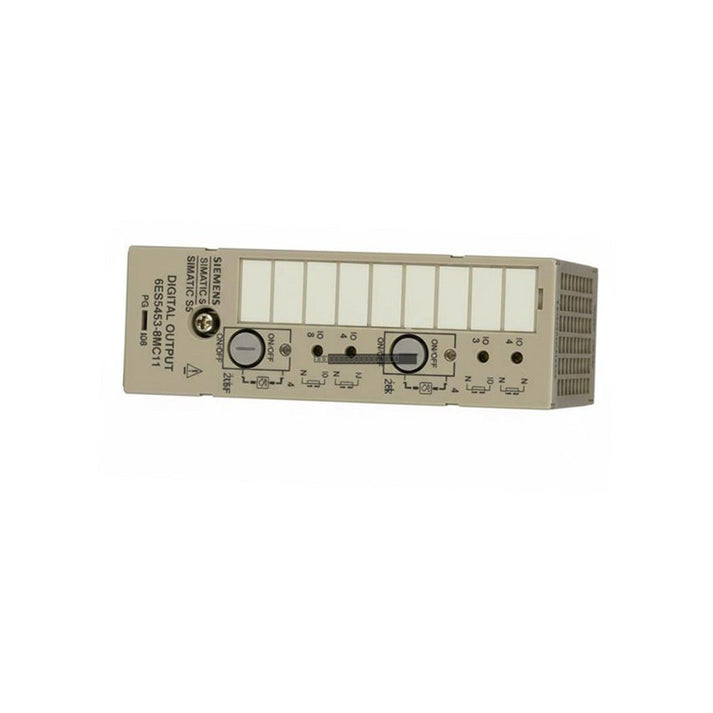

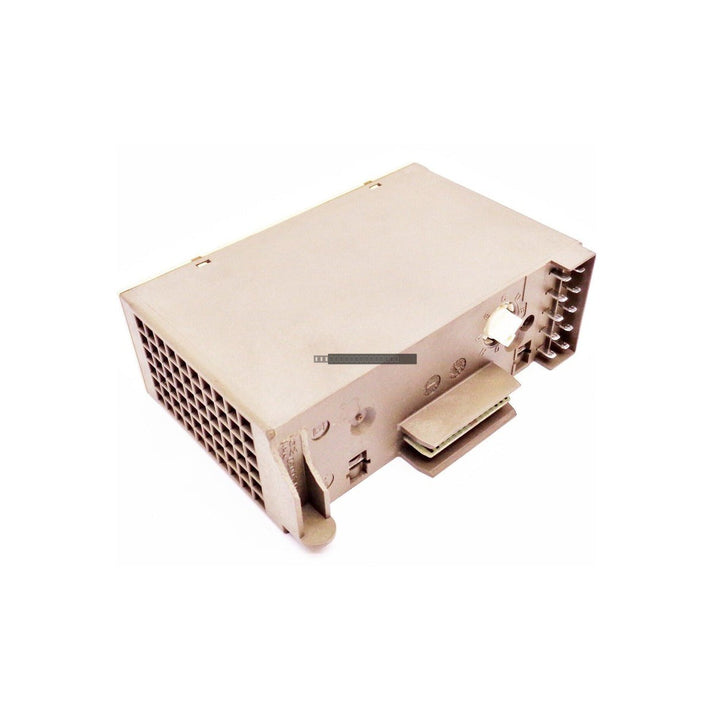

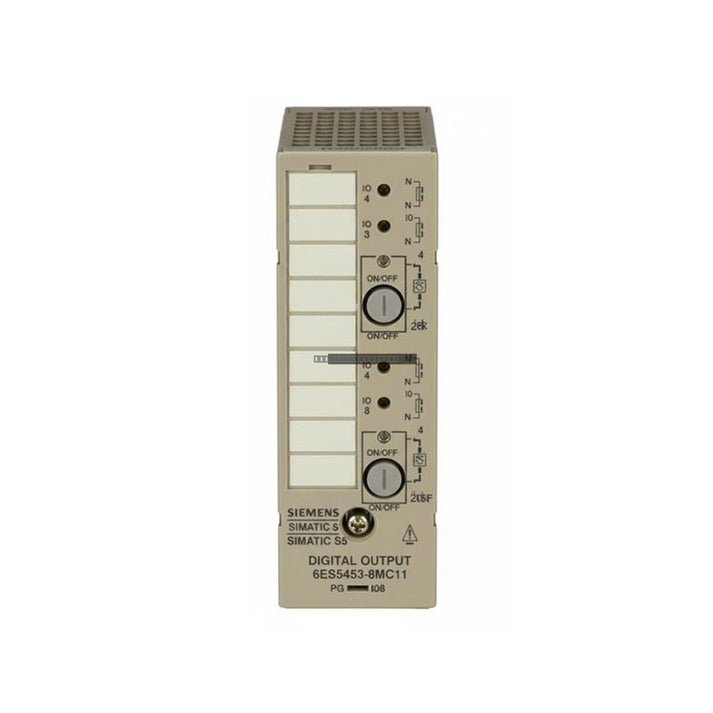

Siemens 6ES5453-8MC11 SIMATIC S5 Digital Output Module

Siemens 6ES5453-8MC11 SIMATIC S5 Digital Output Module

Description

The Siemens 6ES5453-8MC11 is a specialized digital output module designed for integration with the SIMATIC S5-090, S5-095, and S5-100 programmable logic controller families. This module provides four independent channels of...

16 people are viewing this right now

Availability: Low stock: 9 left

SKU: 6ES5453-8MC11
Vendor: Siemens
Category: Digital Output Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Siemens 6ES5453-8MC11 is a specialized digital output module designed for integration with the SIMATIC S5-090, S5-095, and S5-100 programmable logic controller families. This module provides four independent channels of 115 VAC output, enabling the control of high-voltage industrial actuators, contactors, and solenoids. It serves as a vital interface component for maintaining legacy S5 automation systems, offering reliable signal switching and robust performance in demanding manufacturing and process control environments.

Features

  • Four discrete 115 VAC output channels for independent load control.
  • Optimized for seamless integration with S5-090, S5-095, and S5-100 backplane architectures.
  • Engineered for high-voltage switching reliability in industrial applications.
  • Compact design with efficient thermal management for continuous operation.
  • Isolated output paths to reduce cross-talk and electrical interference.

Applications

This module is primarily utilized in legacy industrial automation infrastructure, including:

  • Automated assembly line control.
  • Packaging and material handling machinery.
  • Localized process control and monitoring systems.
  • Replacement and maintenance of existing SIMATIC S5 hardware installations.

Technical Specifications

Model 6ES5453-8MC11
Manufacturer Siemens
Output Type 4-Channel Digital Output
Voltage Rating 115 VAC
Compatibility SIMATIC S5-090, S5-095, S5-100
Operating Temperature 0 to 60 deg C

Installation Guidelines

  • Ensure the PLC rack power is disconnected before installing or removing the module to prevent electrical shock or damage to the backplane.
  • Verify that the module is correctly seated in the designated S5 rack slot to ensure proper bus communication.
  • Use appropriate wire gauges for 115 VAC connections and ensure all terminal screws are tightened to the specified torque.
  • Maintain proper ventilation within the control cabinet to keep ambient temperatures within the 0 to 60 deg C range.
  • Route high-voltage output wiring separately from low-voltage signal cables to minimize electromagnetic interference (EMI).

FAQ

Is this module compatible with modern S7 controllers?

No, the 6ES5453-8MC11 is specifically designed for the SIMATIC S5-090, S5-095, and S5-100 series and is not natively compatible with S7-series PLC systems.

What is the primary function of the 6ES5453-8MC11?

This module acts as a digital interface to switch 115 VAC loads, allowing the S5 PLC to control external AC-powered devices such as contactors and actuators.
