Description

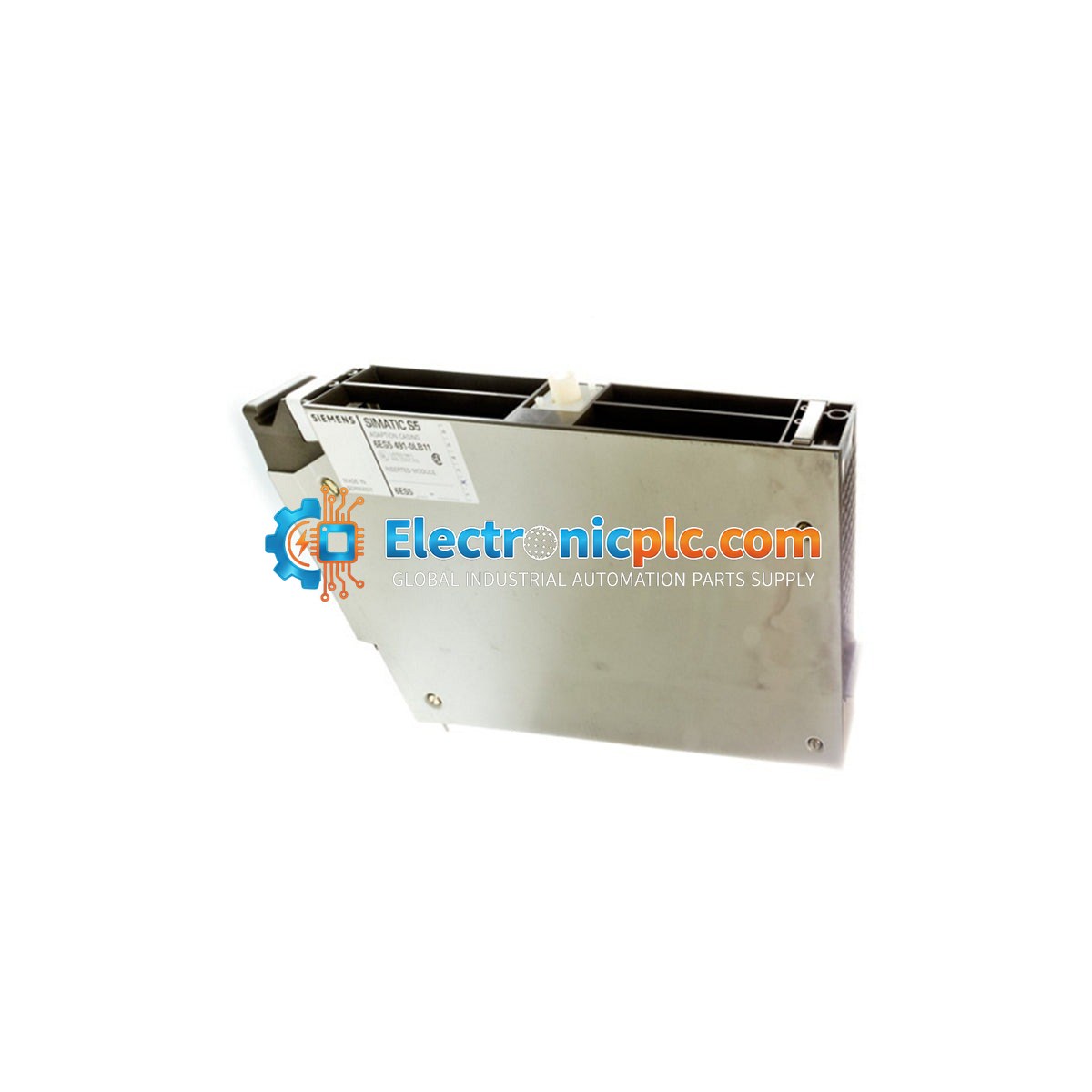

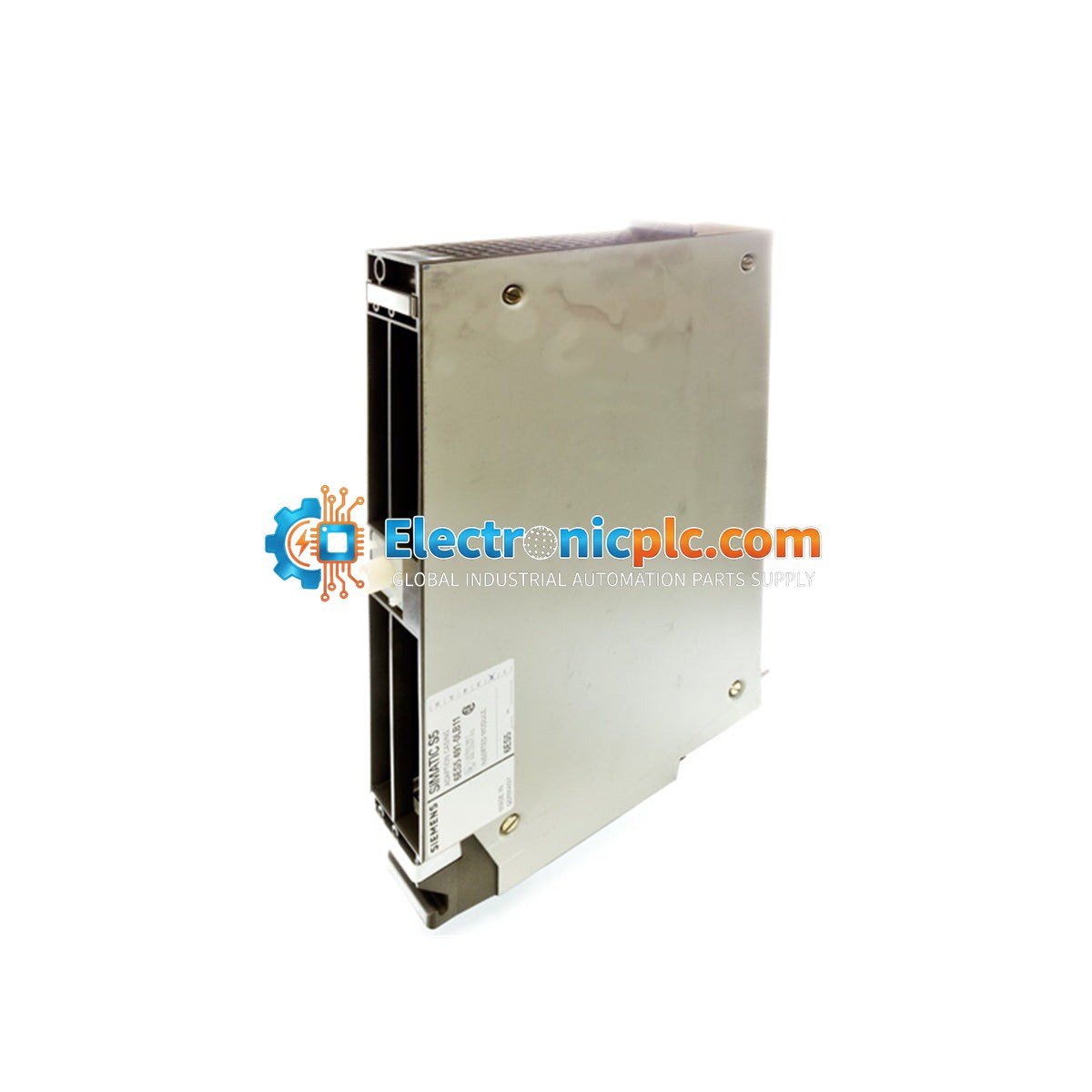

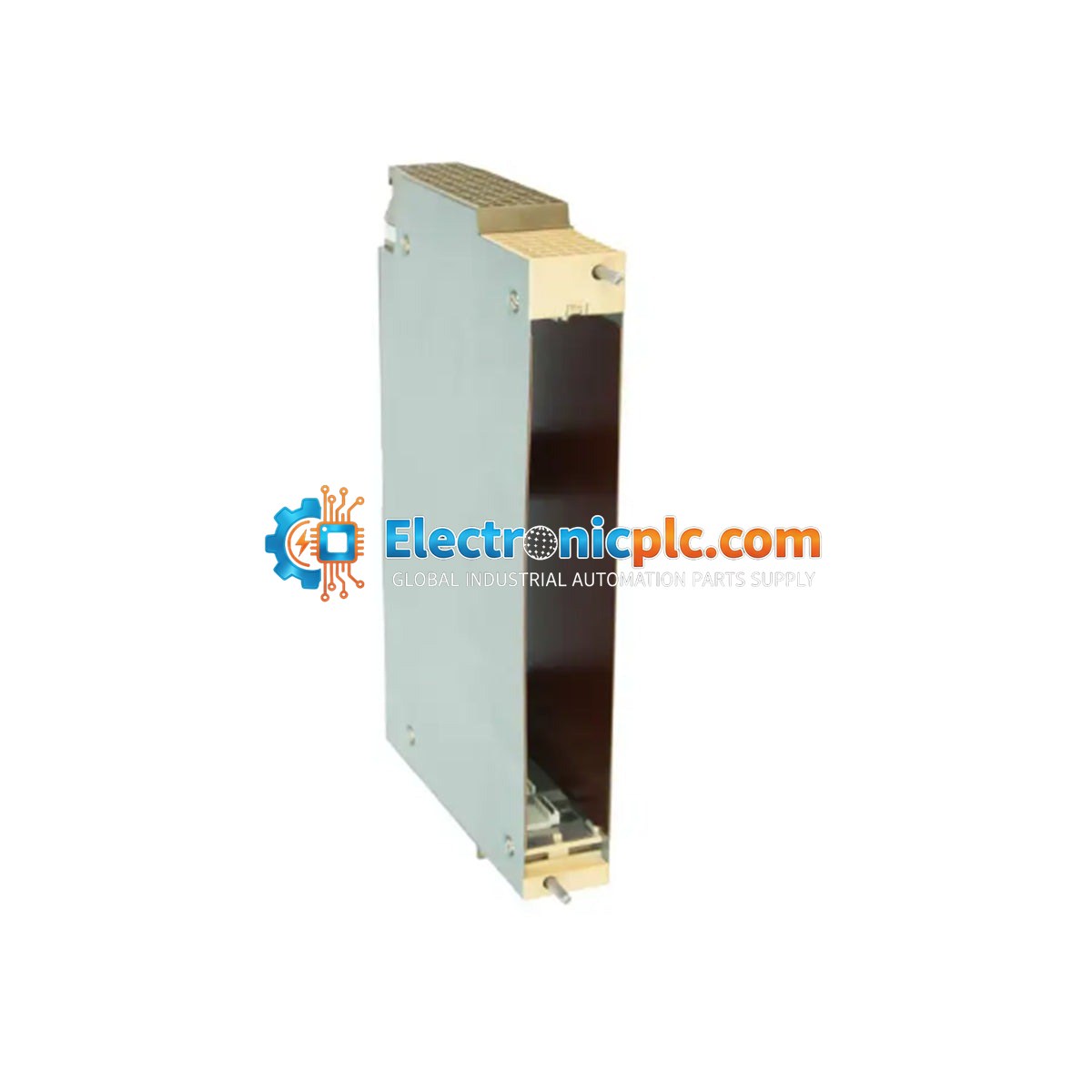

The Siemens 6ES5491-0LB11 is a specialized hardware adaption capsule designed for the legacy SIMATIC S5 automation platform. Specifically engineered for the S5-115 series, this interface component facilitates the mechanical and electrical connection of modules originally designed for the S5-135U or S5-155U systems into an S5-115U rack. This bridging capability is vital for large-scale industrial facilities, such as power plants, steel mills, and chemical refineries, where maintaining legacy infrastructure is essential. By allowing the reuse of high-performance modules across different rack generations, the 6ES5491-0LB11 extends equipment lifecycles and reduces downtime during critical hardware maintenance.

Features

• Module Compatibility: Provides the necessary slots to seat larger S5-135U/155U format modules, ensuring bus signals are correctly mapped to the S5-115U backplane.
• Mechanical Integrity: Features a ruggedized frame that secures modules against vibration and ensures proper alignment with the rack connector assembly.
• Bus Signal Translation: Internal circuitry manages the timing and electrical characteristics of the S5 bus, maintaining data integrity between the CPU and adapted peripheral modules.
• Legacy Support: A critical spare part for maintaining mission-critical S5 systems where total system migration is not feasible.

Applications

This adaption capsule is primarily used in legacy Siemens S5-115U PLC environments to integrate specialized I/O or communication modules from the S5-135U/155U product lines. It is commonly found in heavy industrial control systems, automated manufacturing lines, and process control infrastructure.

Technical Specifications

Installation Guidelines

• Power Down: Always disconnect power from the S5-115U rack before inserting or removing the adaption capsule or any modules.
• ESD Protection: Handle the module using standard electrostatic discharge (ESD) precautions to prevent damage to sensitive internal circuitry.
• Seating: Ensure the capsule is fully seated and aligned with the backplane connector pins before securing the locking mechanism.
• Environment: Ensure the cabinet ventilation is sufficient to maintain the operating temperature between 0 and 55 deg C.

FAQ

What is the primary function of the 6ES5491-0LB11?

It acts as a mechanical and electrical bridge, allowing S5-135U/155U modules to be installed into an S5-115U rack system.

Is this module still in production?

No, this component was discontinued as of October 2022 and is currently sourced as a legacy spare part.
