Description

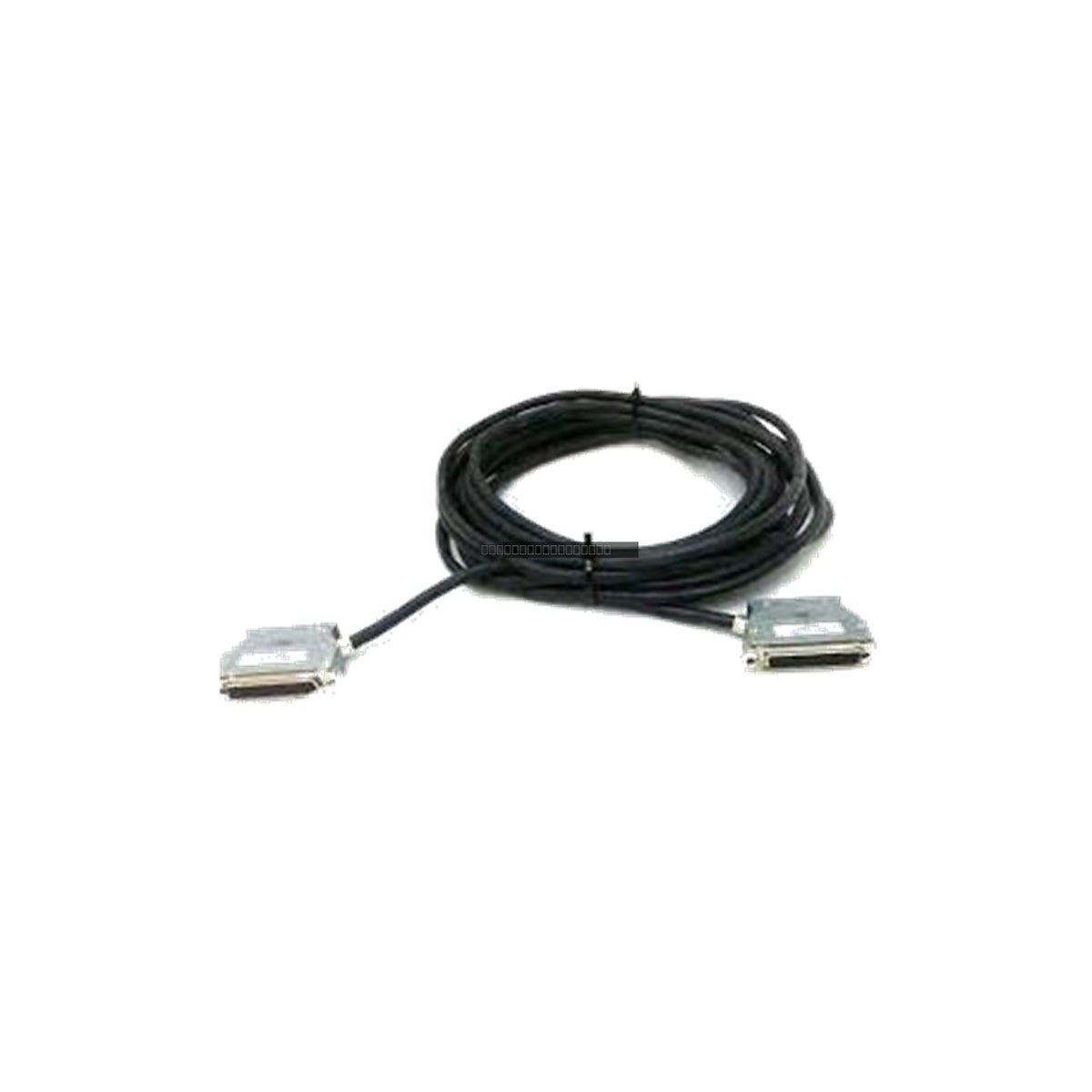

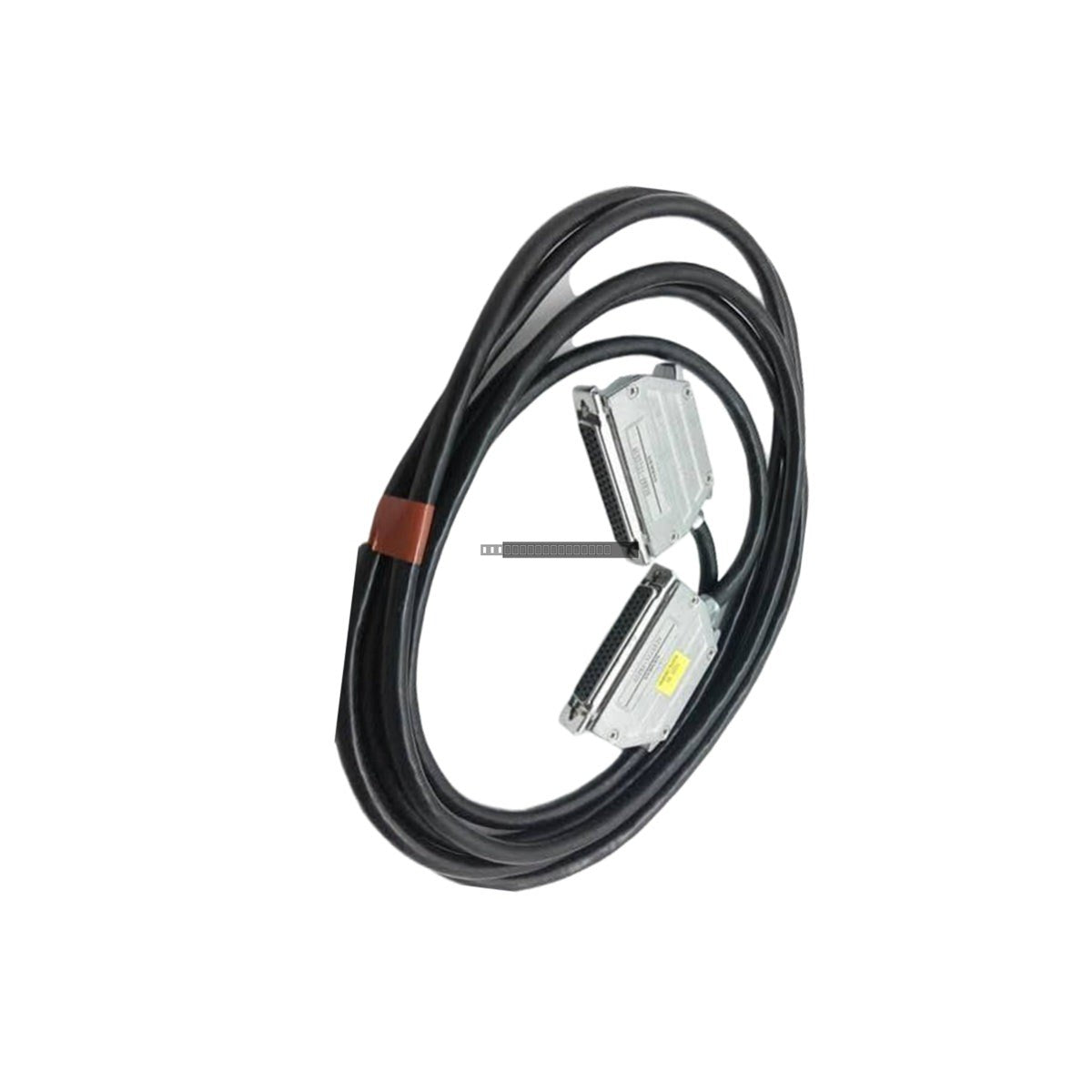

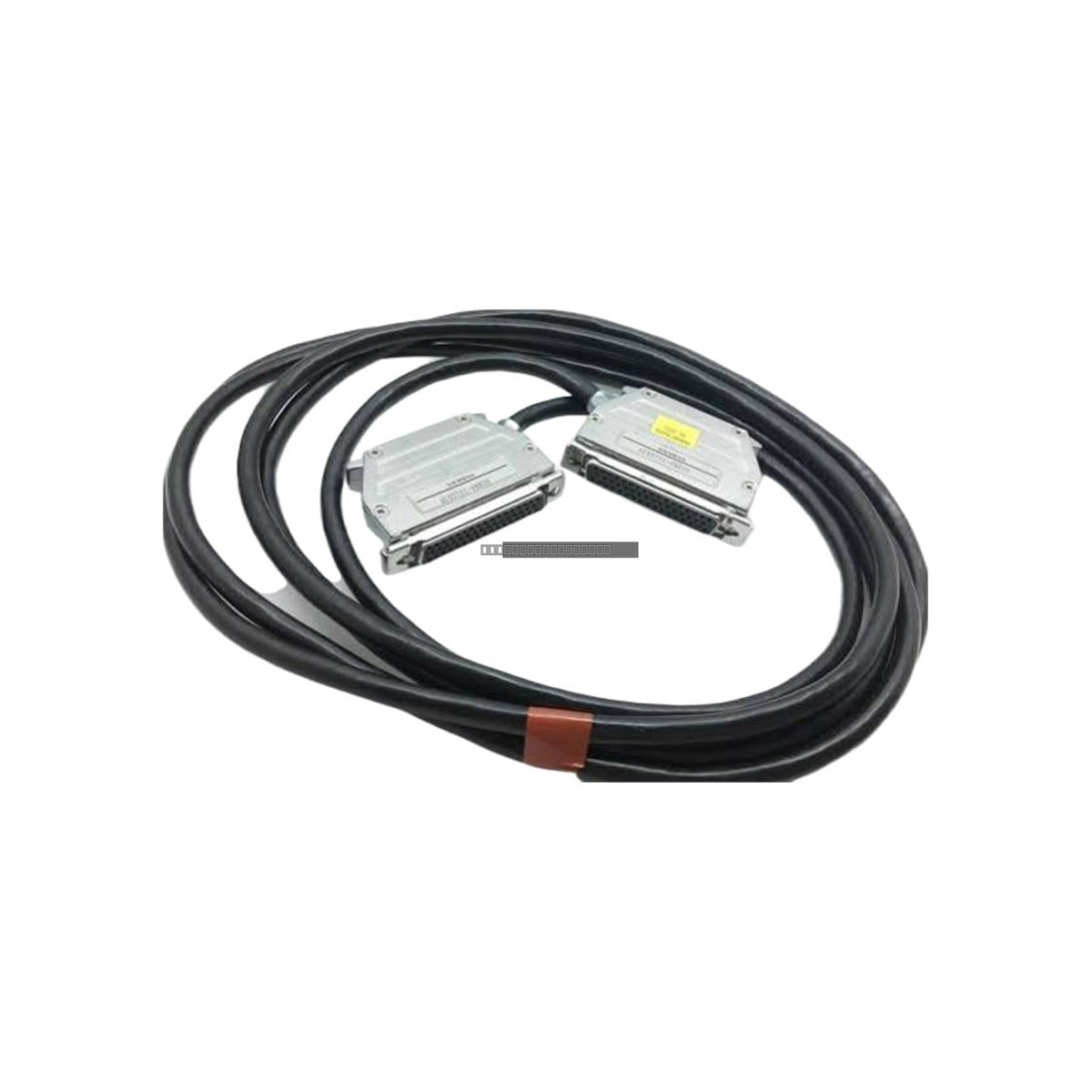

The Siemens 6ES5721-0CB20 is a specialized cable assembly engineered for the Simatic S5-135 and S5-155 industrial automation systems. This 12-meter cable provides a reliable physical layer connection between PLC modules and peripheral field hardware, ensuring signal integrity in demanding industrial environments. It is designed to support the legacy requirements of the S5 ecosystem, maintaining precise communication paths in heavy manufacturing, power generation, and petrochemical control applications.

Features

• Designed specifically for Siemens Simatic S5-135 and S5-155 series controllers.
• 12-meter length for extended reach between control cabinets and remote field devices.
• Industrial-grade shielding to mitigate signal degradation in high-EMI environments.
• Robust construction to withstand mechanical stress and vibration common in heavy industrial settings.
• Standard S5-series pinout configuration for seamless integration and impedance matching.

Applications

This cable assembly is primarily utilized in legacy automation architectures where reliable communication between the central processing unit and remote I/O or peripheral devices is required. It is suitable for use in large-scale industrial plants, including power generation and heavy processing facilities where Simatic S5 systems remain in operation.

Technical Specifications

Installation Guidelines

• Ensure the PLC system is powered down before connecting or disconnecting the cable to prevent electrical arcing or damage to the module ports.
• Route the cable away from high-voltage power lines and heavy motor cables to minimize electromagnetic interference (EMI).
• Avoid tight-radius bends during installation to maintain the structural integrity of the internal shielding and conductors.
• Ensure all connectors are fully seated and secured to prevent intermittent signal loss due to vibration.
• Handle with care to avoid pinching or crushing the cable jacket during installation in cable trays or conduits.

FAQ

Is this cable compatible with other Simatic series?

The 6ES5721-0CB20 is specifically designed for the Simatic S5-135 and S5-155 series. It is not intended for use with newer S7-series controllers, which utilize different connector standards and protocols.

Does this cable require external power?

No, this is a passive cable assembly. It transmits signals based on the voltage provided by the host module output. Ensure that the host module is correctly configured for the intended signal levels.
