Description

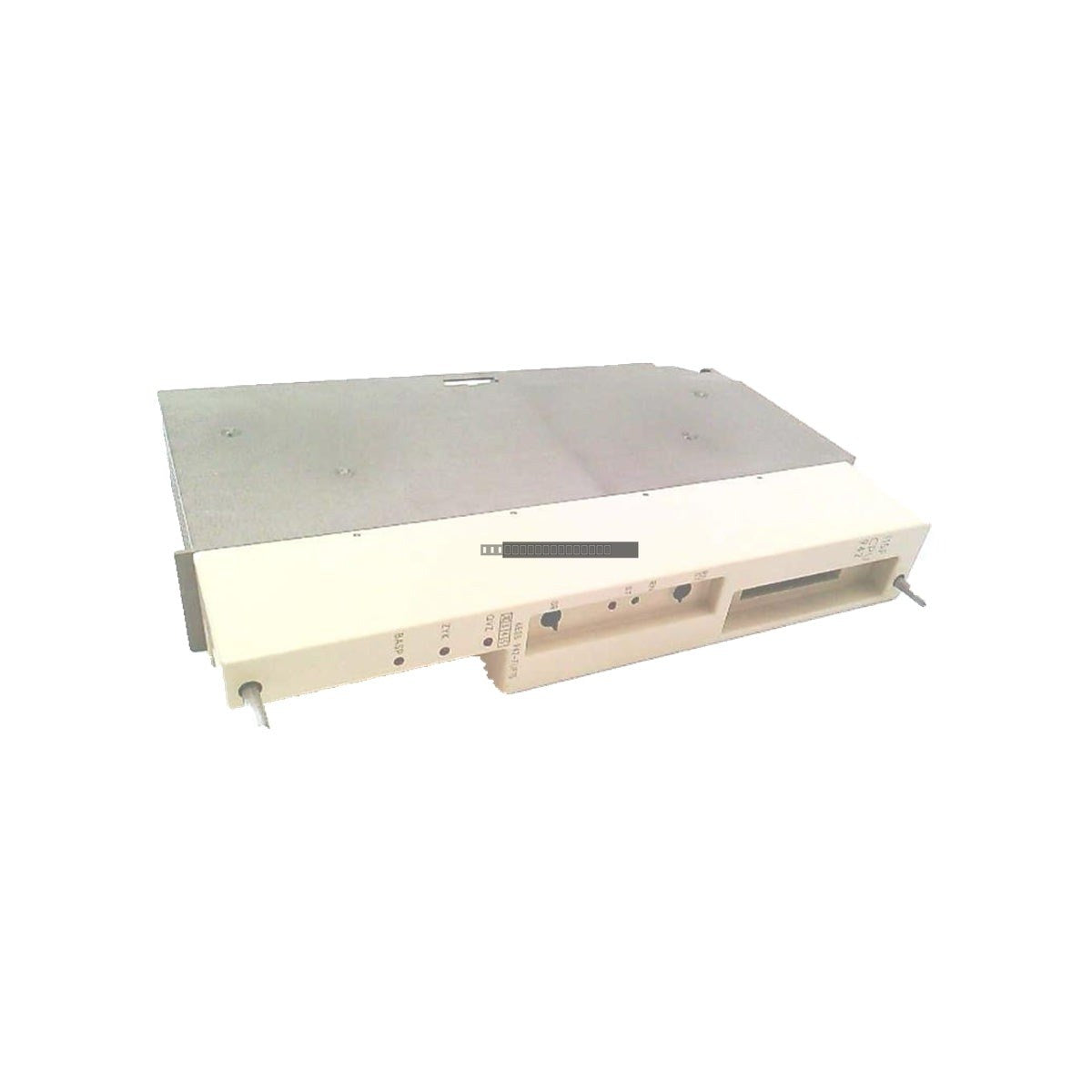

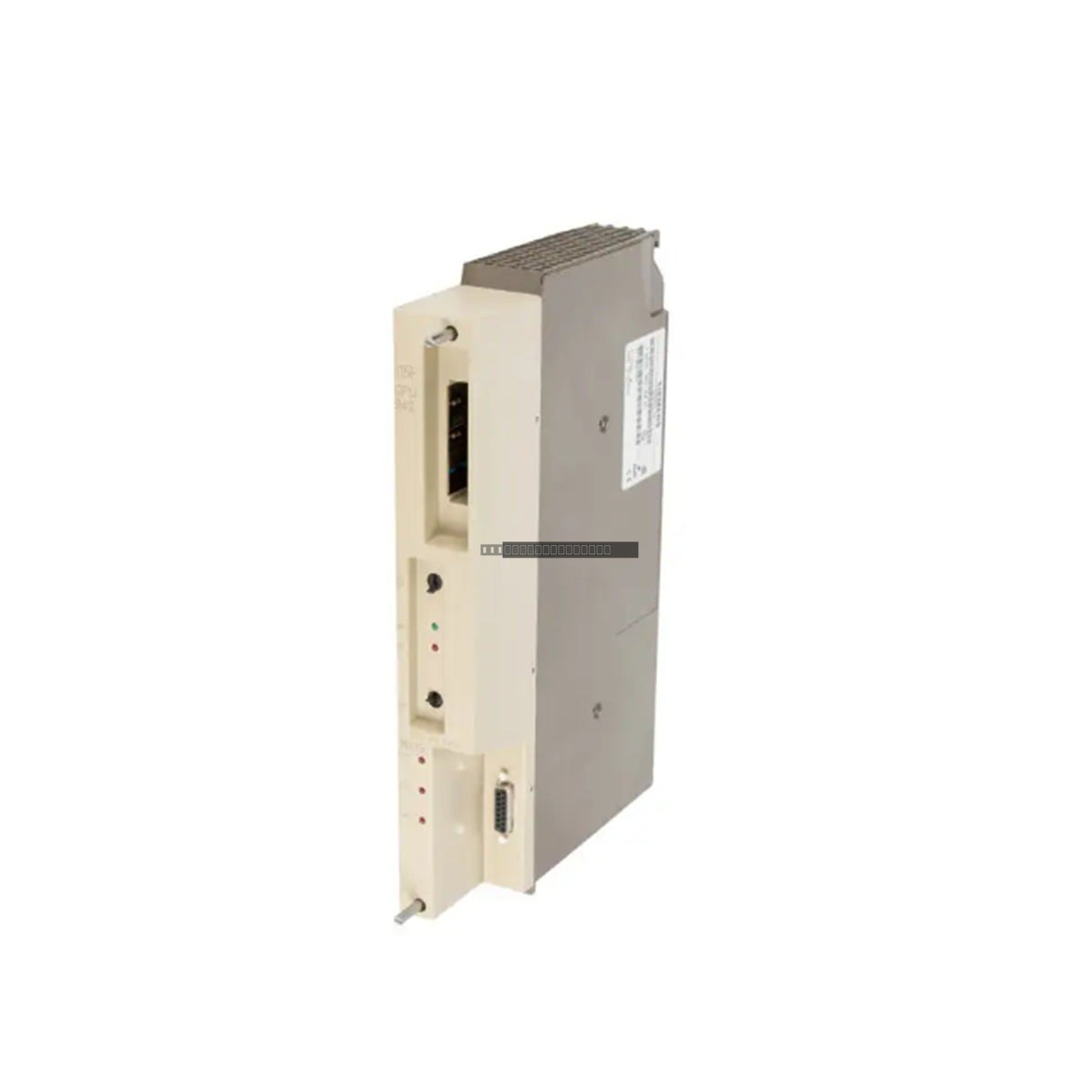

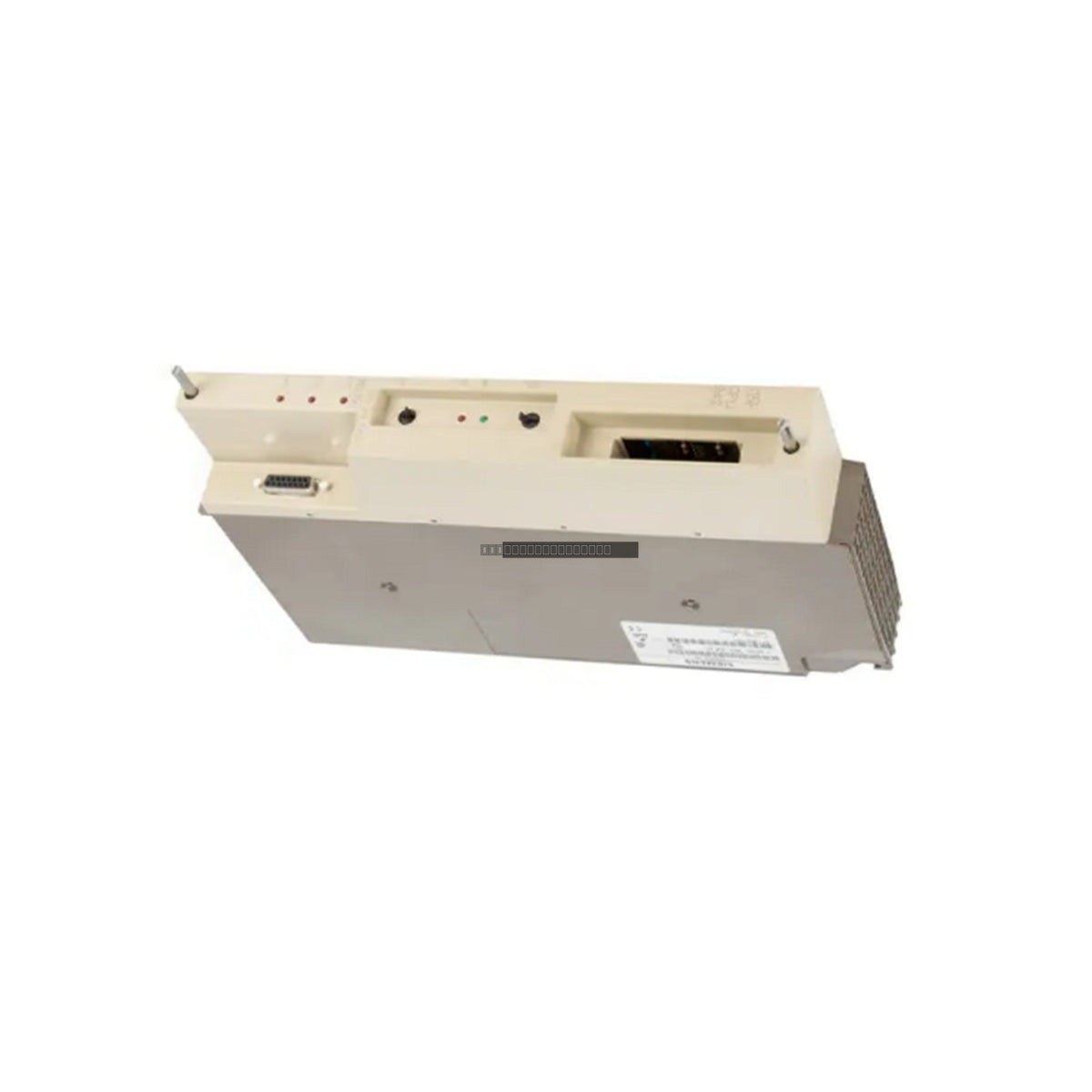

The Siemens 6ES5942-7UF15 is a high-reliability CPU 942F central processing unit engineered for the Simatic S5-115F fail-safe controller architecture. This module utilizes a dual-processor design to execute safety-critical automation logic, performing continuous cross-checks between parallel hardware paths to ensure integrity before updating output registers. It is specifically designed for high-stakes industrial applications, including burner management systems, boiler monitoring, and critical machine control, where it effectively isolates execution anomalies to prevent hazardous states.

Features

• Dual-channel hardware architecture for fail-safe instruction processing.
• Integrated 5 KB onboard RAM, expandable to 37 KB using an MS375 memory submodule.
• 20 mA TTY current loop interface via a 15-way Sub-D connector for high-noise-immunity communication.
• Supports connectivity for PG programmers, OP operator panels, and SINEC L1 network nodes.
• Ruggedized aluminum housing designed for S5-115 backplane mounting, providing protection against EMI and vibration.

Applications

This processor is widely utilized in industrial environments requiring high-integrity safety logic, such as chemical refineries, nuclear power plant auxiliary systems, and heavy-duty mining equipment controls. Its deterministic fail-safe routines are essential for minimizing unscheduled emergency shutdowns in critical infrastructure.

Technical Specifications

Installation Guidelines

• Power Safety: Always de-energize the S5 rack power supply before module insertion or removal to prevent electrical arcing and damage to CMOS logic.
• Memory Module: Ensure the MS375 memory submodule is securely seated in the front-face slot prior to mounting the CPU into the rack.
• Communication Shielding: When using the 20 mA TTY interface, utilize dual-shielded twisted-pair cables. Ground the shield at the chassis entry point only to prevent ground loop interference.
• Vibration Protection: Verify that all latching screws are fully tightened to maintain contact integrity in high-vibration environments.

FAQ

Is this module compatible with standard S5-115 systems?

The 6ES5942-7UF15 is specifically designed for the S5-115F fail-safe series. While it shares the physical form factor of the S5-115, it requires specific safety-rated backplane configurations to function as a fail-safe controller.

What is the purpose of the 20 mA TTY interface?

The 20 mA current loop (TTY) interface is used for serial communication with programming devices and operator panels. It is preferred in industrial settings due to its superior immunity to electromagnetic interference compared to standard voltage-based RS-232 signals.
