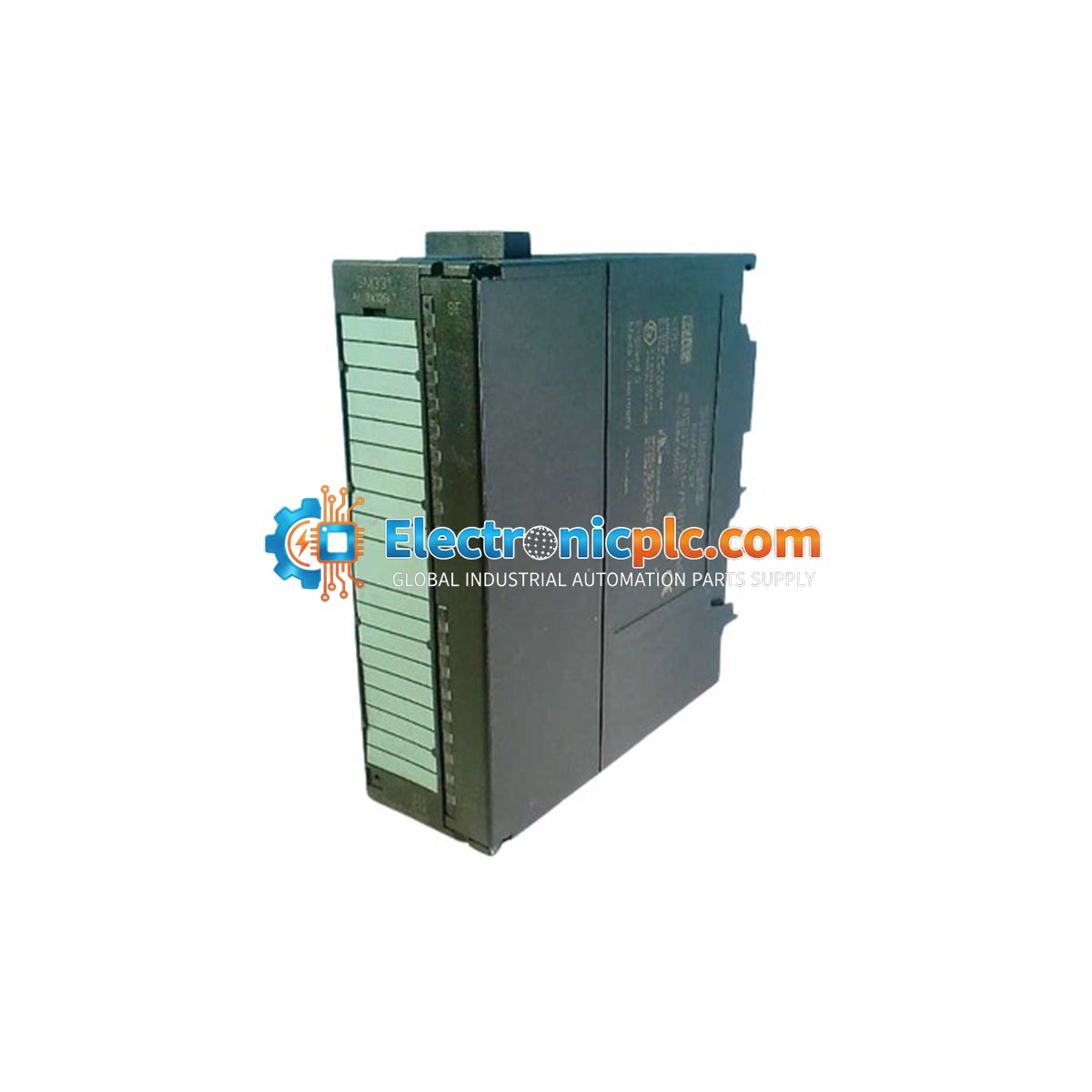

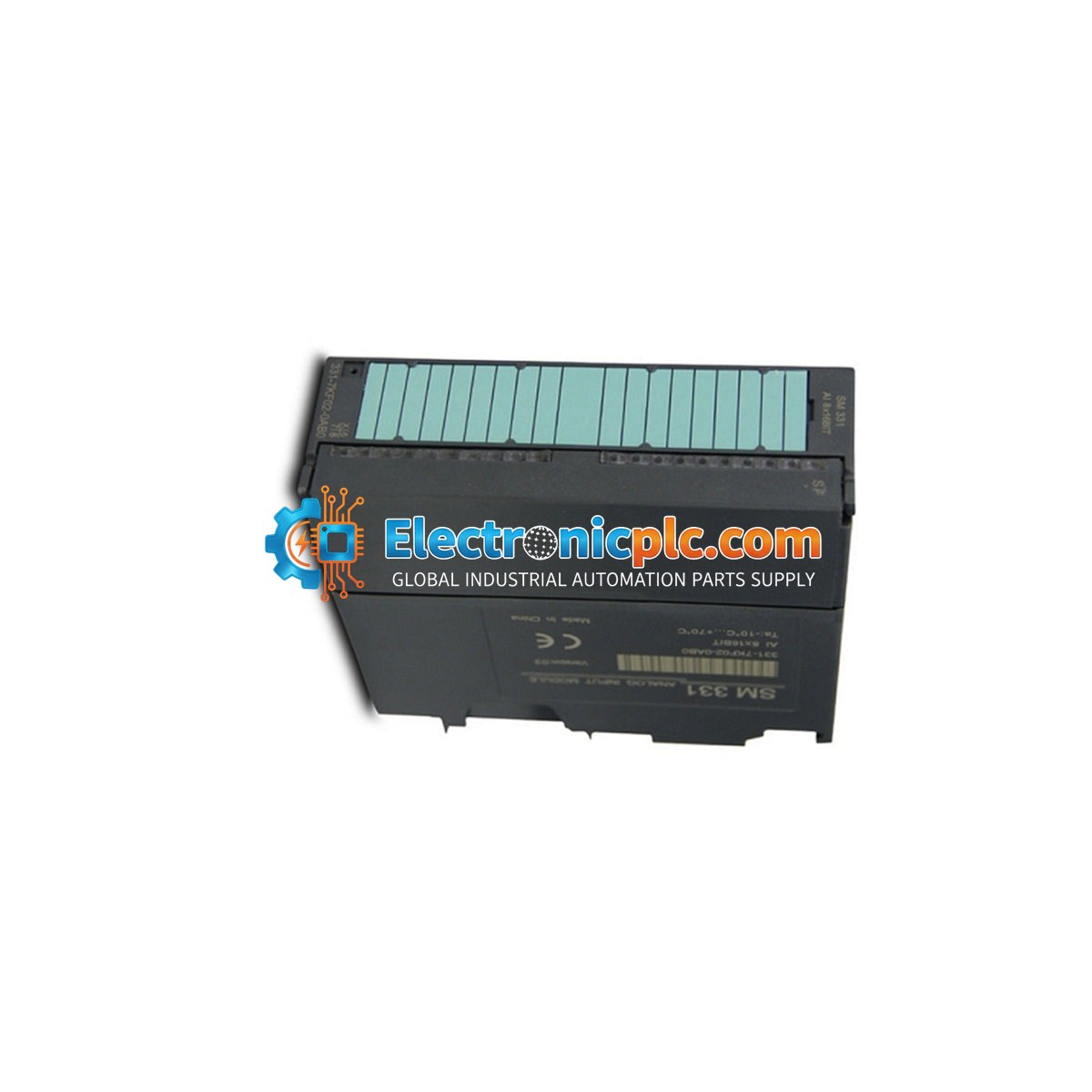

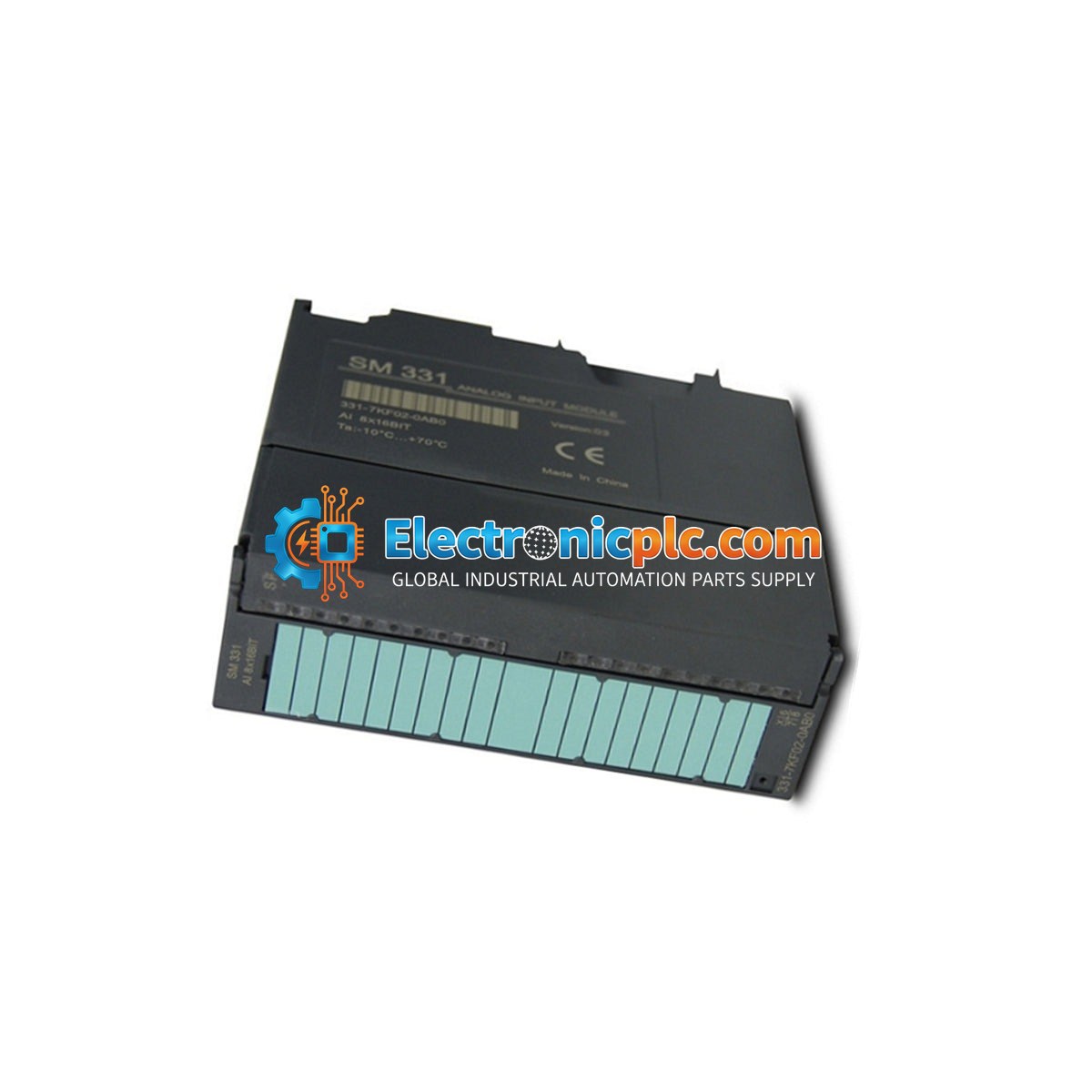

Siemens 6ES7331-7KB02-0AB0 SIMATIC S7-300 SM 331 Analog Input Module

Siemens 6ES7331-7KB02-0AB0 SIMATIC S7-300 SM 331 Analog Input Module

Description

The Siemens 6ES7331-7KB02-0AB0 is a high-precision SM 331 analog input module designed for the SIMATIC S7-300 PLC platform. This module features 2 isolated analog inputs capable of processing voltage, current,...

17 people are viewing this right now

Availability: Low stock: 6 left

SKU: 6ES7331-7KB02-OABO
Vendor: Siemens
Category: Analog Input Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Siemens 6ES7331-7KB02-0AB0 is a high-precision SM 331 analog input module designed for the SIMATIC S7-300 PLC platform. This module features 2 isolated analog inputs capable of processing voltage, current, thermocouple, and resistor (RTD) signals with a configurable resolution of 9, 12, or 14 bits. It is widely utilized in sectors such as petrochemical refining, pharmaceutical manufacturing, and automated assembly lines to monitor critical process variables. As a direct replacement for the legacy 6ES7331-7KB01-0AB0, this module ensures seamless system upgrades and maintenance, providing rapid signal conversion and integrated hardware interrupt alarms for real-time process monitoring.

Features

  • 2 isolated analog input channels.
  • Configurable resolution: 9, 12, or 14 bits.
  • Supports voltage, current, thermocouple, and RTD signal types.
  • Integrated diagnostic interrupts for wire breaks and overflow conditions.
  • Galvanic isolation between channels and backplane bus for EMI rejection.
  • Compatible with standard 20-pole front connectors.

Applications

This module is designed for industrial automation environments requiring precise analog signal acquisition, including:

  • Process control and monitoring in chemical and petrochemical plants.
  • Temperature monitoring via thermocouples and RTDs.
  • Flow, pressure, and level measurement integration.
  • Automated assembly line instrumentation.

Technical Specifications

Model 6ES7331-7KB02-0AB0
Brand Siemens
Series SIMATIC S7-300
Module Type SM 331 Analog Input
Number of Inputs 2 (Isolated)
Resolution 9, 12, or 14 Bits (Configurable)
Input Voltage (Rated) 24 VDC
Current Consumption 130 mA max (from backplane bus)
Power Loss 1 W (Typical)
Isolation Test 500 VDC
Operating Temperature 0 to 60 deg C

Installation Guidelines

  • Mounting: Ensure the module is securely seated on the S7-300 DIN rail and locked into the backplane bus connector.
  • Safety: Always disconnect power from the PLC rack before inserting or removing the module to prevent electrical damage.
  • Wiring: Use a 20-pole front connector. Ensure shielded cables are used for analog signals to minimize interference, and ground the shield at the entry point to the cabinet.
  • Configuration: Set the physical measuring range modules (range cards) on the side of the module to match the field signal type before software parameterization in STEP 7 or TIA Portal.
  • Environment: Maintain adequate ventilation within the control cabinet to ensure operating temperatures remain within the 0 to 60 deg C range.

FAQ

Is this module compatible with older S7-300 systems?

Yes, the 6ES7331-7KB02-0AB0 is designed as a direct replacement for the 6ES7331-7KB01-0AB0, ensuring compatibility with existing S7-300 backplanes and software configurations.

How do I configure the input range?

Configuration requires two steps: physically setting the measuring range module (range card) on the side of the unit to the correct position, and then configuring the corresponding parameters within your STEP 7 or TIA Portal project.
