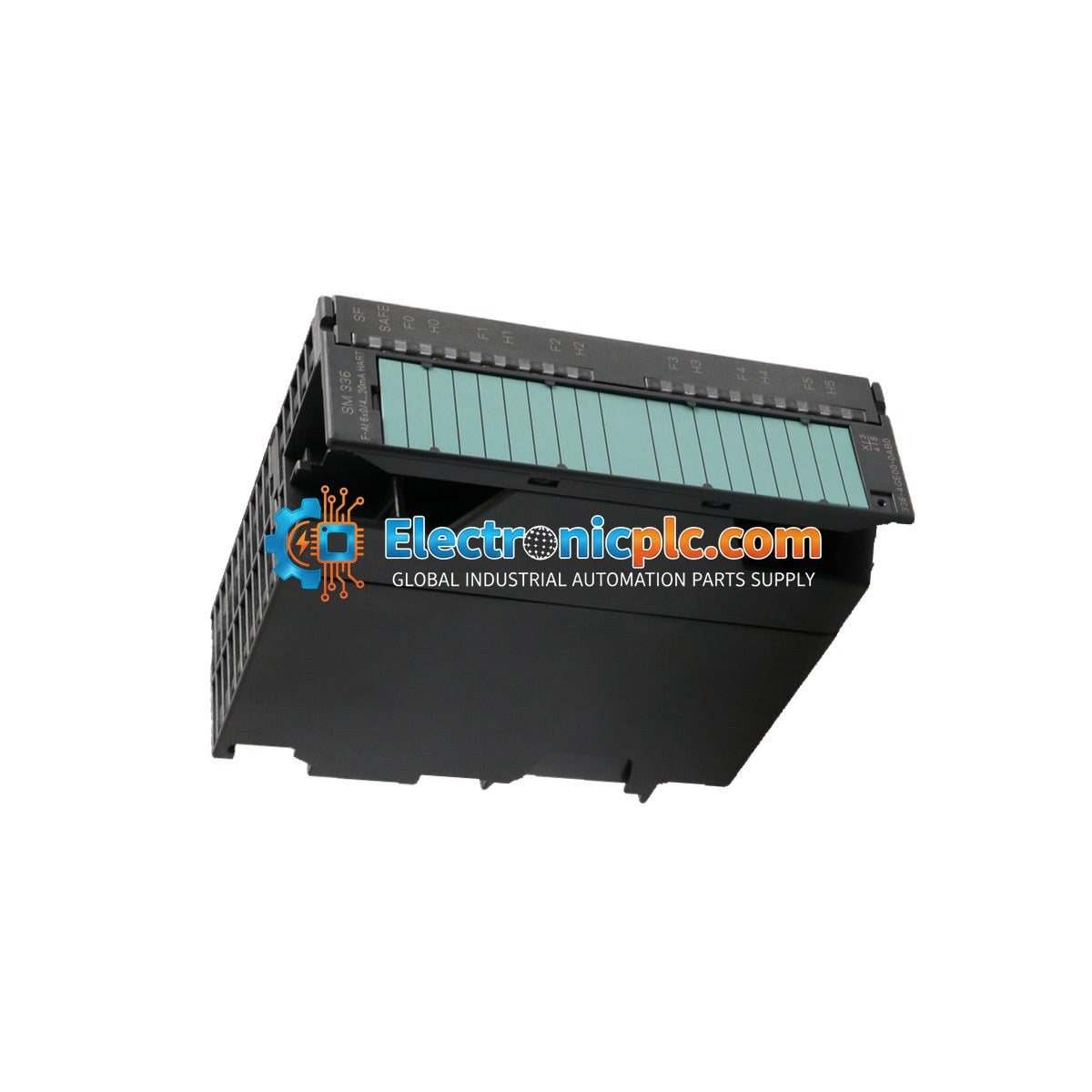

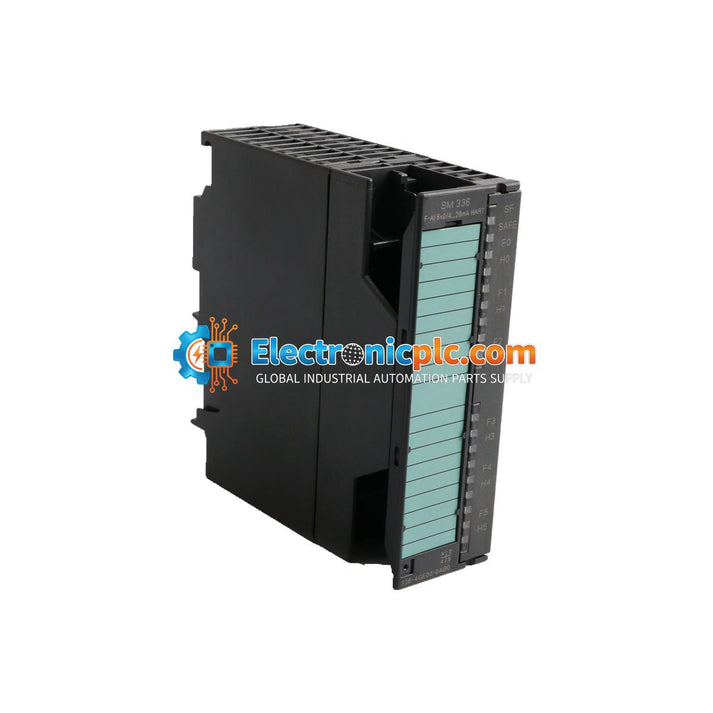

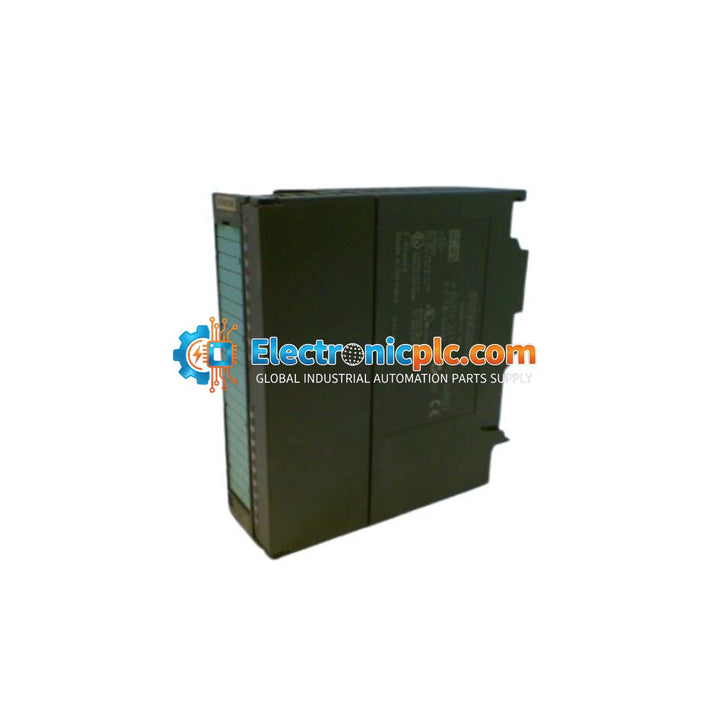

Siemens 6ES7336-4GE00-0AB0 SIMATIC S7-300 Fail-Safe Analog Input Module SM 336

Siemens 6ES7336-4GE00-0AB0 SIMATIC S7-300 Fail-Safe Analog Input Module SM 336

Description

The Siemens 6ES7336-4GE00-0AB0 SIMATIC S7-300 SM 336 is a high-performance, fail-safe analog input module designed for safety-critical process automation. As part of the SIMATIC S7-300 and ET 200M distributed I/O...

27 people are viewing this right now

Availability: Low stock: 10 left

SKU: 6ES7336-4GE00-0AB0
Vendor: Siemens
Category: Analog Input Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Siemens 6ES7336-4GE00-0AB0 SIMATIC S7-300 SM 336 is a high-performance, fail-safe analog input module designed for safety-critical process automation. As part of the SIMATIC S7-300 and ET 200M distributed I/O systems, this module provides reliable signal acquisition for applications requiring high functional safety, including SIL 3 (IEC 61508) compliance. It features six analog input channels specifically designed for 0/4–20 mA current signals, supporting both 2-wire and 4-wire transmitter configurations.

Features

  • Fail-safe analog inputs for safety-instrumented systems (SIS).
  • 6 isolated analog input channels.
  • 15-bit resolution plus sign (up to 16-bit with overrange).
  • Native HART protocol support for bidirectional communication, remote configuration, and diagnostics.
  • Reverse polarity protection for the 24V DC supply.
  • Supports SIL 3, Category 4, and PL e safety standards.

Applications

  • Chemical and petrochemical plants for reactor pressure and temperature monitoring.
  • Oil and gas refinery safety systems.
  • Power plant burner management and steam control systems.
  • Industrial safety monitoring in automotive paint shops and hazardous zones.
  • Automated logistics and crane load monitoring.

Technical Specifications

Model 6ES7336-4GE00-0AB0
Number of Inputs 6
Input Ranges 0 to 20 mA, 4 to 20 mA DC
Resolution 15-bit + sign (16-bit max)
Input Resistance 150 Ohm (typ), 175 Ohm (max)
Rated Supply Voltage 24 V DC
Current Consumption (L+) 150 mA (typ)
Current Consumption (Bus) 90 mA (max)
Power Loss 4.5 W (typ)
Isolation 370V AC for 1 minute
Max Cable Length 1000 meters (shielded)

Installation Guidelines

  • Mounting: Hook the module onto the S7-300 DIN rail and swing it into place. Secure it using the integrated mounting screw.
  • Bus Connection: Ensure the U-shaped bus connector is securely seated in the backplane to establish communication with the CPU or adjacent modules.
  • Wiring: Use a 20-pin front connector for field wiring. Always use shielded cables for analog signals to minimize EMI interference.
  • Grounding: Utilize a shielding bracket to ground cable shields as close to the module as possible.
  • Safety: Ensure power is disconnected before installing or removing the module from the rack.

FAQ

What safety levels does this module support?

It is designed for SIMATIC Safety and supports up to SIL 3 (IEC 61508), Category 4 (EN 954-1), and PL e (ISO 13849).

Which CPUs is this module compatible with?

It can be used in the S7-300 central rack or as remote I/O in the ET 200M chassis, allowing connectivity with S7-300, S7-400, S7-1200, and S7-1500 series controllers.

Can it be used for standard applications?

Yes, the module can be configured for standard analog input tasks or as a fail-safe module for SIL 2/3 safety applications.
