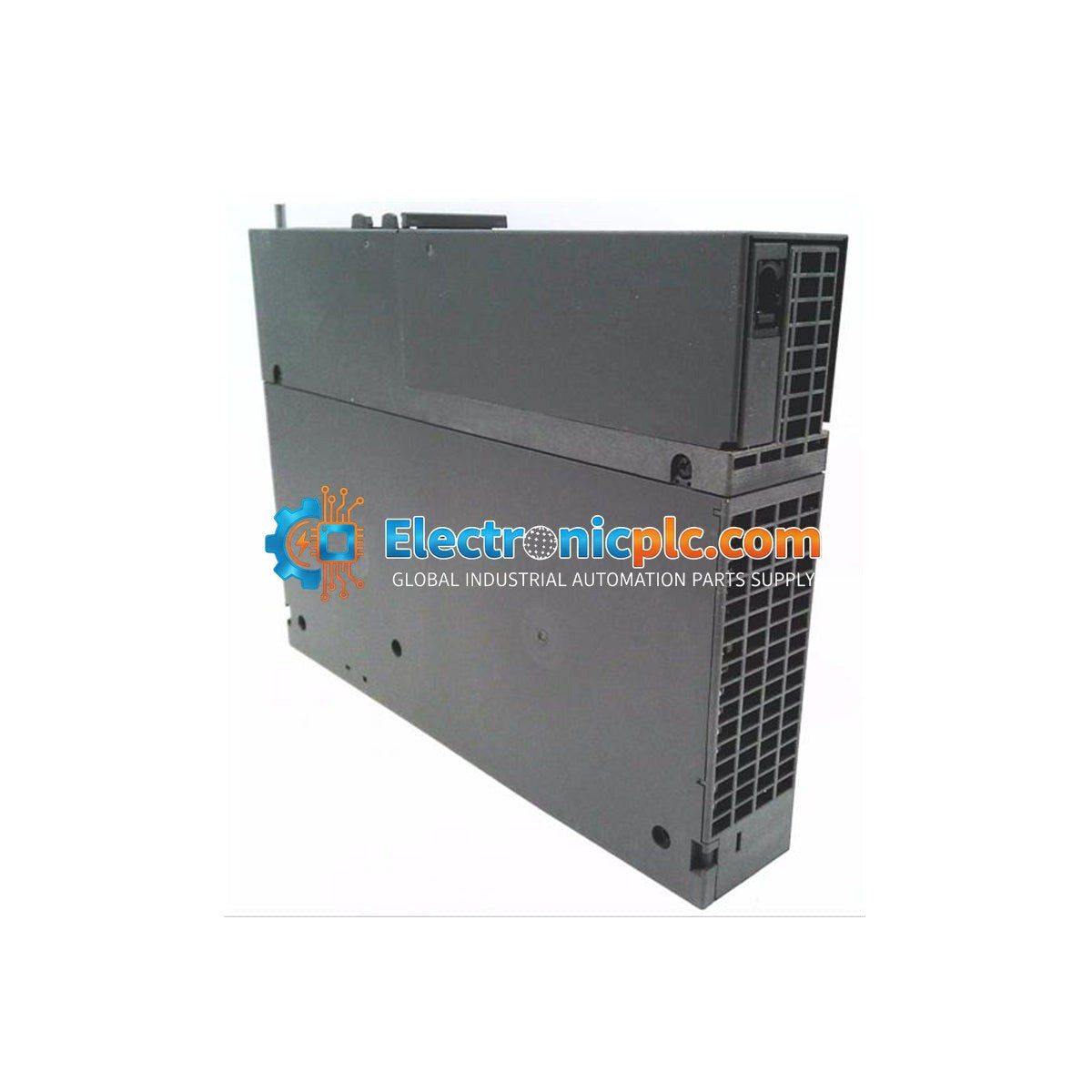

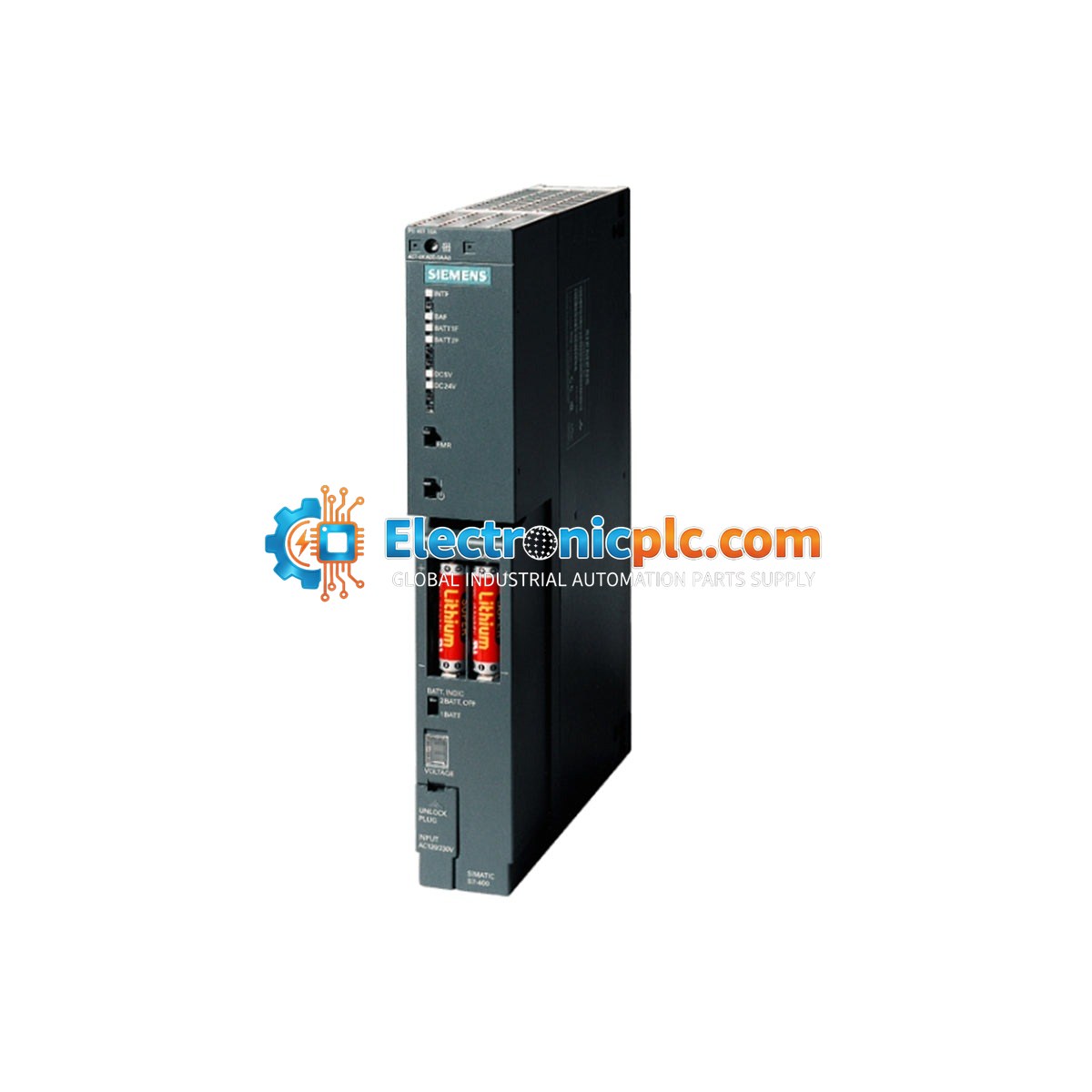

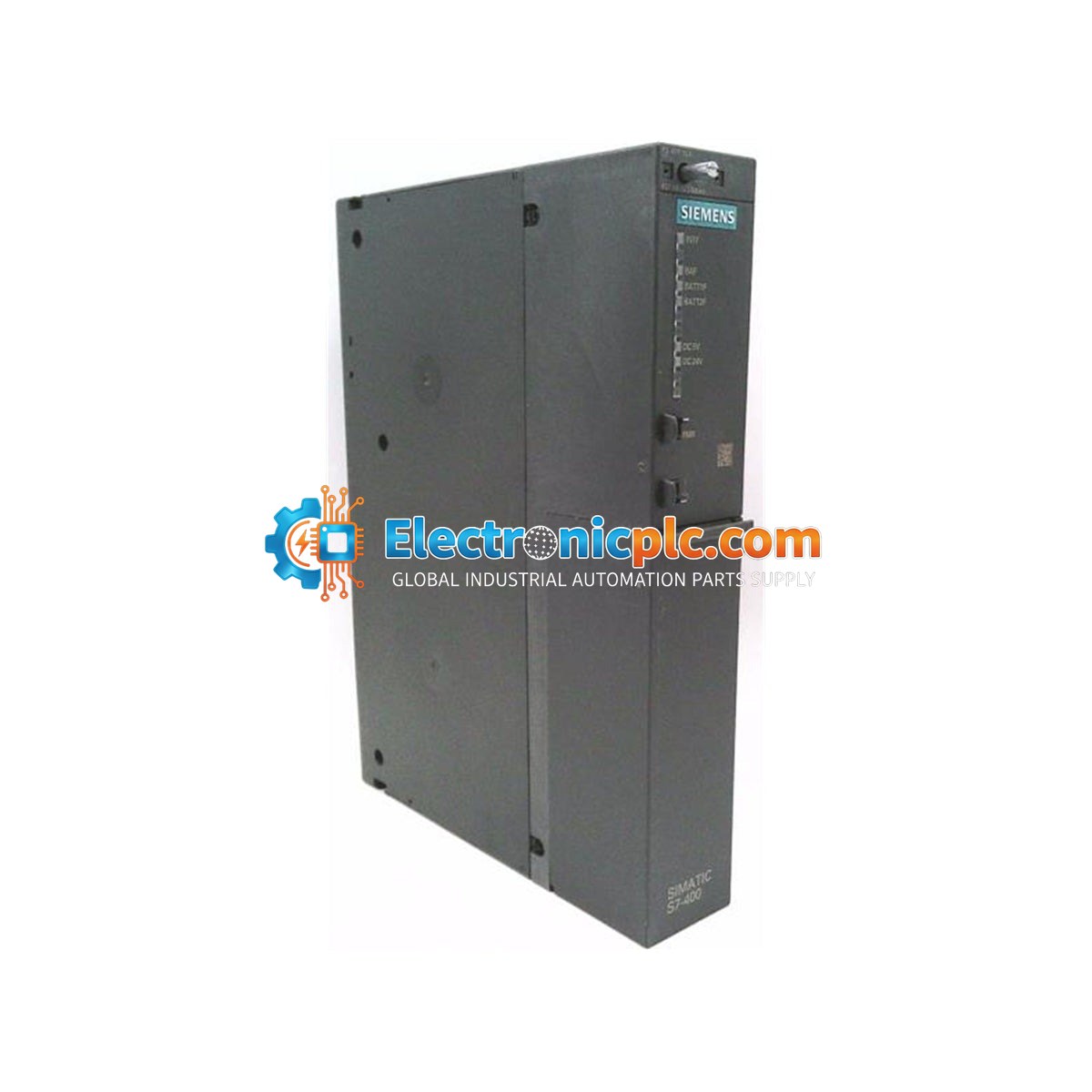

Siemens 6ES7407-0KA02-0AA0 SIMATIC S7-400 PS 407 Power Supply

Siemens 6ES7407-0KA02-0AA0 SIMATIC S7-400 PS 407 Power Supply

Description

The Siemens 6ES7407-0KA02-0AA0 is a high-performance power supply module (PS 407) designed for the SIMATIC S7-400 automation system. It provides a stable and reliable 5 V DC output for the...

28 people are viewing this right now

Availability: Low stock: 10 left

SKU: 6ES7407-0KA02-0AA0
Vendor: Siemens
Category: PLC Power Supply Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Siemens 6ES7407-0KA02-0AA0 is a high-performance power supply module (PS 407) designed for the SIMATIC S7-400 automation system. It provides a stable and reliable 5 V DC output for the backplane bus and an auxiliary 24 V DC output for system functions. Engineered for demanding industrial environments, this module supports a wide-range AC/DC input, ensuring continuous operation even in facilities with fluctuating power conditions.

Features

  • Designed for SIMATIC S7-400 PLC systems
  • Wide-range input: 120/230 V AC or 120/230 V DC
  • Output: 5 V DC / 10 A for backplane bus and 24 V DC auxiliary output
  • Integrated short-circuit and over-temperature protection
  • Mains buffering capability (20 ms) for power interruption resilience
  • Galvanic isolation between primary and secondary circuits

Applications

  • Automotive production lines and robotics
  • Chemical and pharmaceutical process control
  • Food and beverage packaging and material handling
  • Water and sewage treatment infrastructure
  • Industrial energy management and substation control

Technical Specifications

Model 6ES7407-0KA02-0AA0
Input Voltage (AC) 120/230 V (85 to 264 V AC)
Input Voltage (DC) 120/230 V (88 to 300 V DC)
Frequency Range 47 to 63 Hz
Output Current (5V DC) 10 A
Power Consumption (typ) 95 W
Buffering Time 20 ms
Weight 1.15 kg

Installation Guidelines

  • Mounting: The module must be installed in the first slot (leftmost) of the S7-400 rack.
  • Fixing: Hook the module onto the bottom of the rack, swing it upward until it snaps into the top, and secure it with the provided bottom screw.
  • Clearance: Maintain at least 20 mm of clearance above and below the module to facilitate natural convection cooling.
  • Handling: Ensure the system is powered down before inserting or removing the module to prevent electrical damage.
  • Environment: Keep away from high-EMI sources and ensure the cabinet is properly grounded.

FAQ

What is the 6ES7407-0KA02-0AA0?

It is a 10A power supply module for the SIMATIC S7-400 PLC series, responsible for powering the backplane bus and connected system components.

Does this module support redundant operation?

No, this is a standard power supply. Redundant configurations require the 6ES7407-0KR02-0AA0 model.

What is the purpose of the battery slot?

The module includes a slot for a 3.6 V / 2.3 Ah AA lithium battery to provide backup for RAM and system parameters during power failures.
