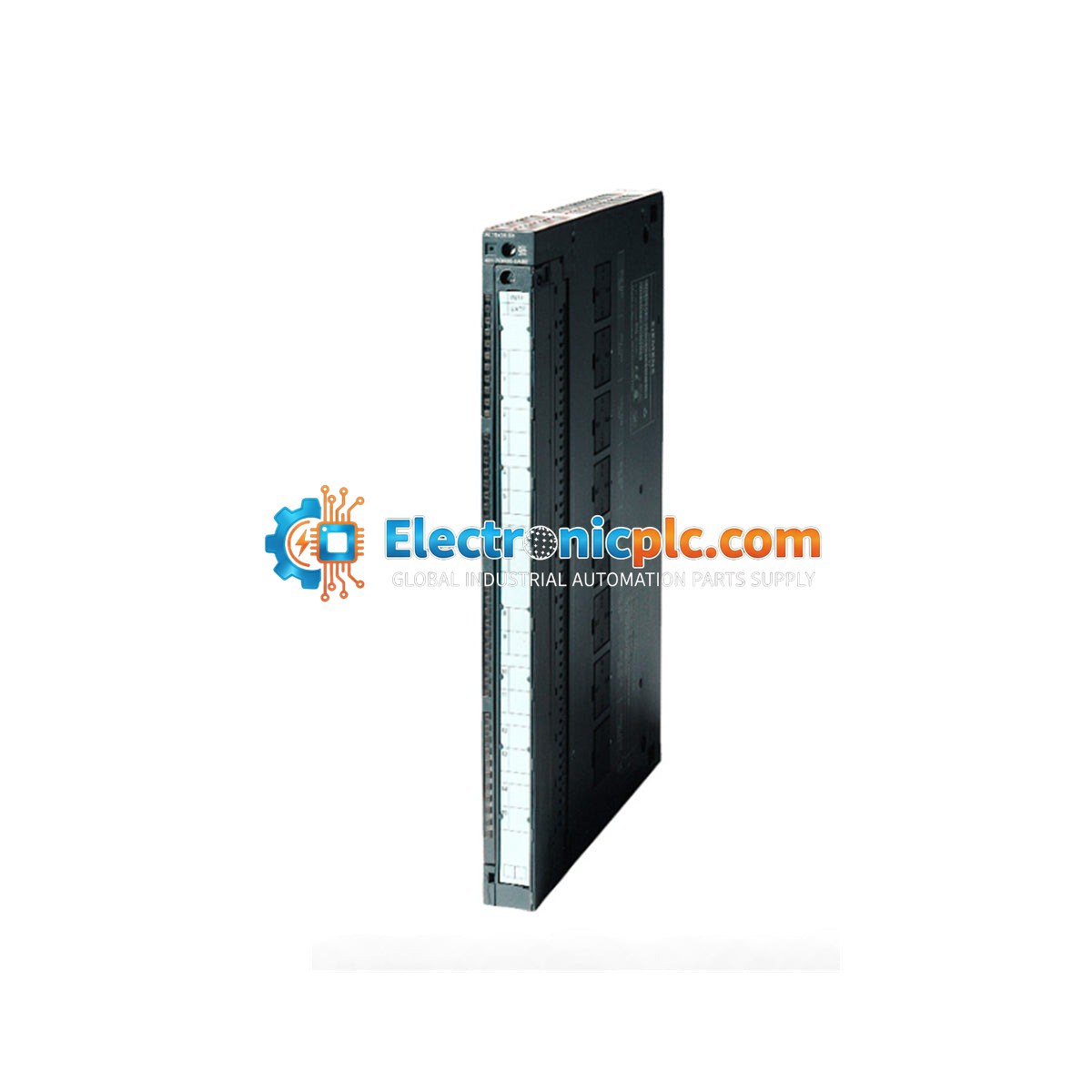

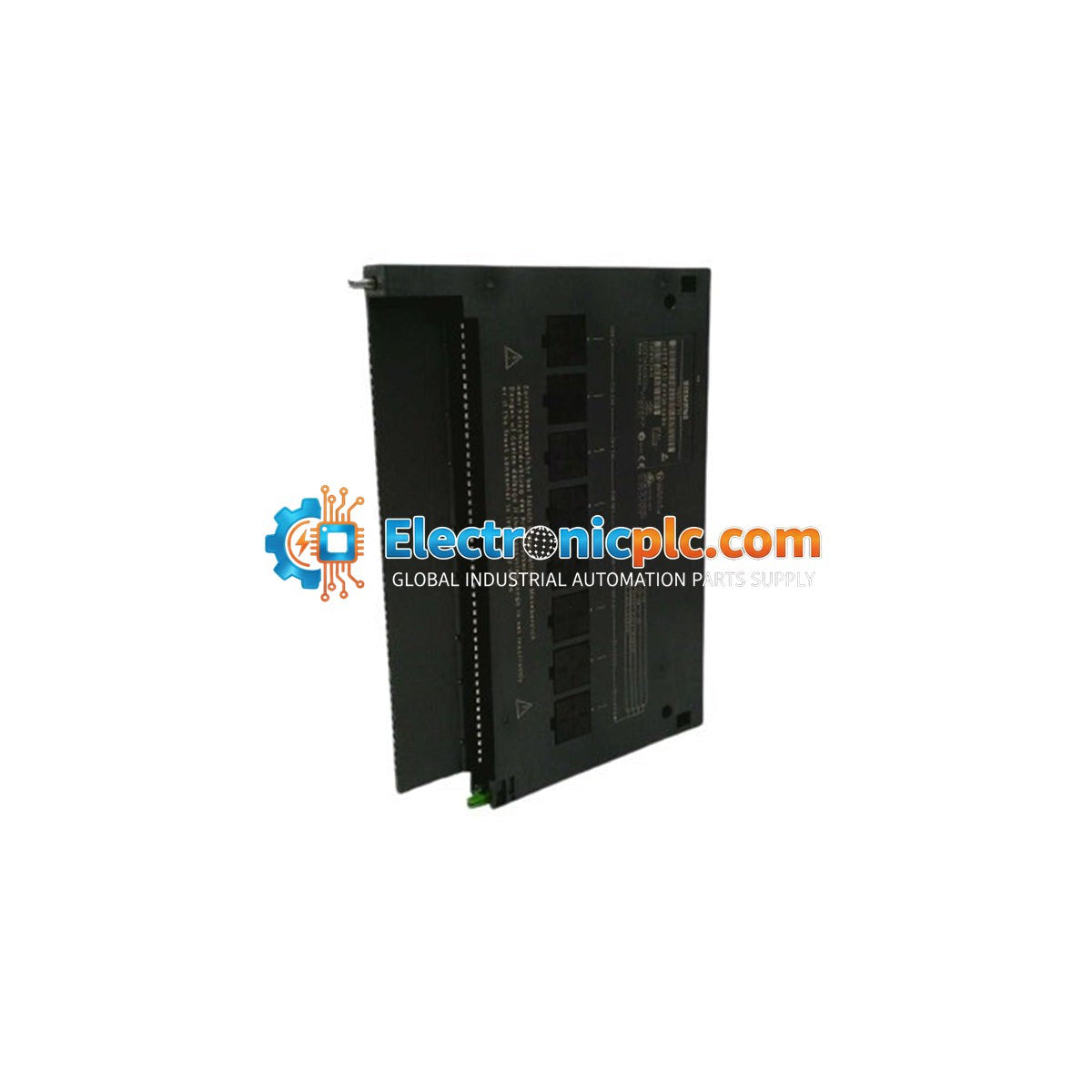

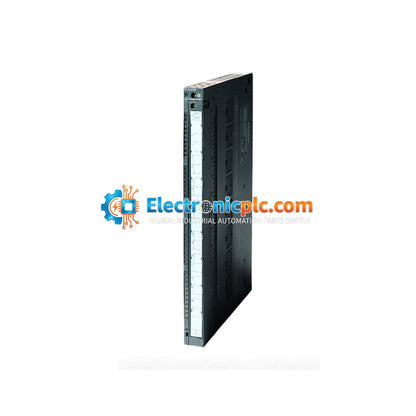

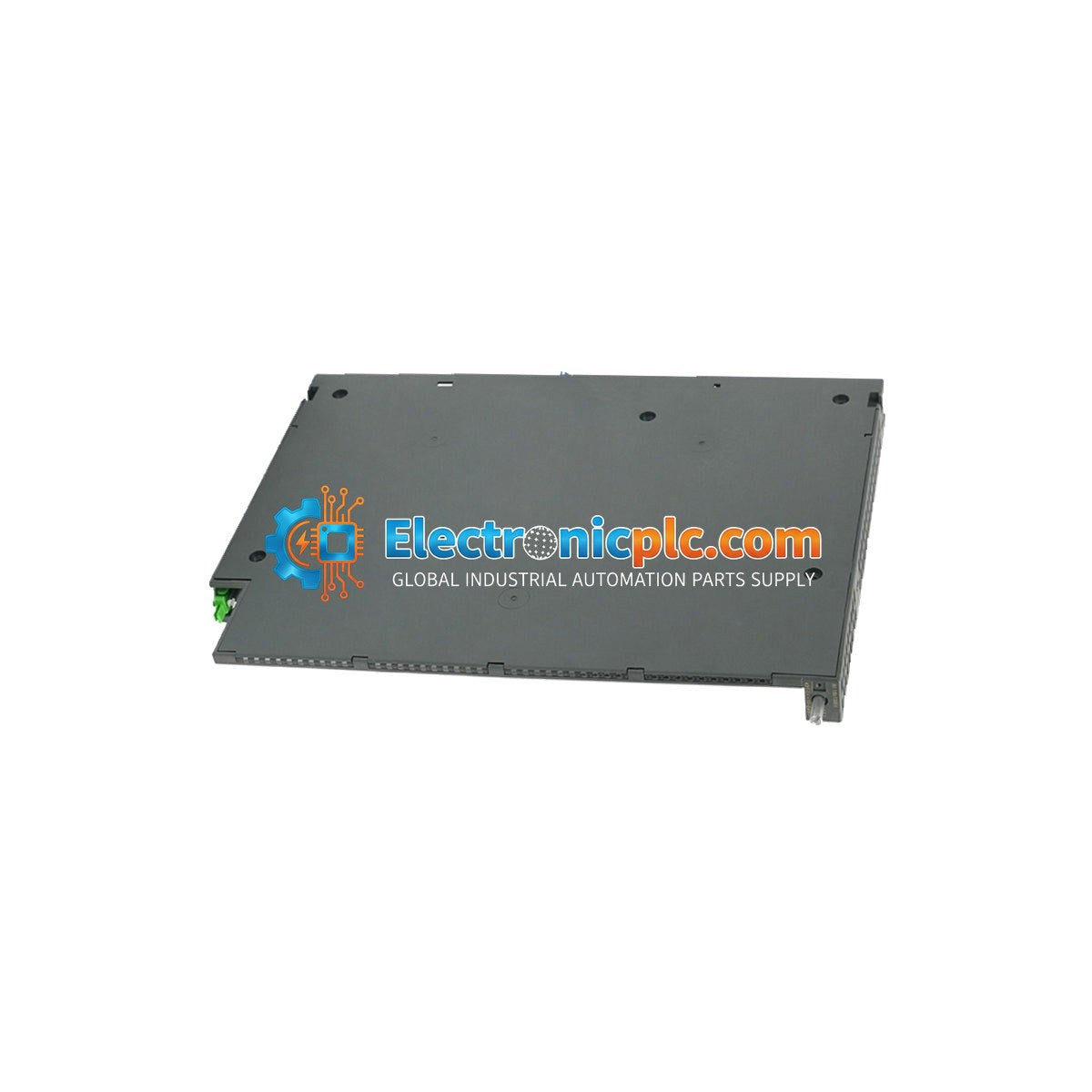

Siemens 6ES7431-0HH00-0AB0 SIMATIC S7-400 Analog Input Module

Siemens 6ES7431-0HH00-0AB0 SIMATIC S7-400 Analog Input Module

Description

The Siemens 6ES7431-0HH00-0AB0 (SM 431) is a 16-channel analog input module engineered for the SIMATIC S7-400 automation system. This non-isolated module provides 13-bit resolution for converting analog process signals into...

24 people are viewing this right now

Availability: Low stock: 1 left

SKU: 6ES7431-0HH00-0AB0
Vendor: Siemens
Category: Analog Input Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Siemens 6ES7431-0HH00-0AB0 (SM 431) is a 16-channel analog input module engineered for the SIMATIC S7-400 automation system. This non-isolated module provides 13-bit resolution for converting analog process signals into digital values, facilitating precise industrial control. It supports various signal types including +/-10 V, +/-20 mA, and 4-20 mA, with a conversion time of 20 ms.

Features

  • 16 analog inputs, non-isolated
  • 13-bit resolution for high-precision signal conversion
  • Supports voltage (U), current (2-wire/4-wire), and resistance measurement
  • Integrated short-circuit protection for transducer supply (approx. 60 mA per channel pair)
  • Parameterizable interrupts for immediate CPU response to process events
  • Standard S7-400 diagnostic framework support

Applications

  • Oil and Gas: Centralized monitoring of pressure, level, and flow in refineries and pipeline stations.
  • Power Generation: Auxiliary control systems for power plants and electrical substations.
  • Steel and Metallurgy: Sensor monitoring for blast furnaces and continuous rolling units.
  • Chemical and Pharmaceutical: Process parameter monitoring for reaction vessels and distillation towers.

Technical Specifications

Product Model 6ES7431-0HH00-0AB0
Module Type Analog Input (SM 431)
Channels 16
Resolution 13-bit
Conversion Time 20 ms
Rated Voltage (DC) 24 V
Current Consumption (Backplane) 100 mA (5 V DC)
Current Consumption (Load L+) 400 mA max
Power Loss (typ.) 2 W
Isolation (Type Test) 500 V AC / 707 V DC

Installation Guidelines

  • Ensure the S7-400 rack power is disconnected before installing or removing the module to prevent electrical damage.
  • The module must be seated securely in the backplane slot; ensure the front connector is fully engaged and locked.
  • Use shielded cables for all analog signal wiring to minimize electromagnetic interference (EMI).
  • Route signal cables separately from high-voltage power lines and motor control cabling.
  • Ensure proper grounding of the cable shields at the entry point or as specified by the S7-400 system grounding requirements.
  • Handle with standard ESD precautions to protect sensitive electronic components.

FAQs

What is the 6ES7431-0HH00-0AB0?

The Siemens 6ES7431-0HH00-0AB0 is a SIMATIC S7-400 analog input module, specifically the SM 431; AI 16 x 13 Bit.

What measurement methods does this module support?

The module can be configured for voltage (U), current (two-wire and four-wire transmitters), and resistance (four-core connection) measurements.

Does this module provide diagnostic feedback?

Yes, it supports standard diagnostic functions for analog modules to detect and report internal errors and field device health.
