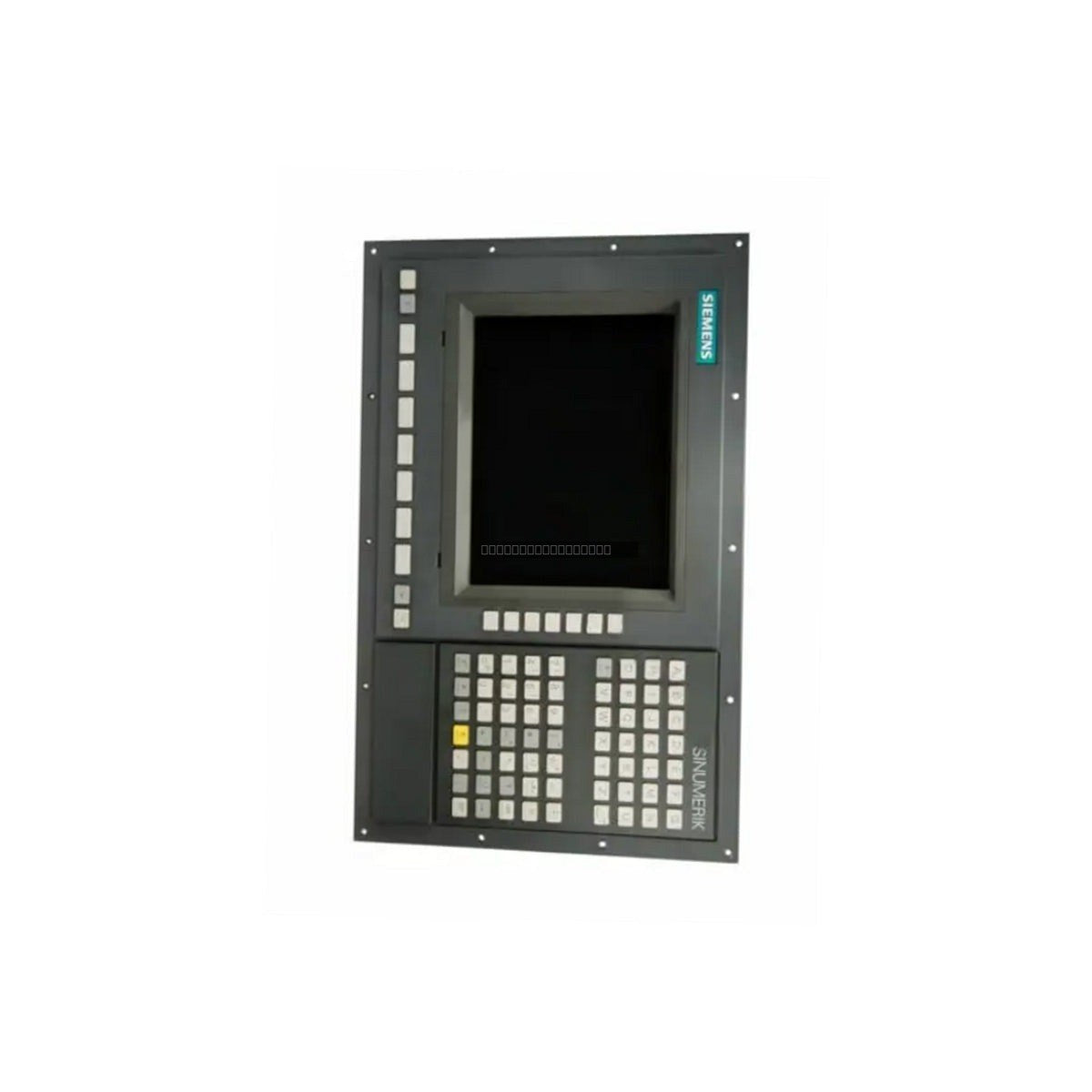

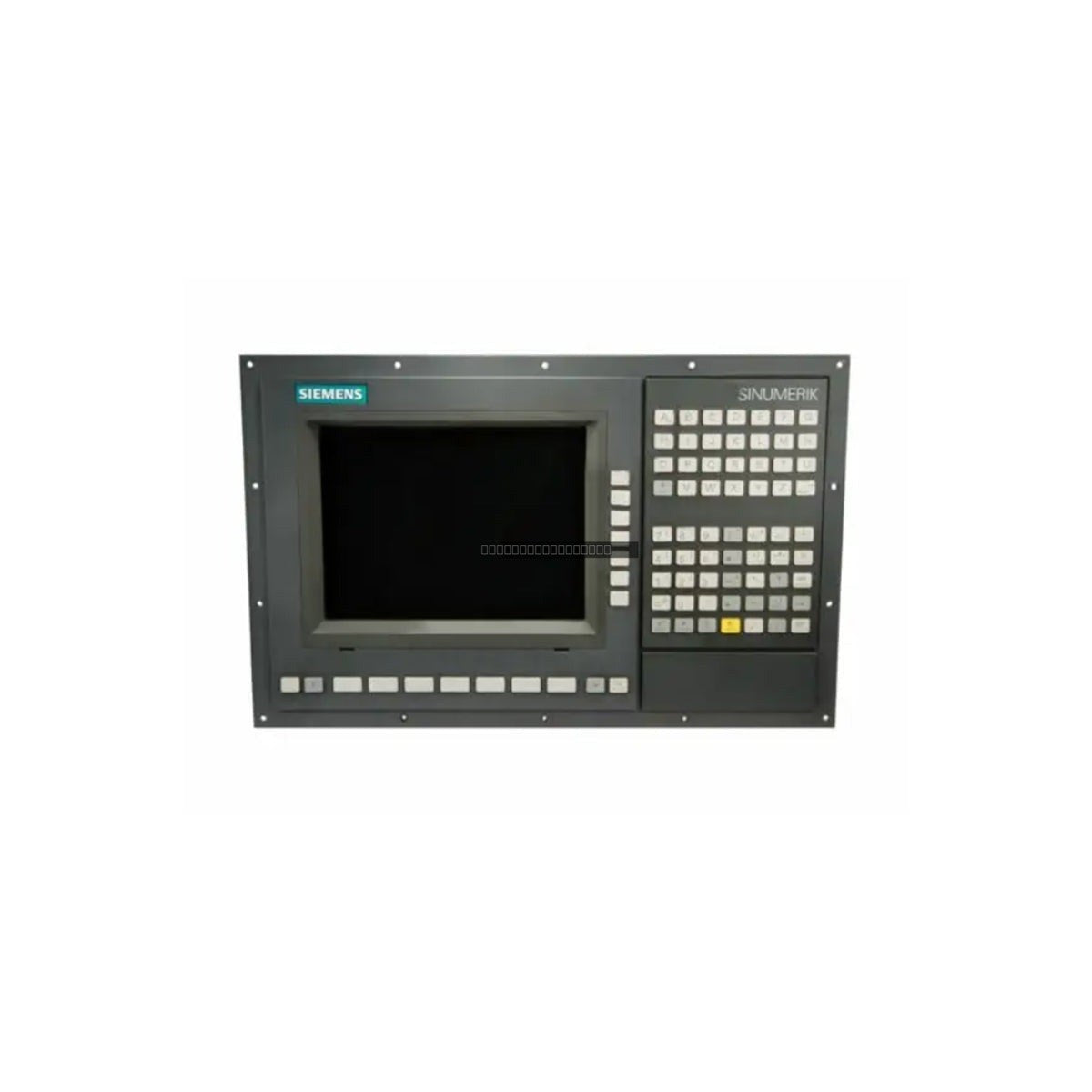

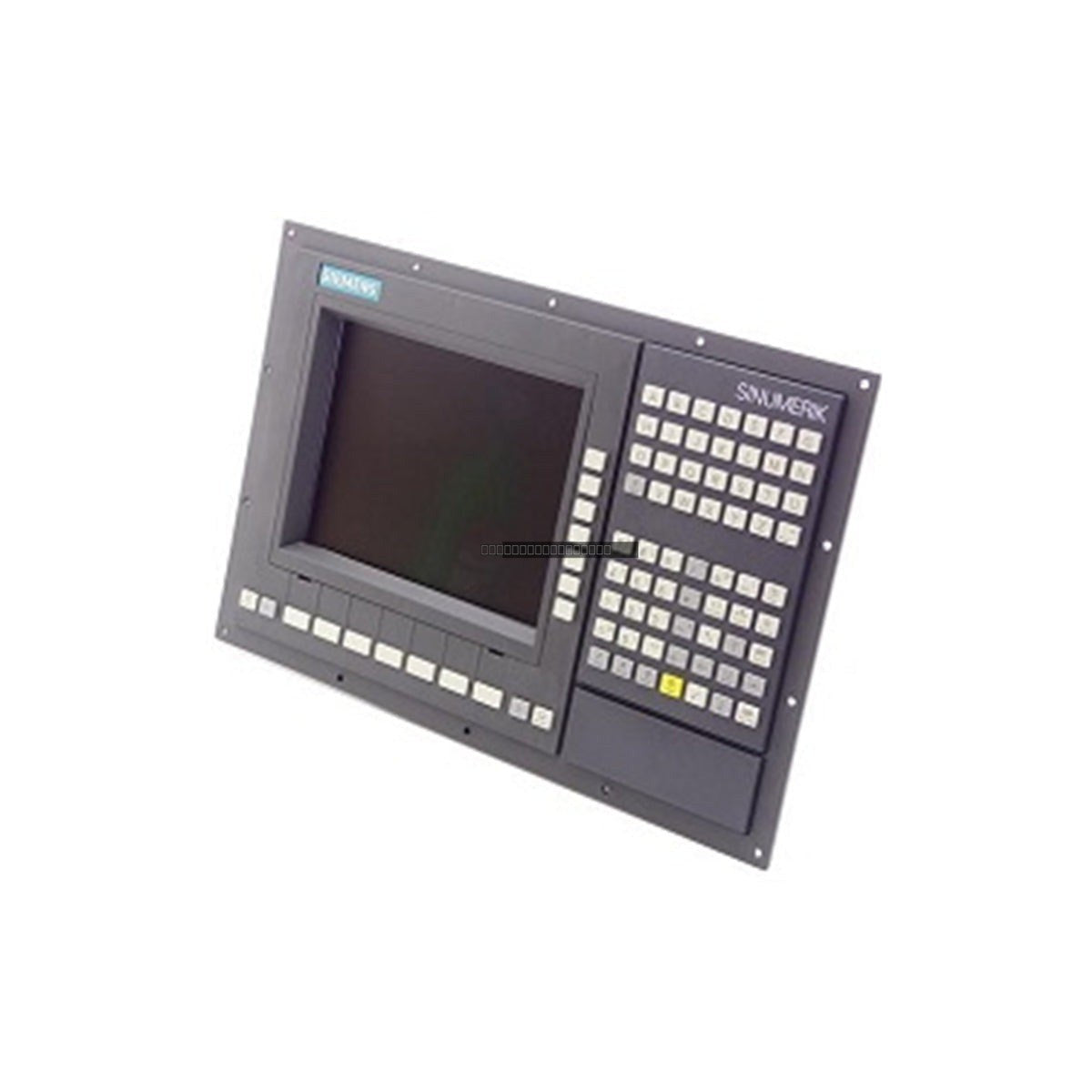

The Siemens 6FC5103-0AB03-0AA3 is a high-performance operator interface panel designed for use within the Sinumerik 840C/840CE CNC control environments. This unit serves as a critical human-machine interface (HMI) for machine tool management, providing operators with the necessary controls and visual feedback for complex machining operations.

Features

• Designed specifically for compatibility with Sinumerik 840C and 840CE control systems.
• Slimline design to optimize space within the control cabinet or operator console.
• Large 19-inch display area for clear visualization of machine parameters and diagnostic data.
• Integrated power supply supporting 115/230 VAC at 50/60 Hz.
• Rugged construction suitable for industrial manufacturing environments.

Applications

This operator panel is primarily utilized in industrial CNC machining applications, including milling, turning, and specialized automated manufacturing systems. It acts as the primary interface for inputting G-code, monitoring tool wear, and managing machine cycles in legacy Sinumerik 840C installations.

Technical Specifications

Installation Guidelines

• Ensure the power is fully disconnected before attempting to install or remove the operator panel.
• Verify that the mounting surface is clean, flat, and capable of supporting the weight of the unit.
• Maintain proper ventilation around the panel to prevent heat buildup during operation.
• Ensure that all signal and power cables are properly routed away from high-voltage lines to minimize electromagnetic interference (EMI).
• Use appropriate grounding techniques to protect the internal electronics from electrostatic discharge (ESD) and ground loops.

FAQ

Is the 6FC5103-0AB03-0AA3 still in production?
No, this model has been discontinued by the manufacturer. We provide high-quality surplus or refurbished units to support legacy systems.

What systems is this operator panel compatible with?
This unit is specifically engineered for use with Siemens Sinumerik 840C and 840CE control platforms.
