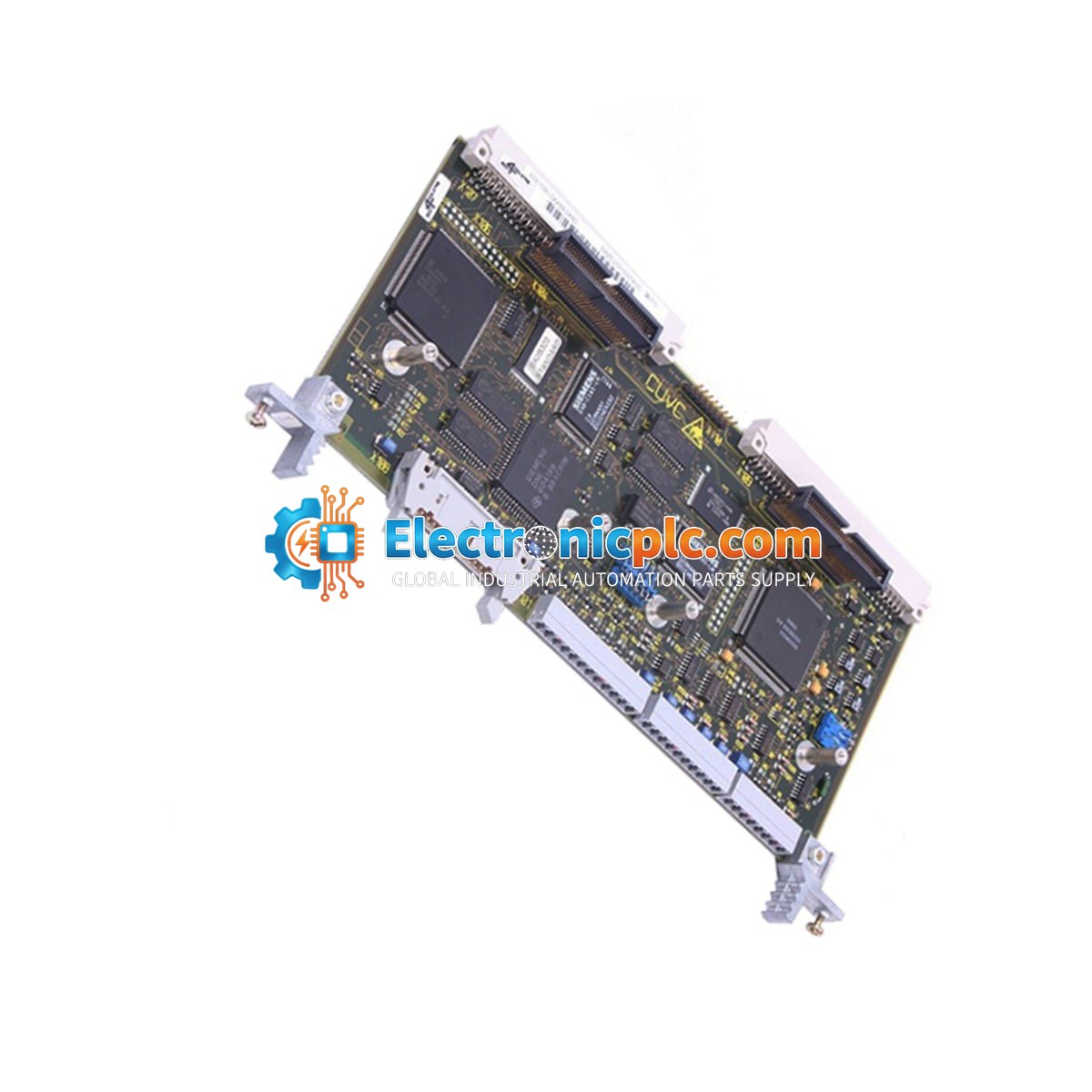

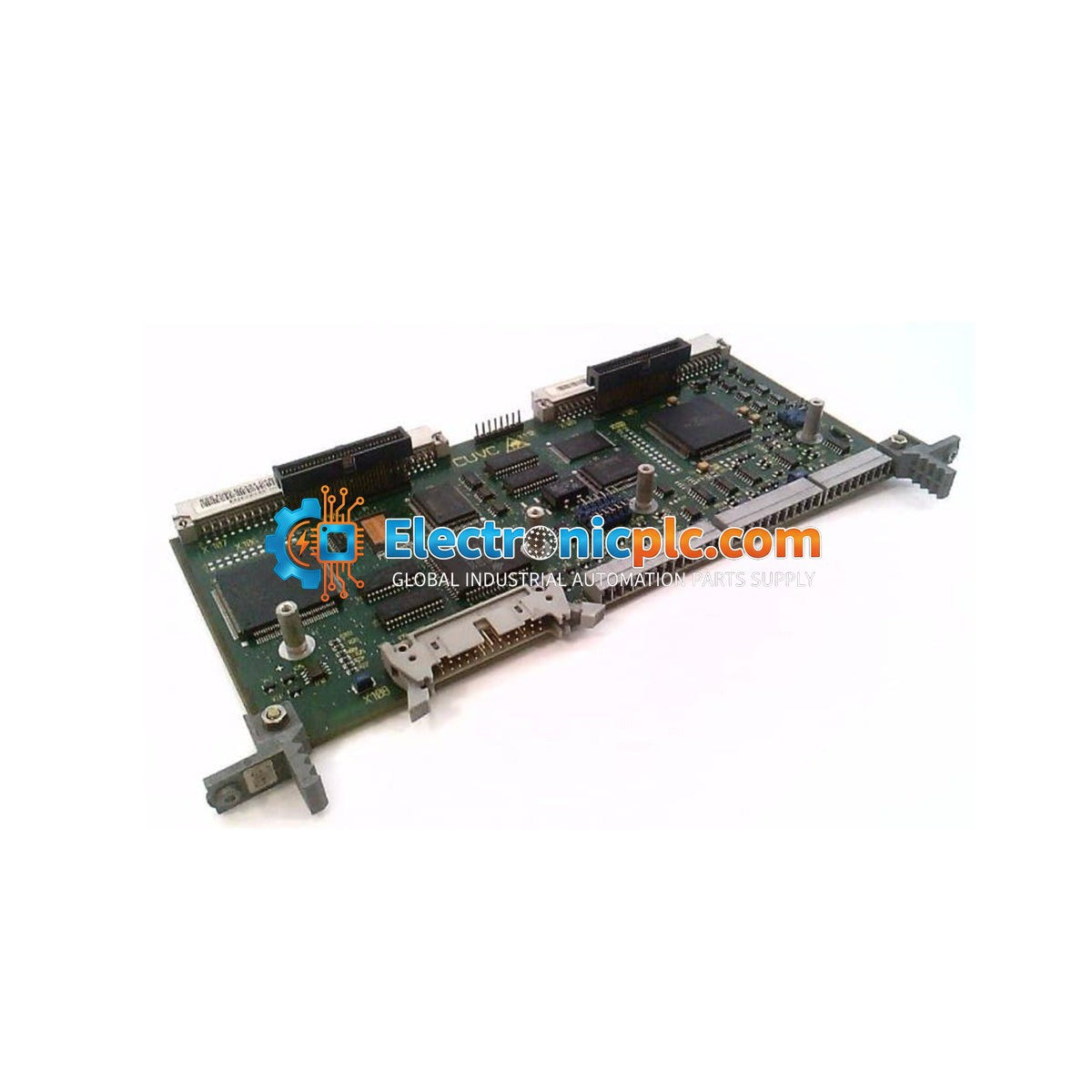

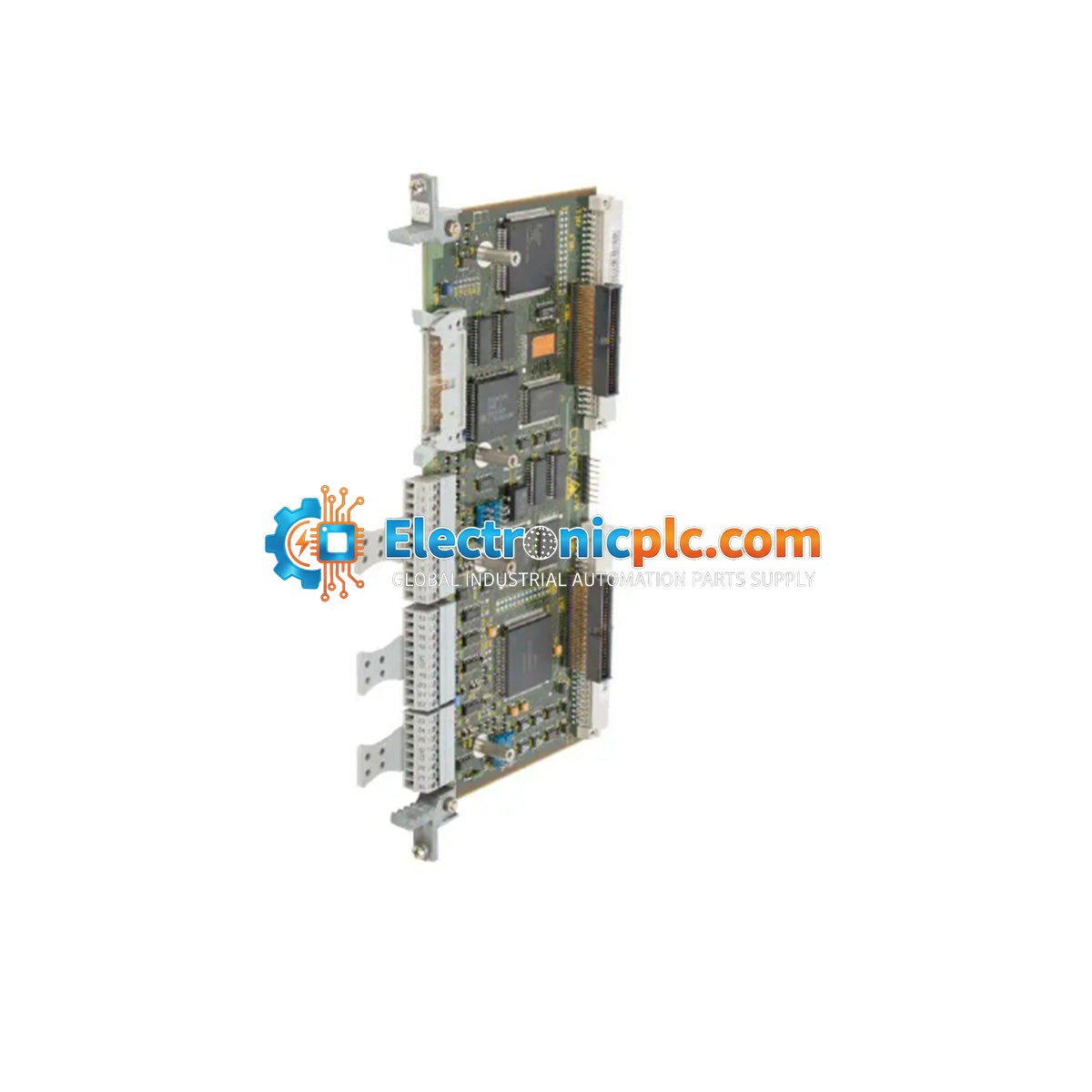

Siemens 6SE7090-0XX84-0AB0 CUVC Control Module for SIMOVERT MASTERDRIVES

Siemens 6SE7090-0XX84-0AB0 CUVC Control Module for SIMOVERT MASTERDRIVES

Description

The Siemens 6SE7090-0XX84-0AB0 is a CUVC (Control Unit Vector Control) module designed for the SIMOVERT MASTERDRIVES series. This control board provides both open-loop and closed-loop control functionality, enabling high-performance vector...

20 people are viewing this right now

Availability: Low stock: 2 left

SKU: 6SE7090-0XX84-0AB0
Vendor: Siemens
Category: Control Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Siemens 6SE7090-0XX84-0AB0 is a CUVC (Control Unit Vector Control) module designed for the SIMOVERT MASTERDRIVES series. This control board provides both open-loop and closed-loop control functionality, enabling high-performance vector control for industrial drive applications. This specific unit is configured with firmware version V3.4.

Features

  • Advanced vector control capabilities for precise motor speed and torque regulation.
  • Integrated firmware version V3.4 for optimized drive performance.
  • Supports versatile I/O configurations for complex control loops.
  • Designed for seamless integration into the SIMOVERT MASTERDRIVES hardware architecture.

Applications

This control module is primarily used in industrial automation environments requiring high-precision drive control, including:

  • Conveyor systems and material handling.
  • Pump and fan control applications.
  • Extruder and processing machinery.
  • General motion control and variable speed drive systems.

Technical Specifications

Product Model 6SE7090-0XX84-0AB0
Module Type CUVC Control Module
Input Voltage 24 V DC +/- 10%
Power Consumption 15 W (idle) / 30 W (max)
Analog Inputs 2 channels (configurable +/- 10 V / 0-20 mA)
Digital I/O 8-16 channels
Operating Temperature 0 degC to +55 degC
Storage Temperature -40 degC to +70 degC

Installation Guidelines

  • Ensure the drive system is fully powered down and the DC bus is discharged before installing or removing the CUVC module.
  • Handle the module by its edges to avoid electrostatic discharge (ESD) damage to sensitive electronic components.
  • Ensure the module is firmly seated in the designated control unit slot to maintain reliable electrical connection.
  • Verify that the control wiring is routed away from high-power motor cables to minimize electromagnetic interference (EMI).
  • Maintain adequate ventilation around the drive enclosure to ensure the module operates within the specified temperature range.

FAQ

What is the primary function of the CUVC module?

The CUVC module acts as the central intelligence for the SIMOVERT MASTERDRIVES, managing the vector control algorithms, processing I/O signals, and executing the drive's control logic.

Is this module compatible with all MASTERDRIVES units?

This module is specific to the SIMOVERT MASTERDRIVES line. Please verify your drive's specific hardware compatibility and firmware requirements before installation.
