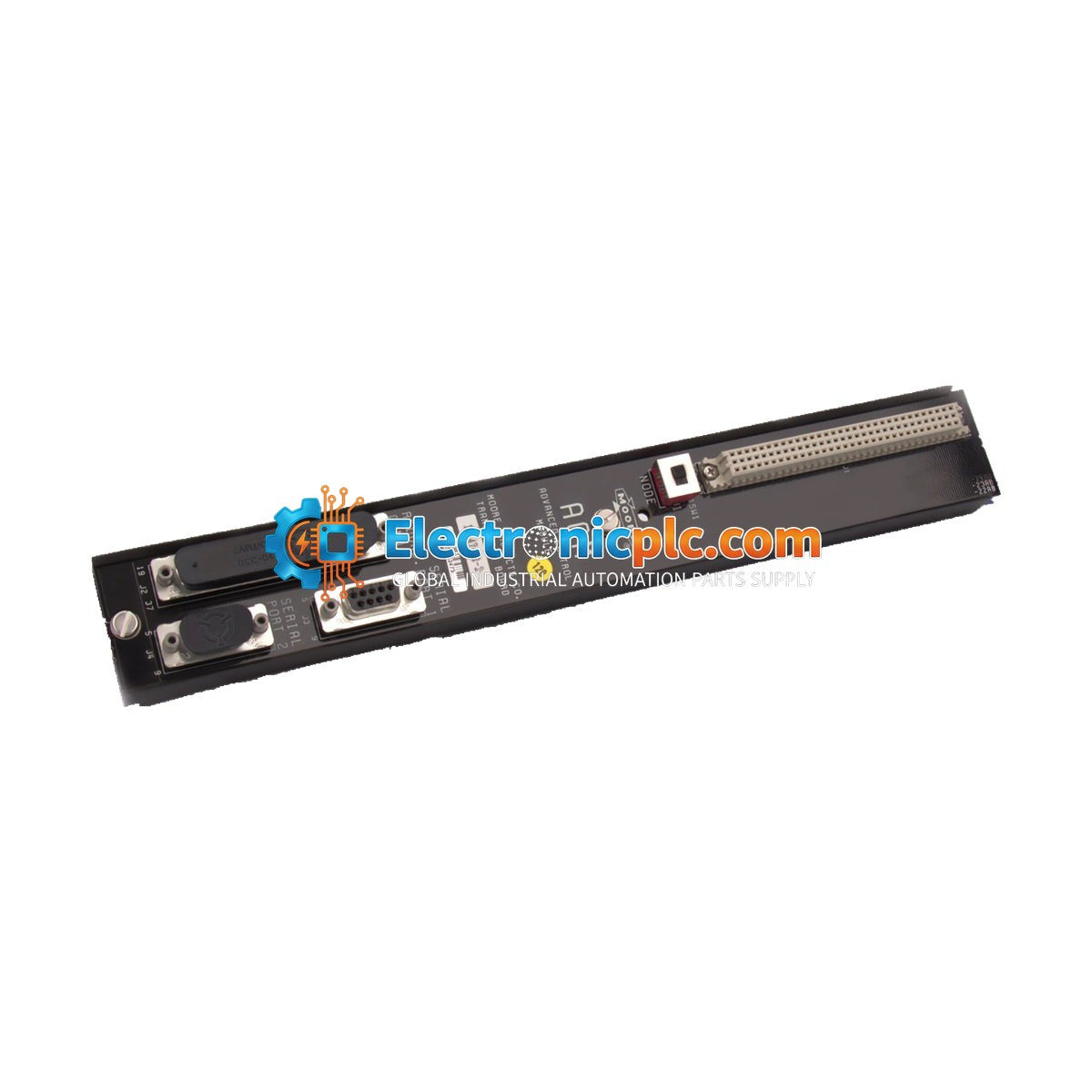

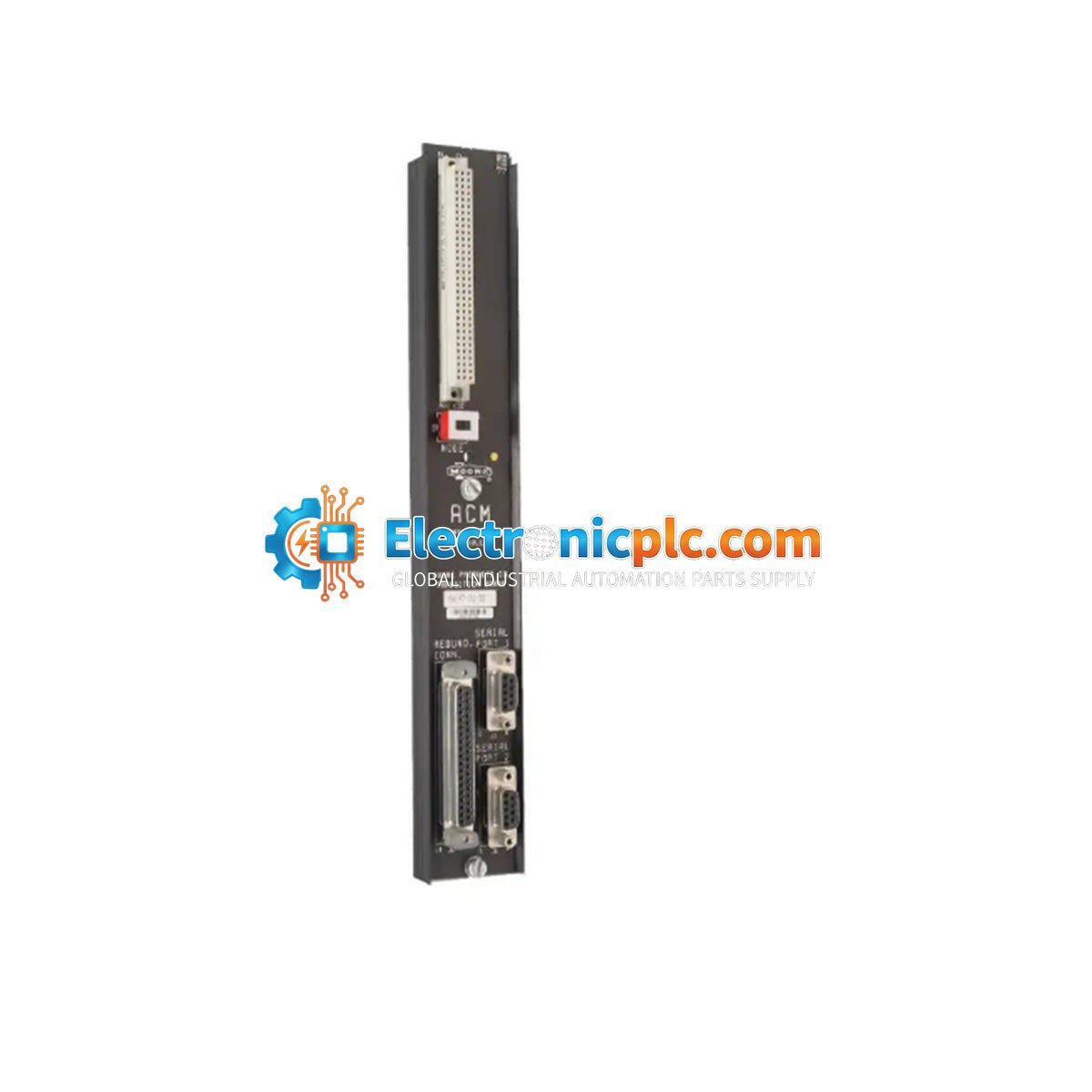

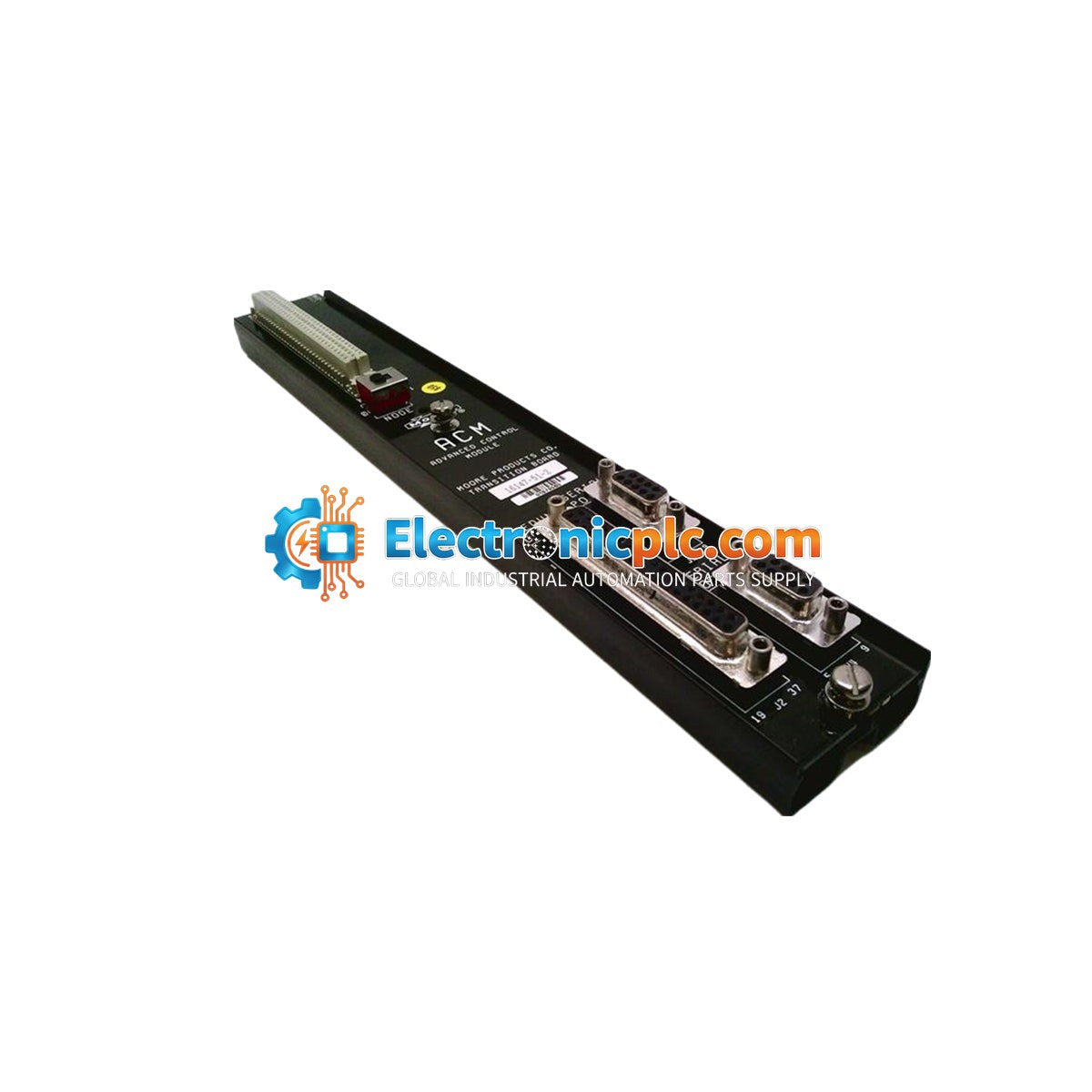

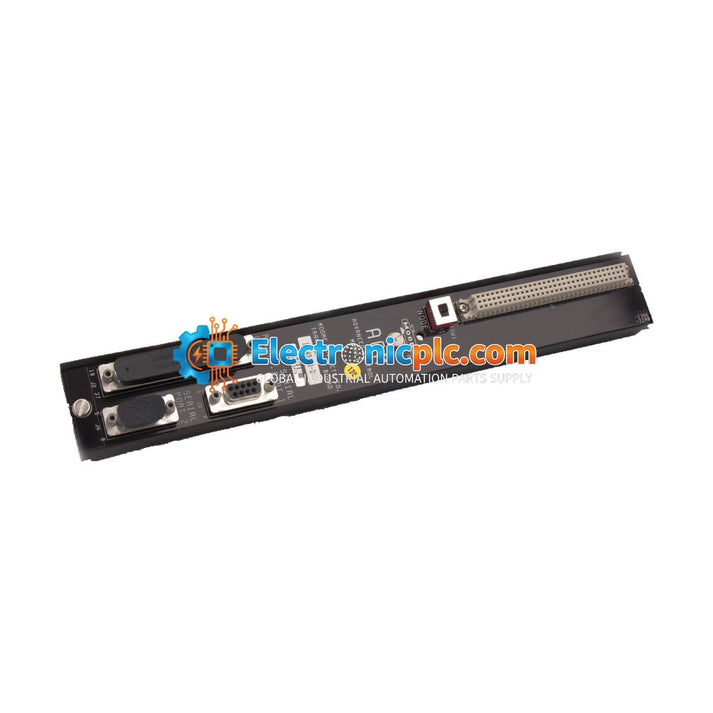

Siemens 16147-51-2 APACS ACM Transition Board

Siemens 16147-51-2 APACS ACM Transition Board

Description

The Siemens 16147-51-2 is a specialized ACM (Advanced Control Module) Transition Board designed for the APACS (Advanced Process Automation Control System) platform. This high-integrity interface component serves as the...

29 people are viewing this right now

Availability: Low stock: 4 left

SKU: 16147-51-2
Vendor: Siemens
Category: DCS I/O Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Siemens 16147-51-2 is a specialized ACM (Advanced Control Module) Transition Board designed for the APACS (Advanced Process Automation Control System) platform. This high-integrity interface component serves as the physical bridge between Advanced Control Modules and field-level communication networks. It is engineered to maintain signal integrity and system availability in mission-critical DCS environments, such as oil and gas refining, power generation, and chemical processing facilities.

Features

  • Redundant Architecture: Features a redundant connector system that supports dual-path wiring, preventing communication loss due to single-cable failures.
  • Serial Communication: Equipped with two dedicated serial ports for synchronization and fieldbus protocol handling.
  • Signal Conditioning: Provides essential impedance matching and electrical noise protection to safeguard the core ACM processor.
  • High-Availability Design: Supports deterministic communication and hot-swappable redundancy requirements within the APACS infrastructure.

Applications

The 16147-51-2 is primarily utilized in Distributed Control System (DCS) architectures where high reliability and continuous process control are required. It is a critical component for managing data exchange between decentralized controllers and supervisory systems in complex industrial automation environments.

Technical Specifications

Model 16147-51-2
Brand Siemens
Series APACS / Moore
Module Type ACM Transition Board
Serial Interfaces 2 Ports
Connectivity Redundant Connector Design
Operating Temperature 0 to 60 deg C

Installation Guidelines

  • ESD Precautions: Always handle the module using proper electrostatic discharge (ESD) protection, including grounded wrist straps, to prevent damage to sensitive electronic components.
  • Power Status: Ensure the system power is disconnected or the specific rack segment is powered down before installing or removing the transition board.
  • Mechanical Seating: Ensure the board is fully seated and the connector latches are securely engaged to maintain reliable electrical contact.
  • Cable Routing: Route communication cables away from high-voltage power lines and sources of electromagnetic interference (EMI) to ensure signal stability.

FAQ

Is the 16147-51-2 compatible with all APACS controllers?

This board is specifically designed for use with the APACS Advanced Control Module (ACM) series. Please verify your specific controller revision and system documentation to ensure compatibility with the 16147-51-2 transition interface.

Does this board support hot-swapping?

Yes, the board is designed to support the redundancy features of the APACS platform, which facilitates maintenance in high-availability systems. However, always refer to your specific system manual for site-specific safety procedures regarding module replacement.
