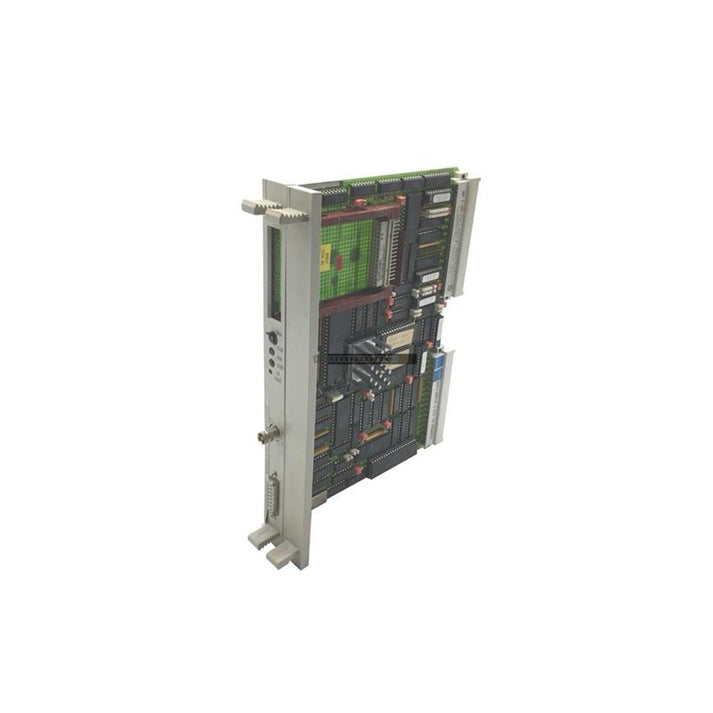

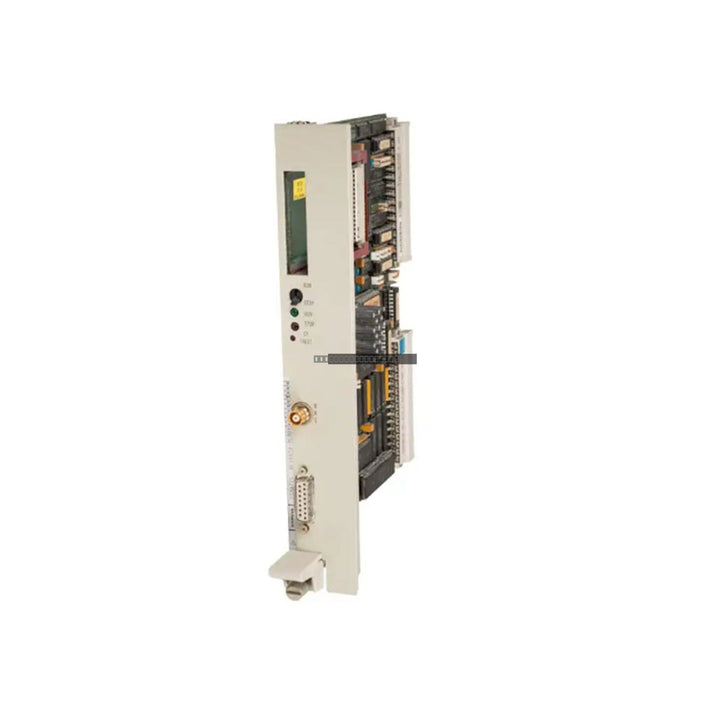

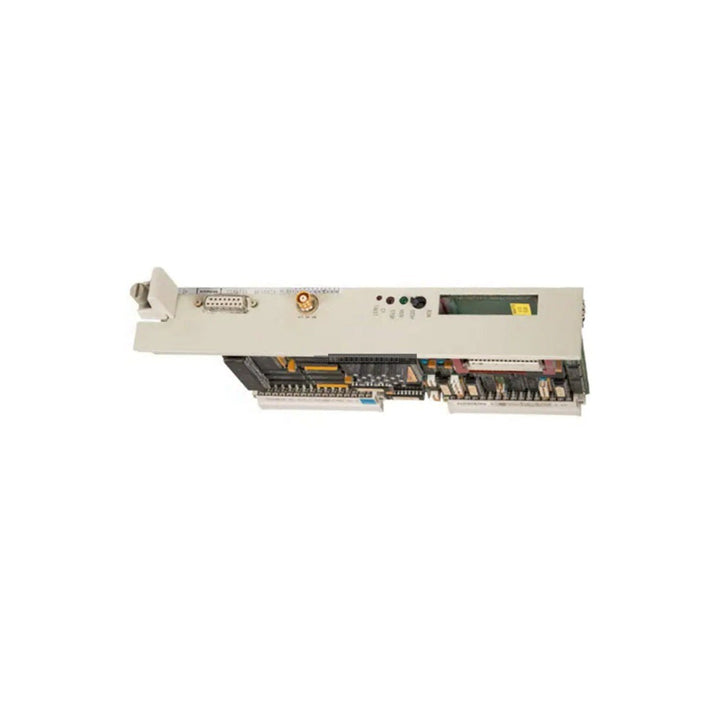

Siemens 6ES5526-3LG01 CP526-II Simatic S5 Communications Processor

Siemens 6ES5526-3LG01 CP526-II Simatic S5 Communications Processor

Description

The Siemens CP526-II (6ES5526-3LG01) is a specialized communications processor and graphics module engineered for the Simatic S5 automation platform. This module serves as a critical interface component, facilitating HMI connectivity...

23 people are viewing this right now

Availability: Low stock: 7 left

SKU: 6ES5526-3LG01
Vendor: Siemens
Category: Communications Processor
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Siemens CP526-II (6ES5526-3LG01) is a specialized communications processor and graphics module engineered for the Simatic S5 automation platform. This module serves as a critical interface component, facilitating HMI connectivity and serial data processing within legacy industrial control architectures. By offloading complex graphic visualization and communication protocol management from the central processing unit, the CP526-II optimizes backplane bus performance and ensures reliable, real-time data exchange for monitoring and control applications.

Features

  • Designed specifically for integration with Siemens Simatic S5 PLC systems.
  • Combines communications processing with graphical output capabilities to support HMI terminal operations.
  • Reduces CPU overhead by managing data visualization and serial communication tasks independently.
  • Features industrial-grade shielding and noise filtering to maintain signal integrity in high-EMI environments.
  • Supports standard serial TTY and V.24 interface protocols for legacy device connectivity.

Applications

The CP526-II is primarily utilized in legacy manufacturing, chemical processing, and power generation facilities where Simatic S5 systems remain in operation. It is commonly deployed to drive industrial monitors and terminal units, providing operators with essential process feedback and graphical status representations.

Technical Specifications

Model 6ES5526-3LG01 (CP526-II)
Brand Siemens Simatic S5
Module Type Communications Processor / Graphic Module
Power Supply 5 VDC (via S5 backplane)
Interfaces Serial TTY / V.24
Operating Temperature 0 to 60 deg C
Storage Temperature -40 to 70 deg C
Relative Humidity 95 percent non-condensing
Mounting Single slot S5 rack installation

Installation Guidelines

  • Ensure the PLC power is completely disconnected before inserting or removing the module from the S5 rack.
  • Verify that the module is properly seated in the designated backplane slot to ensure reliable electrical contact.
  • Use appropriate shielded cabling for all serial TTY/V.24 connections to minimize electromagnetic interference.
  • Maintain adequate clearance around the module to allow for proper airflow and cooling within the control cabinet.
  • Handle the module using ESD-safe practices to prevent damage to sensitive internal electronic components.

FAQ

Is the CP526-II compatible with modern S7 systems? No, this module is specifically designed for the legacy Simatic S5 platform and is not natively compatible with S7 series controllers.

Does this module require external power? No, the CP526-II draws its required 5 VDC power directly from the Simatic S5 backplane bus.
