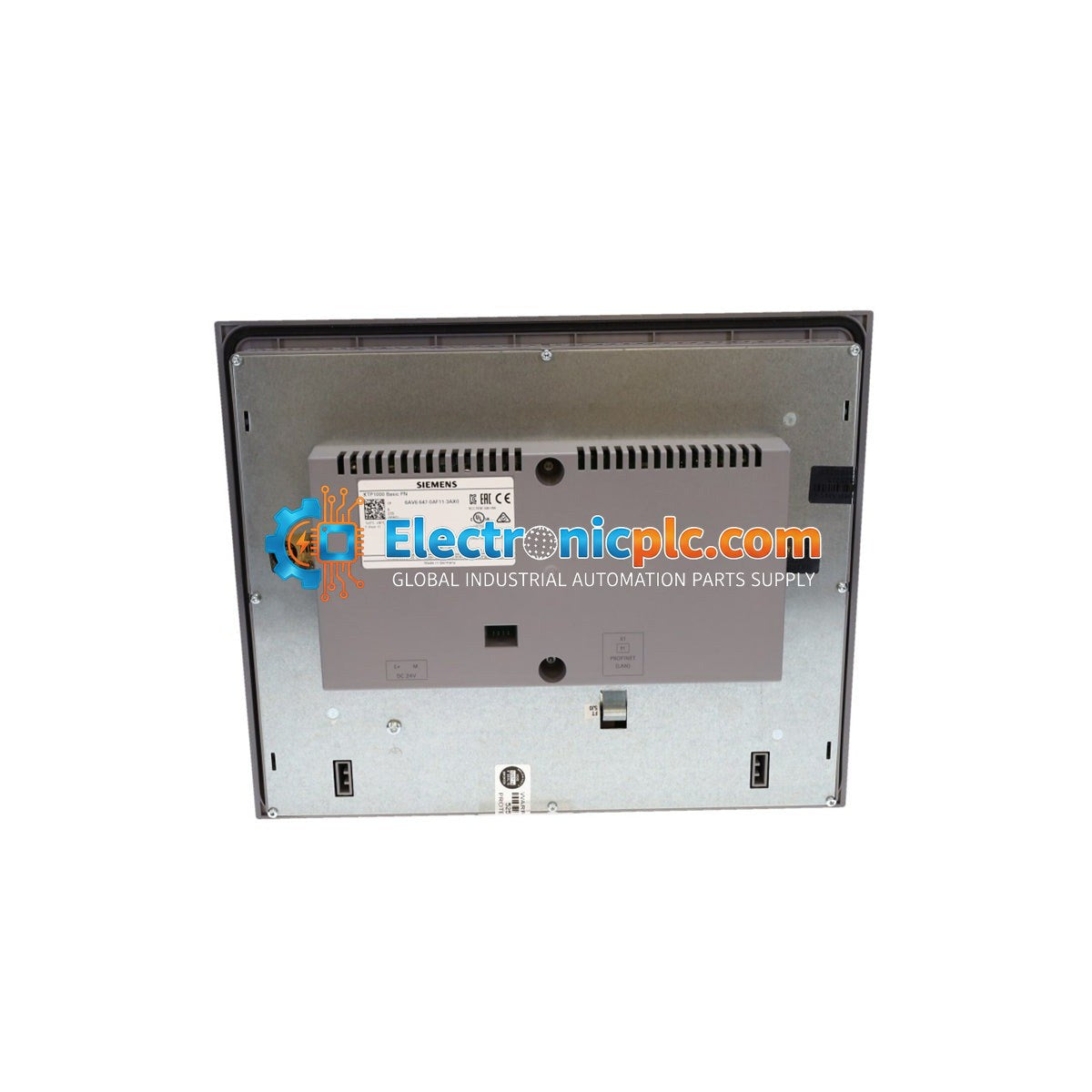

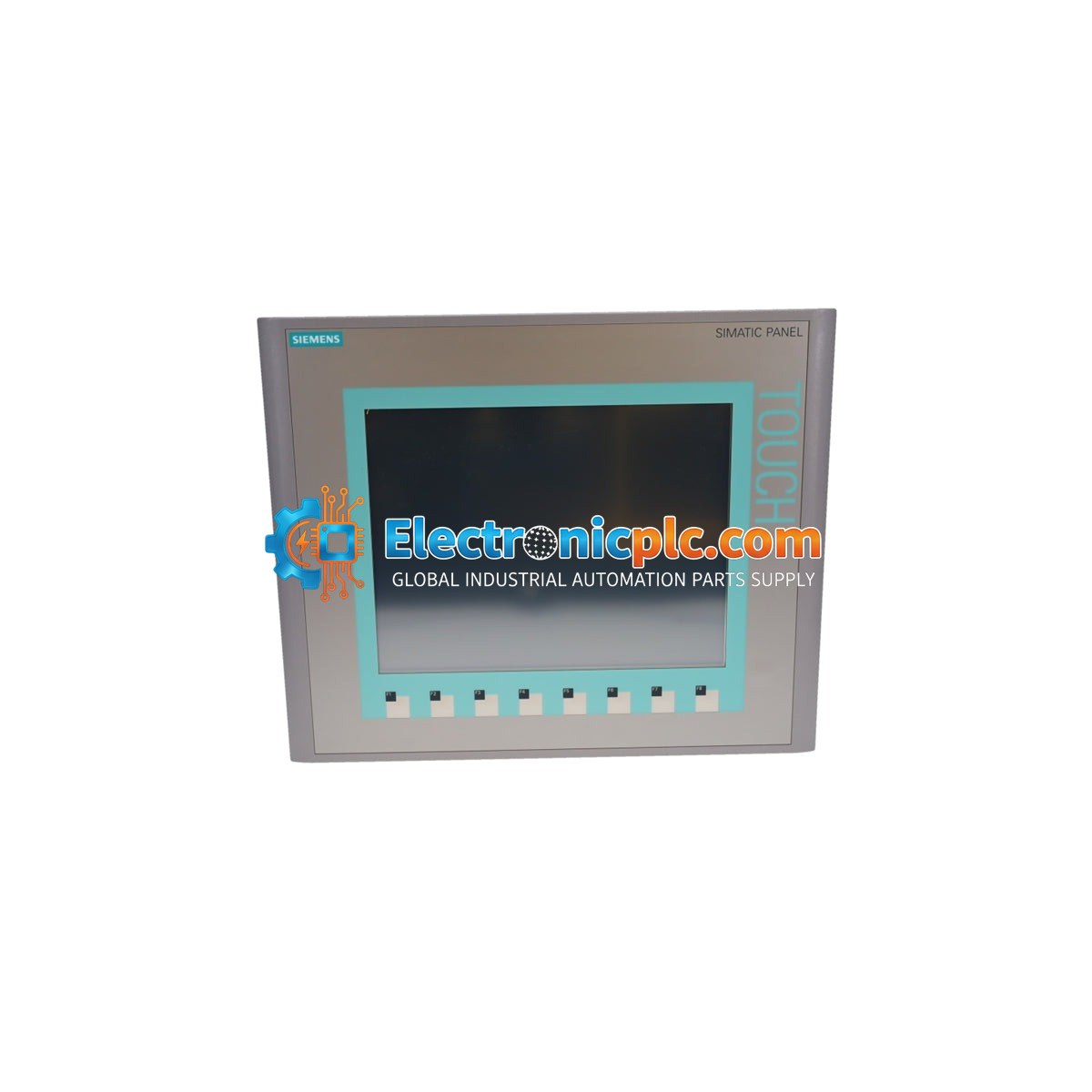

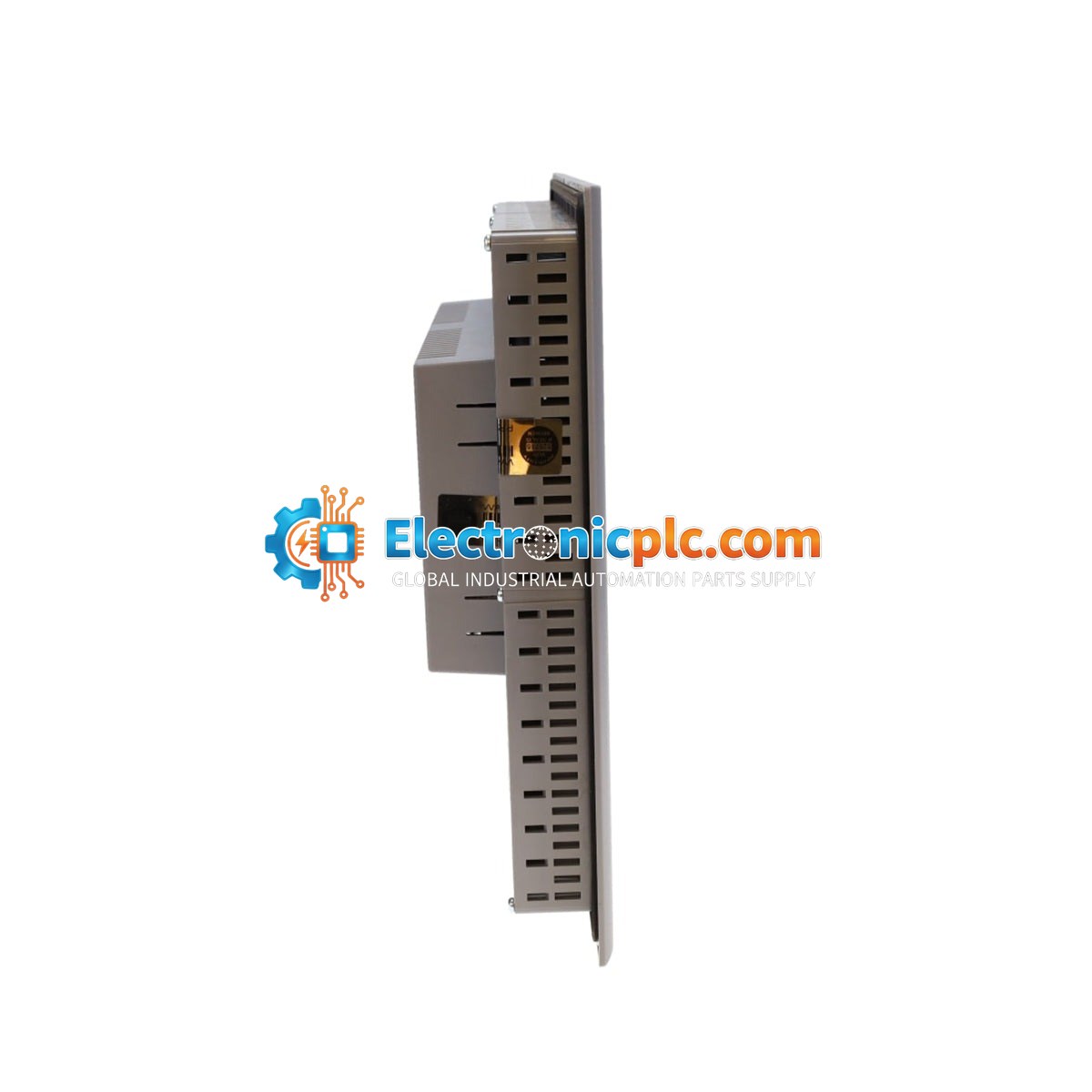

Siemens 6AV6647-0AF11-3AX0 SIMATIC HMI KTP1000 Basic Color PN

Siemens 6AV6647-0AF11-3AX0 SIMATIC HMI KTP1000 Basic Color PN

Description

The Siemens 6AV6647-0AF11-3AX0 is a SIMATIC HMI KTP1000 Basic Color PN operator panel. As part of the Siemens Basic Panel series, this unit is designed for cost-effective operator control and...

19 people are viewing this right now

Availability: Low stock: 8 left

SKU: 6AV6647-0AF11-3AX0
Vendor: Siemens
Category: HMI Operator Panel
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Siemens 6AV6647-0AF11-3AX0 is a SIMATIC HMI KTP1000 Basic Color PN operator panel. As part of the Siemens Basic Panel series, this unit is designed for cost-effective operator control and monitoring of machines and industrial plants. It features a 10.4-inch TFT display with 256 colors and provides a dual-input interface combining a resistive touchscreen with tactile function keys. This model is equipped with a PROFINET interface, allowing for high-speed, Ethernet-based communication with SIMATIC controllers such as the S7-1200, S7-1500, S7-300, and S7-400 series.

Features

  • 10.4-inch TFT display with 640 x 480 pixel resolution.
  • Dual-mode operation: Resistive touch screen and 8 tactile function keys.
  • Integrated PROFINET interface for seamless integration into industrial Ethernet networks.
  • Supports configuration via WinCC flexible 2008 SP2 Compact, WinCC Basic V10.5, and STEP 7 Basic V10.5.
  • Robust design suitable for standard machine-level HMI applications.

Applications

  • General Manufacturing: Visualization for assembly lines and conveyor control.
  • Packaging Machinery: Monitoring of speed, temperature, and motion parameters.
  • Food & Beverage Processing: Recipe management and filling process control.
  • Process Automation: Auxiliary process monitoring, pump control, and tank level management.
  • Machine Building: Standardized HMI interface for custom industrial equipment.

Technical Specifications

Product Model 6AV6647-0AF11-3AX0
Display Type TFT
Screen Diagonal 10.4 in
Resolution 640 x 480 pixels
Color Depth 256 colors
MTBF Backlighting (at 25 degC) 50,000 h
Supply Voltage (DC) 24 V (19.2 V to 28.8 V)
Current Consumption 0.6 A
Active Power Input 15 W
Interface PROFINET
Weight 2.24 kg

Installation Guidelines

  • Mounting: Designed for horizontal mounting. Note that vertical mounting reduces the maximum allowable ambient temperature by 10 degC.
  • Panel Cutout: Prepare a precise cutout of 310 mm (width) x 248 mm (height).
  • Clearance: Maintain at least 50 mm of free space around all sides of the device to ensure adequate natural convection cooling.
  • Panel Thickness: Compatible with cabinet walls between 1.5 mm and 6.0 mm thick.
  • Sealing: Ensure the rubber seal is seated perfectly flat in the groove to maintain the IP65 front-face protection rating.
  • Clamping: Tighten mounting clamps evenly to a torque of 0.2 Nm. Avoid over-tightening to prevent damage to the plastic housing.

FAQ

What is the 6AV6647-0AF11-3AX0?

The Siemens SIMATIC HMI KTP1000 Basic Color is a 1st generation operator panel used for industrial automation and man-machine interaction.

What PLC types can it communicate with?

It is primarily used with S7-1200 and S7-1500 PLCs, but supports S7-300/400 series controllers over PROFINET.

What are the key display specifications?

The unit features a 10.4-inch TFT display with 256 colors and a resolution of 640 x 480 pixels. It features a resistive touchscreen complemented by 8 tactile function keys.

What are the power requirements?

It operates on 24 V DC electrical power, with a typical active power input of 15 W and a rated current consumption of 0.6 A.
