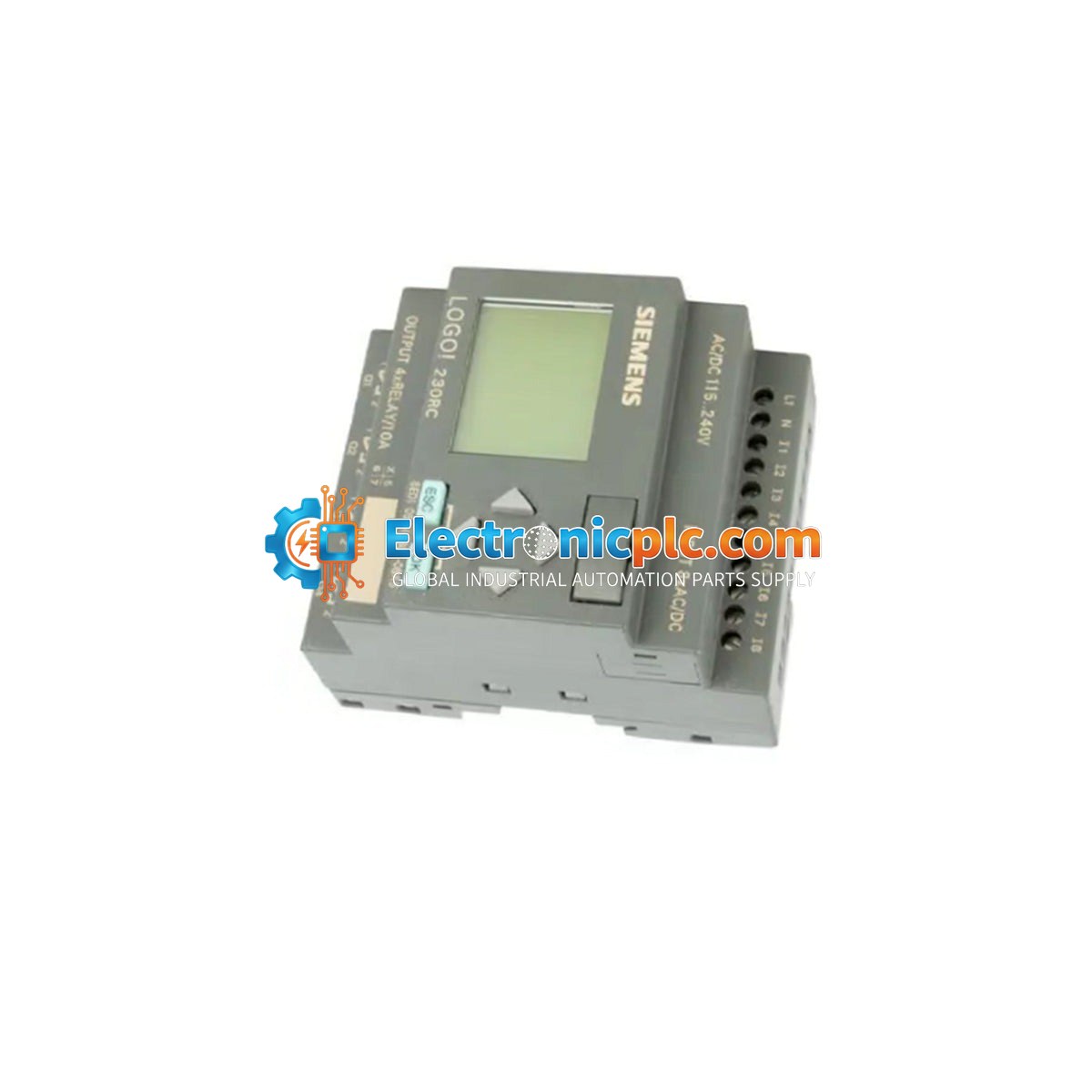

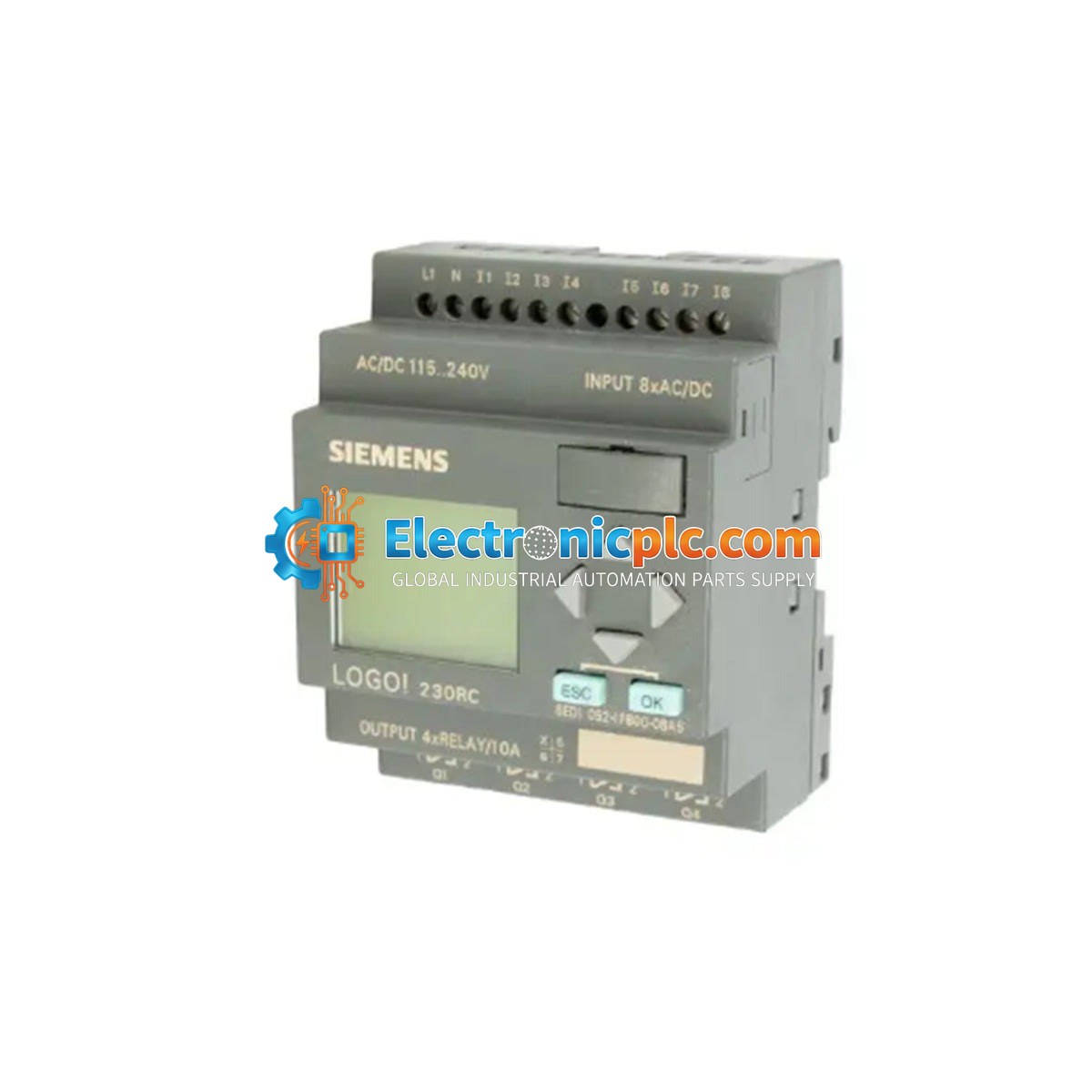

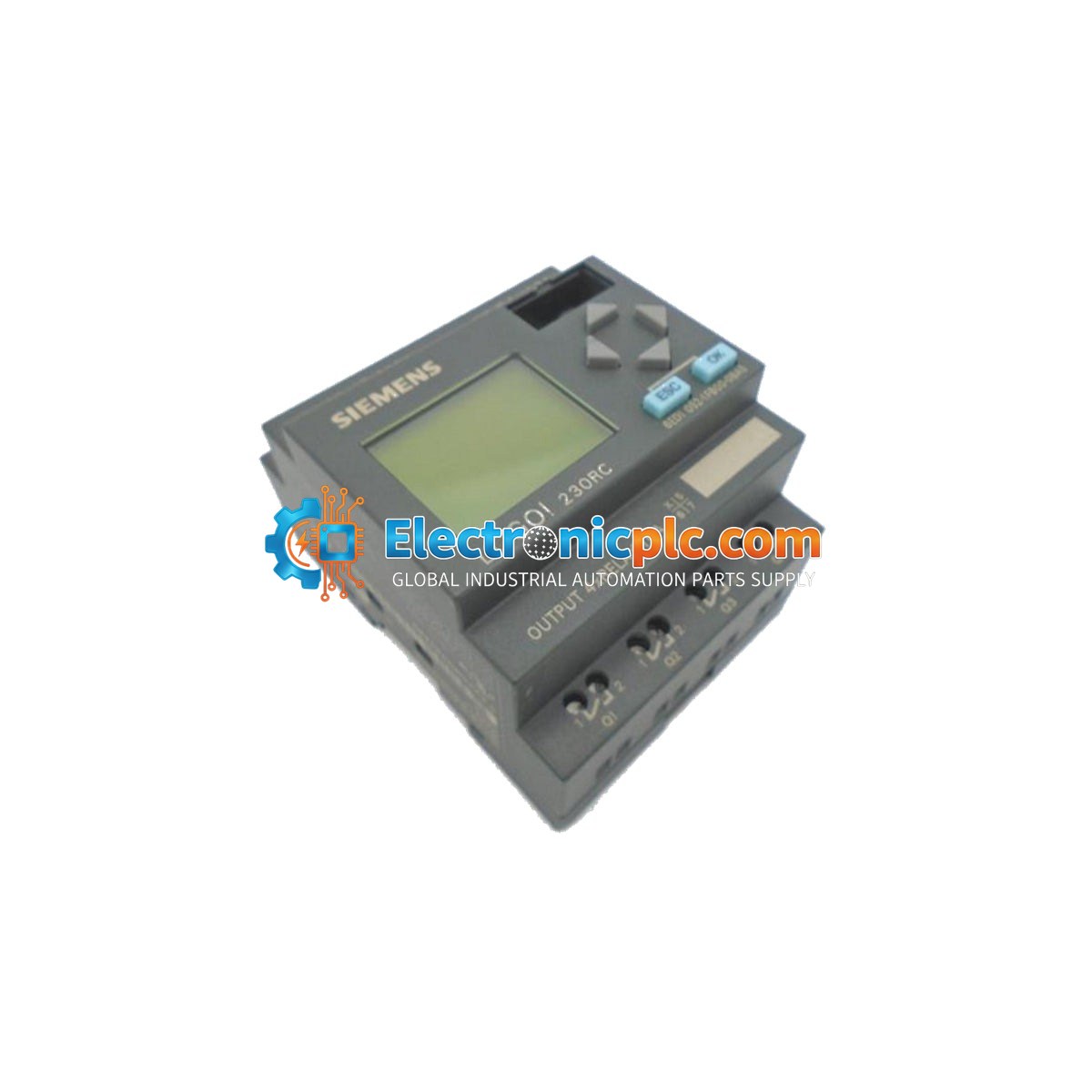

Siemens 6ED1052-1FB00-0BA5 LOGO! 230RC Logic Module

Siemens 6ED1052-1FB00-0BA5 LOGO! 230RC Logic Module

Description

The Siemens 6ED1052-1FB00-0BA5 is a compact 230RC logic module from the LOGO! series, engineered for small-scale automation and control tasks. This versatile controller integrates 8 digital inputs and 4 relay...

19 people are viewing this right now

Availability: Low stock: 5 left

SKU: 6ED1052-1FB00-0BA5
Vendor: Siemens
Category: Logic Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Siemens 6ED1052-1FB00-0BA5 is a compact 230RC logic module from the LOGO! series, engineered for small-scale automation and control tasks. This versatile controller integrates 8 digital inputs and 4 relay outputs, operating on a supply voltage range of 115-230 VAC/VDC. It serves as an efficient replacement for traditional relay-based logic, offering programmable functionality that simplifies circuit modifications and system troubleshooting in industrial and building automation environments.

Features

  • Integrated display and keypad for local programming and parameter adjustments.
  • Supports up to 200 function blocks, including timers, counters, and pulse-width modulation.
  • Four high-capacity relay outputs capable of handling up to 10A resistive or 3A inductive loads.
  • Compact, DIN-rail mountable design suitable for standard distribution boards.
  • Robust polycarbonate housing with IP20 protection rating.

Applications

The LOGO! 230RC is widely deployed in diverse applications including building automation systems, HVAC control, small-scale industrial machinery, conveyor belt control, and local pumping station management.

Technical Specifications

Model 6ED1052-1FB00-0BA5
Brand Siemens
Series LOGO! Logic Module
Supply Voltage 115-230 VAC/VDC
Digital Inputs 8
Relay Outputs 4
Output Current (Resistive) 10 A
Output Current (Inductive) 3 A
Operating Temperature 0 to 55 deg C
Storage Temperature -40 to 70 deg C
Mounting 35 mm DIN Rail
Protection Rating IP20

Installation Guidelines

  • Ensure the power supply is disconnected before performing any wiring or module installation.
  • Mount the module on a standard 35 mm DIN rail in a clean, dry environment.
  • Maintain adequate clearance around the module to ensure proper ventilation and heat dissipation.
  • Use appropriate wire gauges for terminal connections and ensure all screws are tightened to prevent loose contacts.
  • Follow standard ESD (Electrostatic Discharge) handling procedures when touching internal components or terminals.
  • Ensure the supply voltage matches the specified 115-230 VAC/VDC range to prevent damage to the internal circuitry.

FAQ

Can this module be programmed without a PC?

Yes, the 6ED1052-1FB00-0BA5 features an integrated display and keypad, allowing users to perform programming and parameter adjustments directly on the device.

What type of outputs does this module provide?

This module is equipped with 4 relay outputs, which are suitable for switching both resistive and inductive loads within the specified current ratings.
