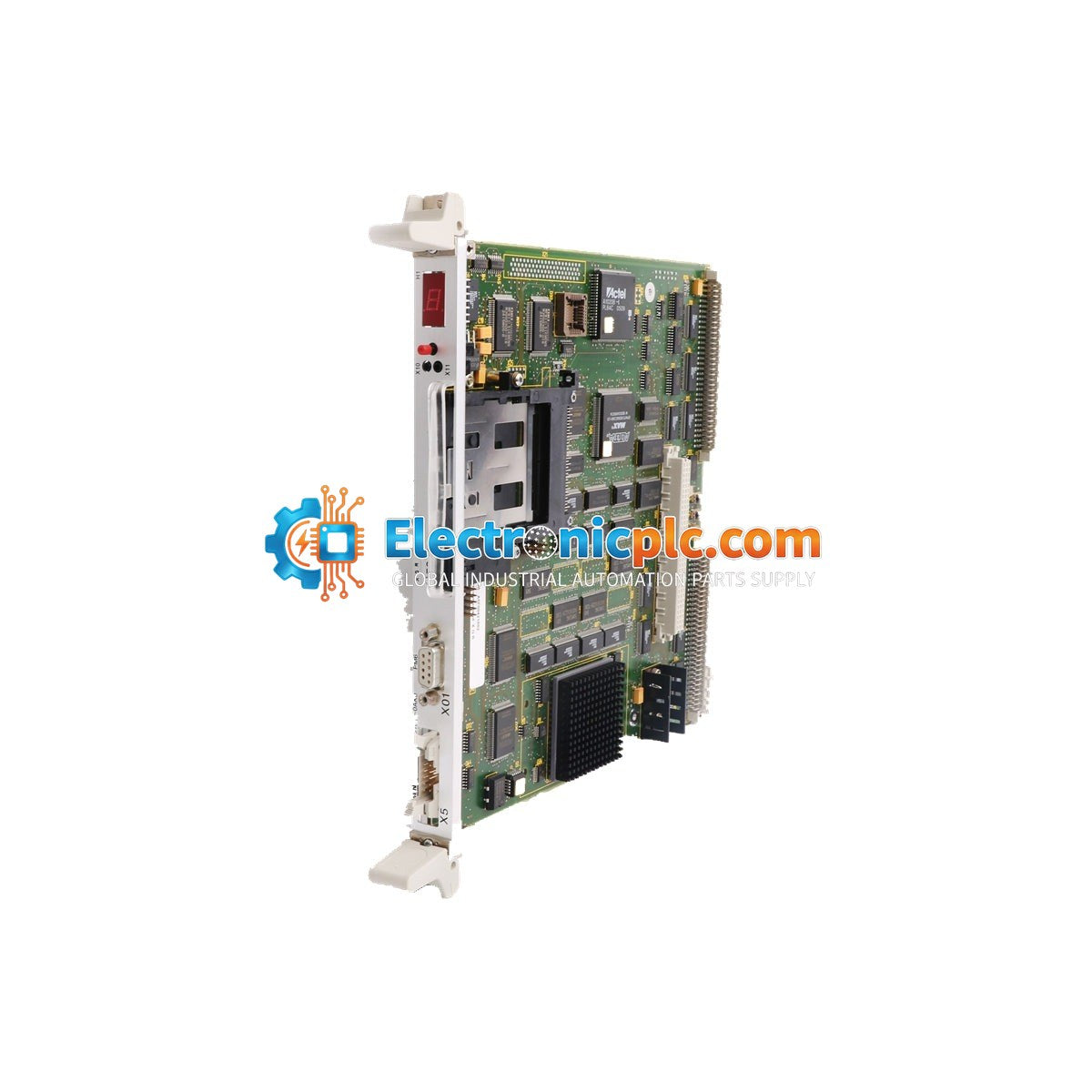

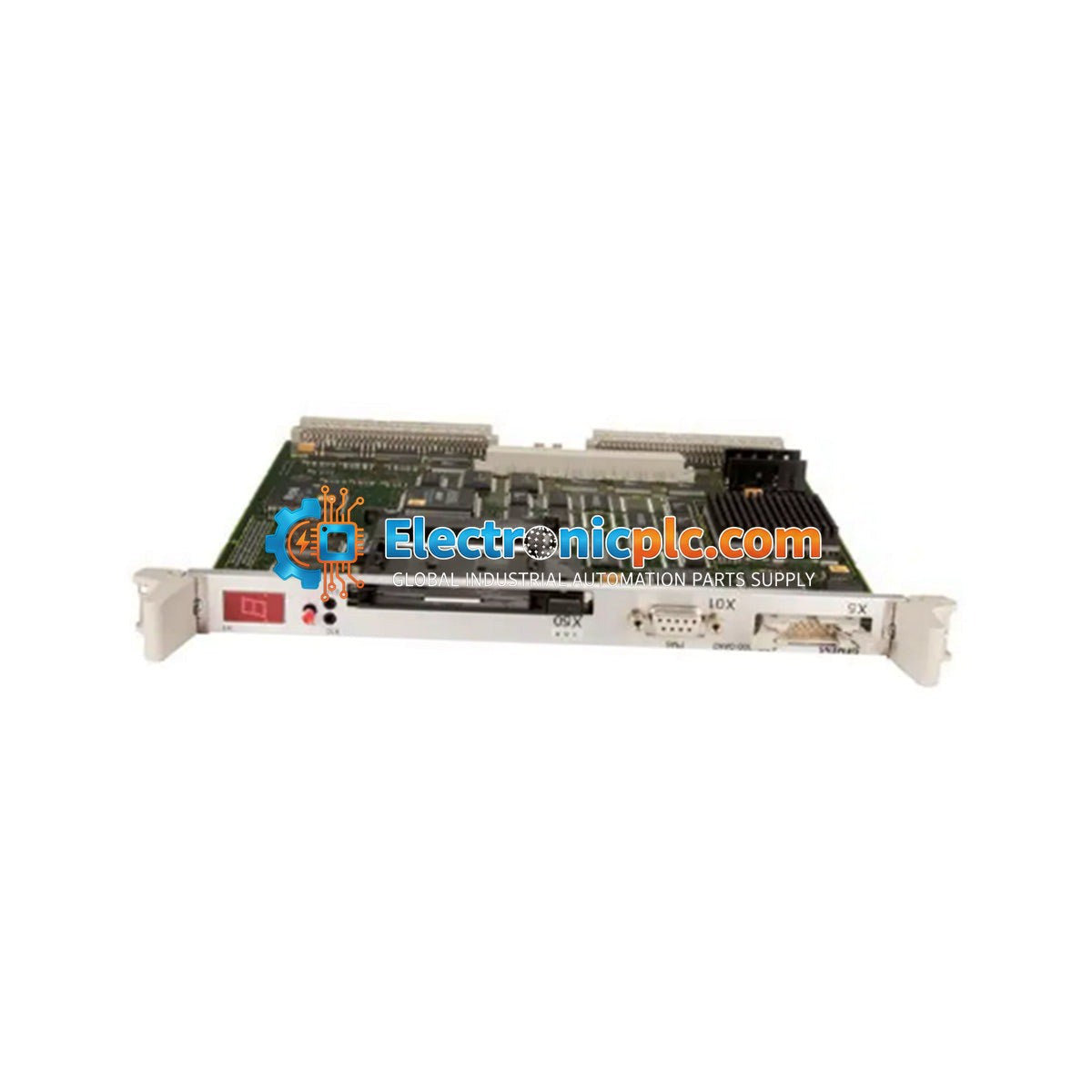

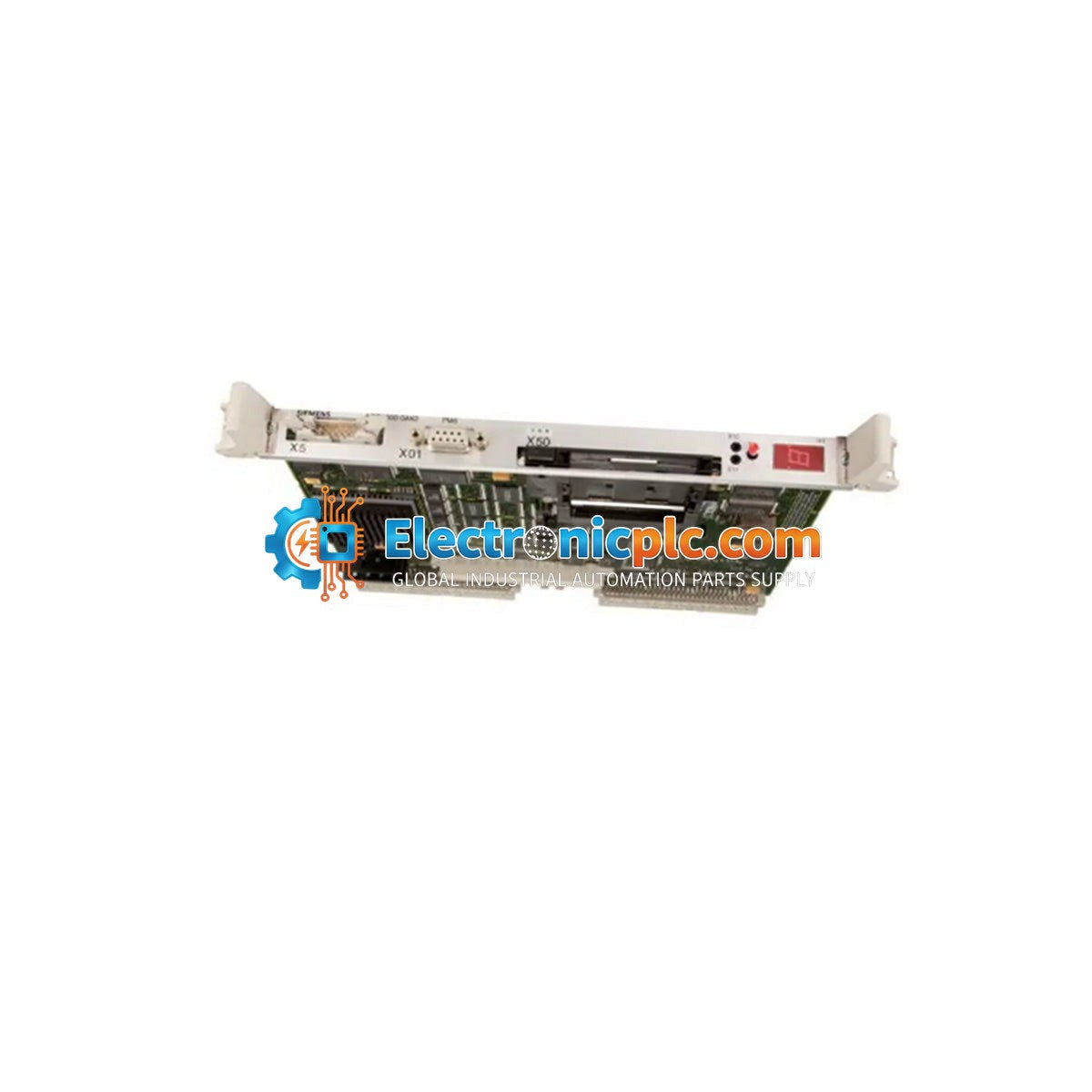

Siemens 6DD1600-0AK0 SIMADYN D PM6 Processor Module

Siemens 6DD1600-0AK0 SIMADYN D PM6 Processor Module

Description

The Siemens 6DD1600-0AK0 is a high-performance PM6 processor module designed for the SIMADYN D industrial automation system. Engineered for demanding, high-speed, and deterministic real-time control applications, this 64-bit CPU module...

24 people are viewing this right now

Availability: Low stock: 5 left

SKU: 6DD1600-0AK0
Vendor: Siemens
Category: Processor Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Siemens 6DD1600-0AK0 is a high-performance PM6 processor module designed for the SIMADYN D industrial automation system. Engineered for demanding, high-speed, and deterministic real-time control applications, this 64-bit CPU module provides the computational power required for complex technological tasks. It serves as a central processing unit within the SIMADYN D and SIMATIC TDC (Technological Distributed Control) ecosystems, offering robust performance for critical industrial environments.

Features

  • High-performance 32/64-bit RISC processor architecture.
  • Operating frequency of 64/128 MHz.
  • Integrated 8 MByte DRAM (with versions supporting 16 MByte).
  • 256 KByte SRAM for reliable data storage.
  • Includes 8 integrated binary/digital inputs.
  • Support for absolute and incremental input signals.
  • Compatible with L and C bus configurations for flexible system integration.

Applications

  • Steel and Metal Rolling Mills: Sub-millisecond coordination for thickness and tension control in drive systems.
  • Paper and Printing Plants: Synchronization of rollers in paper mills and high-speed printing presses.
  • Power Plants and Energy Distribution: Management of HVDC excitation to ensure stable energy flow.
  • Chemical and Processing Facilities: Monitoring of high-speed pressure and temperature fluctuations.
  • Automotive and Manufacturing: Multi-axis robotic and Cartesian synchronization for production lines.
  • Water Treatment Facilities: Cascading high-capacity pumps for optimized flow and utilization.

Technical Specifications

Model 6DD1600-0AK0
Processor 32/64-bit RISC
Clock Speed 64/128 MHz
DRAM 8 MByte (up to 16 MByte)
SRAM 256 KByte
Rated Input Voltage +24 V
0 Signal Range -1 V to +6 V
1 Signal Range +13 V to +33 V
Configuration Software SIMATIC D7-SYS or STRUC V4.x

Installation Guidelines

  • Handling: Ensure proper ESD (Electrostatic Discharge) precautions are taken when handling the module to prevent damage to sensitive internal components.
  • Power Requirements: Verify that the subrack power supply provides stable +5V, +15V, and -15V levels within specified tolerances before installation.
  • Mounting: Ensure the module is fully seated in the subrack. If the module is part of a multi-processor chain, ensure all U-connectors are properly inserted and secured.
  • Commissioning: Observe the front-panel LED indicators during the initial power-up sequence to verify system status and identify potential error codes.
  • Environment: Ensure adequate ventilation within the cabinet to maintain operating temperatures within the manufacturer's specified range.

FAQ

What is the 6DD1600-0AK0?

The Siemens 6DD1600-0AK0 is a SIMADYN D PM6 processor module designed for high-performance industrial automation, featuring a 64-bit CPU, integrated binary inputs, and support for L and C bus configurations.

What is the function of the 6DD1600-0AK0?

It acts as a central processing unit (CPU) module for the SIMADYN D system, used for demanding industrial automation tasks, such as high-speed control and monitoring in production environments.

What systems is it compatible with?

It is part of the SIMADYN D system and functions within the SIMATIC TDC (Technological Distributed Control) ecosystem.

What are its primary technical features?

It features a high-performance 64-bit CPU, integrated binary inputs, and supports both L and C bus configurations for flexible connectivity.
