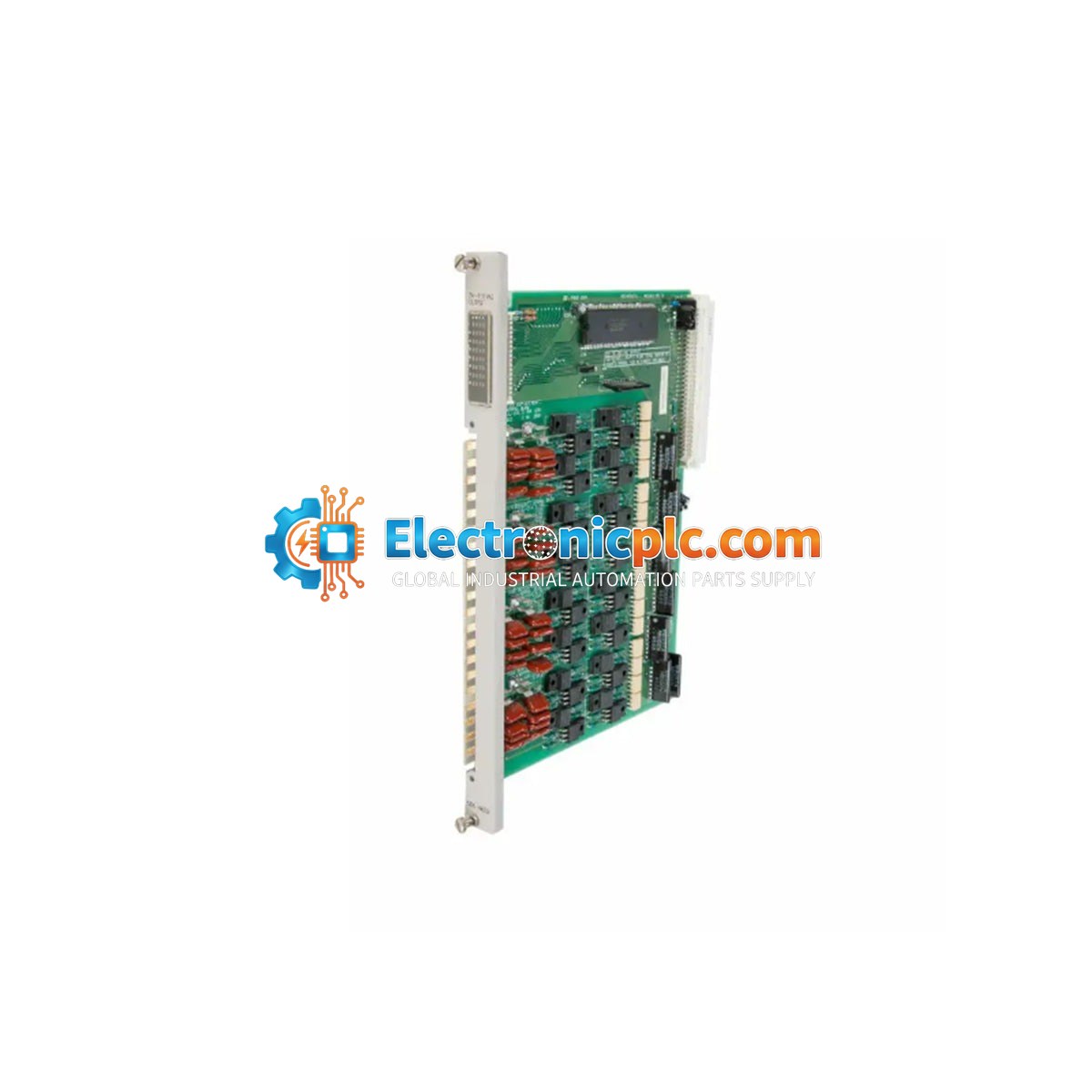

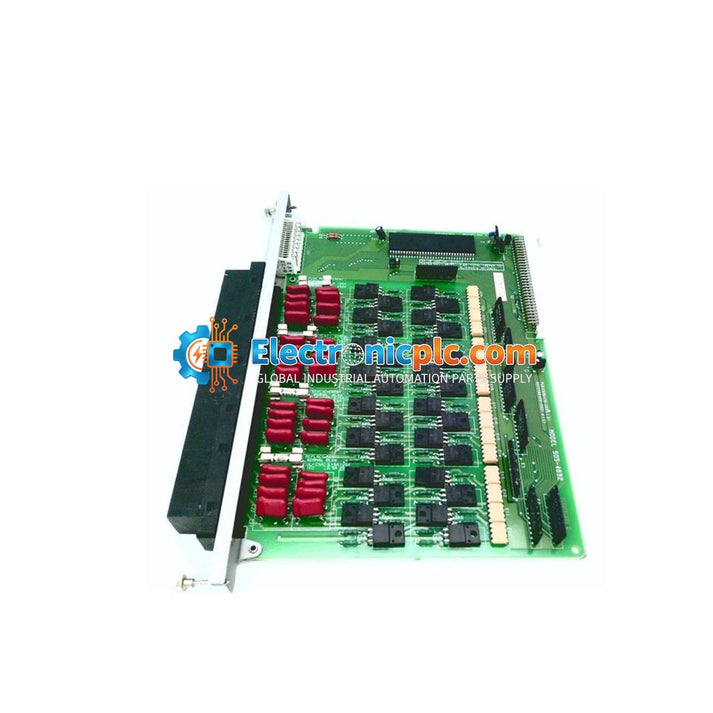

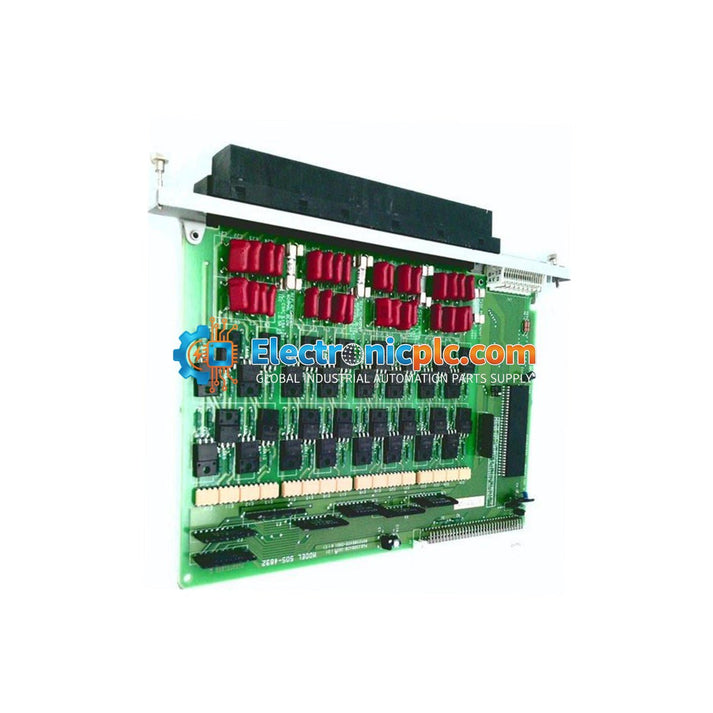

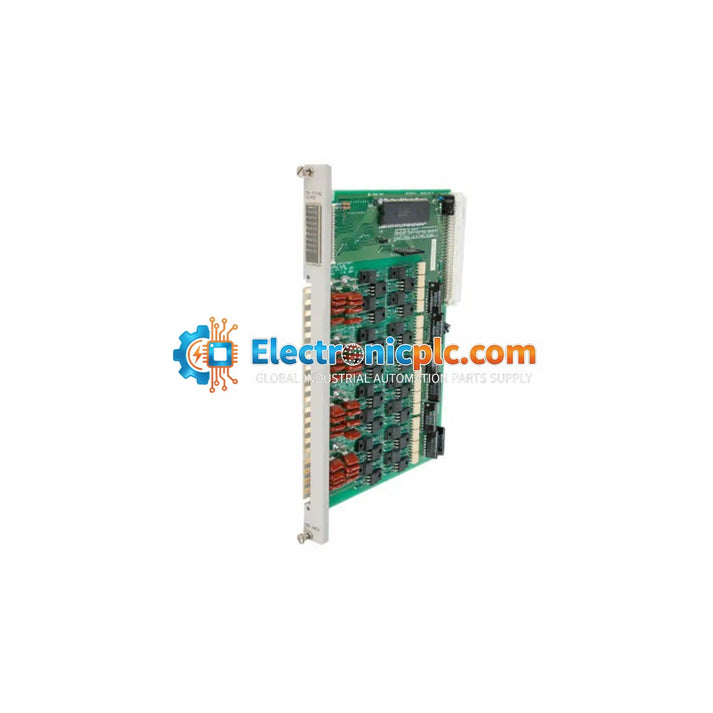

Siemens 505-4632 32-Point Digital Output Module

Siemens 505-4632 32-Point Digital Output Module

Description

The Siemens 505-4632 is a 32-point digital output module designed for use within the TI 505 series programmable logic controller (PLC) systems. This module provides high-density output control, facilitating the...

24 people are viewing this right now

Availability: In stock

SKU: 505-4632
Vendor: Siemens
Category: Digital Output Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Siemens 505-4632 is a 32-point digital output module designed for use within the TI 505 series programmable logic controller (PLC) systems. This module provides high-density output control, facilitating the interface between the PLC processor and external field devices such as relays, contactors, and indicators. As a legacy component in the TI 505 family, it is engineered to provide reliable switching in industrial automation environments.

Features

  • 32-point digital output configuration for high-density I/O requirements.
  • Operating voltage range of 24-110VAC, suitable for various AC control applications.
  • Designed specifically for integration with the Siemens TI 505 PLC platform.
  • Robust construction for standard industrial control cabinet mounting.

Technical Specifications

Model Number 505-4632
Manufacturer Siemens
Module Type Digital Output Module
Point Count 32 Points
Voltage Range 24-110VAC
Product Status Discontinued by Manufacturer

Installation Guidelines

  • Ensure the PLC system power is completely disconnected before inserting or removing the module from the baseplate to prevent electrical damage.
  • Verify that the module is properly seated in the backplane slot and that the retaining screws are tightened to maintain a secure connection.
  • Ensure that the field wiring corresponds to the correct voltage and current ratings specified for this module to avoid overloading the output circuits.
  • Maintain adequate spacing within the enclosure to allow for proper airflow and heat dissipation.
  • Follow standard ESD (Electrostatic Discharge) precautions when handling the module to protect internal electronic components.

FAQ

Is the Siemens 505-4632 still in production?

No, the 505-4632 has been discontinued by the manufacturer. It is typically sourced through surplus or refurbished channels for maintenance of legacy TI 505 systems.

What is the voltage rating for this module?

This module is designed for 24-110VAC digital output applications.
