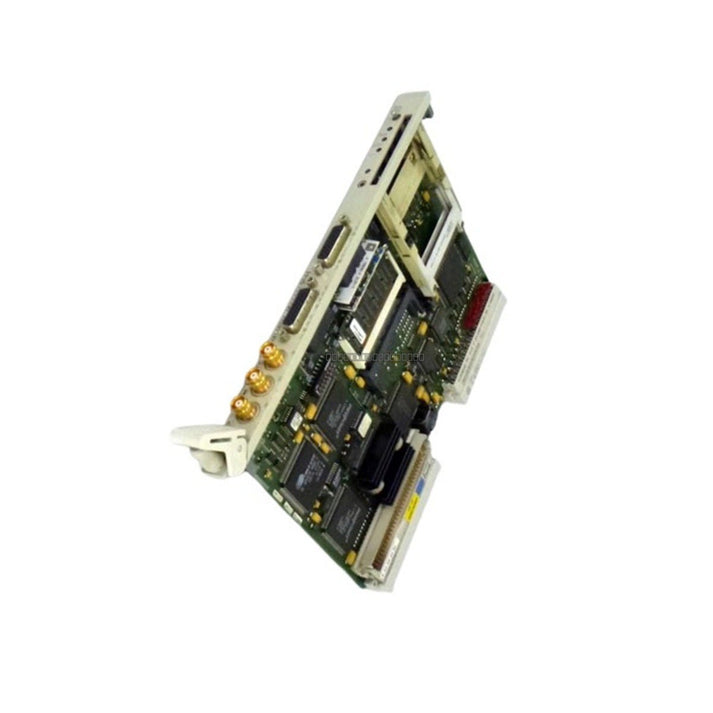

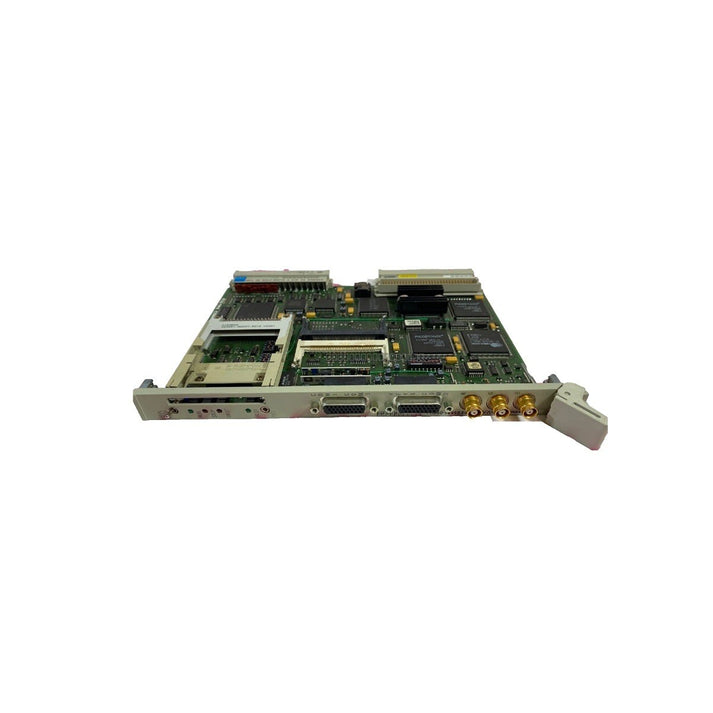

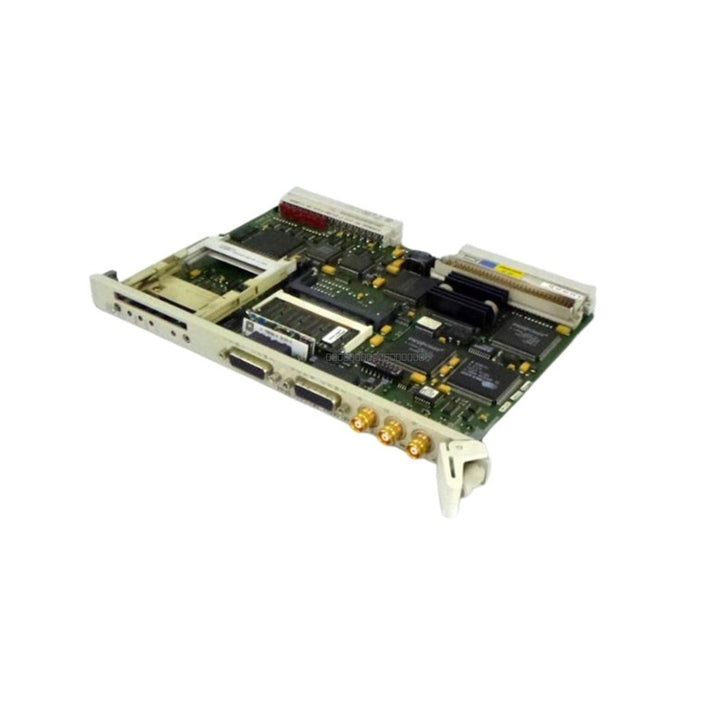

Siemens 6ES5581-0ED14 SIMATIC CP581 Processor Module

Siemens 6ES5581-0ED14 SIMATIC CP581 Processor Module

Description

The Siemens 6ES5581-0ED14 is a CP581 processor module designed specifically for integration into SIMATIC S5-135 and S5-155 automation systems. This module acts as a high-performance computational engine, operating within an...

25 people are viewing this right now

Availability: Low stock: 6 left

SKU: 6ES5581-0ED14
Vendor: Siemens
Category: Processor Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Siemens 6ES5581-0ED14 is a CP581 processor module designed specifically for integration into SIMATIC S5-135 and S5-155 automation systems. This module acts as a high-performance computational engine, operating within an MS-DOS environment to manage complex logic execution and high-speed data processing. It is engineered to maintain system stability in demanding industrial environments, including power generation, mining, and large-scale refinery operations, by reducing latency and supporting critical control cycles.

Features

  • Designed for seamless integration with the SIMATIC S5-135/155 backplane interface.
  • High-speed processing capability at 133 MHz for demanding control applications.
  • Modular architecture allowing for external configuration of working memory to meet specific application requirements.
  • Provides centralized control and management of data exchange between field-level I/O and supervisory layers.
  • Robust construction suitable for sustaining legacy industrial infrastructure.

Applications

This processor module is primarily utilized in legacy SIMATIC S5 automation environments. It is ideal for maintenance, repair, and operational continuity in facilities relying on the S5-135/155 platform, where high-precision logic and reliable command execution are required for process control.

Technical Specifications

Model 6ES5581-0ED14
Brand Siemens Simatic
Processor Frequency 133 MHz
Operating System MS-DOS
System Compatibility SIMATIC S5-135/155
Product Status Discontinued (January 03, 2012)
Customs Tariff Code 8537109060

Installation Guidelines

  • Ensure the S5 rack is powered down before inserting or removing the CP581 module to prevent electrical damage.
  • Handle the module using proper ESD (Electrostatic Discharge) protection protocols to avoid damaging sensitive internal components.
  • Verify that the module is correctly seated in the designated backplane slot and that all locking mechanisms are engaged.
  • Ensure external working memory modules are correctly configured and seated according to the specific memory addressing requirements of your application.
  • Maintain adequate ventilation within the control cabinet to prevent overheating during operation.

FAQ

Is this module compatible with modern SIMATIC S7 systems?

No, the 6ES5581-0ED14 is specifically designed for the legacy SIMATIC S5-135 and S5-155 series and is not compatible with S7 or TIA Portal-based systems.

Does this module include internal RAM?

No, this unit does not include internal working memory. Engineers must integrate external RAM modules compatible with the CP581 architecture to meet the specific memory requirements of the application.
