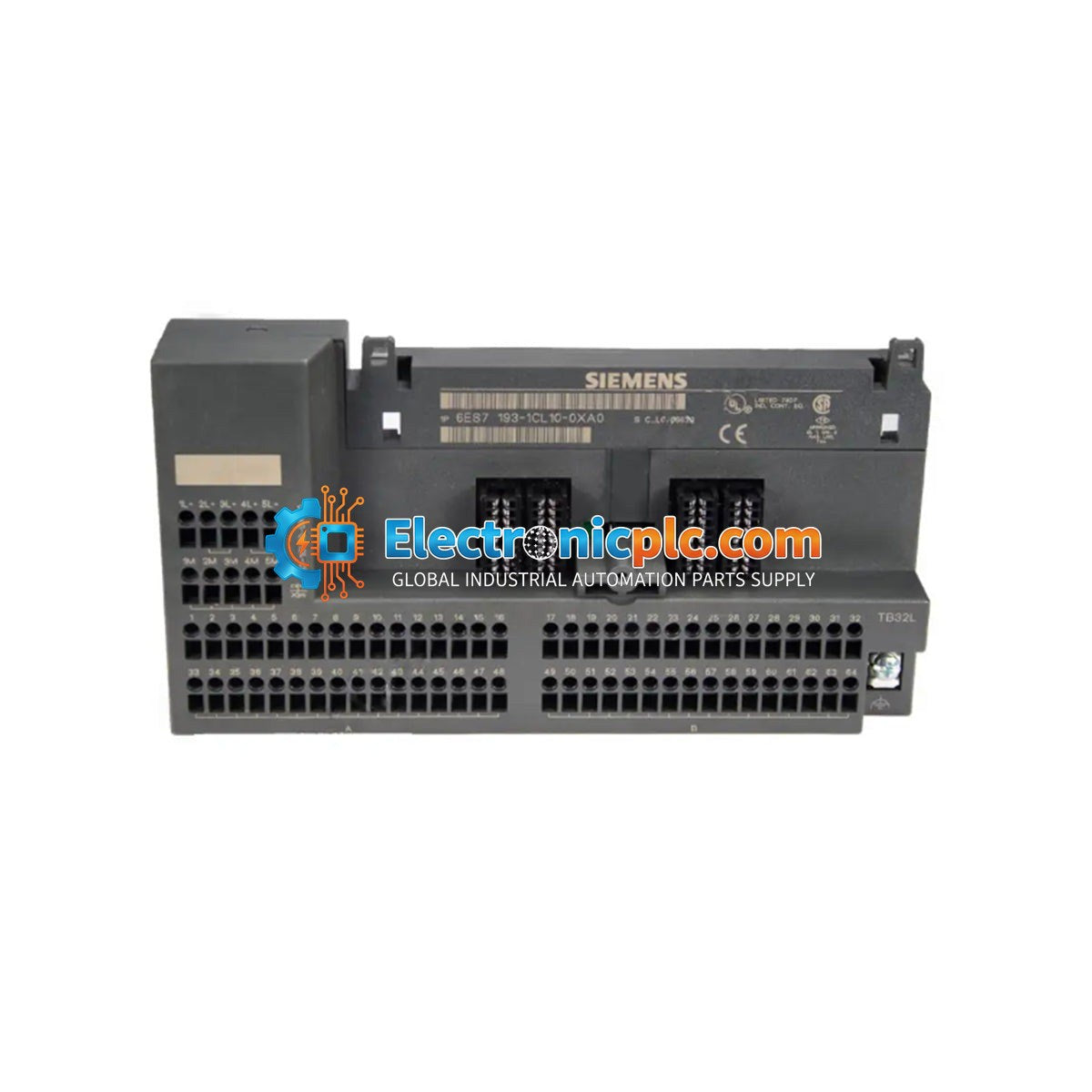

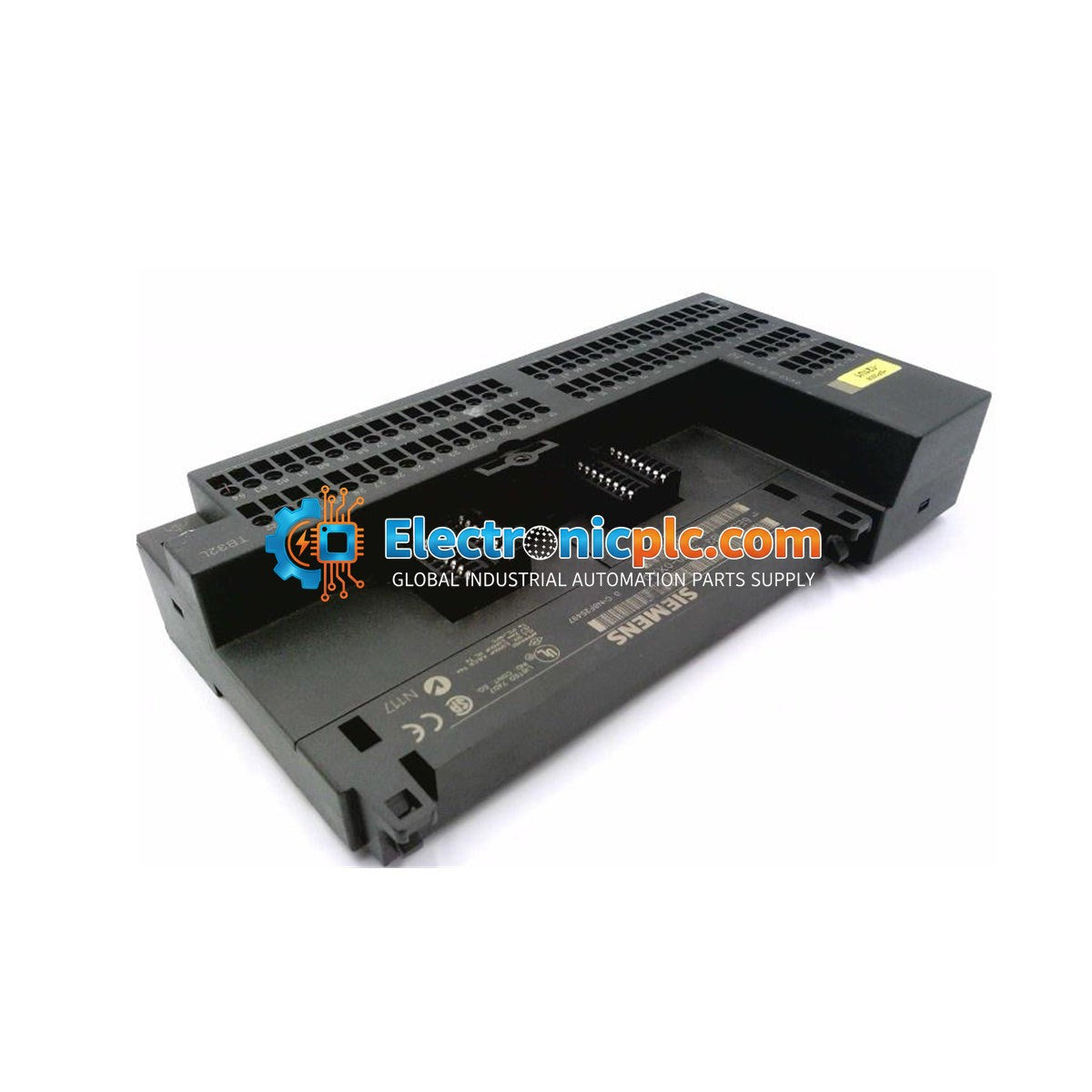

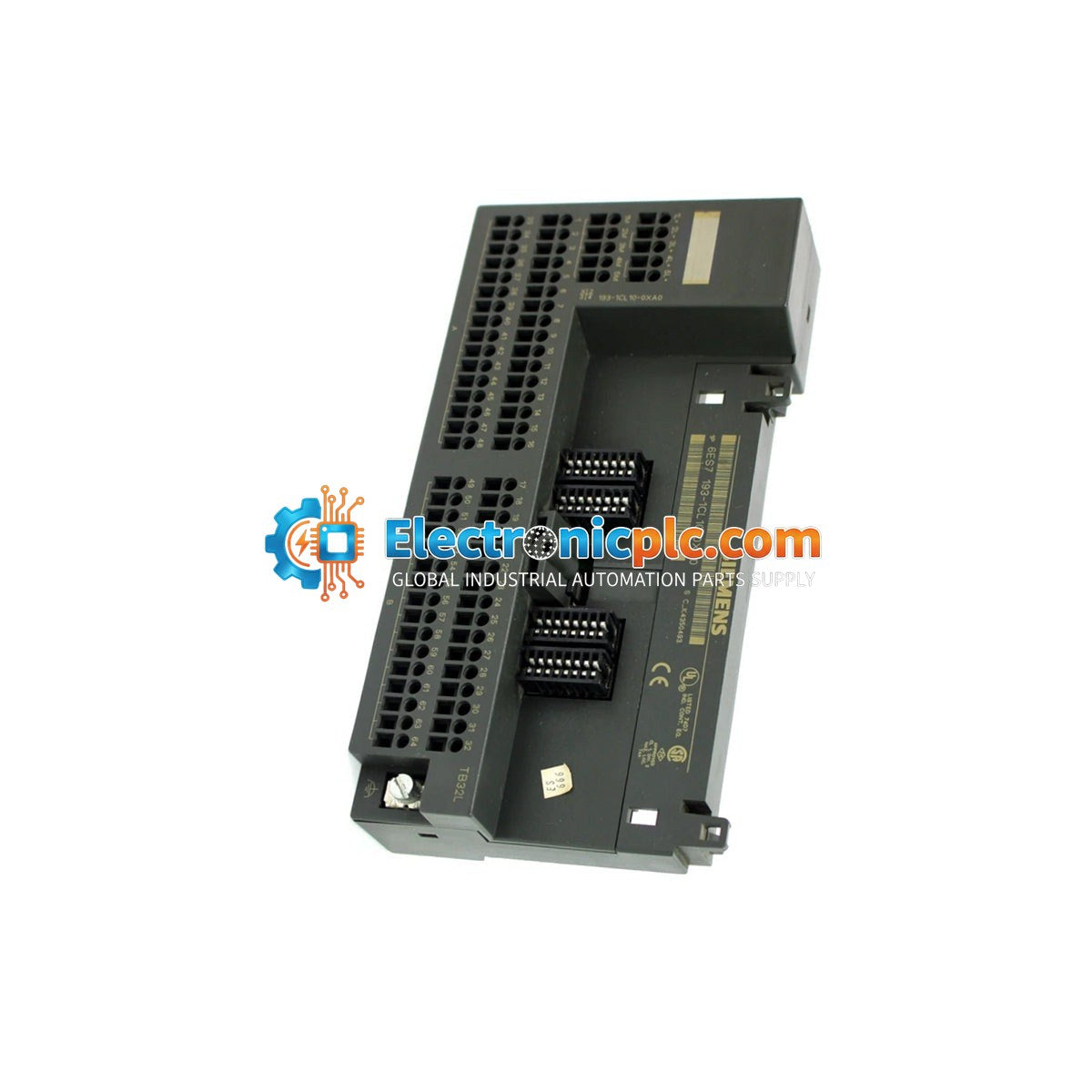

Siemens 6ES7193-1CL10-0XA0 SIMATIC DP TB32L Terminal Block

Siemens 6ES7193-1CL10-0XA0 SIMATIC DP TB32L Terminal Block

Description

The Siemens 6ES7193-1CL10-0XA0, also known as the TB32L, is a high-density terminal block designed for the SIMATIC ET 200L distributed I/O system. This component provides the necessary physical connection interface...

28 people are viewing this right now

Availability: Low stock: 7 left

SKU: 6ES7193-1CL10-0XA0
Vendor: Siemens
Category: Terminal Block
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Siemens 6ES7193-1CL10-0XA0, also known as the TB32L, is a high-density terminal block designed for the SIMATIC ET 200L distributed I/O system. This component provides the necessary physical connection interface for 32 channels, facilitating reliable signal wiring for industrial automation applications. It is engineered to support the modular structure of the ET 200L series, ensuring efficient installation and maintenance of field-level I/O.

Features

  • Designed for integration with the SIMATIC ET 200L distributed I/O system.
  • Provides 32 connection channels for high-density signal management.
  • Equipped with robust screw-type terminals with integrated clamping units for secure wire retention.
  • Supports a wide range of wire gauges from 0.25 to 2.5 mm² (24-12 AWG).
  • Rated for 250V AC/DC operation with a current capacity of 4A per channel.

Applications

This terminal block is primarily used in industrial automation environments where the SIMATIC ET 200L system is deployed for remote I/O processing. It is suitable for manufacturing lines, process control systems, and machine automation where high-density, space-saving wiring solutions are required for digital or analog signal distribution.

Technical Specifications

Model Number 6ES7193-1CL10-0XA0
Spare Model TB32L
Number of Channels 32
Terminal Type Screw-type with clamping units
Wire Gauge 0.25-2.5 mm² (24-12 AWG)
Rated Voltage 250V AC/DC
Rated Current 4A per channel
Operating Temperature -20 degC to +60 degC
Storage Temperature -40 degC to +85 degC

Installation Guidelines

  • Ensure the power supply is disconnected before installing or removing the terminal block to prevent electrical shock or damage to the I/O modules.
  • Mount the unit securely within the ET 200L system housing, ensuring proper alignment with the backplane or module interface.
  • Use appropriate wire stripping lengths as specified by the terminal block design to ensure full contact within the clamping unit.
  • Verify that all screw terminals are tightened to the recommended torque to prevent loose connections, which can cause intermittent signal failure or overheating.
  • Maintain proper cable routing to minimize EMI interference, keeping signal cables separated from high-voltage power lines.
  • Ensure the operating environment remains within the specified temperature range of -20 degC to +60 degC to maintain component longevity.

FAQ

Is the 6ES7193-1CL10-0XA0 compatible with other ET 200 series?

This specific terminal block (TB32L) is designed for the ET 200L system. Compatibility with other ET 200 series (such as ET 200S or ET 200MP) is not supported; please verify your specific system part number before installation.

Does this module require external power?

The terminal block itself acts as a passive connection interface for the I/O signals. Power requirements are determined by the connected ET 200L electronic module and the field devices being powered through the terminal block.
