Description

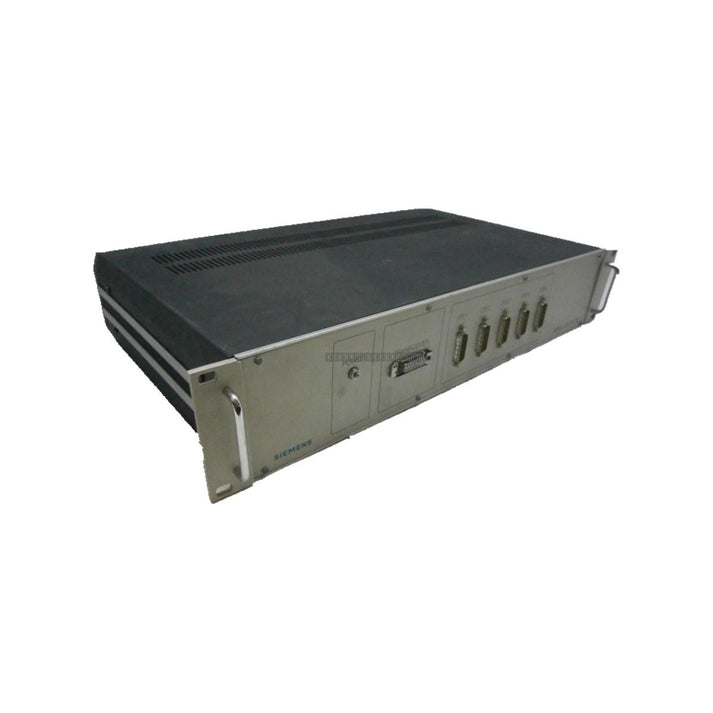

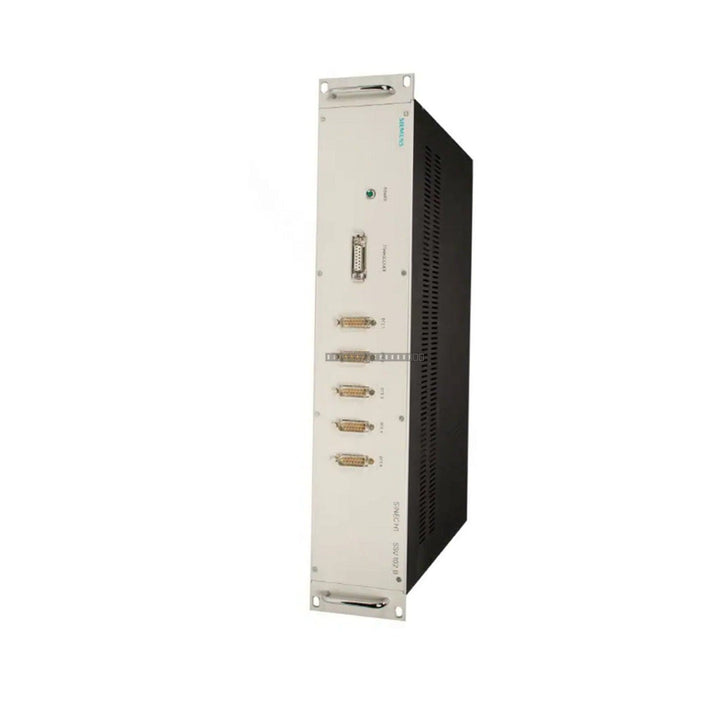

The Siemens 6GK1102-0AB00, also identified as the SSV 102 B, is a 5-port network multiplexer hub designed for the Simatic Net product family. This device is engineered for deterministic industrial communication, facilitating multi-node data routing within legacy Simatic S5 automation architectures. It serves as a vital networking node in decentralized processing environments, including petrochemical plants, thermal power stations, and materials handling facilities. By managing data flow across industrial bus branches, the hub maintains network integrity, prevents packet collisions, and ensures continuous telemetry transmission to reduce system downtime.

Features

• 5-port physical layer layout for efficient data stream concentration and distribution.
• Active signal regeneration and differential line drivers for high noise immunity against electromagnetic interference (EMI).
• Maintains edge transition integrity across extended cable runs.
• Integrated diagnostic status indicators for real-time monitoring of network link presence and transceiver activity.
• Rugged chassis design suitable for installation in industrial cabinets and high-voltage switchgear environments.

Applications

This multiplexer hub is primarily utilized in industrial automation systems requiring reliable, deterministic communication. Common applications include:

• Legacy Simatic S5 network infrastructure expansion.
• Decentralized control systems in power generation and petrochemical processing.
• Complex materials handling and automated production line networking.
• Industrial environments requiring robust EMI protection for communication signals.

Technical Specifications

Installation Guidelines

• Ensure the device is mounted in a clean, dry industrial cabinet with adequate ventilation to maintain operating temperatures within the 0 to 60 deg C range.
• Use appropriate shielded cabling to maintain noise immunity and signal integrity in high-EMI environments.
• Verify that all network connections are secure and properly seated before applying power.
• Observe standard ESD (Electrostatic Discharge) handling procedures when installing or servicing the module.
• Power down the system before inserting or removing the device from the network rack to prevent electrical damage.

FAQ

Is this device compatible with modern Industrial Ethernet?

The 6GK1102-0AB00 is primarily designed for legacy Simatic S5 architectures. Please consult your system documentation to ensure compatibility with your specific network protocols and hardware generation.

What do the diagnostic indicators signify?

The status indicators provide optical feedback regarding the presence of a network link and the activity level of the transceivers on each port, allowing for rapid troubleshooting of communication dropouts.
