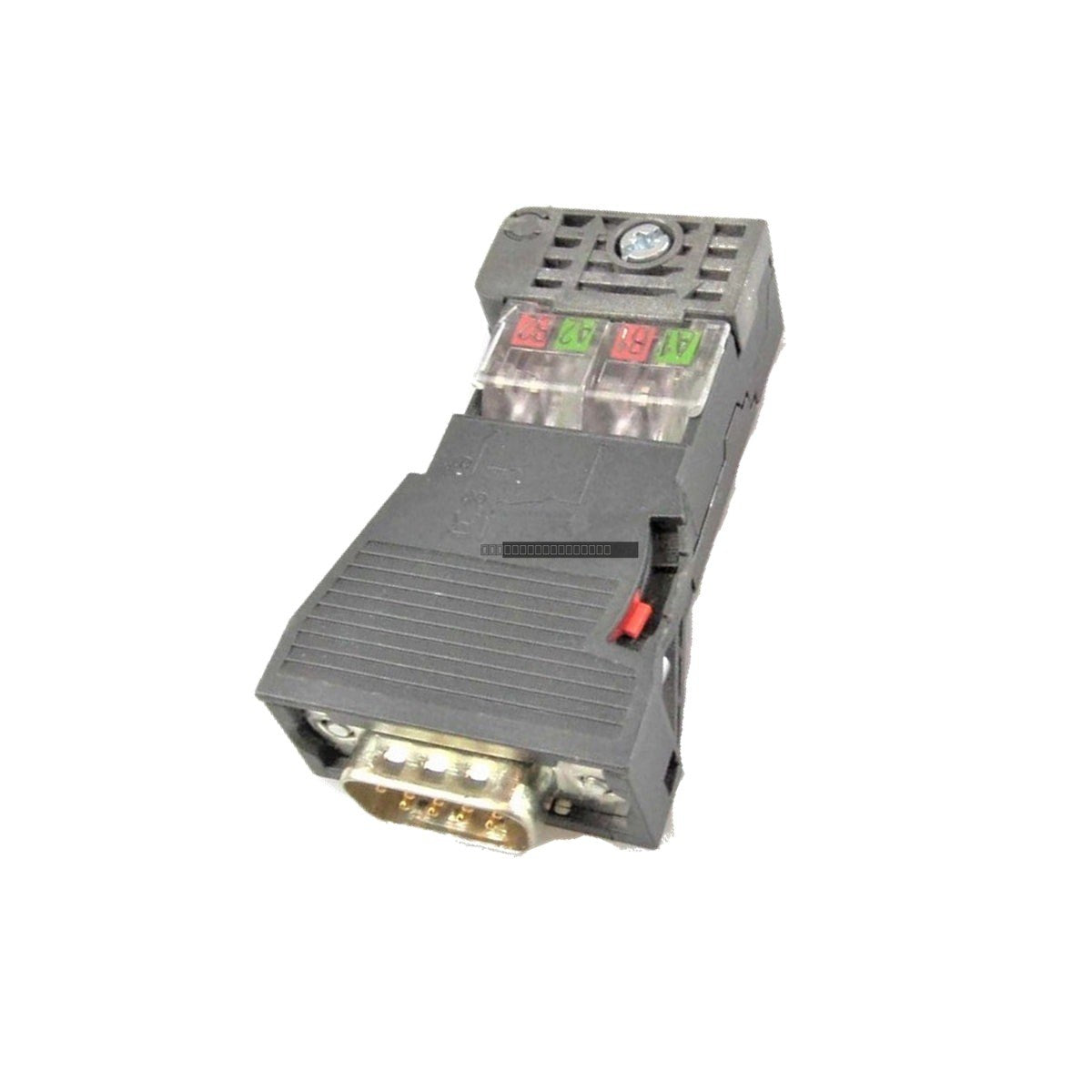

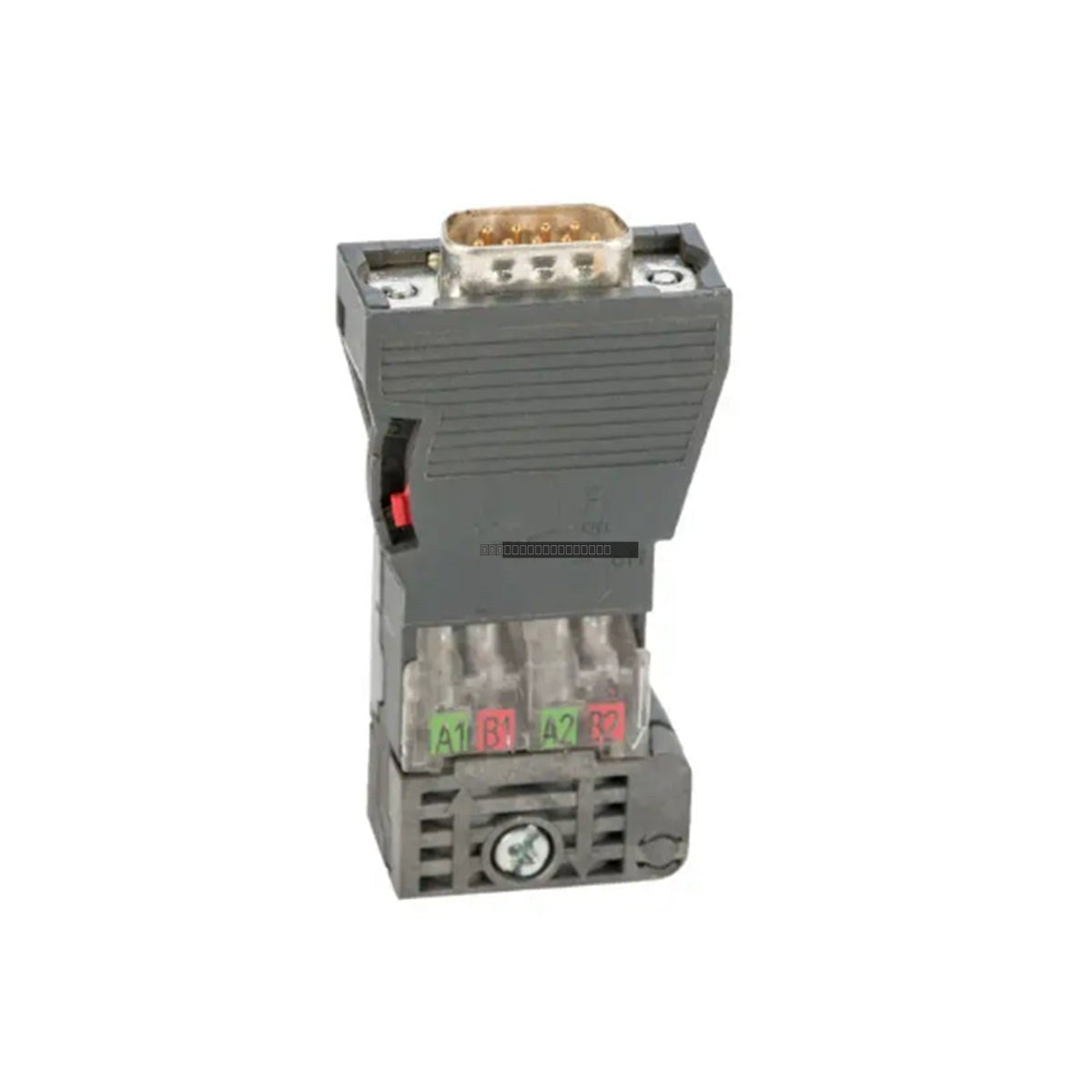

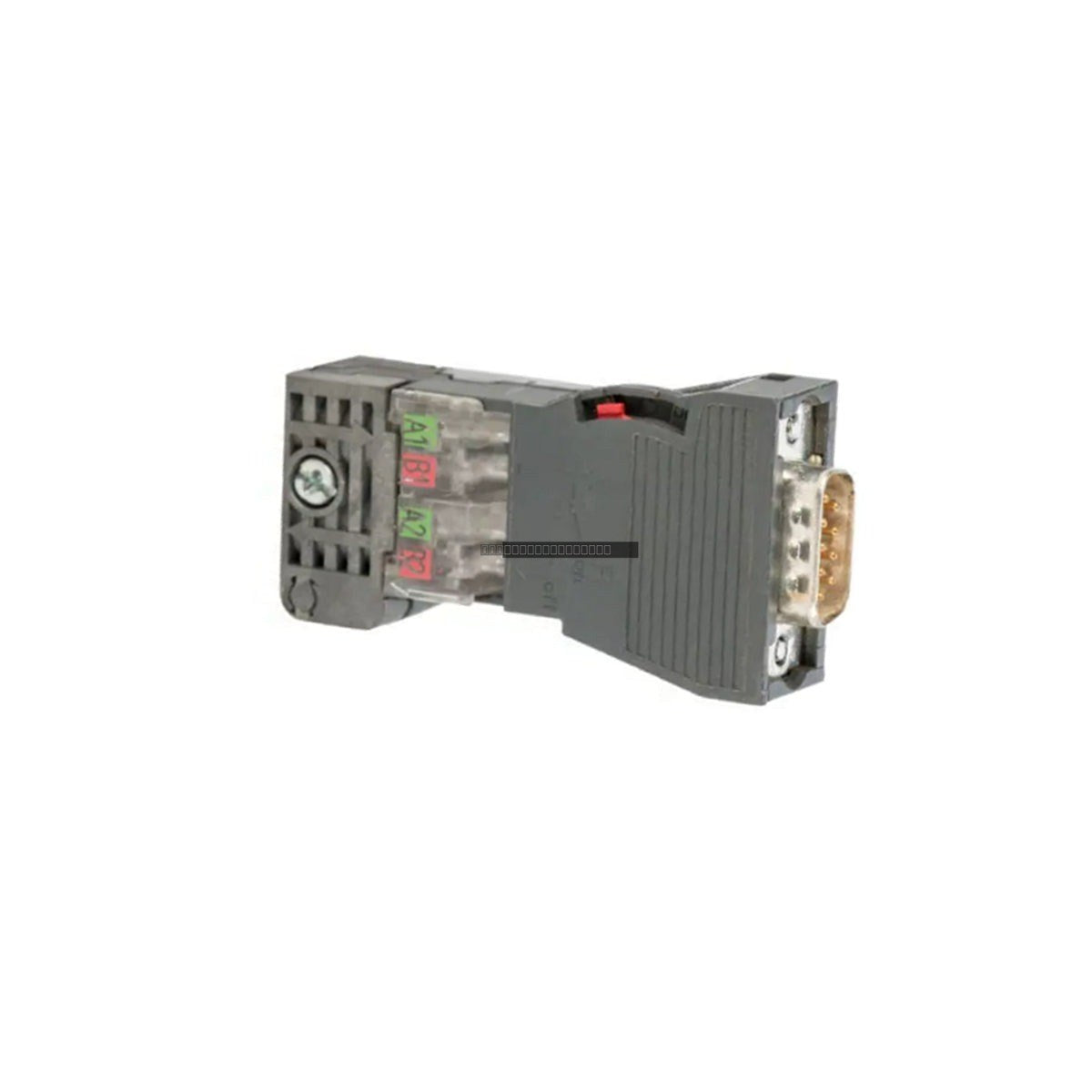

Siemens 6GK1500-0FC00 Profibus Bus Connector

Siemens 6GK1500-0FC00 Profibus Bus Connector

Description

The Siemens 6GK1500-0FC00 is a high-performance industrial bus connector designed for reliable node connection within Profibus DP and MPI network topologies. Engineered as part of the Simatic Net FastConnect series,...

25 people are viewing this right now

Availability: Low stock: 10 left

SKU: 6GK1500-0FC00
Vendor: Siemens
Category: Profibus Connector
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Siemens 6GK1500-0FC00 is a high-performance industrial bus connector designed for reliable node connection within Profibus DP and MPI network topologies. Engineered as part of the Simatic Net FastConnect series, this unit facilitates rapid, error-free field installation for automated control systems. It is specifically built to support high-speed data transmission, maintaining signal integrity in demanding industrial environments such as automotive manufacturing, chemical processing, and infrastructure automation.

Features

  • FastConnect Technology: Integrated insulation-displacement contacts eliminate the need for manual wire stripping, reducing installation time and preventing common wiring errors.
  • Axial Cable Exit: The 180-degree cable outlet design allows for parallel routing, making it an ideal choice for space-constrained control cabinets and shallow terminal enclosures.
  • Signal Integrity: Features an optimized internal PCB layout to support transmission speeds up to 12 Mbps, ensuring stable communication without waveform distortion.
  • Robust Construction: Housed in a durable industrial plastic shell, providing reliable protection for the internal connection points.
  • Standard Interface: Equipped with a 9-pin Sub-D connector compatible with standard Profibus DP and MPI interfaces.

Technical Specifications

Model 6GK1500-0FC00
Brand Siemens Simatic Net
Transmission Rate 9.6 Kbps to 12 Mbps
Interface 9-Pin Sub-D Male
Cable Exit 180-Degree Axial
Connection Method FastConnect (IDC)
Operating Temperature -25 to 60 deg C
Power Consumption Passive (0 W)

Installation Guidelines

  • Ensure the Profibus cable is cut cleanly before insertion into the FastConnect housing.
  • Verify that the cable insulation is not damaged before seating it into the IDC terminals.
  • Snap the housing shut firmly to ensure the insulation-displacement contacts fully penetrate the wire conductors for a gas-tight connection.
  • Maintain proper cable bending radii when routing cables to avoid strain on the connector housing.
  • For end-of-segment nodes, ensure that the bus termination switches (if applicable to the specific network setup) are configured correctly to prevent signal reflections.

FAQ

Does this connector require a specific tool for installation?
No, the FastConnect system is designed to be installed without specialized stripping tools. The internal IDC mechanism handles the connection automatically when the housing is closed.

Is this connector suitable for high-speed Profibus networks?
Yes, the 6GK1500-0FC00 is rated for speeds up to 12 Mbps, making it fully compatible with high-speed Profibus DP network requirements.
