Description

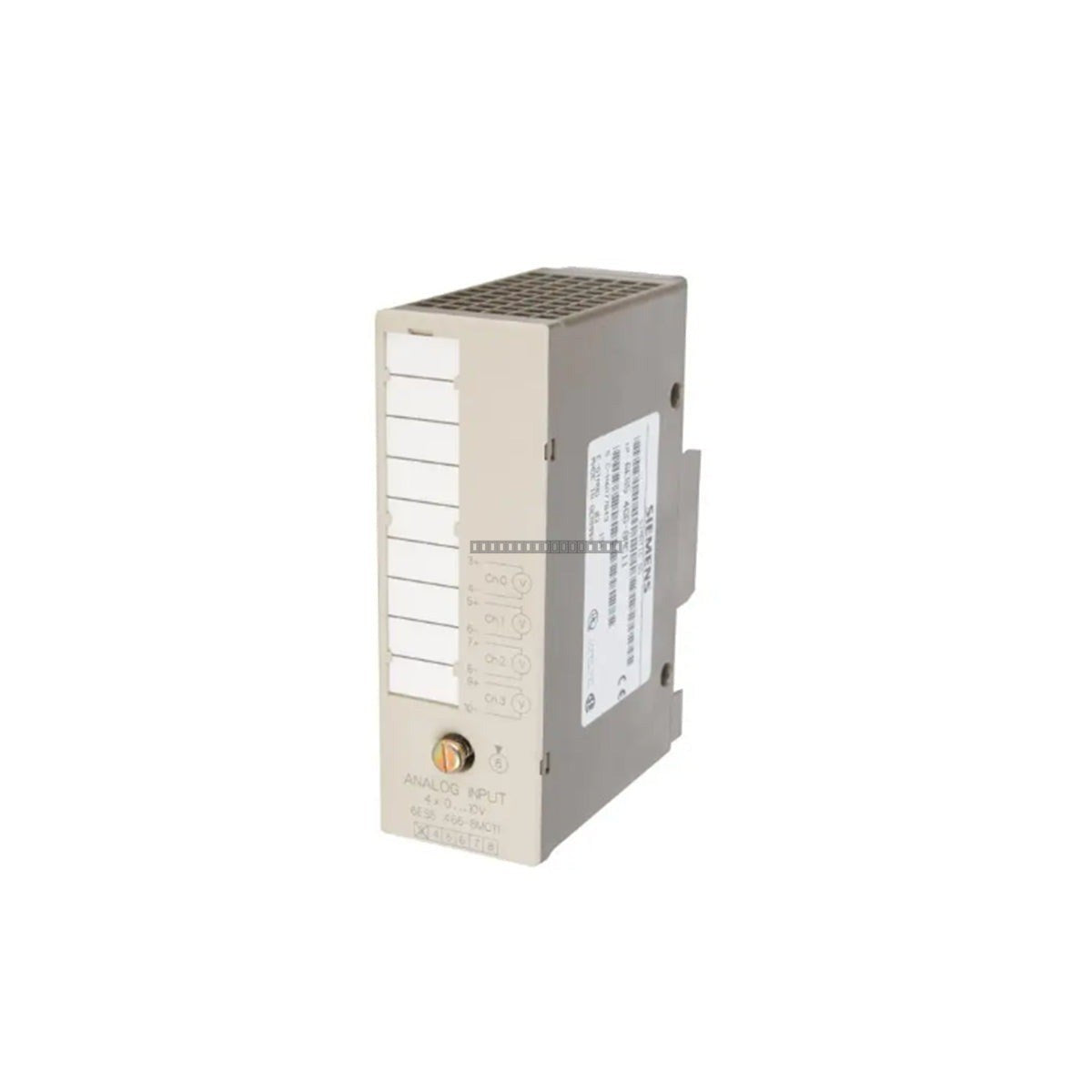

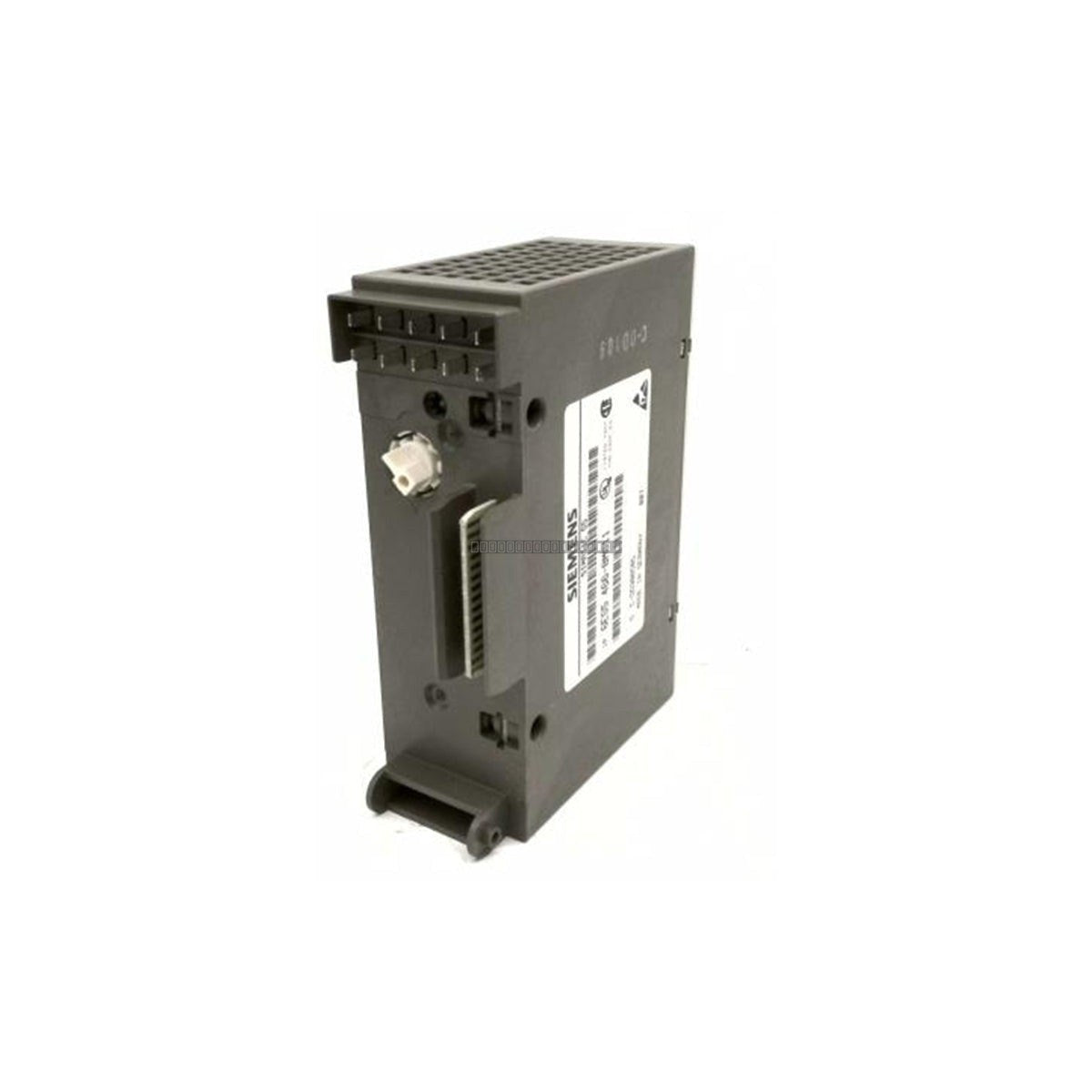

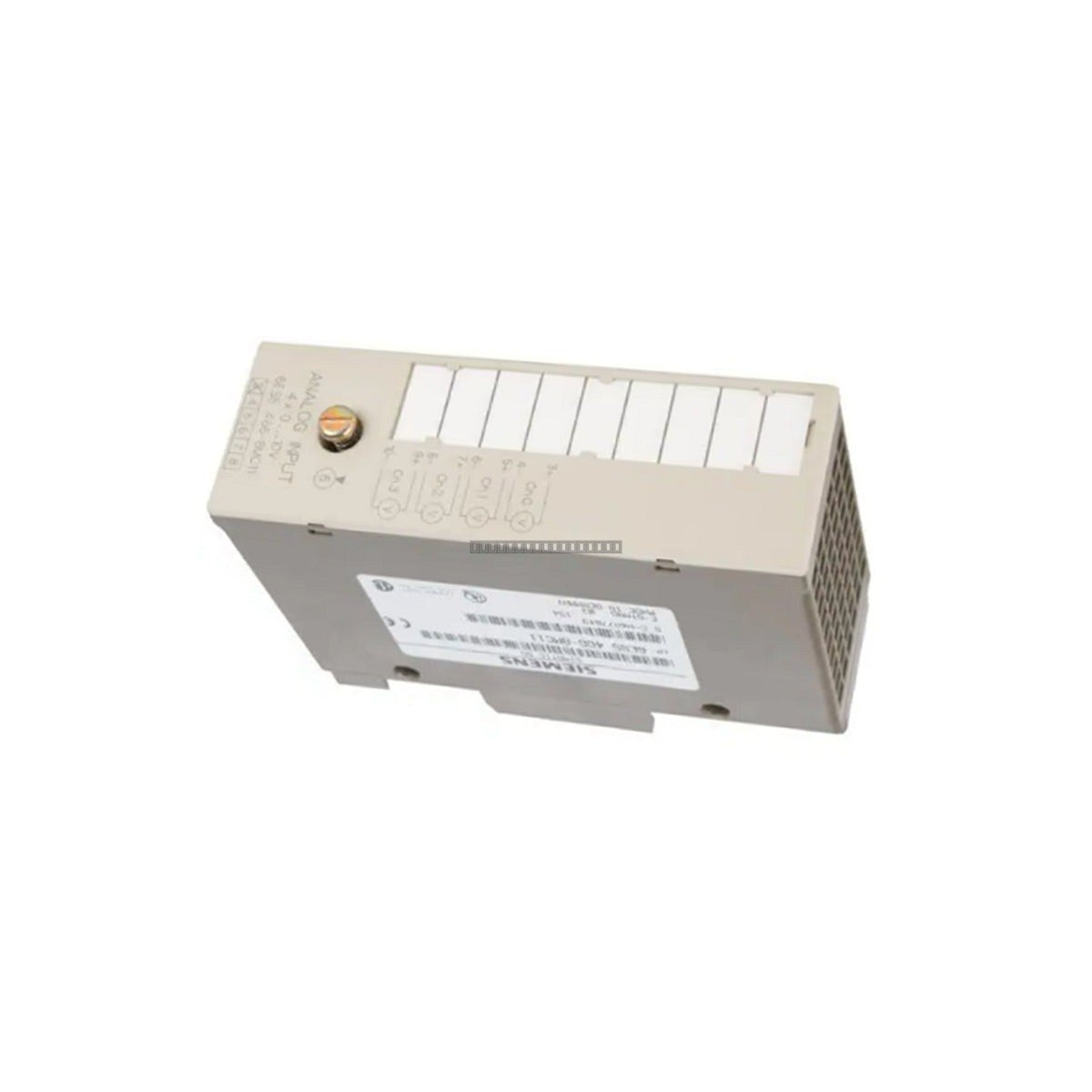

The 6ES5 466-8MC11 is a high-accuracy analog input module engineered for the modular Siemens Simatic S5-090, S5-095, and S5-100U programmable logic controllers, as well as ET 100U and ET 200U distributed I/O stations. This component interfaces directly with field instrumentation, providing four independent channels configured to accept standard 0-10 V voltage signals. Instrumentation teams deploy this module across diverse industrial processing facilities, such as municipal water treatment plants, power generation stations, and continuous mining operations, to read critical process variables like pressure gradients, fluid levels, and temperature metrics.

Features

• Four independent analog input channels.
• Standardized 0-10 VDC signal input range.
• Integrated active filtering networks to suppress high-frequency noise and electrical ripple.
• Power supply decoupling circuits for internal logic protection against bus-side voltage spikes.
• Deterministic update times via the standard S5 backplane bus protocol.
• Designed for high-density rail mounting in S5 and ET distributed racks.

Applications

This module is designed for legacy system maintenance in industrial automation, specifically for applications requiring reliable analog signal acquisition in Simatic S5 environments. Typical uses include process variable monitoring in water treatment, power generation, and heavy industrial manufacturing.

Technical Specifications

Installation Guidelines

• Ensure the PLC rack power is disconnected before installing or removing the module to prevent electrical damage.
• Mount the module securely on the designated S5 or ET rail system, ensuring proper alignment with the backplane connector.
• Use shielded twisted-pair cabling for analog signal inputs to minimize electromagnetic interference (EMI).
• Ensure proper grounding of the cable shields at the signal source or the cabinet ground bar, avoiding ground loops.
• Maintain adequate ventilation clearance around the rack to ensure operating temperatures remain within the 0 to 60 deg C range.
• Handle the module using ESD-safe practices to protect sensitive internal components.

FAQ

Is this module compatible with S5-115U systems?
No, this module is specifically designed for the S5-090, S5-095, and S5-100U series, as well as ET 100U/200U stations. It is not intended for use in the S5-115U (115U/135U/155U) rack architecture.

Does this module provide isolated channels?
The 6ES5 466-8MC11 is designed for standard analog input applications; please refer to the specific Siemens technical manual for your S5 system to confirm isolation ratings for your specific wiring configuration.
