Description

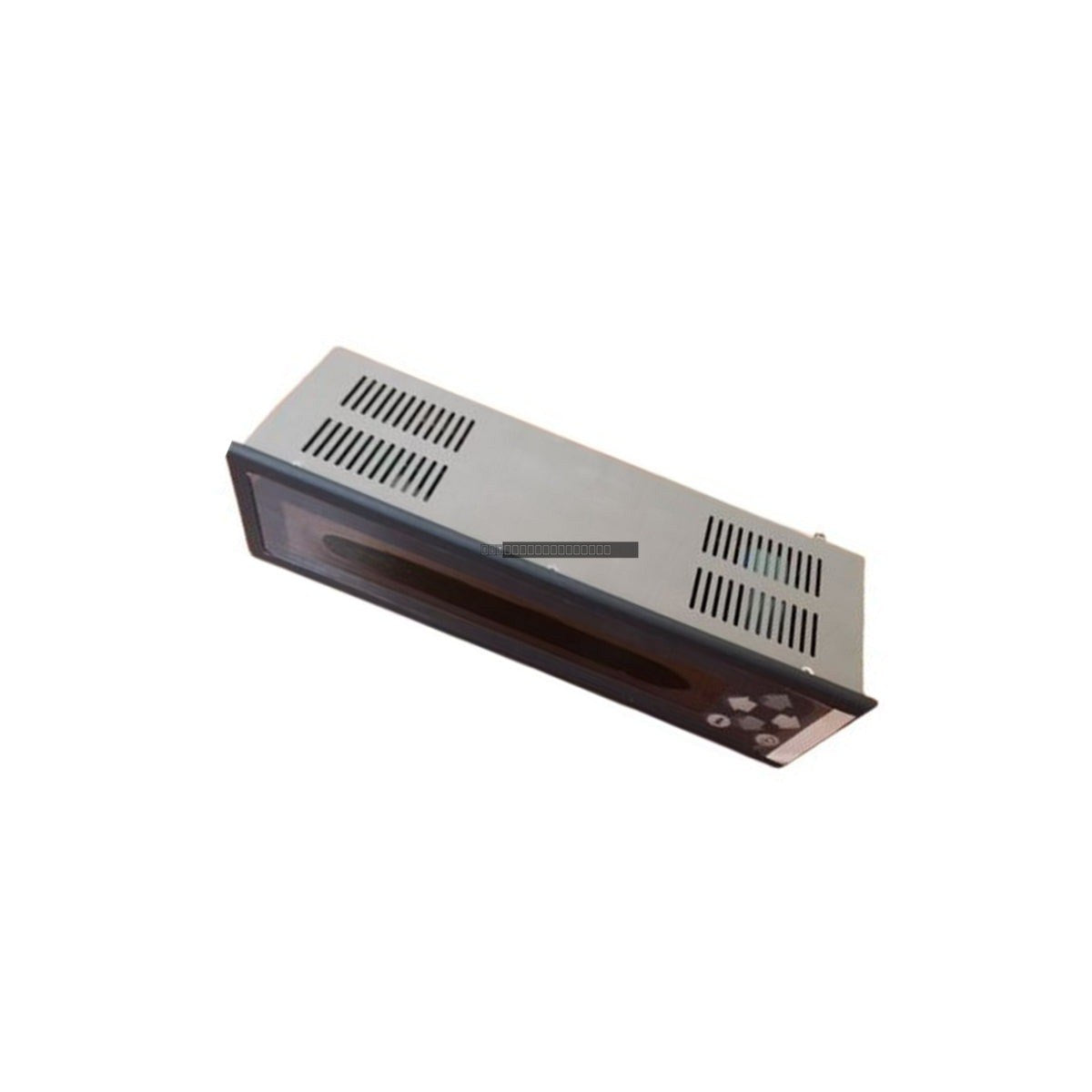

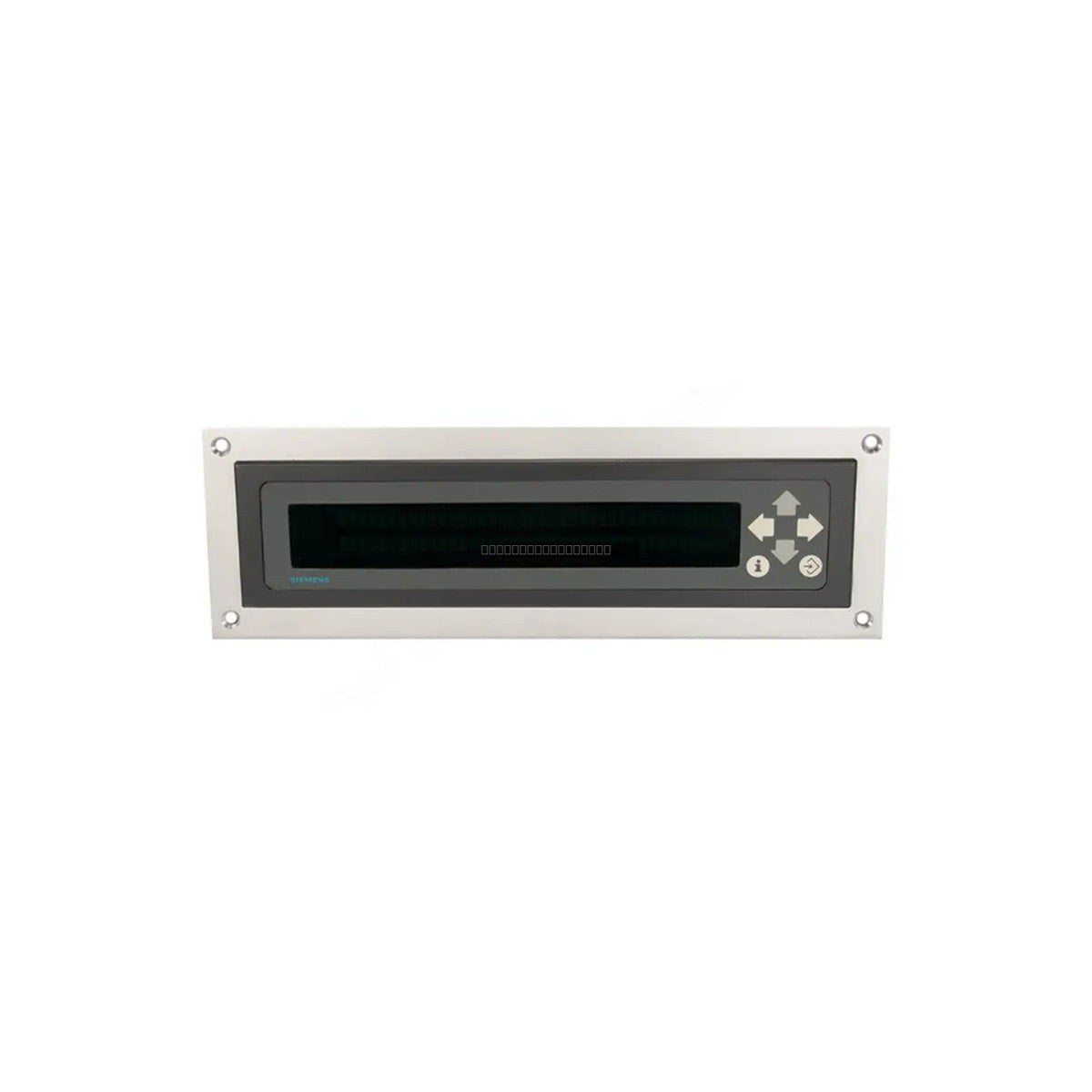

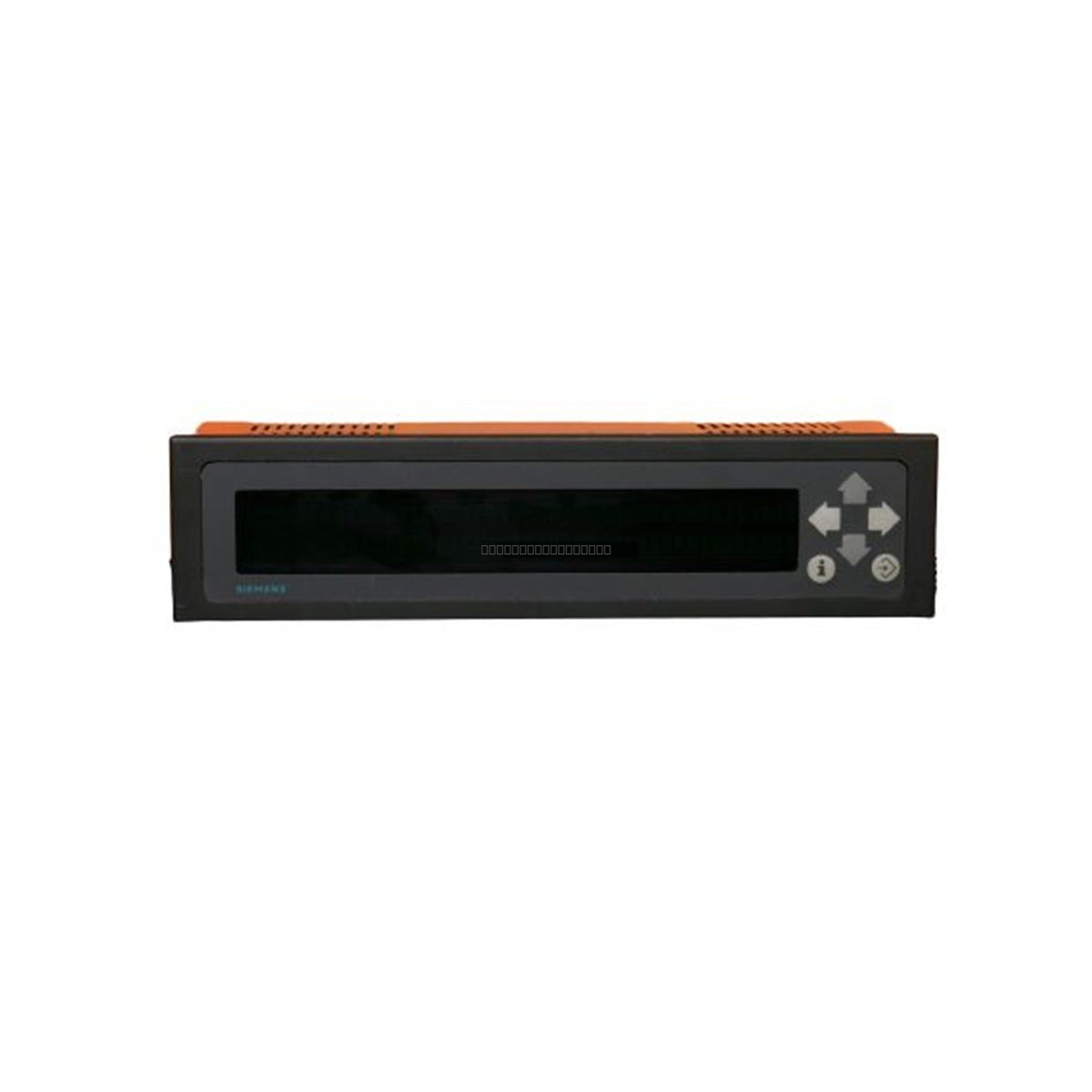

The Siemens 6AV1142-1DA10, also known as the TD2-240-5, is a specialized operator interface designed for integration with legacy Simatic S5 programmable logic controller systems. This text display unit provides machine-level visualization, allowing operators to monitor process variables, system statuses, and diagnostic alarms directly at the point of operation. By providing clear, text-based feedback, the unit assists in rapid fault identification and troubleshooting, which helps minimize downtime in demanding industrial environments.

Features

  • Direct Interface: Optimized for seamless communication with Simatic S5 processor racks, including S5-115U, S5-135U, and S5-155U series.
  • Rugged Design: Features a durable membrane keypad engineered to withstand moisture, chemical exposure, and frequent mechanical actuation.
  • Efficient Data Handling: Integrated firmware manages character mapping, reducing the processing load on the host PLC.
  • Serial Connectivity: Supports TTY (20 mA current loop) and RS232/RS485 communication standards for reliable data exchange.

Applications

This operator interface is suitable for heavy industrial applications where legacy S5 automation systems remain in service, including metals processing, mining, water treatment facilities, and manufacturing assembly lines.

Technical Specifications

Model 6AV1142-1DA10 (TD2-240-5)
Brand Siemens
Series Simatic S5 HMI
Display Type Alphanumeric Text Display
Communication Interface TTY / 20 mA Current Loop / Serial
Power Requirements 24 VDC (0.3 A nominal)
Operating Temperature 0 to 50 deg C
Storage Temperature -20 to 70 deg C

Installation Guidelines

  • Ensure the unit is mounted in a location that protects the display from direct high-pressure washdowns or excessive vibration.
  • Verify that the 24 VDC power supply is stable and properly grounded before connecting to the unit.
  • Use shielded communication cables for the TTY/serial connection to minimize electromagnetic interference (EMI) from high-voltage equipment.
  • Always power down the PLC rack and the display unit before connecting or disconnecting communication cables to prevent electrical damage to the interface ports.
  • Ensure the membrane keypad is kept free of debris and chemical buildup to maintain tactile responsiveness.

FAQ

What communication protocols does the 6AV1142-1DA10 support?

The unit supports standard Siemens TTY (20 mA current loop) and RS232/RS485 serial communication, which are native to the S5-115U, S5-135U, and S5-155U processor ports.

Is this unit suitable for outdoor use?

The unit is designed for machine-level factory floor environments. It is not rated for direct outdoor exposure; it should be installed within an appropriate NEMA or IP-rated enclosure if used in harsh or exposed conditions.
