Siemens 6AV3617-1JC00-0AX1 Simatic OP 17 Operator Panel

Siemens 6AV3617-1JC00-0AX1 Simatic OP 17 Operator Panel

Description

The Siemens Simatic OP 17 (6AV3617-1JC00-0AX1) is an industrial operator panel designed for real-time monitoring and process control within automated systems. It features a monochrome LED-backlit LC display capable of...

19 people are viewing this right now

Availability: Low stock: 9 left

SKU: 6ES5301-3AB12
Vendor: Siemens
Category: Operator Panel
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

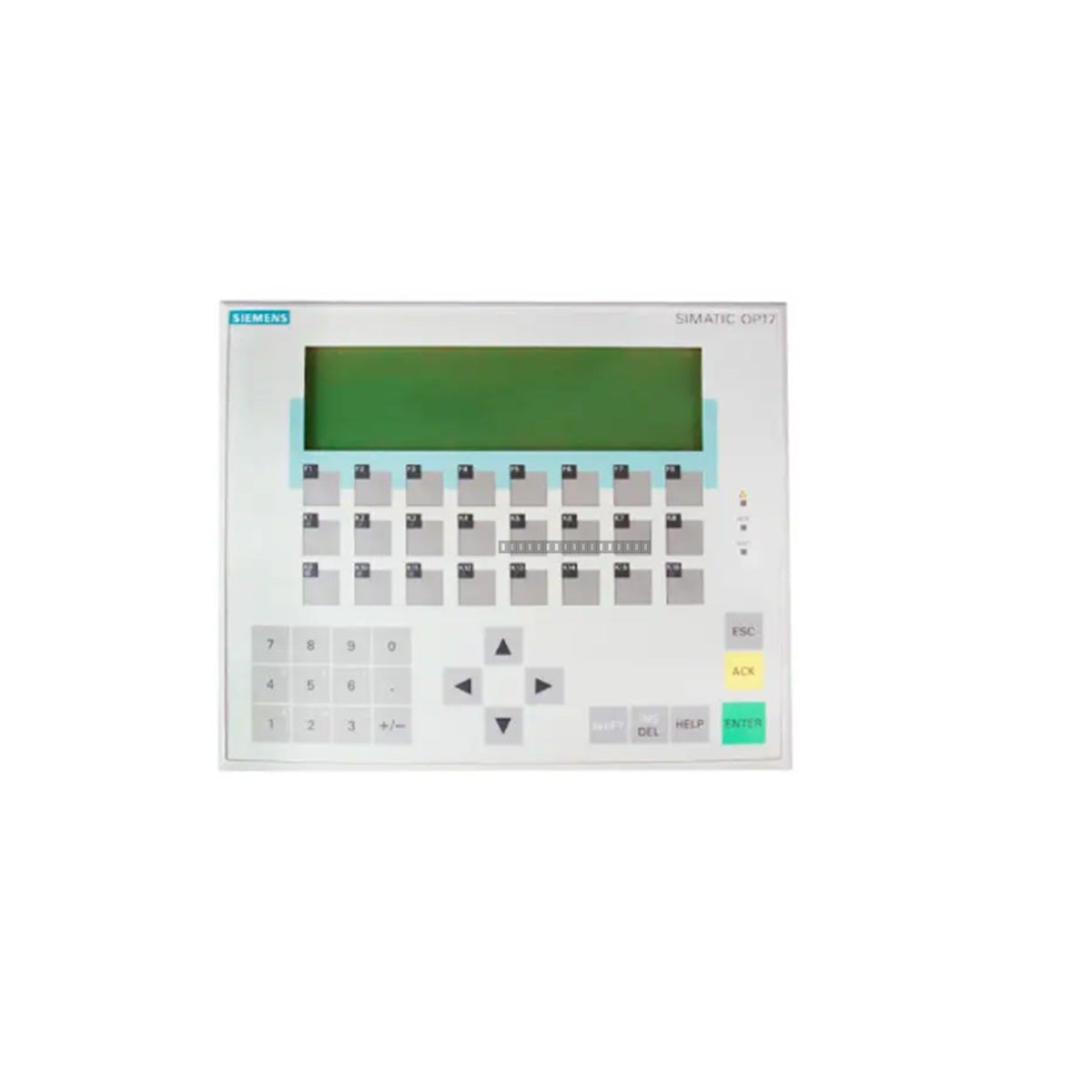

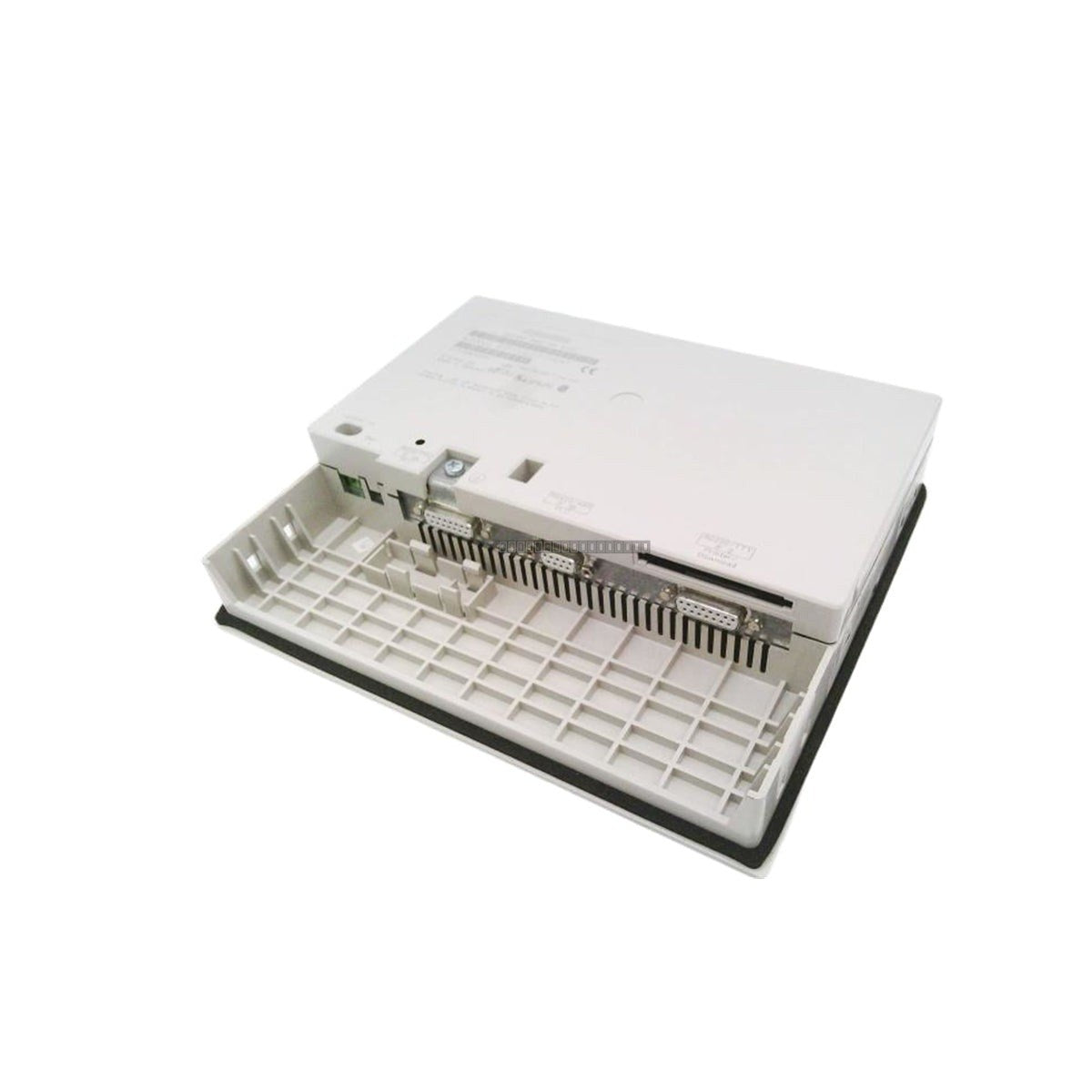

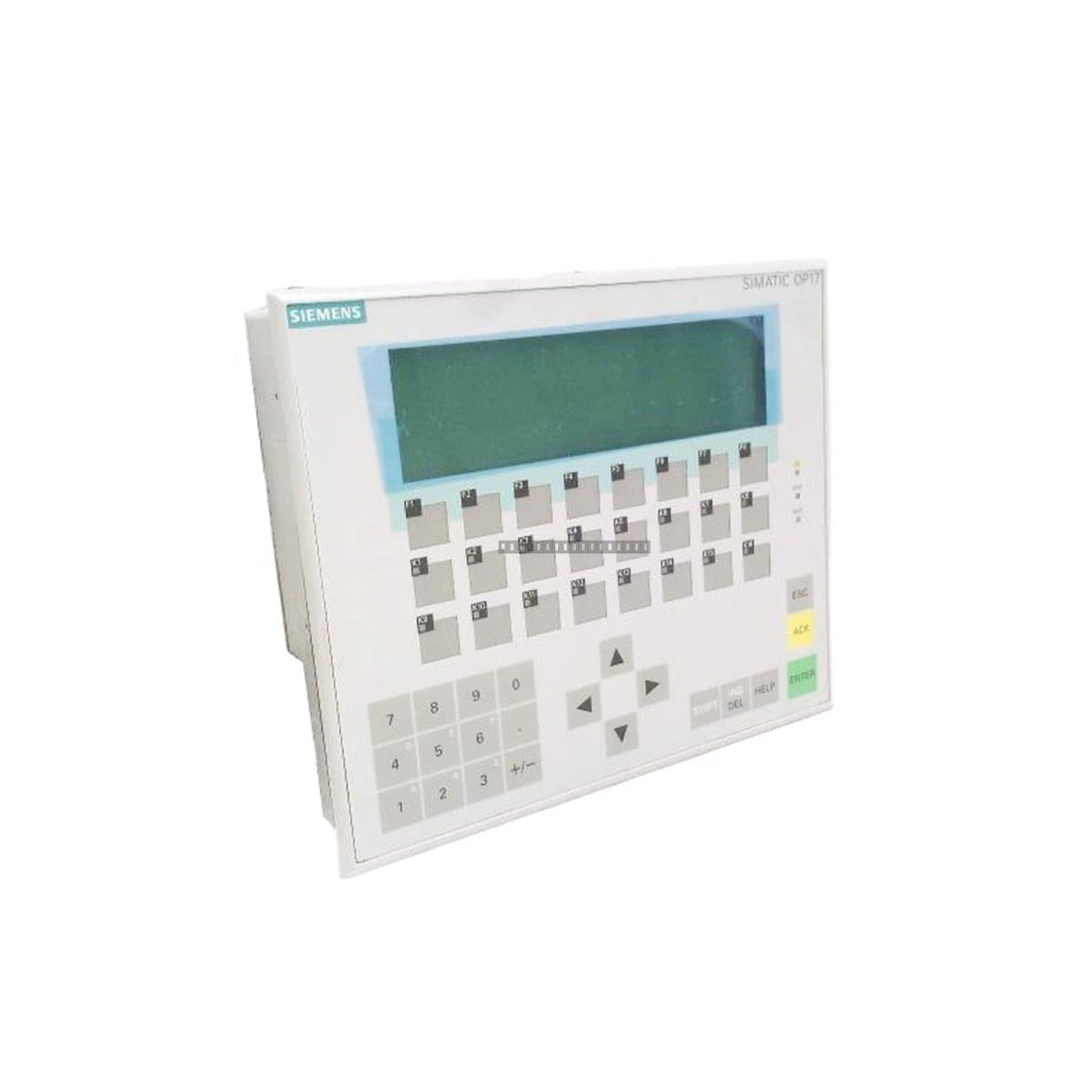

The Siemens Simatic OP 17 (6AV3617-1JC00-0AX1) is an industrial operator panel designed for real-time monitoring and process control within automated systems. It features a monochrome LED-backlit LC display capable of showing 4 lines by 20 characters or 8 lines by 40 characters. This interface allows plant personnel to execute commands, modify system parameters, and monitor diagnostic data, making it a reliable solution for localized process management in demanding industrial environments.

Features

  • Integrated membrane keypad designed for high-duty cycles and resistance to industrial contaminants.
  • Non-volatile memory for secure storage of alarm logs, function key assignments, and system parameters.
  • Native drivers for direct communication with Simatic S5 automation controllers.
  • Compact, robust housing suitable for panel-mount applications in harsh environments.
  • Efficient 24 VDC power operation with low current consumption.

Applications

The OP 17 operator panel is widely utilized in sectors such as automotive assembly, oil refining, wastewater treatment, and mining control stations. It is intended for use where immediate localized process visibility and alarm handling are required to minimize downtime and improve operator response times.

Technical Specifications

Model 6AV3617-1JC00-0AX1
Brand Siemens
Product Family Simatic S5 HMI
Supply Voltage 24 VDC
Current Consumption 0.4 A
Display Type LC Display, LED Backlit
Display Capacity 4 x 20 or 8 x 40 characters
Operating Temperature 0 to 50 deg C
Storage Temperature -20 to 60 deg C
Certifications UL, CSA

Installation Guidelines

  • Ensure the panel is mounted in a clean, dry location with adequate clearance for ventilation.
  • Verify that the supply voltage is 24 VDC and correctly polarized before connection.
  • Use shielded communication cables to prevent interference in high-EMI environments.
  • Ensure the membrane keypad is not exposed to sharp objects or aggressive solvents.
  • Power down the unit before performing any wiring changes or maintenance.

FAQ

What is the primary function of the OP 17?

The OP 17 serves as an HMI for Siemens Simatic S5 controllers, allowing operators to view process data, acknowledge alarms, and input control parameters directly at the machine level.

Does this unit require external memory?

No, the unit includes integrated non-volatile memory to ensure that configuration data and alarm logs are retained during power interruptions.
