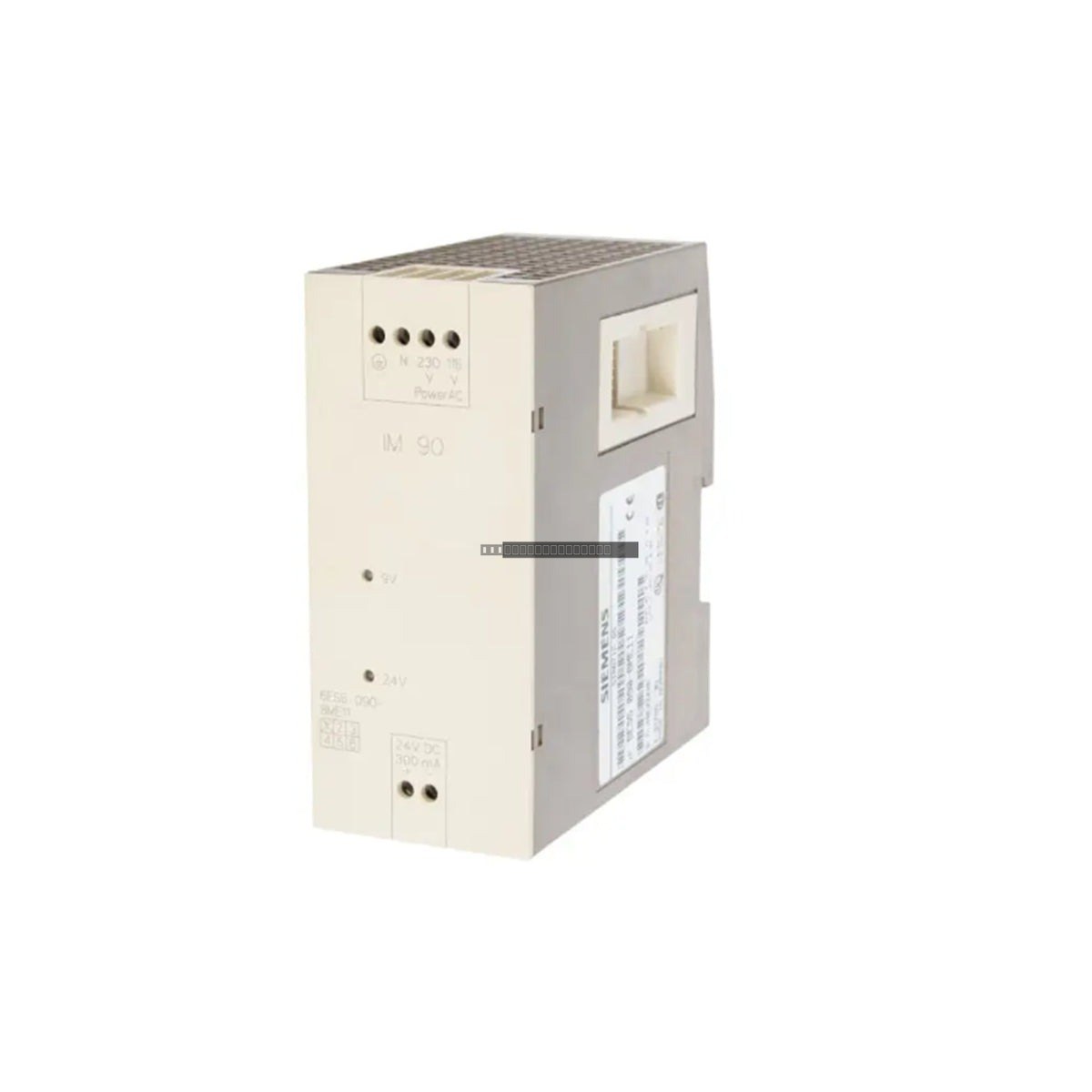

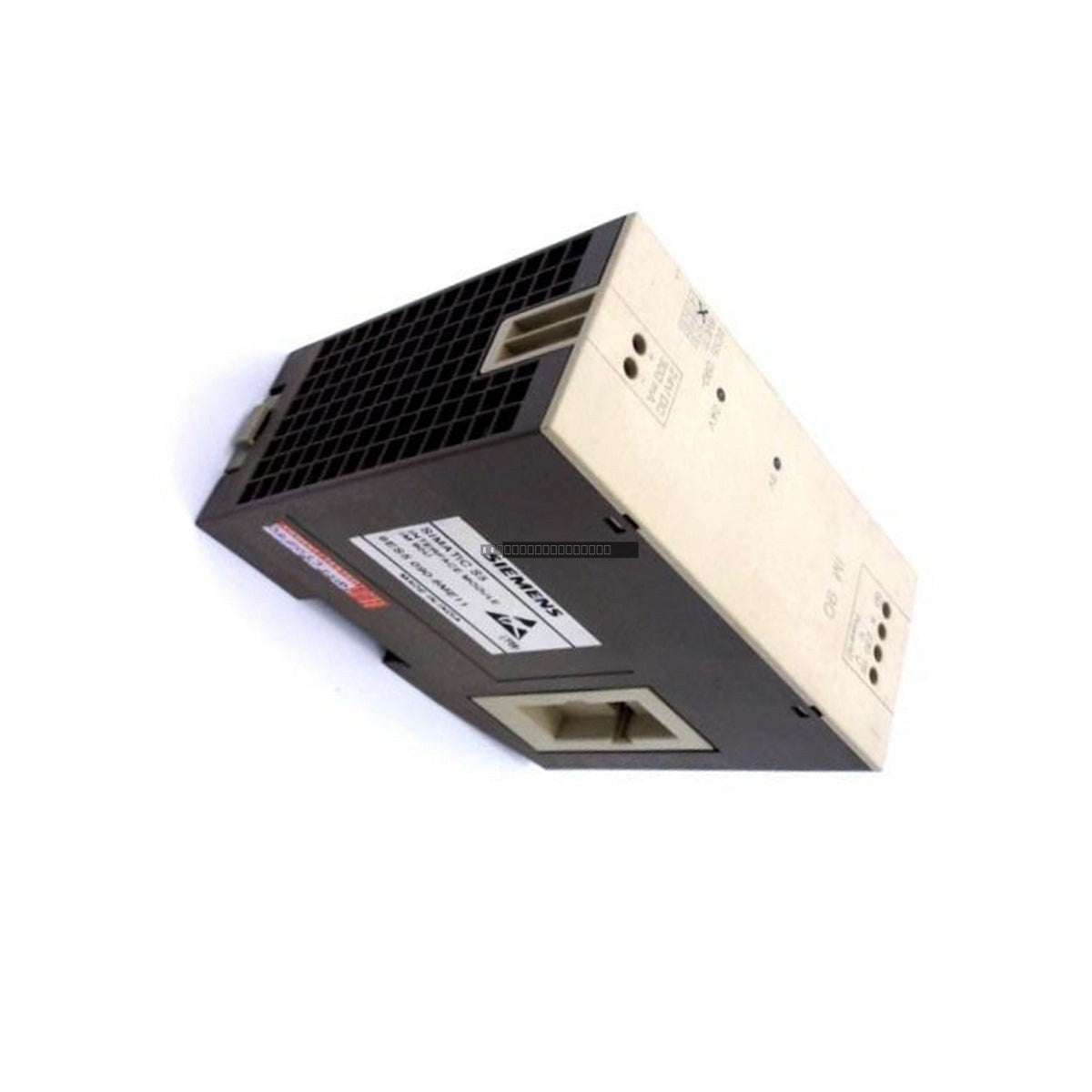

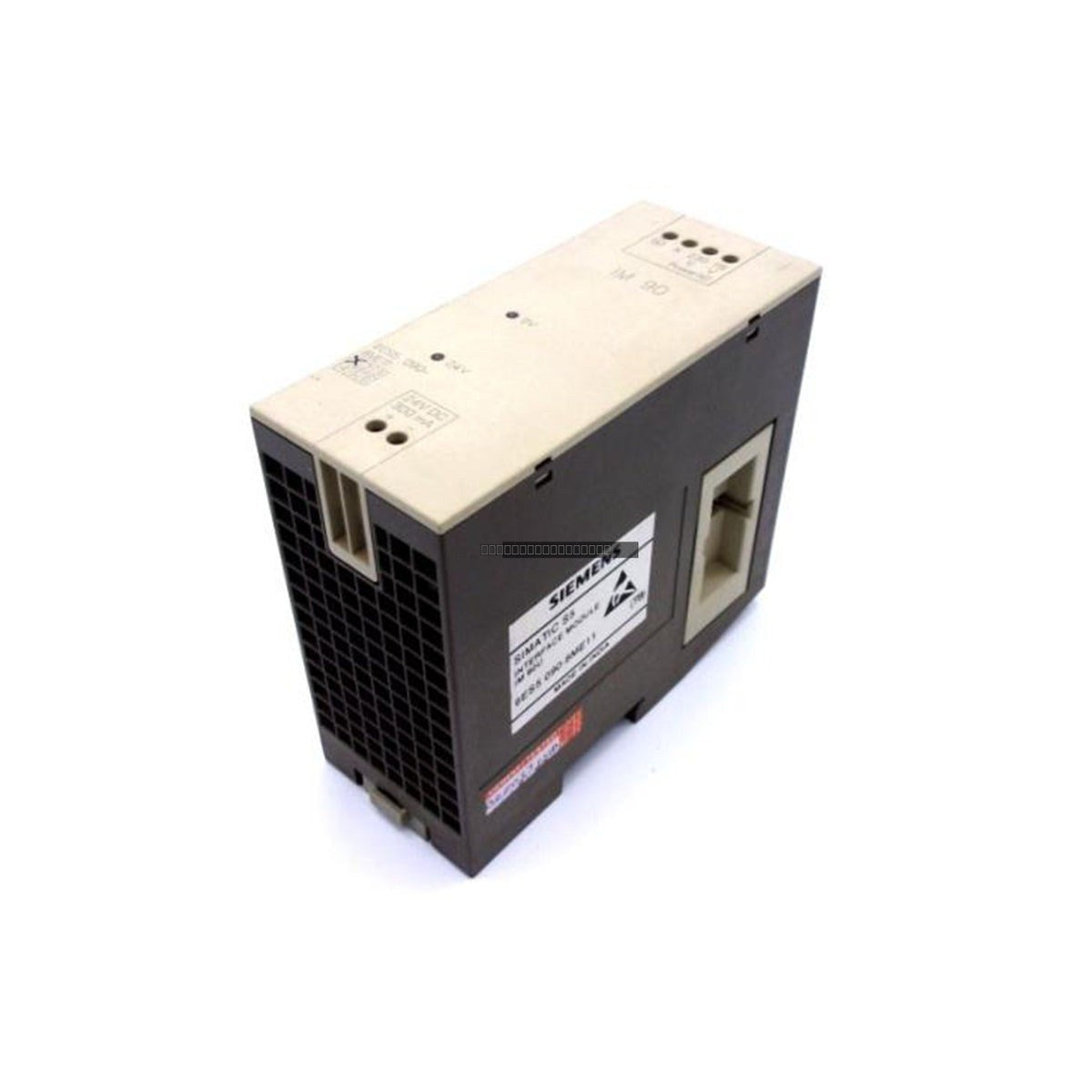

Siemens 6ES5090-8ME11 Simatic S5-IM90 Interface Module

Siemens 6ES5090-8ME11 Simatic S5-IM90 Interface Module

Description

The Siemens 6ES5090-8ME11 is an S5-IM90 interface module designed to facilitate system expansion for Simatic S5-90U programmable logic controllers. This module serves as a critical bridge, allowing users to integrate...

29 people are viewing this right now

Availability: Low stock: 10 left

SKU: 6ES5090-8ME11
Vendor: Siemens
Category: Interface Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Siemens 6ES5090-8ME11 is an S5-IM90 interface module designed to facilitate system expansion for Simatic S5-90U programmable logic controllers. This module serves as a critical bridge, allowing users to integrate S5-100U peripheral modules into an existing S5-90U architecture. By providing the necessary electrical and logical interface, the unit enables the scaling of I/O capacity in legacy automation environments, ensuring stable communication and power distribution across the expansion rack.

Features

  • Enables connection of up to six S5-100U peripheral modules to an S5-90U CPU.
  • Integrated power regulation providing 24 VDC external input and 9 VDC internal bus supply.
  • Optocoupler isolation on communication lines to protect the central processor from electrical transients.
  • Robust mechanical design for secure mounting within standard S5 rack slots.
  • Supports reliable signal integrity in demanding industrial process control applications.

Applications

This interface module is intended for use in legacy industrial automation systems, including petrochemical processing, power generation facilities, and heavy manufacturing plants. It is specifically suited for applications requiring the expansion of local I/O capacity where S5-90U controllers are currently deployed.

Technical Specifications

Model 6ES5090-8ME11 (S5-IM90)
Brand Siemens Simatic
Operating Temperature 0 to 60 deg C
Power Input 24 VDC
Internal Bus Supply 9 VDC
Expansion Capacity Up to 6 S5-100U modules

Installation Guidelines

  • Ensure the PLC system is completely powered down before inserting or removing the interface module.
  • Verify that the module is correctly seated in the designated S5 rack slot to ensure proper backplane electrical contact.
  • Maintain proper ventilation within the control cabinet to keep ambient temperatures within the specified 0-60 deg C range.
  • Route signal cables away from high-voltage power lines and sources of electromagnetic interference to prevent communication errors.
  • Handle with care to prevent electrostatic discharge (ESD) damage to the internal circuitry.

FAQ

What is the primary function of the 6ES5090-8ME11?

This module acts as an interface adapter that allows an S5-90U PLC to communicate with and power up to six S5-100U series I/O modules.

Does this module require external power?

Yes, the module requires a 24 VDC external power input, which it then regulates to provide a stable 9 VDC supply for the connected expansion backplane.

Can this module be used with other S5 series CPUs?

The 6ES5090-8ME11 is specifically designed for the S5-90U system to bridge to the S5-100U peripheral series.
