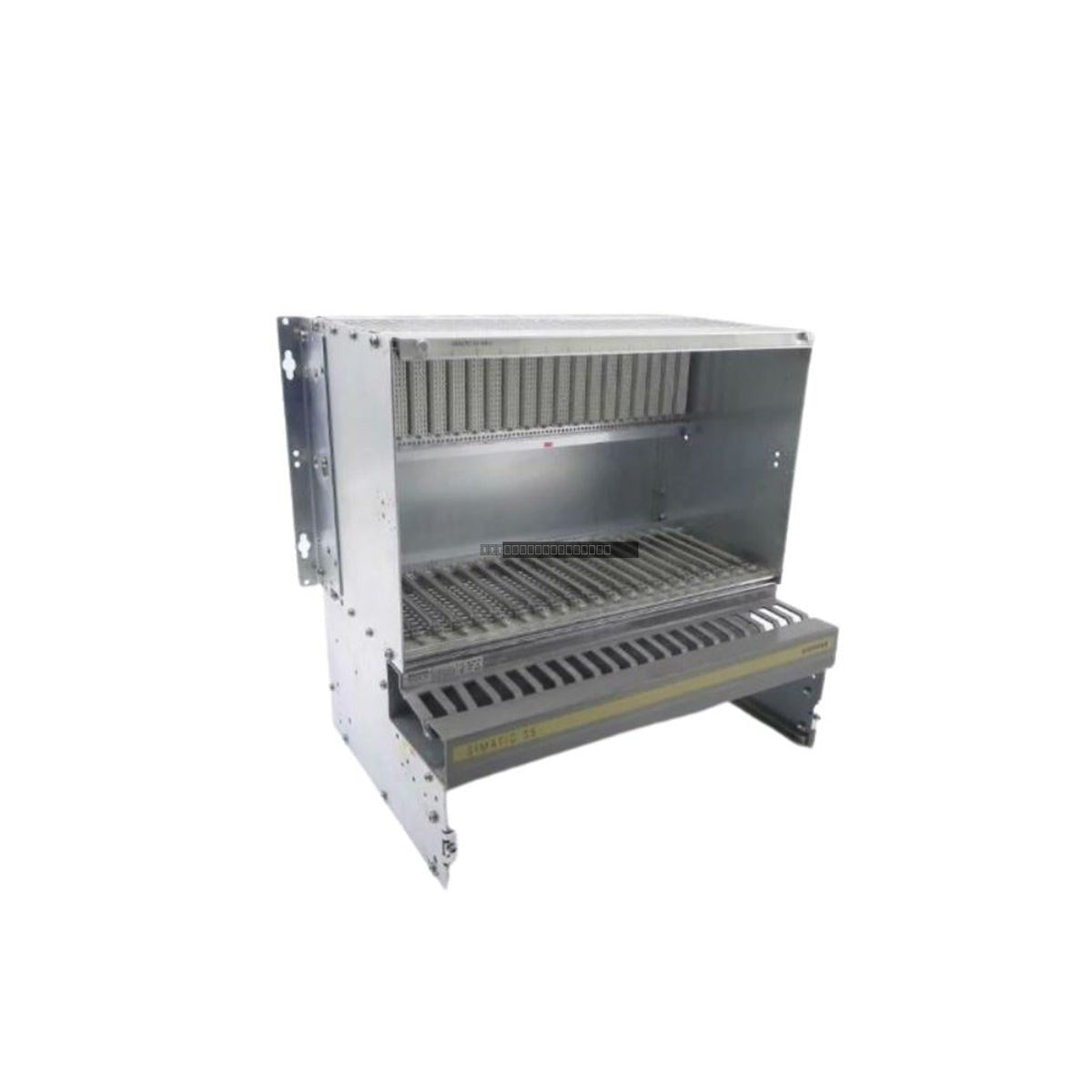

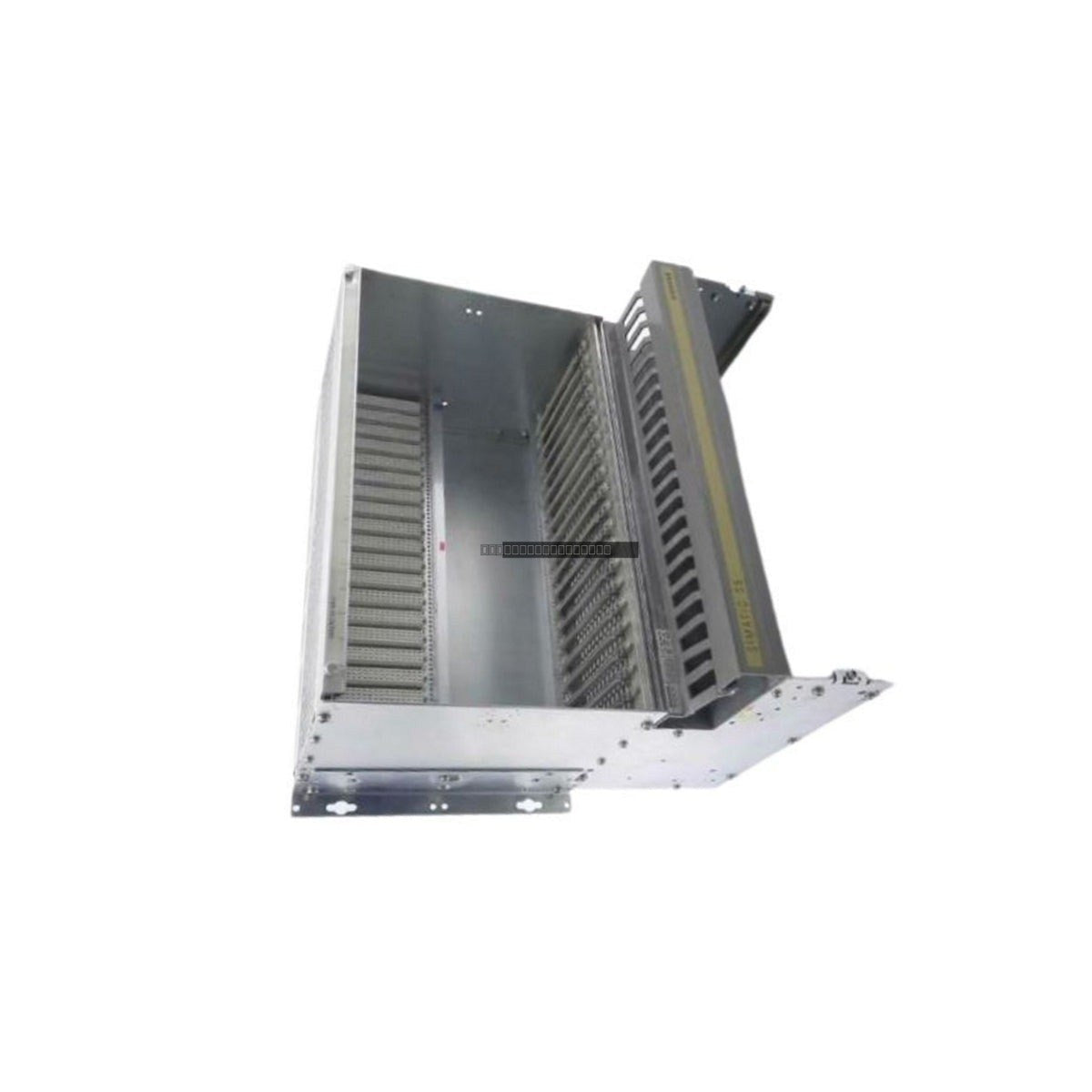

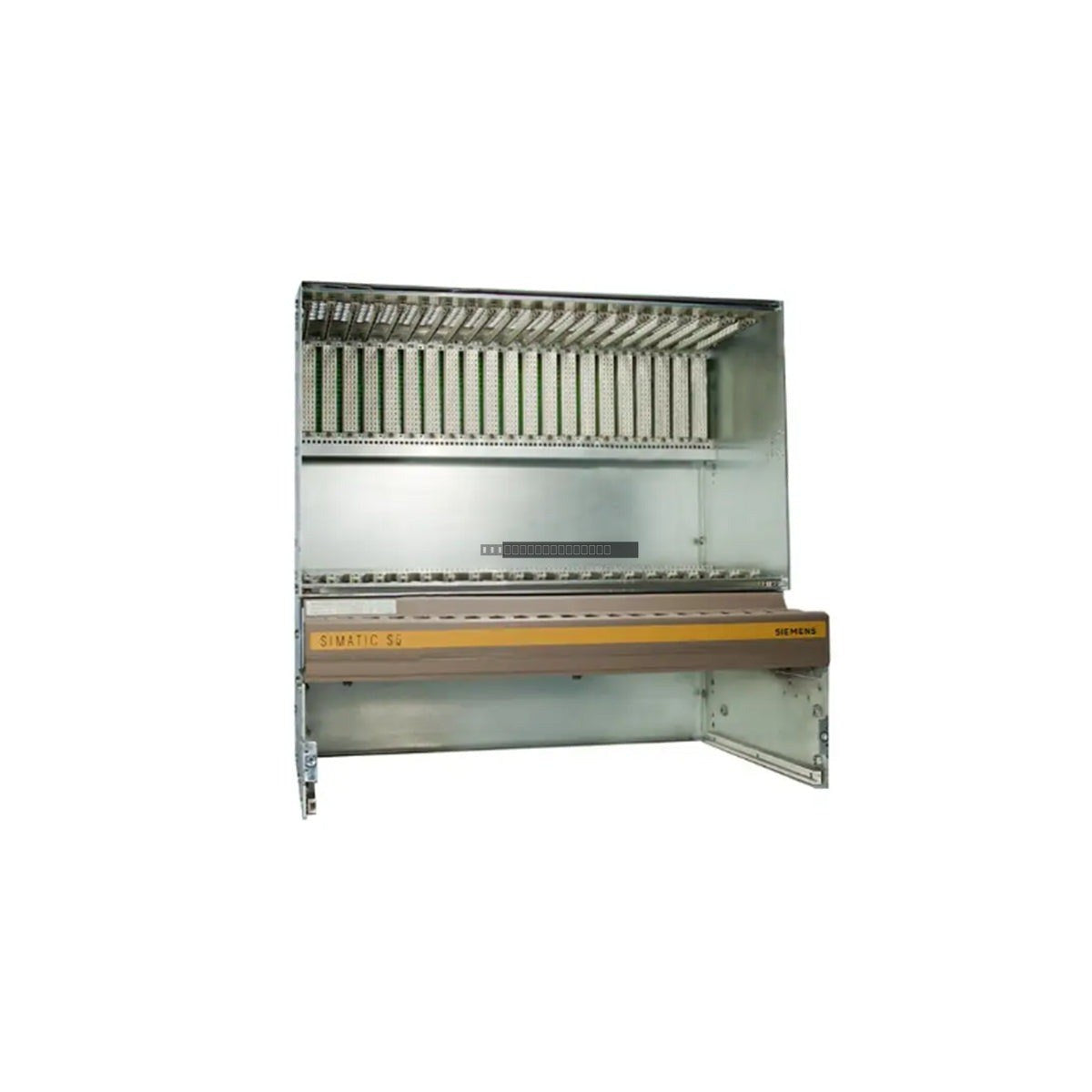

Siemens 6ES5 184-3UA21 Simatic S5 Expansion Rack Chassis

Siemens 6ES5 184-3UA21 Simatic S5 Expansion Rack Chassis

System Overview

The Siemens Simatic S5 6ES5 184-3UA21 is a robust 21-slot expansion rack designed to extend the I/O capacity of S5-135U and S5-155U PLC systems. This industrial subrack provides a...

20 people are viewing this right now

Availability: Low stock: 7 left

SKU: 6ES5704-3BC50
Vendor: Siemens
Category: PLC Expansion Rack
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

System Overview

The Siemens Simatic S5 6ES5 184-3UA21 is a robust 21-slot expansion rack designed to extend the I/O capacity of S5-135U and S5-155U PLC systems. This industrial subrack provides a stable, high-density mounting environment for digital and analog I/O modules, communication processors, and specialized function boards. Built for demanding environments such as power generation and heavy manufacturing, this chassis ensures reliable backplane communication and structural integrity for critical control architectures.

Features

  • High-Density Capacity: Provides 21 dedicated slots for S5-135U/155U series modules.
  • Integrated Thermal Management: Features a built-in DC cooling fan assembly to ensure forced-air circulation and prevent thermal degradation of sensitive electronic components.
  • Robust Construction: Heavy-duty aluminum chassis designed to withstand mechanical stress and maintain alignment in industrial cabinets.
  • EMI Protection: Integrated grounding points facilitate a common reference potential, reducing electromagnetic interference across the backplane.
  • Precision Alignment: Engineered card guide rails ensure accurate module seating and protect backplane pins during installation.

Technical Specifications

Model 6ES5 184-3UA21
Series Simatic S5-135U / S5-155U
Slot Count 21 Slots
Cooling Integrated DC Fan
Fan Input Voltage 24 VDC
Operating Temperature 0 to 55 deg C
Storage Temperature -40 to 70 deg C

Installation Guidelines

  • Mounting: Ensure the rack is securely fastened to a standard 19-inch industrial enclosure or mounting frame.
  • Cooling Clearance: Maintain adequate space above and below the rack to allow the integrated fan to pull ambient air through the card guides effectively.
  • Grounding: Connect the chassis grounding point to the cabinet's protective earth (PE) busbar using a low-impedance conductor to minimize EMI.
  • Module Handling: Always power down the rack before inserting or removing modules to prevent electrical arcing or damage to the backplane bus.
  • Environment: Install in a clean, dry environment free from excessive dust, corrosive gases, or extreme vibration.

FAQ

Is this rack compatible with all S5 modules?

This rack is specifically designed for the S5-135U and S5-155U PLC series. Please verify that your specific module types are compatible with the S5-135/155 backplane bus architecture before installation.

How is the cooling fan powered?

The integrated cooling fan requires a 24 VDC power supply input. Ensure the power source is correctly wired to the designated terminals to maintain airflow.
