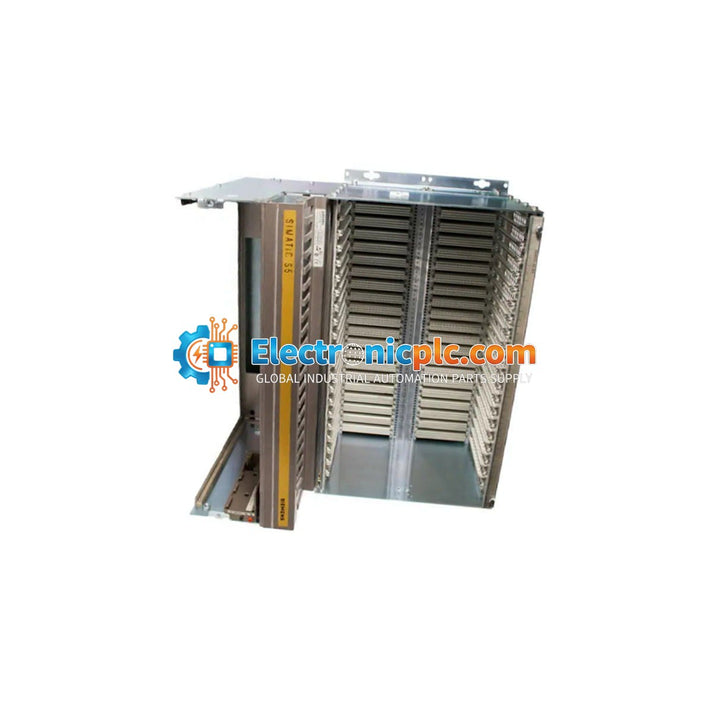

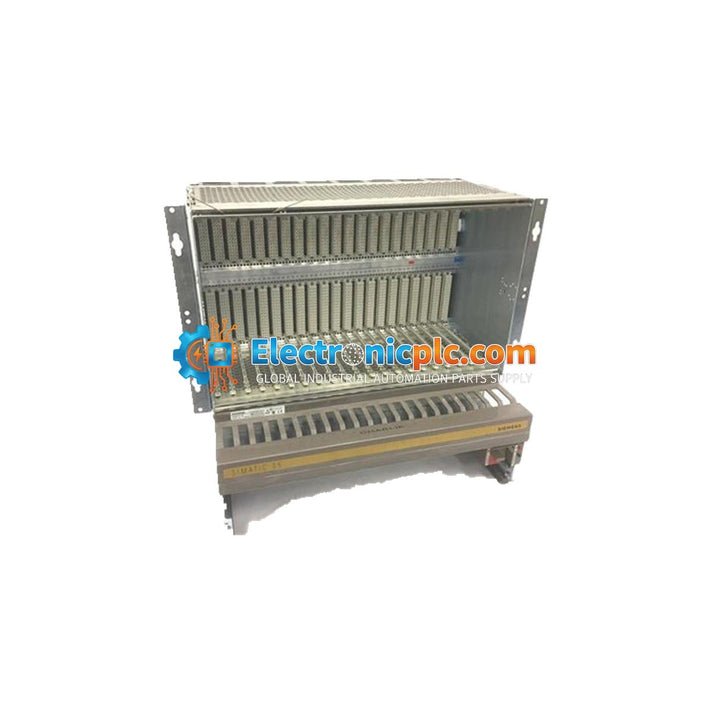

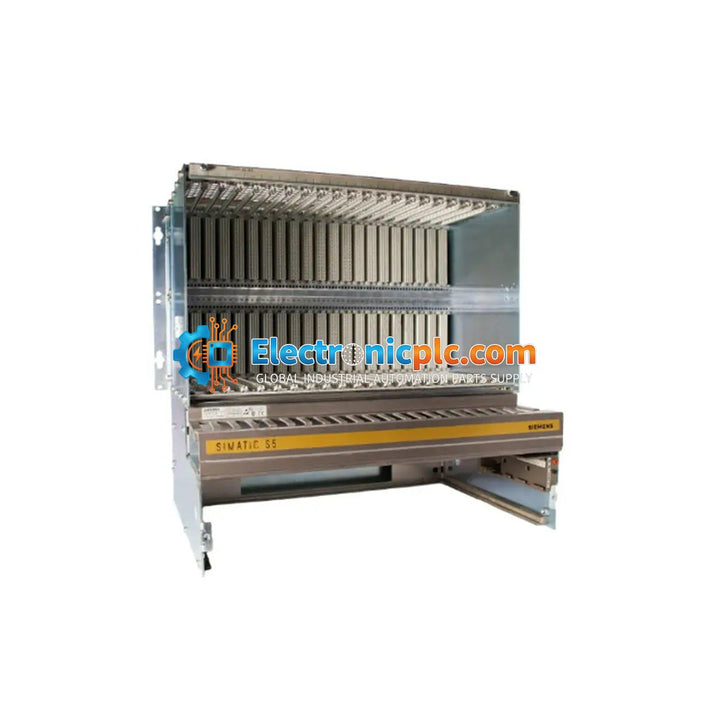

Siemens 6ES5185-3UA13 Simatic S5 EU185 Expansion Subrack

Siemens 6ES5185-3UA13 Simatic S5 EU185 Expansion Subrack

Description

The Siemens 6ES5185-3UA13 (EU185) is a high-capacity 21-slot expansion subrack designed for the Simatic S5-135U and S5-155U programmable logic controller systems. This robust chassis provides the necessary physical mounting and...

23 people are viewing this right now

Availability: Low stock: 3 left

SKU: 6ES5185-3UA13
Vendor: Siemens
Category: PLC Expansion Rack
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Siemens 6ES5185-3UA13 (EU185) is a high-capacity 21-slot expansion subrack designed for the Simatic S5-135U and S5-155U programmable logic controller systems. This robust chassis provides the necessary physical mounting and backplane communication infrastructure to extend I/O capabilities in large-scale industrial automation environments. Featuring an integrated 110/230 VAC power supply, the unit delivers stable, regulated power directly to the backplane, supporting high-density configurations of digital, analog, and communication modules without overloading the primary controller rack.

Features

  • 21-slot capacity for extensive I/O and communication module integration.
  • Integrated multi-voltage power supply (110/230 VAC selectable).
  • Designed for seamless integration with Simatic S5-135U and S5-155U systems.
  • Heavy-duty aluminum alloy construction for structural integrity and EMI shielding.
  • Parallel bus architecture ensuring deterministic signal timing and high-speed data transfer.

Applications

This expansion subrack is engineered for critical industrial infrastructures requiring high-density I/O, including thermal power plants, oil and gas refining units, and heavy manufacturing control systems. It is ideal for system expansion or as a direct replacement for legacy S5 rack hardware to maintain operational continuity.

Technical Specifications

Model 6ES5185-3UA13
System Family Simatic S5-135U / S5-155U
Slot Count 21
Input Voltage 110 VAC / 230 VAC
Operating Temperature 0 to 55 deg C
Storage Temperature -40 to 70 deg C
Relative Humidity 95 percent (non-condensing)

Installation Guidelines

  • Ensure the subrack is mounted in a clean, dry, and vibration-free environment within an industrial cabinet.
  • Verify that the power supply input voltage selector is correctly set to match the local supply (110 VAC or 230 VAC) before applying power.
  • Always power down the system before inserting or removing modules to prevent electrical damage to the backplane connectors.
  • Ensure proper grounding of the chassis to the cabinet frame to maintain EMI protection and safety.
  • Maintain adequate clearance around the unit to allow for natural convection cooling.

FAQ

Is this subrack compatible with all S5 modules?

The 6ES5185-3UA13 is designed for standard Simatic S5-135U/155U modules. Please verify the physical form factor and electrical requirements of your specific I/O modules against the S5 system documentation.

Does this unit require an external power supply?

No, this unit features an integrated power supply that accepts 110/230 VAC line power and converts it to the required internal DC bus voltages.
