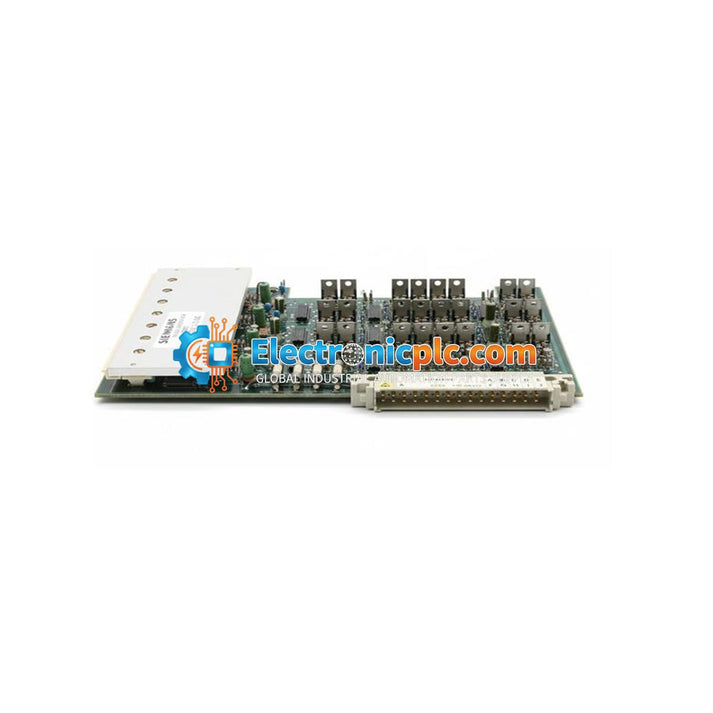

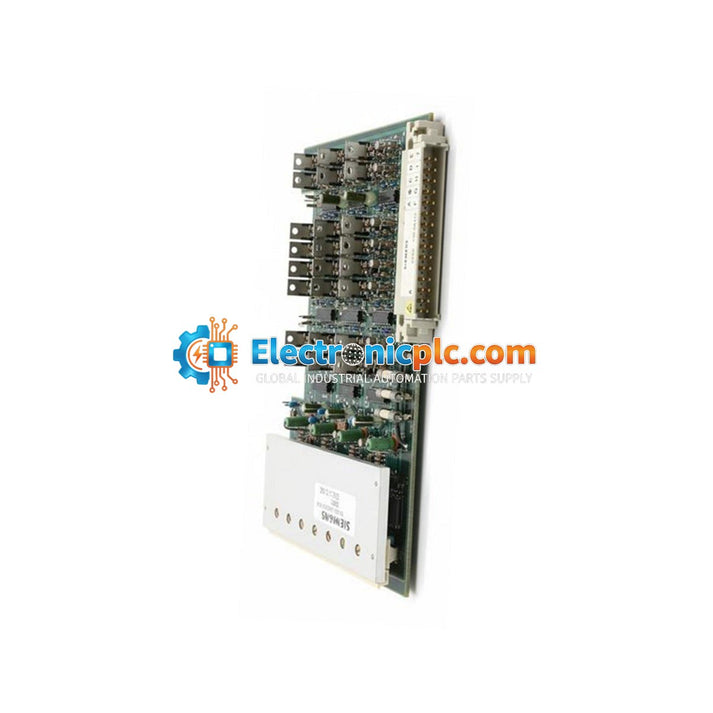

Siemens 6ES5410-0AA12 Simatic S5 Digital Output Module

Siemens 6ES5410-0AA12 Simatic S5 Digital Output Module

Description

The Siemens 6ES5410-0AA12 is a dedicated digital output module engineered for the Simatic S5-010 programmable controller system. This module provides four independent output channels rated for 24 VDC operation, specifically...

23 people are viewing this right now

Availability: Low stock: 2 left

SKU: 6ES5410-0AA12
Vendor: Siemens
Category: Digital Output Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Siemens 6ES5410-0AA12 is a dedicated digital output module engineered for the Simatic S5-010 programmable controller system. This module provides four independent output channels rated for 24 VDC operation, specifically designed for controlling low-voltage actuators, pilot relays, and solenoid valves in small-scale automation loops. By facilitating a direct interface between the S5-010 CPU and field devices, it enables precise control of discrete processes in legacy manufacturing, packaging, and light assembly environments. This module serves as a critical replacement component for aging infrastructure, helping to maintain system uptime in legacy S5-010 installations.

Features

  • Designed specifically for the Siemens Simatic S5-010 controller series.
  • Provides 4 independent discrete output channels.
  • Nominal operating voltage of 24 VDC.
  • Solid-state switching logic for high-frequency cycle reliability.
  • Integrated electrical isolation to protect controller circuitry from field-side transients.
  • Low-latency communication via the system backplane.

Applications

This module is typically utilized in legacy industrial automation systems, including:

  • Small-scale packaging machinery control.
  • Light assembly line automation.
  • Pilot relay and solenoid valve actuation.
  • Discrete process control loops in legacy manufacturing facilities.

Technical Specifications

Model 6ES5410-0AA12
Brand Siemens Simatic S5
Output Channels 4
Operating Voltage 24 VDC
Operating Temperature 0 to 55 degC
Compatibility Simatic S5-010

Installation Guidelines

  • Ensure the S5-010 controller power is fully disconnected before inserting or removing the module from the rack.
  • Verify that the module is correctly seated in the designated backplane slot to ensure proper communication with the CPU.
  • Use shielded cabling for field-side connections to minimize EMI interference.
  • Maintain proper ventilation within the control cabinet to ensure the ambient temperature remains within the 0 to 55 degC operating range.
  • Handle the module using ESD-safe practices to prevent damage to internal electronic components.

FAQ

Is this module compatible with other Simatic S5 series?

No, the 6ES5410-0AA12 is specifically designed for the Simatic S5-010 controller system. Please verify your system model before installation.

Does this module require external power for the outputs?

The module operates on 24 VDC nominal power. Ensure your field power supply is correctly wired to the output terminals according to the S5-010 system documentation.
